HP ML150 Overview

Hp proliant generation 3 (g3)
Hide thumbs Also See for ML150:

Advertisement

Table of Contents

See also: Troubleshooting Manual , Technical White Paper
QuickSpecs
Overview

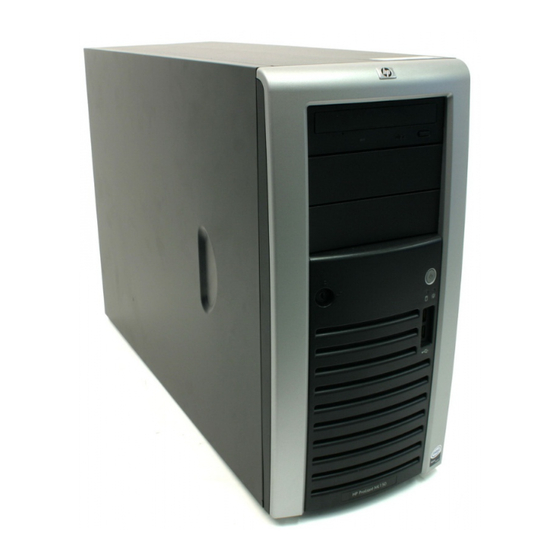

Front View:
Front View:
Front View:
Front View:
1.
48x CD-ROM (2 media bays available)
2.
Locking front bezel
3.
Six 3.5" SAS/SATA HDD bays
4.
Front system fan
5.
Main System Board
6.
Six PCI slots
7.
Processor and processor air duct
8.
Power Supply
What's New
What's New
What's New
What's New
The ML150 G3 now supports:
Intel® Quad-Core processors 1.60 GHz 1066,1.86 GHz 1066 FSB and 2.00 GHz 1333 FSB
Supporting up to six (6) HP 300GB 15K SAS 3.5 SP HDD
DA - 12527
Worldwide — Version 26 — March 28, 2008
HP ProLiant ML150 Generation 3 (G3)
HP ProLiant ML150 Generation 3 (G3)
HP ProLiant ML150 Generation 3 (G3)
HP ProLiant ML150 Generation 3 (G3)
Rear View:
Rear View:
Rear View:
Rear View:
1. Power
2. Mouse Port
3. Keyboard Port
4. Serial Port
5. Monitor Port
6. USB Port
7. Network Port
8. Dedicated LO100 LAN Management Port
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP ML150

Summary of Contents for HP ML150

  • Page 1 The ML150 G3 now supports: Intel® Quad-Core processors 1.60 GHz 1066,1.86 GHz 1066 FSB and 2.00 GHz 1333 FSB Supporting up to six (6) HP 300GB 15K SAS 3.5 SP HDD DA - 12527 Worldwide — Version 26 — March 28, 2008...
  • Page 2 Warranty: Warranty: Protected by HP Services and a worldwide network of HP Authorized Channel Partners, including a one-year, limited warranty, Next Business Day 1, year on-site limited Global warranty. Certain restrictions and exclusions apply. SATA hard drives have a one year warranty.

  • Page 3: Standard Features

    Standard for SAS/SATA 1 GB Model Maximum 8 GB Network Controller Network Controller Network Controller Network Controller Embedded HP NC7781 Gigabit Server Adapter 10/100/1000 WOL (Wake on LAN) DA - 12527 Worldwide — Version 26 — March 28, 2008 Page 3...
  • Page 4 Full Length, full height PCIe Dynamic Full Length, full height Storage Controller Storage Controller HP Embedded SATA RAID Controller or HP 8 Internal Port SAS Host Bus Adapter with RAID Storage Controller Storage Controller Storage Storage Storage Storage Diskette Drive None ship standard 1.44 MB USB Diskette Drive Option available...
  • Page 5 Compliance PCI 2.3 compliant PXE Support WOL Support Microsoft® Logo certifications Manageability Manageability Manageability Manageability Optional HP ProLiant Lights-Out 100 Remote Management Card Embedded IPMI standard reporting Security Security Security Security Power-on password Setup password Diskette boot control Server Power Cords...
  • Page 6 HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant & HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
  • Page 7 Service and Support Service and Support This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.
  • Page 8 NOTE: When configuring RAID using the embedded SATA RAID controller, two arrays have to be set up to recognize all six drives. NOTE: NOTE: NOTE: NOTE: Only hot plug drives are supported on the ML150 G3; these hot plug drives, when installed on Non-hot plug models, will not have hot plug functionality. NOTE: NOTE: NOTE: NOTE: This section lists some of the steps required to configure a Factory Integrated Model.
  • Page 9 QuickSpecs HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) Models information. Country Code Key Country Code Key Country Code Key Country Code Key XX=00...

  • Page 10: Step 1: Base Configuration

    NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
  • Page 11 NOTE: NOTE: NOTE: NOTE: Only hot plug drives are supported on the ML150 G3; these hot plug drives, when installed on Non-hot plug models, will not have hot plug functionality. Step 3: Choose Additional Options for Factory Integration Step 3: Choose Additional Options for Factory Integration...
  • Page 12 NOTE: SAS hard drives require a SAS HBA or Smart Array Controller. NOTE: NOTE: NOTE: NOTE: Only hot plug drives are supported on the ML150 G3; these hot plug drives, when installed on Non-hot plug models, will not have hot plug functionality. NOTE: NOTE: NOTE: NOTE: The purchase of SAS HBA or array controller is required.
  • Page 13 NOTE: NOTE: NOTE: NOTE: This cable is required when adding either the HP 8 Internal Port SAS HBA with RAID or the HP Smart Array E200 on a hot-plug SATA model or SC44GE HBA. HP Internal SAS/SATA 4-Port Cable 430479-B21...
  • Page 14 HP StorageWorks D2D130 Backup System with Data Protector Express Software Kit EH951A NOTE: NOTE: NOTE: NOTE: 3TB of Disk Storage. HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive EH952A NOTE: NOTE: NOTE: NOTE: 3TB of Disk Storage.
  • Page 15 4-Hour On-Site Service - 24-Hour x 7-Day Coverage, 3 Years, Electronic Deployment Services - HP Installation and Start Up services designed to take time, Deployment Services - HP Installation and Start Up services designed to take time,...
  • Page 16 QuickSpecs HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) Memory HP ProLiant ML150 Generation 3 Server HP ProLiant ML150 Generation 3 Server HP ProLiant ML150 Generation 3 Server...

  • Page 17: Drive Support

    Controller Controller Controller 300GB SAS 15K SPP SP Up to 6 HP 8 Internal Port SAS Host Bus Adapter with RAID 146GB SAS 15K SPP SP (Drive slots 1-6) Optional Smart Array E200 72GB SAS 10K SPP SP 36GB SAS 10K SPP SP DA - 12527 Worldwide —...
  • Page 18 NOTE: NOTE: NOTE: NOTE: In order to realize Hot-Plug functionality in the HP SATA Models of the ML150 G3, the 8 Port Internal Port SAS Host Bus Adapter with RAID (P/N 347786-B21) must be purchased and installed. Maximum Storage Capacity...
  • Page 19 HP ProLiant ML150 Generation 3 (G3) Storage Internal SAS Tape Drives Internal SAS Tape Drives Internal SAS Tape Drives Internal SAS Tape Drives HP 8 Internal Port SAS Host Bus Adapter with RAID 347786-B21 DAT 160 HP SC44Ge Host Bus Adapter 416096-B21 LTO-2 Ultrium 448...

  • Page 20: Power Specifications

    QuickSpecs HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) Power Specifications Part Number Part Number Part Number Part Number 402075-001 Spare Kit Spare Kit...
  • Page 21 QuickSpecs HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) Power Specifications (1) PCI 32 3.3V (1) Lights-Out Remote Management (1) 650 watts power supply...

  • Page 22: Technical Specifications

    QuickSpecs HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) Technical Specifications System Unit System Unit System Unit System Unit Dimensions Dimensions Dimensions Dimensions (HxWxD) 17.83 in x 8.62 in x 25.59 in (45.3 x 21.9 x 65.0 cm)
  • Page 23 QuickSpecs HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) Technical Specifications 48X Max IDE (ATAPI) CD- 48X Max IDE (ATAPI) CD- 48X Max IDE (ATAPI) CD-...
  • Page 24 QuickSpecs HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) HP ProLiant ML150 Generation 3 (G3) Technical Specifications Maximum Capacity Maximum Capacity Maximum Capacity Maximum Capacity 576GB (8 x 72GB) Memory Addressing...
  • Page 25 Intel Corporation in the U.S. and other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
