Summary of Contents for Dish Network 6.3

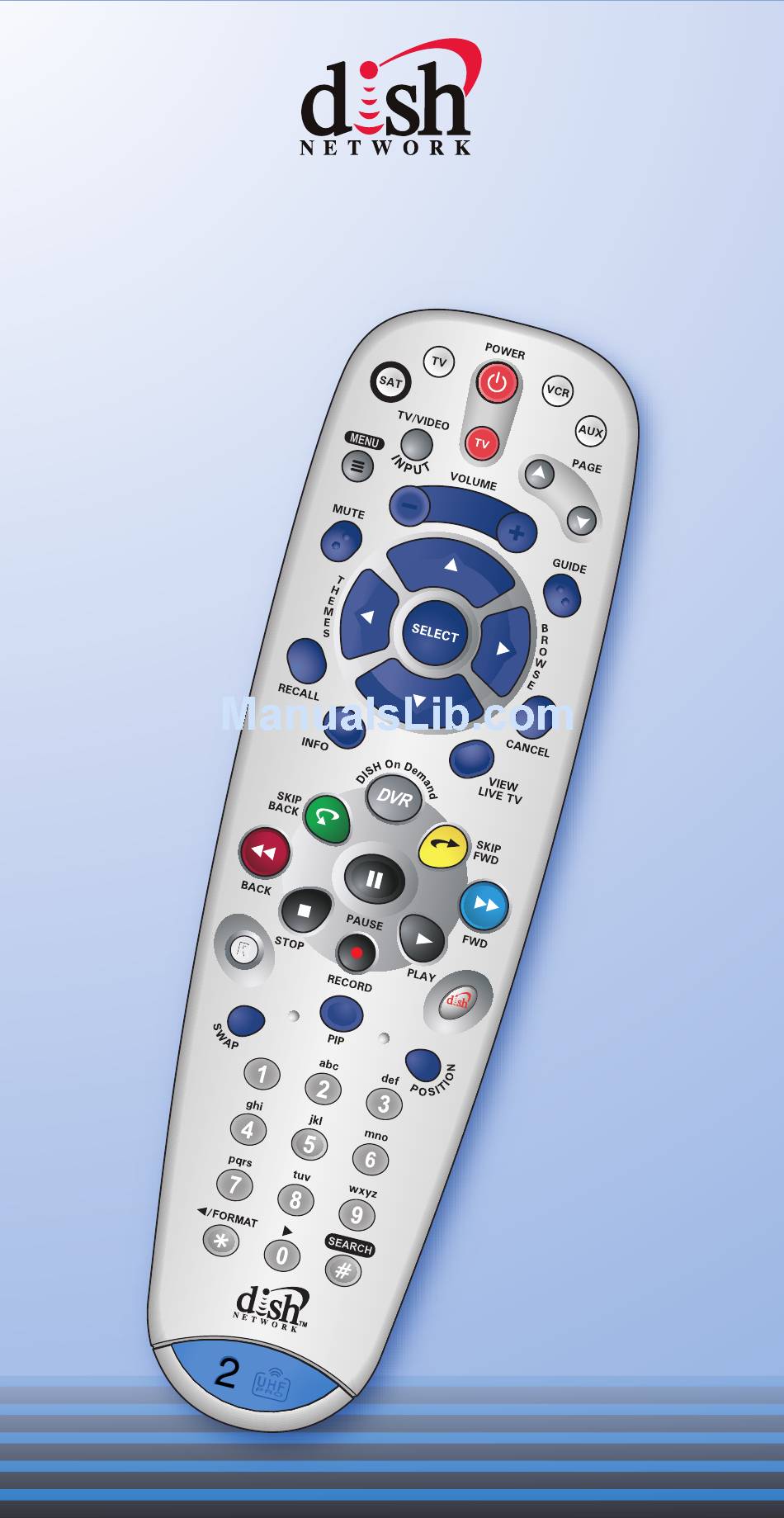

  • Page 1 Remote Control Remote Control User's Guide User's Guide...
  • Page 2 then...
  • Page 4: Quick Setup

    Making the Remote Work With Your Receiver If you installed one of these keys, continue with step If you installed a UHF key, make sure the UHF antenna is installed on the back of the receiver. Confirm that you see the System Information screen.
  • Page 5: Program The Remote To Control Your Tv

    Program the Remote to Control Your TV Turn your TV on. Press POWER. Press POUND. The TV Mode button will flash three times. Quick Setup Press & hold the TV Mode button until all Mode buttons light up. Press the UP ARROW repeatedly press per second)
  • Page 6: Programming The Recover Button For Tv2 Operation

    Programming the Recover Button for TV2 Operation For TV2 Remote Controls on DISH Player-DVR 522, 625, 942, ViP222 and ViP622 DVR Receivers Programming your RECOVER button allows you to easily regain satellite programming if you accidentally change TV channels or inputs. Press &...
  • Page 7: If You Lose Your Picture

    Quick Setup/Operation Placing Your Remote in Limited Mode Limited Mode locks out all the TV mode operations except for TV power, Mute, and Volume. This prevents you from accidentally tuning away from satellite programming. Press & hold the TV Mode button until all Mode buttons light up.
  • Page 8: Remote Operation

    Remote Operation To use the features described in this section, make sure you are in SAT mode by pressing the SAT Mode button. Note: Some features may not be available depending on your receiver model. Receiver Power & TV Power Top button turns the receiver on/off, bottom button...
  • Page 9: Tv Mode

    (PIP) Buttons Display PIP features on some TVs with PIP capabilities Note: Remote operation is different on DISH Network TVs. See your DISH Network TV User's Guide for proper operation. Operation TV Mode Remote key may Remote key may be different than...
  • Page 10: Vcr Mode

    Remote Operation To use the features described in this section, make sure you are in VCR mode by pressing the VCR Mode button. You can use this mode to operate your DVD player instead of a VCR. Remote programming is required. See VCR/DVD Power &...
  • Page 12: Table Of Contents

    Table of Contents COLOR PAGES Quick setup Confirm Your Receiver Model then Select the Right Key ... C-1 Install Your Selected Key ... C-2 Insert the Batteries ... C-2 Making the Remote Work with Your Receiver... C-3 Program the Remote to Control Your TV... C-4 Programming the Recover Button for TV2 Operation ...
  • Page 13: Remote Control Overview

    EMOTE ONTROL Use this full-function remote to control a variety of DISH Network receivers, such as Standard Definition, High Definition, and Digital Video Recorder receivers. Also, you can program the remote to control most of the popular brands of audio/video equipment like a TV, VCR, DVD player, or a second DISH Network satellite receiver.
  • Page 14: How The Remote Communicates

    • TVs, page C-8. • VCRs and DVD players, page C-9. • DISH Network satellite receivers, page C-7. • Stereo equipment, use only these buttons: SELECT (change inputs), MUTE, VOLUME, and POWER. OW THE EMOTE Depending on how the remote is set up, the remote control may use UHF radio signals, IR signals, or both to control the receiver.
  • Page 15: Limited Mode

    the remote in TV mode to use the TV, and VCR mode to use the VCR. IMITED You can program your remote control in Limited Mode to keep from accidentally changing the channel on your TV or VCR. When you use the remote to control your TV in Limited Mode, you will only be able to use the POWER, MUTE, and VOLUME buttons to control your TV.
  • Page 16: Scanning For Equipment Codes

    Instructions Enter one of the three-digit equipment codes from the table using the number buttons. If you want to program Limited Mode, press 1. If not, skip to step 7. Press POUND (#). Press POWER to turn off the equipment. If the equip- ment does not turn off, go to step 10.
  • Page 17 Instructions Press and hold the mode button until all the other mode buttons light up, and then let go of the button. The mode button flashes. For AUX mode only. Press 0 for a second TV, or 1 for a second VCR, or 2 for a tuner, or amplifier.
  • Page 18: Switching Between Tv And Amplifier Volume

    Instructions If necessary, repeat this procedure until you’ve tried all the codes. WITCHING ETWEEN ONTROL When you set up the remote to control a TV, the MUTE and VOLUME buttons control the TV volume, even if your remote control is in SAT mode.
  • Page 19: Programming The Remote To Control A Second Receiver In Aux Mode

    TV mode button. ROGRAMMING THE ECEIVER IN If you have another DISH Network satellite receiver installed, you can use this remote in AUX mode to control it along with your new receiver. When you program the remote to control the other receiver, the remote will send out IR and UHF (not UHF Pro) signals to the receiver.
  • Page 20: Reading Out The Remote Control Codes

    EADING UT THE These instructions explain how to check the remote control code you put in the remote control when you set it up. Be sure to write them in the spaces provided below. Instructions Press and hold the mode button for the equipment you want the remote to con- trol.
  • Page 21: Discrete Codes For Learning Remotes

    To use discrete power commands, complete the following: Program the DISH Network remote to desired remote address (see Changing the Remote and Receiver Address below). Hold the SAT mode button until all mode buttons light, then release.
  • Page 22: Changing The Uhf Frequency Using The A/Bswitch

    Press POUND (#). If you entered the address correctly, SAT will flash three times. Write down the number you entered in the reference tables on page 26. Press RECORD. Make sure the Remote Address you see on the System Information screen is the same as the one you entered in step 3.
  • Page 23: Setting Up A Tv1 Uhf Pro Remote For The Dish Player-Dvr 522 And 625 Only

    ETTING DISH P LAYER Use these special instructions only if you are going to use the green 1 UHF Pro key to control the TV1 side of your DISH Player-DVR 522 or 625. When you are finished setting up the remote control, you’ll be able to operate the TV1 side of your DISH Player-DVR 522 or 625 from long distances.
  • Page 24 1 to control the TV2 side of your receiver. Note: Highlight the area in the graphic above). Press the RECORD button on the green TV1 remote control you are setting up. If you get a warning that tells you to pick another address, continue on to the next step.
  • Page 25: Equipment Codes

    QUIPMENT These tables contain the manufacturer codes for programming the remote to control your TV, a VCR, DVD player, or audio amplifier. Every attempt has been made to include all codes. If your equipment brand is not listed or if the codes do not work, the remote may not control your equipment.
  • Page 26 TV C ODES ONTINUED JVC 508 557 559 642 649 655 676 726 735 736 737 812 817 Kawasho 548 561 573 652 654 Kenwood 506 573 652 654 656 Kloss 561 610 Kloss Novabeam 657 698 723 724 KTV 526 541 573 657 658 662 696 LG 653 766 Lloyds 627 Lloytron 526...
  • Page 27 TV C ODES ONTINUED Sharp 521 526 585 605 607 628 629 652 654 655 658 739 740 741 777 794 803 835 836 898 Shogun 652 Signature 675 Silver 573 Simpson 525 Solavox 612 Sony 500 578 640 690 758 781 783 795 796 797 798 806 807 808 810 837 838 839 840 841 842 843 844 Soundesign 525 536 541 627 652...
  • Page 28 VCR C ODES GE 551 552 554 572 591 605 607 675 678 679 Go Video 557 558 620 Goldstar 592 594 676 Goodmans 585 Gradiente 588 Granada 549 581 Grundig 556 Harley Davidson 588 Harman Kardon 592 Harmon/Kardon 568 592 Headquarter 581 Hitachi 536 538 539 540 588 595 597 Instant Replay 678...
  • Page 29 VCR C ODES Totevision 591 675 676 Unitech 675 Vector Research 534 592 600 Victor 561 562 600 Video Concepts 534 568 592 600 DVD P LAYER Programming in AUX mode: In most cases use these codes to program in VCR mode; if programming in AUX mode, press 1 before entering the DVD Player code.
  • Page 30 UNER MPLIFIER JVC 637 683 703 725 786 827 Kenwood 676 691 726 728 774 795 828 829 830 831 832 840 842 Magnavox 654 705 Marantz 651 764 Nakamichi 671 NEC 716 Onkyo 642 660 662 678 785 788 790 791 792 796 801 Optimus 648 664 Panasonic 643 644 652 783 797 798...
  • Page 31: Tv/Dvd Combo Codes

    TV/DVD C OMBO Programming for combination equipment: Program the remote control in TV mode using the TV code and then in VCR mode (or AUX - press 1 before entering the DVD code) using the DVD code. Broksonic Panasonic TV/DVD/VCR C Programming for combination equipment: Program the remote control in TV mode using the TV code, then in VCR mode using the VCR code, and then DVD in AUX mode (press 1 before entering the...
  • Page 32 TV/VCR/T UNER Panasonic OMBO ODES TV Code VCR Code ONTINUED Tuner Code...
  • Page 33: Troubleshooting

    ROUBLESHOOTING What’s Happening While • If you don’t press performing a remote control procedure, the remote control stops working. You cannot find • The keys have two the key(s) shown on page C-1. When you press • The remote may a button on the remote control, the equipment...
  • Page 34 What’s What’s Wrong Happening Your remote • The remote control control isn’t is in the wrong working mode. • You might be using the wrong remote control (TV1 or TV2). • Your batteries are worn out. • The remote control’s A/B switch is in the wrong position When you press...
  • Page 35: Limited Warranty

    Proof of Purchase to be out of warranty. This warranty extends only to the original user (“you,” “your”) of the DISH Network remote control and is limited to the purchase price of the remote control. EchoStar Technologies Corporation and its affiliated companies (“we,”...
  • Page 36: Post Receipt Exchange Program

    CCESSORY An accessory is any DISH Network branded equipment, displaying the DISH Network logo, excluding the receiver, Smart Card, cables and hookups, and non-mechanical components. A one-year warranty becomes effective upon the activation of the DISH system or date of purchase, if bought separately.
  • Page 37 EGULATORY This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this device may void your authority to operate this equipment.
