Summary of Contents for Dish Network BASIC REMOTE

  • Page 1 Basic Remote...

  • Page 2: Safety Instructions

    Inverness Drive Circle East, Englewood, Colorado 80112. Document Number: 183120 Printed in DISH Network is a trademark and service mark of DISH Network. All product names, trade names, or corporate names mentioned in this User Guide are acknowledged to be the...

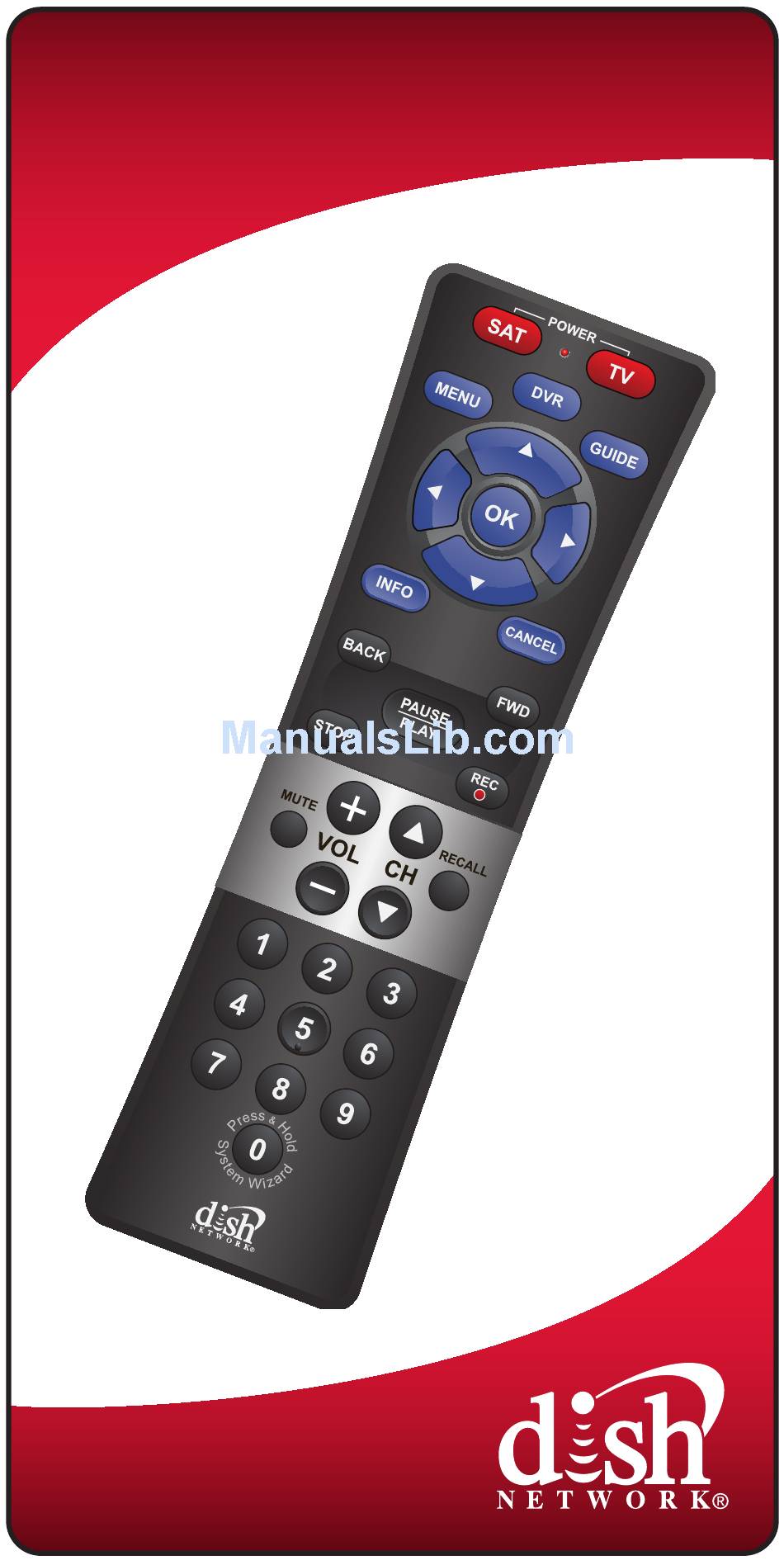

  • Page 3 SAT Mode Red Light Assists in programming SAT Power mode Controls satellite TV Power receiver Controls TV Goes to list of GUIDE recorded Displays programs current and future satellite MENU program listings Accesses CANCEL features and Returns to settings previous menu Arrows/OK or to watching Buttons...
  • Page 4 DVR Functions Note: DVR Functions only work with DISH Network receivers that support DVR. Press twice to go to list of recorded programs. Pauses or plays a live or recorded program. Stops recording a program. Records a program. Press and release to skip backward through recorded programs.
  • Page 5 Insert the Batteries Remove the remote battery cover. Insert 4 AA batteries, making sure to match the plus (+) ends with the plus markings on the battery case. Replace the remote battery cover. With the cover at a slight angle, line up the tabs and push down on the cover until it is in place.
  • Page 6 Programming Remote to Control TV (Entering a TV code) Turn TV and receiver on. Find the brand name of the TV Codes These tables contain the manufacturer codes for programming the remote control to operate your TV. TV listed in the code tables Every attempt has been made to include all codes.
  • Page 7 Programming Remote to Control TV (Entering a TV code continued Press and release TV POWER to turn off the TV. If TV turns off, continue to step 7. If the TV does not turn off, go to Step 8. Turn the TV on and try other buttons to make sure they work.
  • Page 8 Programming Remote to Control TV (Automatically finding a TV code) Note: Only use Automatically finding a TV code if you were unable to find a code using Entering a TV code. Turn TV and receiver on. Press and hold TV POWER until red light comes on.
  • Page 9 Displaying TV Code To identify the TV code that your Basic Remote is using, complete the following steps: Press and hold TV POWER until red light comes on. Release TV POWER. Red light blinks. Press and release OK twice. The red light blinks...
  • Page 10 SAT Auto-Tune SAT Auto-Tune programs into the remote control the correct TV channel used for viewing your paid programming. If you are experiencing fuzzy, blue, or black screens, it might be due to the TV being set to the wrong channel. Using the SAT Auto-Tune feature helps prevent fuzzy, blue, or black screens from occurring.
  • Page 11 Disabling SAT Auto-Tune Channel If you decide that you do not want the TV programmed to the TV channel used for viewing your paid programming, follow the steps below to disable SAT Auto-Tune. This only needs to be done if you followed the steps for Setting SAT Auto-Tune Channel on page 8.
  • Page 12 Using System Wizard Note: System Wizard only works with some receivers. Use System Wizard to store/restore your remote settings. If your batteries are low, replace them before beginning. Press and hold 0 until System Wizard message appears. Release 0. Make sure remote and receiver are in line of sight.
  • Page 13 TV Codes These tables contain the manufacturer codes for programming the remote control to operate your TV. Every attempt has been made to include all codes. If your equipment brand is not listed or if the codes do not work, the remote may not control your equipment.
  • Page 14 TV Codes, continued Belcor 505 627 773 Clairtone 975 Bell & Howell 590 611 Clarion 541 657 682 Classic 229 Benq 073 112 511 535 Coby 165 256 257 258 Bradford 541 657 682 260 261 262 263 264 265 Brillian 091 092 093 558 266 267 268 281 607 626 Brockwood 505 627...
  • Page 15 702 718 719 726 733 748 Digistar 153 752 756 764 767 777 816 Dimensia 503 645 830 829 832 834 838 839 841 DISH Network 742 846 899 927 961 971 972 Disney 247 973 974 975 980 982 985 Dixi 761 897...
  • Page 16 TV Codes, continued Envision 042 131 235 Go Video 204 696 Goldstar 219 505 506 506 519 620 627 654 Epson 102 708 523 564 627 653 654 655 Erae 089 658 702 718 720 761 897 ESA 527 569 587 601 618 913 926 997 Goodmans 993 632 646 679 694 733 767...
  • Page 17 TV Codes, continued Hisense 111 169 241 269 JC Penney 503 505 506 508 516 595 627 631 645 Hitachi 123 212 517 523 653 654 658 680 830 JCB 500 640 652 677 758 547 549 554 555 606 627 637 638 654 655 658 675 781 783 795 797 798 837 688 709 756 786 788 789...
  • Page 18 TV Codes, continued LG 002 047 056 080 115 Marantz 078 506 560 563 196 221 501 503 522 545 604 608 621 627 654 656 553 564 615 627 650 653 674 747 761 792 818 836 654 693 711 718 720 730 Matsushita 014 512 577 766 773 775 779 804 805 809 813 830 831 859...
  • Page 19 TV Codes, continued Minutz 920 Niveus Media 721 Mitsubishi 051 058 134 Noblex 001 Norcent 075 131 157 158 150 214 504 505 517 521 564 572 613 614 627 653 243 519 579 759 Norwood Micro 104 588 654 688 718 725 739 740 Noshi 681 787 799 918 946 959 991 Northgate 721...
  • Page 20 TV Codes, continued Panasonic 014 110 215 Pilot 505 506 627 655 658 218 508 509 512 576 577 Pioneer 057 164 547 561 619 634 644 647 656 685 689 700 729 734 761 765 576 604 608 627 637 654 780 784 811 819 820 821 927 966 969 Planar 147...
  • Page 21 TV Codes, continued Proview 050 591 669 902 RevolutionHD 162 Proxima 024 025 026 027 Rhapsody 974 975 977 Pulsar 501 505 627 711 Ricavision 721 Runco 006 163 176 501 775 813 Puneet 152 506 604 608 627 711 775 Pvision 089 Quasar 014 215 218 508 Sampo 033 506 507 581...
  • Page 22 TV Codes, continued Scott 182 505 532 541 513 640 652 677 721 756 564 627 654 655 657 658 758 781 783 795 796 797 798 806 837 844 845 917 682 718 980 Sears 028 212 219 503 Soundesign 532 536 541 523 526 527 532 558 564 564 627 654 657 682 718...
  • Page 23 TV Codes, continued Symphonic 212 527 541 TMK 523 564 627 654 718 569 587 632 646 657 679 682 933 971 TNCi 501 711 775 813 694 733 756 767 841 846 Syntax 077 523 564 566 Toshiba 014 045 048 054 578 580 654 910 079 108 115 122 127 166 Syntax-Brillian 558 564...
  • Page 24 TV Codes, continued Viewsonic 118 121 155 Xoceco 141 Yamaha 505 506 606 627 187 235 507 551 562 575 579 581 582 583 600 606 653 654 789 York 627 609 620 710 721 741 746 Zenith 212 500 501 506 753 760 763 789 796 801 Viking 929 989 524 530 533 553 555 564...
  • Page 25 Troubleshooting Use this information if you have a problem using the remote. To solve a particular problem, do the following: • Find the information that relates to the problem you are experiencing. Try the suggested solution for that problem. • Make sure your remote control has fresh batteries.
  • Page 26 Troubleshooting, continued When you try to enter TV programming mode, the red light comes on and blinks eight times when TV POWER is released. What to do: Replace the batteries (see page 3). Your remote control does not work well. What to do: Move your receiver to different locations.
  • Page 27 This warranty does not cover installation of the DISH Network System; consumer instruction; physical set up or adjustment of any consumer electronic equipment; remote control batteries; signal reception problems;...
  • Page 28 Accessory Warranty An accessory is any DISH Network branded equipment, displaying the DISH Network logo, excluding the receiver, Smart Card, cables and hookups, and non-mechanical components. A one-year warranty becomes effective upon the activation of the DISH system or date of purchase, if bought separately.
  • Page 29 If You Need Help 1. Review this User Guide. 2. See Troubleshooting on page 23. 3. Visit www.dishnetwork.com/chat for 24/7 support. 4. Call the Customer Service Center at 1-800-894-9131.
  • Page 30 Regulatory Factors This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this device may void your authority to operate this equipment.
  • Page 31 Reference Table Write down your channel numbers/inputs and TV codes as you program them for future reference. Channel or Input for Satellite Programming TV Code...
  • Page 32 For all your customer needs, go to www.dishnetwork.com/chat or call the Customer Service center at 1-800-894-9131 183120...
