power wire, or the (+) terminal of the battery.
3.
Operate the door lock switch/key cylinder in both directions to
determine the resistor values. If the multimeter displays zero resis-
tance in one direction, no resistor is needed for that direction.
4.

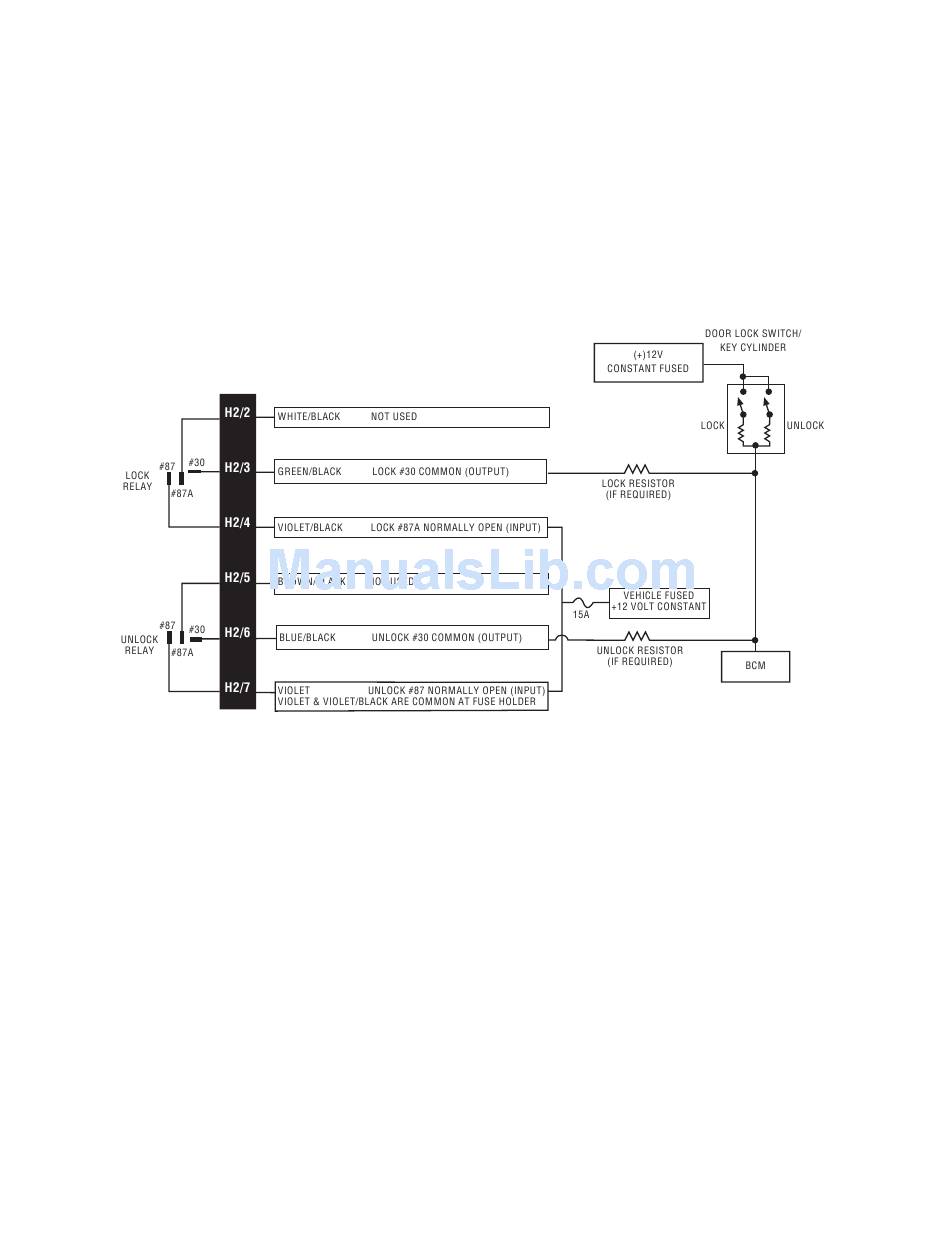

Once the resistor value(s) is determined, refer to the wiring dia-
gram for proper wiring.
type H: negative (-) multiplex
The system is most commonly found in Ford, Mazda, Chrysler
and GM vehicles. The door lock switch or door key cylinder
may contain either one or two resistors.
S S I I N N G G L L E E - - R R E E S S I I S S T T O O R R T T Y Y P P E E : : If one resistor is used in the door lock
switch/key cylinder, the wire will pulse ground in one direction and
resistance to ground when operated in the opposite direction.
38
