Directed Electronics ProSecurity SR6000 Installation Manual page 19

H H 1 1 / / 5 5 G G R R E E E E N N ( ( - - ) ) d d o o o o r r t t r r i i g g g g e e r r i i n n p p u u t t , , z z o o n n e e 3 3

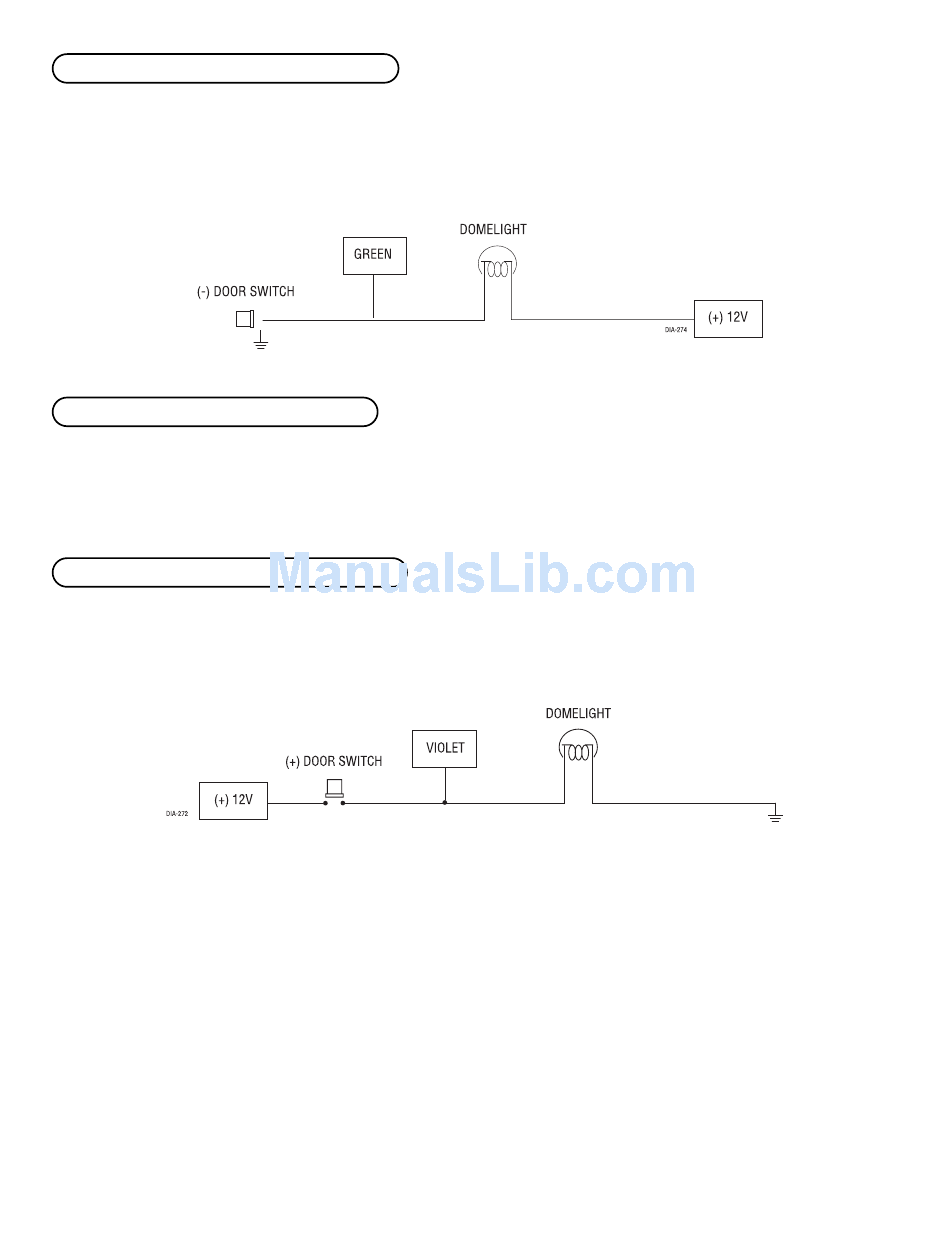

Most vehicles use negative door trigger circuits. Connect the green wire to a wire which shows ground when any
door is opened. In vehicles with factory delays on the domelight circuit, there is usually a wire that is unaffected
by the delay circuitry. This wire will report Zone 3.
H H 1 1 / / 6 6 B B L L U U E E ( ( - - ) ) m m u u l l t t i i p p l l e e x x i i n n p p u u t t , , z z o o n n e e 4 4
Inputs shorter than 0.8 seconds will trigger the Warn Away response, while inputs longer than 0.8 seconds will
trigger the full alarm sequence. If installing an optional dual stage sensor, connect both the blue and the green
wires of the optional sensor to this input. This wire will report Zone 4.
H H 1 1 / / 7 7 V V I I O O L L E E T T ( ( + + ) ) d d o o o o r r t t r r i i g g g g e e r r i i n n p p u u t t , , z z o o n n e e 3 3
This wire is used in vehicles that have a positive (+) switched dome light circuit. Connect the violet wire to a
wire that shows (+)12V when any door is opened, and ground when the door is closed. This wire will report Zone 3.
1 1 9 9
