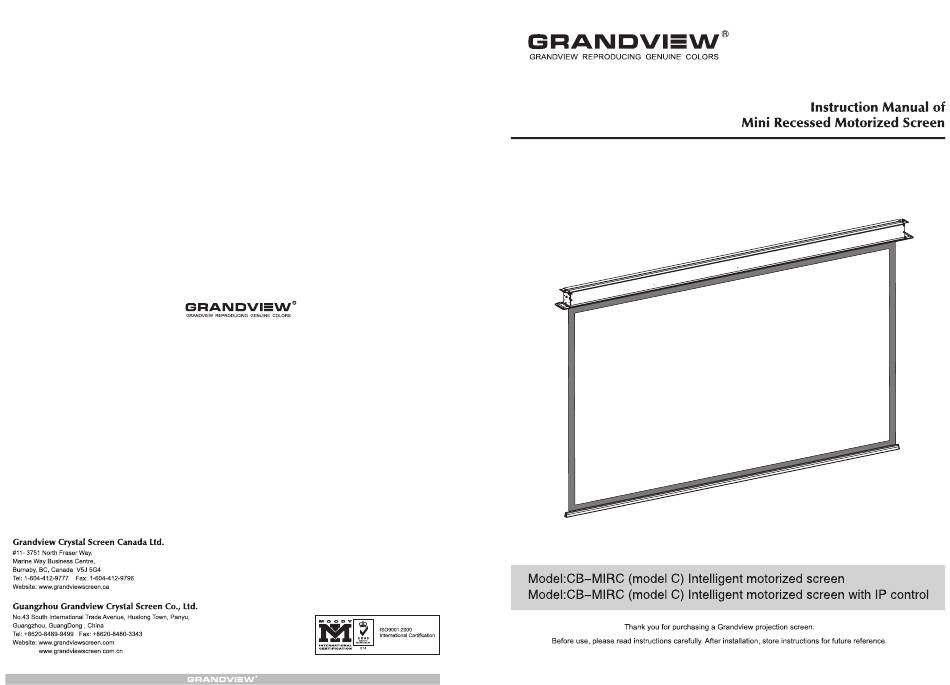

Model:CB
—MIRC (model C) Intelligent motorized
Model:CB
—MIRC (model C) Intelligent motorized
Certification
Before use, please read instructions carefully. After installation, store instructions for future reference.
GENUINE
COLORS
Mini
Recessed
Thank you for purchasing a Grandview projection screen.
Instruction
Manual
of
Motorized
Screen
screen
screen with IP control
Advertisement
Related Manuals for Grandview CB-MIRC
Summary of Contents for Grandview CB-MIRC
- Page 1 —MIRC (model C) Intelligent motorized screen with IP control Guangzhou Grandview Crystal Screen Co., Ltd. NO.43 South International Trade Avenue, Hualong Town, panyu, Guangzhou, GuangDong , China Thank you for purchasing a Grandview projection screen. IS090012000 Tell *8620-8489-9499 Fax: +8620-8480-3343...
- Page 3 Warnings Please read the below attention points before using 1 Please hand over the screen to qualified professional for installation, non—qualified individual could cause damage to the product or injury of people. Please make sure that the installation position can suffer from at least 50 Kg. otherwise there could be a potential dropping problem causing damage to the product or injury of people.
- Page 4 Accessories Pack(s) Adjustment Left Decoration cap* 1 pcs Right Decoration cap* 1 pcs M5*1() Cup head machine screw Instruction of adjusting the retraction and extension limit with cover (4 pcs respectively) ( with control panel) I. The default retraction limits are perfect settings, we do not recommend adiustment to avoid potential damage to the product, please talk to after sales team for further advice.
- Page 5 ( see diagram 34). By pressing the manual button, screen would circle the operation of extension-stop-retraction. Right trestle Ri ht cap External control ( dry contact or RS232,GrandView wall switch) Connect the crystal head of signal wire into EXT CTRLon left end cap of screen, and the other end of signal Case Installation...
- Page 6 Framework Dimension Operation instruction Multi-control systems are available for your optional accordingly Check to details R remote control Check to details • Manual control • Dry contact control with wall switch • RS-232/485 port • 12V trigger wire • External IR or RF converted to IR control •...
- Page 7 Installation Instruction Installation Instruction 9.Power connect: connect the motor wire on the left hand side of screen to motor end on left end cap, then This product is fit to install into all types of decoration ceilings. User could install the product according connect one end of the power cable to the AC IN and the other end to the AC socket, make sure they are to different environments.
- Page 8 Installation Instruction Installation Instruction Note: Please make sure the concrete ceiling is strong enough to be bear the weight of 50kg or above before 6. Lift the screen and put it into the mounting holes pre—drilled. The fixing holes on two ends of installation plate starting installation in order to avoid any damage on product or property lost and casualty due to insufficient should align to the expansion bolts or extended bolts on ceiling, see diagram 13—14.
