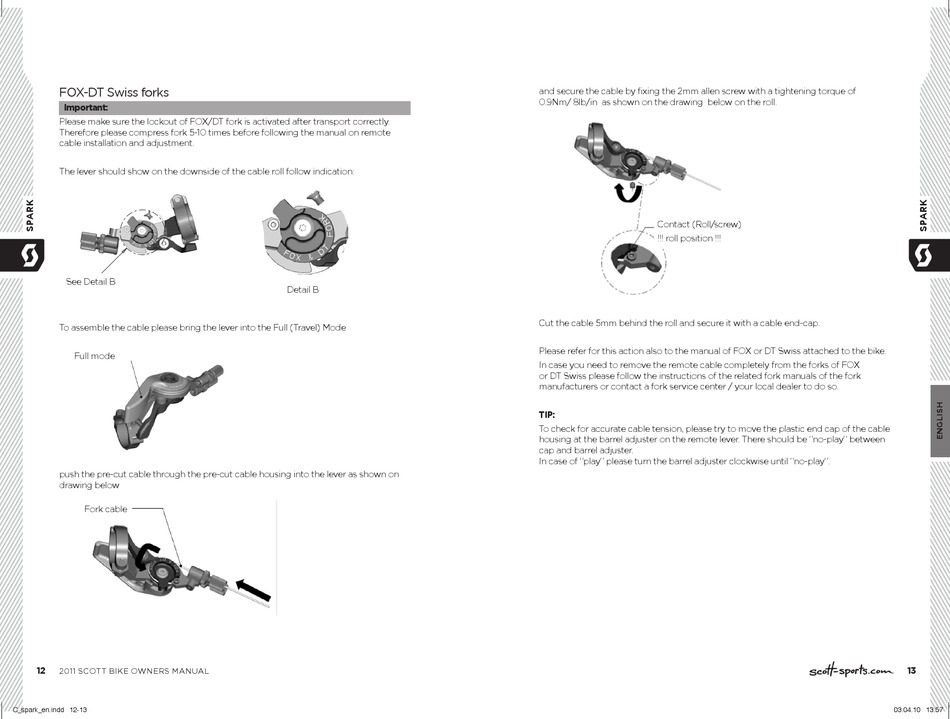

FOX-DT Swiss forks
Important:
F E
Please make sure the lockout of FOX/DT fork is activated after transport correctly.
Therefore please compress fork 5-10 times before following the manual on remote
3
cable installation and adjustment.
FOX - DT ROLL FORK
4
The lever should show on the downside of the cable roll follow indication:
2
3
SEE DETAIL See Detail B B
To assemble the cable please bring the lever into the Full (Travel) Mode
1
Full mode
2
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
DETAIL B
SCALE 2:1
push the pre-cut cable through the pre-cut cable housing into the lever as shown on
1
drawing below
Fork cable
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
F E
12
2011 SCOTT BIKE OWNERS MANUAL
FOX - DT ROLL FORK
D C
SEE DETAIL B
Detail B DETAIL B
SCALE 2:1
F E
Adress Part name
ROLL-FORKS
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
Version:
Division Pro-E file
BIKE cable-adapter.prt
D C
and secure the cable by fixing the 2mm allen screw with a tightening torque of
0.9Nm/ 8lb/in as shown on the drawing below on the roll.
B A
ROCK SHOX ROLL FORK
SEE DETAIL A
Cut the cable 5mm behind the roll and secure it with a cable end-cap.
Adress Part name
Please refer for this action also to the manual of FOX or DT Swiss attached to the bike.
ROLL-FORKS
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez In case you need to remove the remote cable completely from the forks of FOX
SWITZERLAND
Version: 01
or DT Swiss please follow the instructions of the related fork manuals of the fork
Division Pro-E file
BIKE cable-adapter.prt manufacturers or contact a fork service center / your local dealer to do so.
D C
TIP:
DETAIL A
SCALE 2:1
To check for accurate cable tension, please try to move the plastic end cap of the cable
housing at the barrel adjuster on the remote lever. There should be "no-play" between
cap and barrel adjuster.
Project
In case of "play" please turn the barrel adjuster clockwise until "no-play".
