BENÖTIGTE WERKZEUGE FÜR DAS
DÄMPFER SET-UP
For the set-up of the shock we recommend to use a shock pump with a scale up to 20
bars/300 psi with a special air valve connector preventing from air getting away while
removing the pump from the shock valve, this will result in an exact air pressure.
Please note that air will flow into the hose and indicator when counterchecking the
air pressure, so you have to set up again the recommended pressure after this action.
Make sure to balance at least this air loss when you make a check of the air pressure
of the shock. Pls also note that the indicators of shock pumps have a tolerance of
max. 10%
2 2 2
1 1 1
18
2011 SCOTT BIKE OWNERS MANUAL
3 3 3

SET-UP SPARK WITH NUDE TC SHOCK

The Set-Up of the Scott Nude TC Shock can be easy done within a few minutes.
IMPORTANT
For all adjustments of the air spring the remote lever has to be in position "all travel".

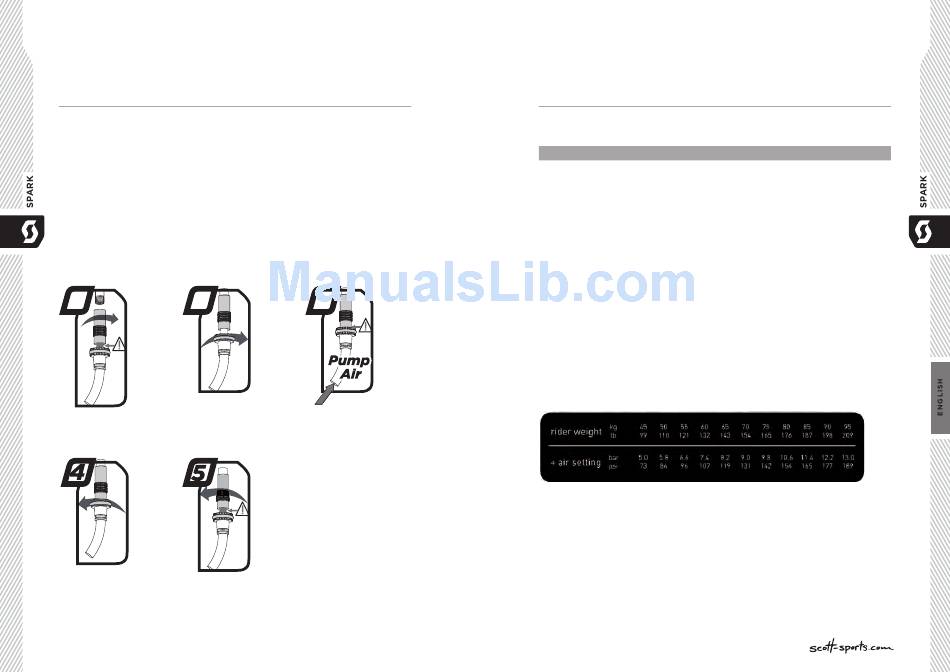

To adjust the air pressure of the positive chamber of the Scott Nude TC Shock please
refer to the following instruction:
1. Remove the valve cap of the valve (S6) located on the shock housing (S4).
2. Mount the shock pump with its adaptor on the valve
3. Pls take into account that it takes some air pressure from inside the shock to drive the
indicator on the pump. Make sure to balance at least this air loss when you make a
check of the air pressure of the shock. Pls also note that the indicators of shock
pumps have a tolerance of max. 10%
4. Pump the recommended pressure into the shock. On the inner side of the left
seatstays you will find a table showing the recommended air pressure of the positive
chamber according to the rider's weight.
5. When you reached the needed pressure remove the pump and put the valve cap on
the valve
Recommended Air Pressure
19
