I N S T A L L A T I O N I N S T R U C T I O N S
Above Wall
Above Cart/Ceiling
Below Cart/Ceiling
Below Wall
IntelliSHOT® Fusion™Above/Below Mount
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
FCA810E

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHIEF IntelliSHOT Fusion FCA810E and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND CHIEF IntelliSHOT Fusion FCA810E

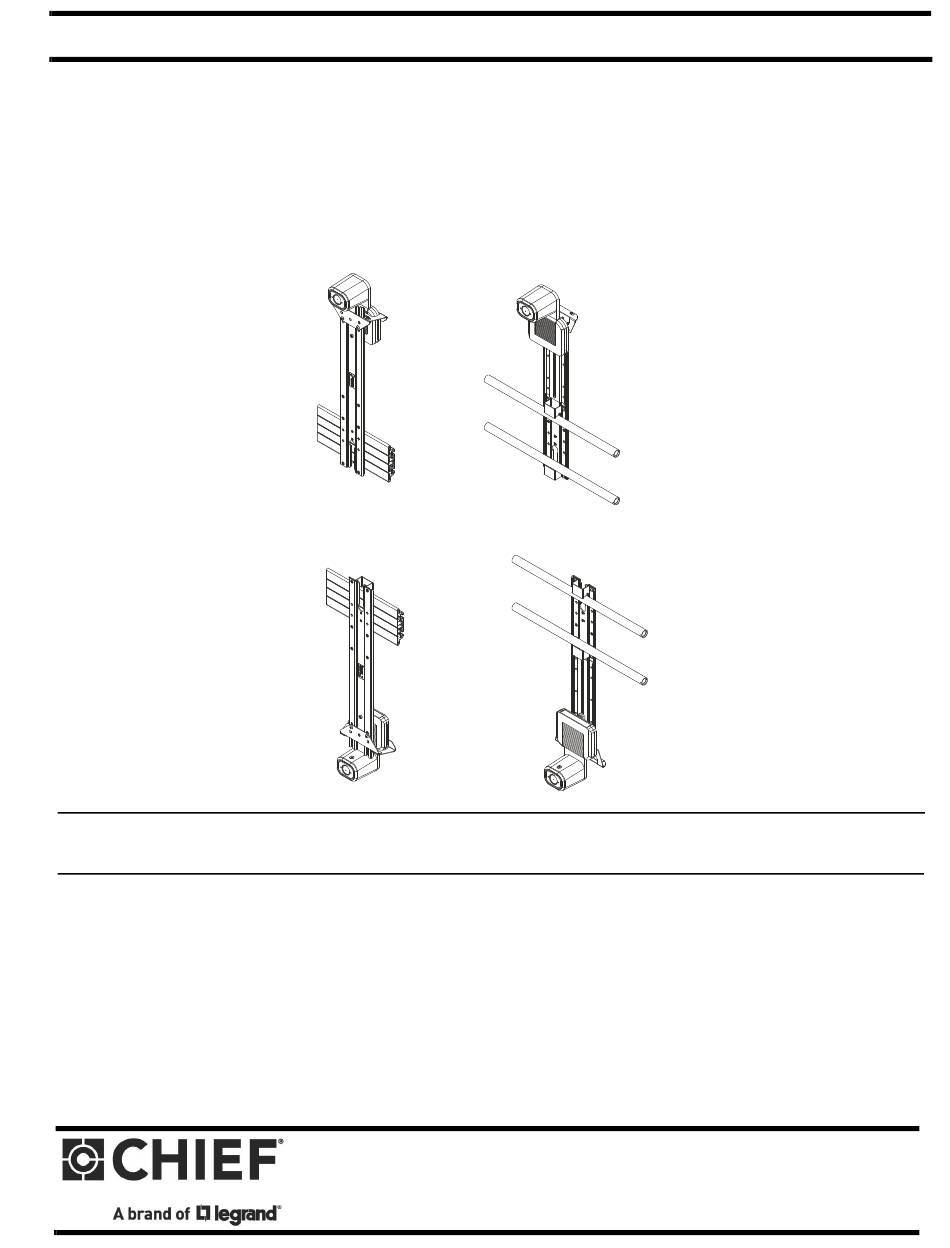

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Above Wall Above Cart/Ceiling Below Cart/Ceiling Below Wall IntelliSHOT® Fusion™Above/Below Mount Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description...
  • Page 2 The information contained in this document is subject (weight of FCA810E shelf + shelf components) to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
  • Page 3 Installation Instructions FCA810E DIMENSIONS FUSION WALL BELOW MOUNT SETUP C ENTER OF MO UNT 4.01 101.8 17.4 27.81 MIN 706.4 MIN 18.97 M IN OVERALL 482.0 M IN 40.36 M AX 1025.1 MAX 31.52 M AX OVERALL 800.7 MAX (*)NOTES: •...
  • Page 4 FCA810E Installation Instructions DIMENSIONS (CONTINUED) FUSION CEILING/CART BELOW MOUNT SETUP CENTER OF MOUNT 27.58 MIN 20.35 MIN 700.6 MIN 516.8 MIN OVERALL 40.04 MAX 32.81 MAX 1017.1 MAX 833.3 MAX OVERALL 2.33 59.2 (*)NOTES: • TYPICAL SINGLE DISPLAY MODELS HAVE INTERFACE DEPTHS .5" [12.7] •...
  • Page 5 Installation Instructions FCA810E LEGEND Tighten Fastener Phillips Screwdriver Apretar elemento de fijación Destornillador Phillips Befestigungsteil festziehen Kreuzschlitzschraubendreher Apertar fixador Chave de fendas Phillips Serrare il fissaggio Cacciavite a stella Bevestiging vastdraaien Kruiskopschroevendraaier Serrez les fixations Tournevis à pointe cruciforme Loosen Fastener Open-Ended Wrench Aflojar elemento de fijación Llave de boca...
  • Page 6 FCA810E Installation Instructions ASSEMBLY AND INSTALLATION Assembling Shelf to Upright Bracket CAUTION: Slide bracket with caution so that the bracket does not scratch or damage the wall! Attach attachment bracket (X) to upright bracket (A) using two 1/4-20 x 1/2” button head machine screws (L). (See Slide main bracket (B) behind wall mount rails until shelf Figure 1) or (See Figure 2) bracket (C) rests on top of wall mount rail.
  • Page 7 Installation Instructions FCA810E (For maximum extension) Use #10-32 x 3/8” button head Attaching Shelf to Cart/Ceiling Mount cap screw (Q) and small washer (K) to secure adapter plate IMPORTANT ! : If installing to a 2x1 display cart using (A) to main bracket (B). (See Figure 5) the FCA623 accessory, proceed to “Installing to FCA623 (For maximum extension) Use two #10-24 lock nuts (J) to Accessory”...
  • Page 8 FCA810E Installation Instructions Installing to FCA623 Accessory NOTE: Refer to Table 2 and dimension drawings on pages 3- 4 to determine the extension level based on extension IMPORTANT ! : Steps 6-10 only apply if installing to distance from mount center. FCA623 accessory.
  • Page 9 Installation Instructions FCA810E 13. (For minimum extension) Slide upright bracket behind Slide second shelf bracket (C) underneath lower rail on wall main bracket. (See Figure 12) mount, lining up holes on shelf bracket (C) to holes on main bracket (B). (See Figure 14) 14.
  • Page 10 FCA810E Installation Instructions Attaching Shelf to Cart/Ceiling Mount (For maximum extension) Use #10-32 x 3/8” button head cap screw (Q) and small washer (K) to secure adapter plate IMPORTANT ! : If installing to a 2x1 display cart using (H) to main bracket (B). (See Figure 15) the FCA623 accessory, proceed to “Installing to FCA623 (For maximum extension) Use two #10-24 lock nuts (J) to Accessory”...
  • Page 11 Installation Instructions FCA810E Installing to FCA623 Accessory NOTE: Refer to Table 4 and dimension drawings on pages 3- 4 to determine the extension level based on extension NOTE: Steps 6-10 only apply if installing to FCA623 distance from mount center. accessory.
  • Page 12 FCA810E Installation Instructions Height Adjustment NOTE: Camera must be removed from mount prior to adjusting Camera (not included) height. Loosen hardware used to attach main bracket (B) to upright bracket (A). (See Figure 23) alternate holes Adjust shelf height as desired. (See Figure 23) NOTE: For all above display installations, it is recommended that the shelf be positioned so that it rests on top of...
  • Page 13 Installation Instructions FCA810E Onto Cart/Ceiling Mount Use two M4 x 8mm Phillips pan machine screws (W) to Camera secure camera to camera bracket (D). (See Figure 24) (not included) Camera (not included) alternate holes (W) x 2 Figure 27 (W) x 2 Figure 26 Loosely install two M4 x 8mm Phillips pan machine screws (W) into top holes on attachment bracket (X).
  • Page 14 FCA810E Installation Instructions...
  • Page 15 Installation Instructions FCA810E...
  • Page 16 P +31 (0) 495 580 852 F +31 (0) 495 580 845 Asia Pacific A Office No. 918 on 9/F, Shatin Galleria 8800-003241 Rev02 18-24 Shan Mei Street 2021 Legrand Fotan, Shatin, Hong Kong www.legrandav.com P 852 2145 4099 11/2021 F 852 2145 4477...
