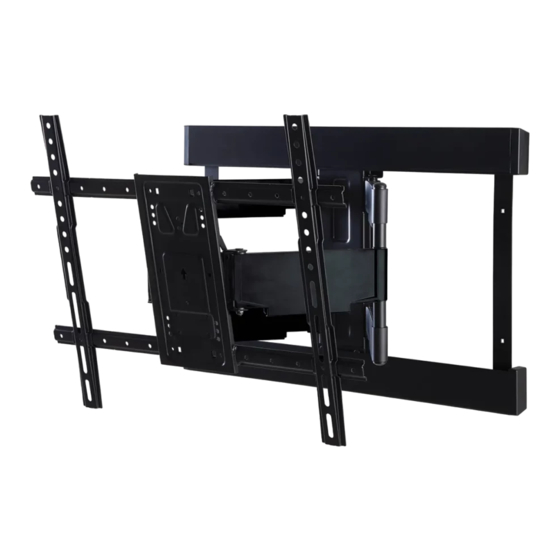

BLFS420
INSTRUCTION MANUAL
Texto en español, página 10
WE'RE HERE TO HELP
Want to watch a video that
shows how easy this is?
Watch it now at:
SANUS.com/3115
Get it right the first time.
HeightFinder™ shows you
where to drill.
Use it now:
SANUS.com/1172
Our live US-based install
experts are standing by to help.
Call us at:
US: +1 (800) 359-5520
Advertisement
Table of Contents
Related Manuals for LEGRAND SANUS ELITE BLFS420
Summary of Contents for LEGRAND SANUS ELITE BLFS420
- Page 1 BLFS420 INSTRUCTION MANUAL Texto en español, página 10 WE’RE HERE TO HELP Want to watch a video that Get it right the first time. Our live US-based install shows how easy this is? HeightFinder™ shows you experts are standing by to help. where to drill.
-
Page 2: Wall Construction
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS CAUTION: Avoid potential personal injuries and property damage! ● This product is designed ONLY to be installed into wood studs, solid concrete or concrete block — DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV ●... -
Page 3: Before You Begin
Dimensions BEFORE YOU BEGIN Remove the stand Install any accessories Protect the face from your TV — if attached. you may have purchased, if they requireTV of your TV when laying it down for removal prior to assembly. The TV is removable installation. - Page 4 Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
- Page 5 STEP 1 Attach TV Brackets to TV 1.1 Select TV Screw Diameter 1.2 Select TV Screw Length and Spacers Only one screw size fits your TV. NO SPACER SPACER NEEDED • Flat Back TV • Flat Back TV • Rounded or Irregular Back TV with extra space needed [for deep inset holes or cable interference] [TV brackets NOT resting flat on your TV]...
- Page 6 Wood Stud Installation STEP 2A Attach Wall Plate CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm) ●...
- Page 7 Solid Concrete or Concrete Block Installation STEP 2B Attach Wall Plate CAUTION: Avoid potential personal injury or property damage! ● Mount wall plate directly onto concrete surface (no wall covering) Concrete Anchors are not included ● Minimum solid concrete thickness: 8 in. (203 mm) Contact Customer Service at 1-800-359-5520 ●...
- Page 8 STEP 3 Hang TV onto Wall Plate 3.1 Attach Arm Assembly to Wall Plate HEAVY! You may need assistance with this step. CAUTION: Avoid potential personal injury or property damage! For CONCRETE APPLICATIONS: The arm assembly MUST remain centered in wall plate NOTE: For WOOD STUD APPLICATIONS, the arm assembly can be...
- Page 9 Manage Cables IMPORTANT: Fully extend arm assembly ensure enough slack in cables. 2. Route your cables through the arm assembly shown. TV Adjustments TILT ADJUSTMENT Your TV should adjust easily when moved, then stay in place. If your TV is too loose or too tight use the hex key for additional tightening of the right and left tilt tension screws...
-
Page 10: Instrucciones Importantes De Seguridad
INSTRUCCIONES IMPORTANTES DE SEGURIDAD: ESPAÑOL GUARDE ESTAS INSTRUCCIONES Y LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO. Antes de empezar, asegúrese de que este es el soporte adecuado para usted. ¿Su televisor pesa No — ¡Perfecto! (accesorios incluidos) 56,6 kg Sí... - Page 11 PASO 2A Cómo fijar la placa a la pared Colocación sobre montantes de madera PÁGINA 6 PRECAUCIÓN: Evite posibles lesiones personales o daños materiales. • • Los paneles de yeso que cubren la pared no deben superar los 1,5 cm (5/8 pulg.) Tamaño mínimo de los montantes de madera: nominal 5,1 x 10,2 cm (2 x 4 pulg.), real 3,8 x 8,9 •...
- Page 12 Leave a review: SANUS.com Legrand AV Inc. and its affiliated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind.
