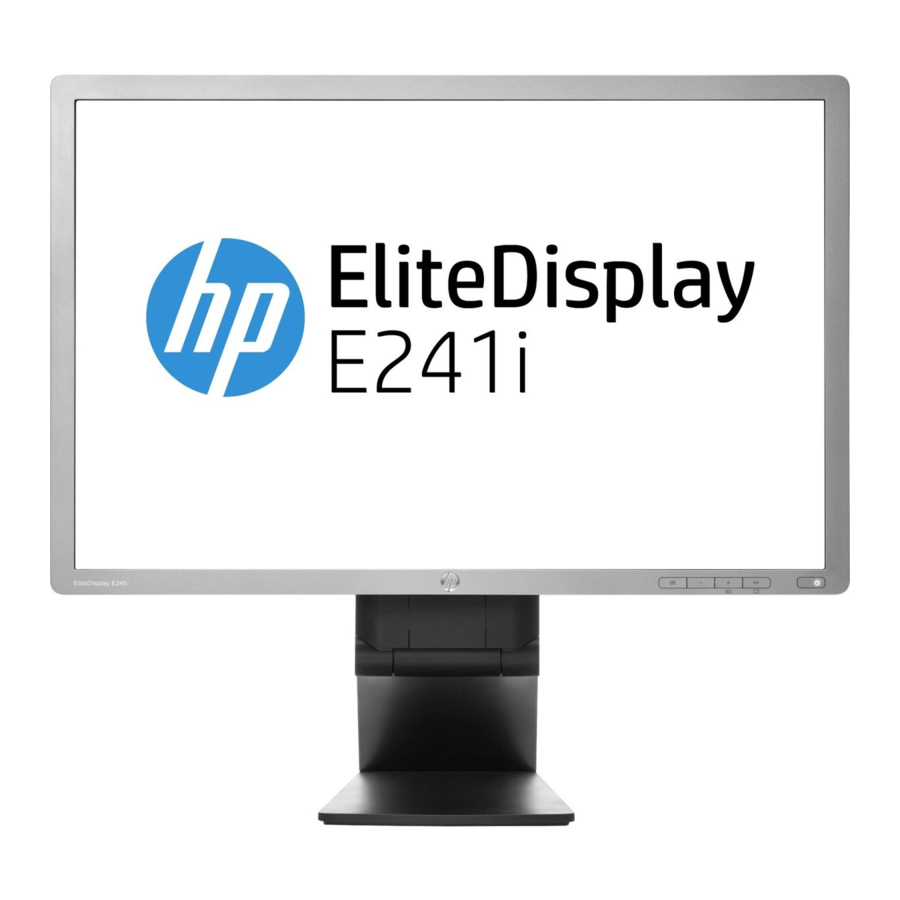

HP EliteDisplay E241i Manual

Items Requiring Selective Treatment

Items listed below are classified as requiring selective treatment.
Enter the quantity of items contained within the product which require selective treatment in the right column, as applicable.

Item Description	Notes	Quantity of items included in product
Printed Circuit Boards (PCB) or Printed Circuit Assemblies (PCA)	With a surface greater than 10 sq cm IF BD, POWER BD, FK BD	3
Batteries	All types including standard alkaline and lithium coin or button style batteries	0
Mercury-containing components	For example, mercury in lamps, display backlights, scanner lamps, switches, batteries	0
Liquid Crystal Displays (LCD) with a surface greater than 100 sq cm	Includes background illuminated displays with gas discharge lamps Panel	1
Cathode Ray Tubes (CRT)		0
Capacitors / condensers (Containing PCB/PCT)		0
Electrolytic Capacitors / Condensers measuring greater than 2.5 cm in diameter or height	Power BD only (C805)	1
External electrical cables and cords	USB cable, D-sub cable, Power cord	3
Gas Discharge Lamps		0
Plastics containing Brominated Flame Retardants		0
Components and parts containing toner and ink, including liquids, semi-liquids (gel/paste) and toner	Include the cartridges, print heads, tubes, vent chambers, and service stations.	0
Components and waste containing asbestos		0
Components, parts and materials containing refractory ceramic fibers		0
Components, parts and materials containing radioactive substances		0

Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components and materials requiring selective treatment can be removed.

Tool Description	Tool Size (if applicable)
Description #1 SCREW DRIVER(PHILLIPS HEAD)	#2
Description #2SCREW DRIVER(PHILLIPS HEAD)	#1
Description #3SCREW DRIVER(PHILLIPS HEAD)	#0
Description #4SCREW DRIVER(HEX HEAD)	SPECIAL
Description #5

Product Disassembly Process

List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

Take Screw(*4) Off and remove Stand Base From Display Head
Remove Rear Cover From Display Head
Remove Rubber From Rear Cover
Remove Front Cover From Display Head
Take Screw(*4) Off From Chassis Cover & Remove Panel
Take Screw(*14) Off From P.C.B & Remove Chassis Cover
Remove Gasket(*2) From Chassis Cover
Take Screw(*3) Off From Front Cover & Remove Function Key P.C.B
Remove HP logo and OSD & power Button From Front Cover
Take Screw(*4) Off and Remove VESA BKT From Stand
Take Screw(*4) Off From Stand and Remove VESA POM and Sharks lift cover from Stand
Remove Riser Rear Cover and Cable Cover From Stand
Take Screw(*6) Off From Stand Riser BKT and revome Riser Front Cover from Stand
Take Screw(*2) Off From Stand BKT and Remove Tilt Cover ( left and right )from Stand
Remove Arm Rear Cover from Stand Arm BKT
Take Screw(*4) from Arm Front Cover and Remove Arm Front Cover
Remove Rubber(*8) from Stand Base
Take Screw(*8) Off From Base BKT and Remove Base Cover & Space Swivel Cover From Stand Base BKT
LCD PANEL EXPLODE

Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items contained in the product that require selective treatment (with descriptions and arrows identifying locations).

HP E241i Disassembly Process
