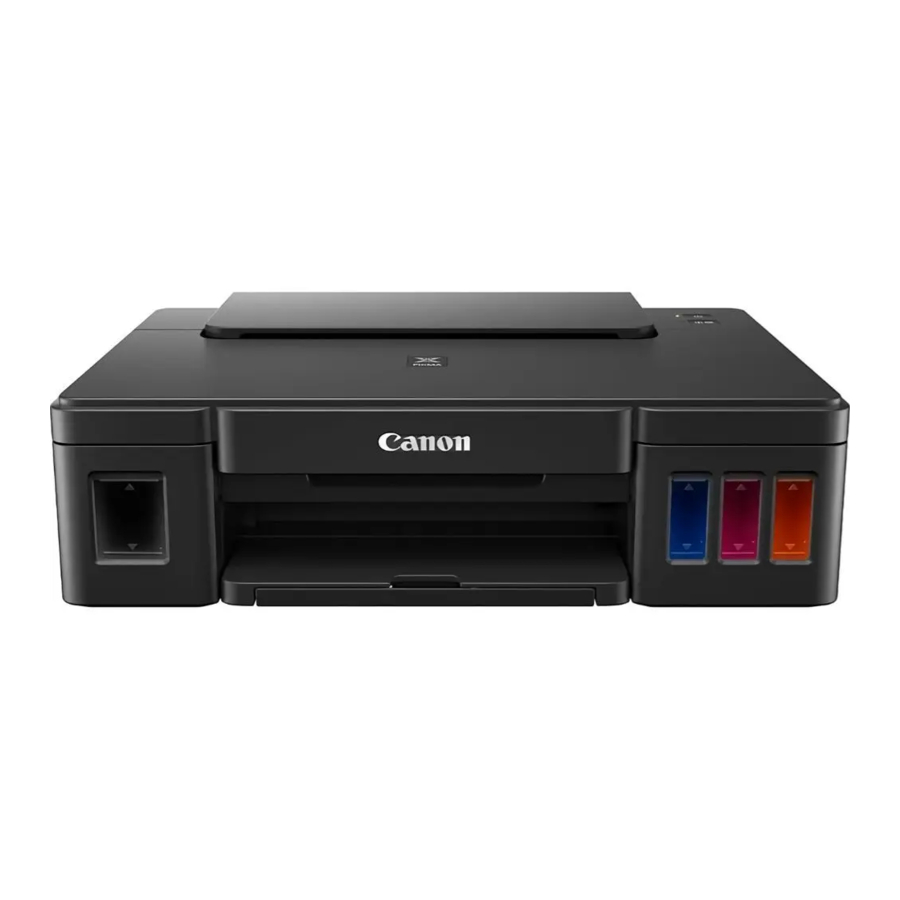

Canon Pixma G1110 Series Manual

Checking Included Items

• Cartridge
• Power cord
• Setup CD-ROM for Windows PC
• Safety and Important Information
• Getting Started (this manual)
• Ink bottle

Removing Packing Materials

1. Remove the packing materials (such as orange tape) from outside the printer.

2. 1. Open the top cover.
   2. R emove the orange tape and the protective material and discard them.

1. Open the cartridge locking cover.

2. Take out each cartridge from the package and remove the label.

3. Remove the protective tape.

4. Insert the C (color) cartridge on the left and the B (black) cartridge on the right.

5. Close the cartridge locking cover and push it down.

6. Press down both joint buttons completely.


1. Close the top cover.

2. Connect the power cord.
   Do not connect any cables except the power cord yet.

3. Press the ON button.

   If the Alarm lamp is flashing, refer to "When a lamp is flashing" to resolve the error.


This product requires careful handling of ink. Ink may splatter when the ink tanks are filled with ink. If ink gets on your clothes or belongings, it may not come off.

1. Open the top cover.
2. Open the ink tank cover.

3. Grab and remove the tank cap of the ink tank.

4. Hold the ink bottle upright and remove the bottle cap.

5. Insert the nozzle of the ink bottle into the inlet and stand the ink bottle upside down.


6. Pour all ink into the ink tank. Confirm that the ink has been filled to the upper limit line (A).

7. Replace the tank cap securely.

8. Close the ink tank cover.

9. Repeat steps 2 to 8 to pour all ink into the corresponding ink tanks on the right according to the label.

   Confirm that the ink has been filled to the upper limit line (A).

10. Close the top cover.

Preparing the Ink System

1. Press the RESUME/CANCEL button, and then confirm that the ON lamp has changed from lit to flashing.
   Ink preparation takes about 5 to 6 minutes.


When a lamp is flashing
The Alarm lamp is flashing

Count the number of flashes to determine the cause of the problem.

• 4 times The cartridges are not installed correctly. "Installing the Cartridge"
• 5 times No cartridges are installed. "Installing the Cartridge"
• 9 times The protective materials are not removed. "Removing Packing Materials"

The ON lamp is flashing

Preparing the ink system. This may take about 5 to 6 minutes. Proceed to the next page.

The ON lamp and Alarm lamp flash alternately 8 times
Ink is not prepared normally.
Press the ON button to restart the printer, and then redo the procedure from "Pouring Ink".
For all other cases, refer to the Online Manual.

Connecting to Computer

1. Start the setup file for either method or method.

1. Downloading from the Internet
   1. Open a web browser ( etc.) on your computer.
   2. Input the following URL and access the Canon website.

   3. Select Set Up.

   4. Input the model name of your printer and click OK.
      You can select a model name from the list.

   5. Click Setup.

      The procedures for Windows are shown below. If you are using a computer with an OS other than Windows, do the setup according to the on-screen instructions.
   6. Click Download and download the setup file.

   7. Execute the downloaded file.

2. Using Setup CD-ROM (Windows Only)

• When using Windows 10 or Windows 8.1:

1. Load the Setup CD-ROM in your computer.

2. When the following message appears on the right side of your computer screen, click it.


3. If the following screen appears, click Run Msetup4.exe.

4. If the User Account Control dialog box appears, click Yes.

2. Click Start Setup.
   If the following screen appears, click Exit.


The setup is complete when the printer's ON lamp stops flashing and stays lit. You can print from your computer.

Loading Paper

1. Open the paper support.

2. Slide the right paper guide to the end.


3. 1. L oad paper with the print side facing up.
   2. S lide the right paper guide to align it with the side of the paper stack.

4. 1. P ull out the paper output tray.
   2. O pen the output tray extension.


Transporting Your Printer
When relocating the printer, make sure of the following. Refer to the Online Manual for details.
Check that both joint buttons are pressed down completely to avoid ink leaks.

Pack the printer in a plastic bag in case ink leaks.

• Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient protective material to ensure safe transport.
• Do not tilt the printer. Ink may leak.
• Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak.
• When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".
