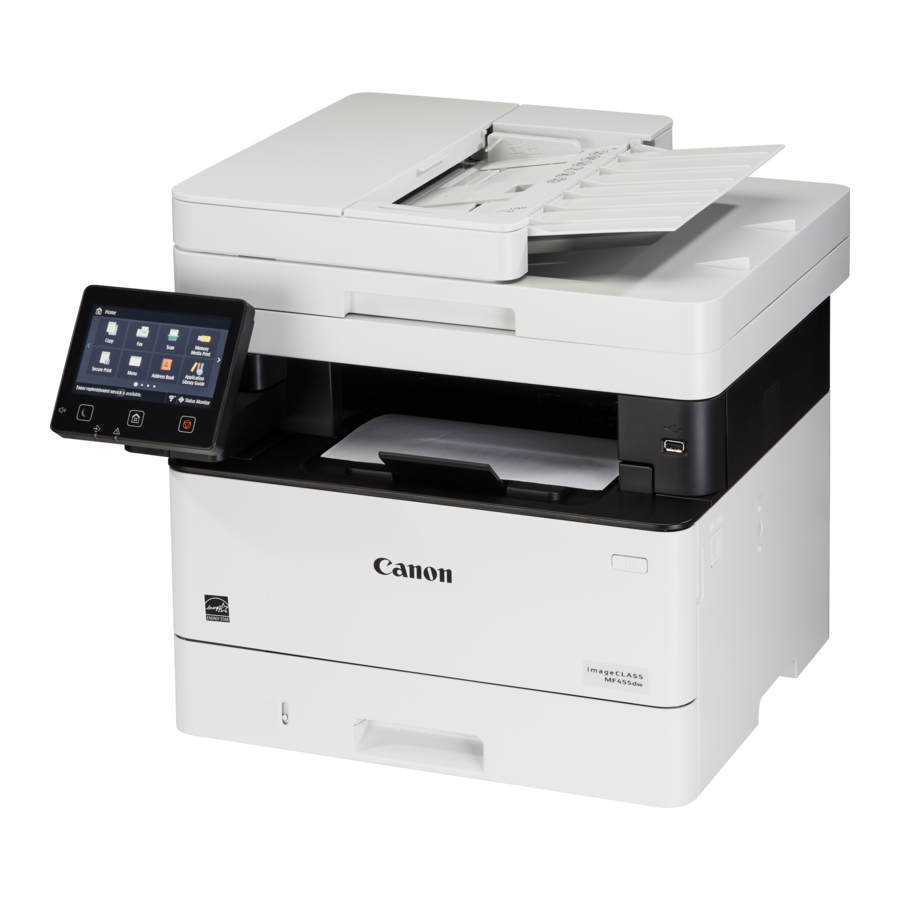

Canon imageCLASS MF455dw / MF453dw / MF452dw / MF451dw Manual

Table of Contents

Contents

1 Checking the Items Included
2 Removing the Packing Material
3 Loading Paper
4 Installing the Optional Part
5 Connecting the Power Cord
6 Specifying the Basic Settings
7 Specifying the Security Settings
8 Specifying the Network Settings
9 Setting Up the Toner Replenishment Service
10 Ending the Setup Guide
11 Installing the Software/ Drivers
12 Fax Setup
13 Documents / Resources
- 13.1 References
- 13.2 Download manual

Checking the Items Included

Unless otherwise stated, illustrations used in this document are for the MF455dw.

Removing the Packing Material

Install the machine in the location where it will be used.

Remove all packing material.
Remove all of the tape.

Do not remove the sticker that covers the USB port until you actually use the USB port.

Loading Paper

Installing the Optional Part

information If you are not using optional part, proceed to step.

Before Installing the Optional Part
When installing the optional part after the machine has been installed, perform the following before starting work:

Shut down the machine and your computer.
Unplug the machine from the mains power outlet.
Disconnect all cords and cables from the machine.

Cassette feeding module

Install the cassette feeding module in the location where it will be used.

Connecting the Power Cord

Specifying the Basic Settings

When you turn on the machine for the first time, the Setup Guide starts up on the operation panel. Perform the initial machine setup by following the on-screen instructions.
Specifying the Basic Settings

Select the language, then the country/ region and finally the time zone.
Set the current date/time.

Specifying the Security Settings

Specify the basic security settings to prevent unauthorized access to the machine.

To use the Remote UI, select <Yes>.
To continue without using the Remote UI, select <No> and proceed to step 8.
To use General User mode, select <Yes>.
- Set the PIN to be used by general users to access the Remote UI.
- To continue without using General User mode, select <No> and proceed to step 8.
Set the Remote UI Access PIN.
- Enter any number and then select <Apply>.
- Re-enter the same PIN on the next screen as confirmation and select <Apply>.

Specifying the Network Settings

Specify the settings for connecting the machine to a network. Before proceeding, check that the computer and router are correctly connected to the network.

Wireless LAN

Check the router's "SSID" and "Network key."

To configure the settings, select <Yes> on the operation panel.
Check the message and select <OK>.
Select the network with a matching SSID.
Enter the password (network key) and select <Apply>.

Wired LAN
Connect the router to the machine with a LAN cable and then select <No> in the screen for choosing how to connect to the network.

Setting Up the Toner Replenishment Service

Use this procedure to set up the toner replenishment service. To use this service, you must enter into an agreement beforehand.

Check the message and select <Next>.
Check the conditions of use, and then choose whether or not to use the service.
- To use the service: <Accept>.
- To not use the service or not enter into an agreement: Select <Do Not Accept> and proceed to step 10.
When <Connection was successful.> appears, select <OK>.

Ending the Setup Guide

Check the description in the Application Library and then select <End>.

Installing the Software/ Drivers

Install the software and drivers from the CD/DVD-ROM included, or visit the URL below and download them from the Canon website for your country/region.
https://global.canon/en/support/

Fax Setup

The first time you select <Fax> on the Home screen, the Fax Setup Guide starts up.
*These settings do not appear on models without a fax function.

Setup Procedure

Select <Fax> on the Home screen.
Select <Set Up Now>.
Select <Next>.
Enter the Unit Telephone Number and select <Apply>.
Select <Next>.
Enter the Unit Name (name and company name, etc.) and select <Apply>.
Select the receive mode that best suits your telephone connection and the way you receive calls.
Refer to the illustration below and select <Yes> or <No>. Finally, select <Apply> to set the receive mode.
