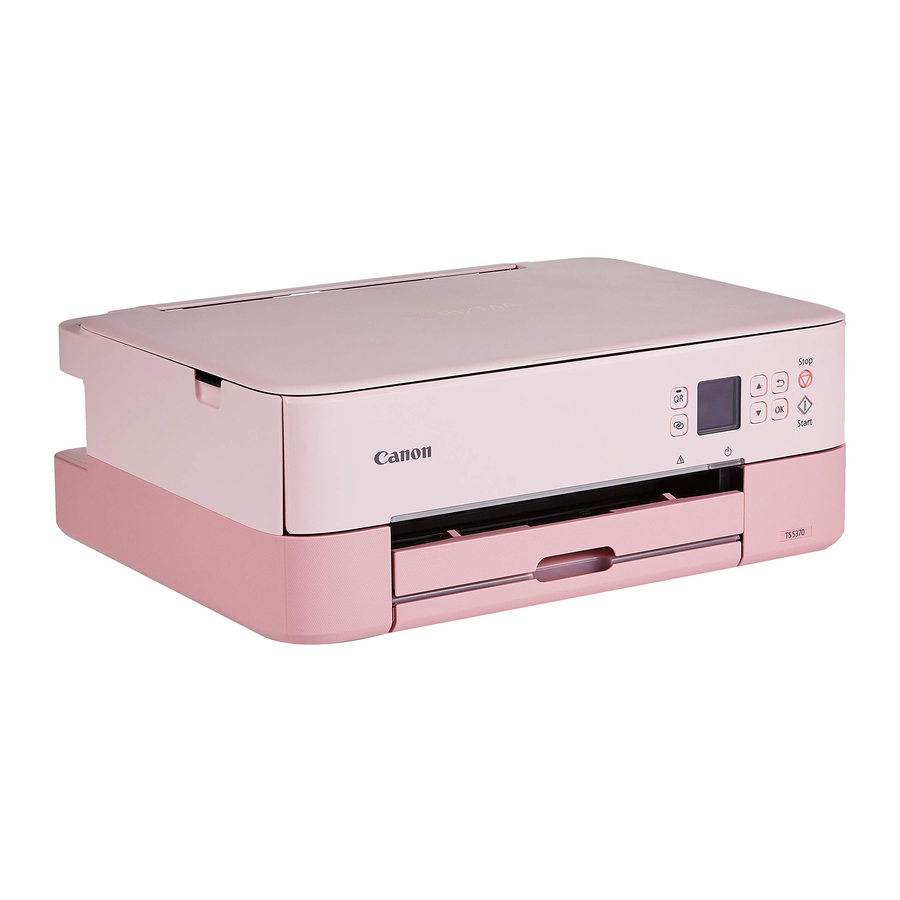

Canon PIXMA TS5300 Series, PIXMA TS5370 Manual

Read Safety and Important Information (addendum) first.

Holding the Printer

Setting Up the Printer

2. Removing Packing Materials

   1. Remove and dispose of any packing materials and orange tape.
   2. Open the scanning unit / cover, remove and dispose of the orange tape and protective material inside.

   3. Close the scanning unit / cover.


• Open the scanning unit / cover fully and then close it.

  Watch your fingers.

3. Turning on the Printer

   1. Connect the power cord.


At this time, do not connect any other cables.

2. Press the ON button.

3. Use the and OK buttons to select a language

4. Press the OK button.


   Scan the QR code for a video tutorial of the setup procedure.
5. Use the and buttons to check the onscreen content, and then press the OK button.


• Do not touch the ink on the protective tape. It could stain your hands or surrounding objects.
• Do not touch the areas shown in the figure. Otherwise, the printer may not print correctly.


4. Set the Color FINE cartridge in the FINE cartridge holder.


   Do not bump the FINE cartridge. Doing so may cause a malfunction.

5. Push down the ink cartridge locking cover firmly until it snaps into place to close it completely.

6. Repeat steps 2 to 5 and install the Black FINE cartridge as well, on the right-hand side.

7. Close the scanning unit / cover.

• The printer will start initializing.


  Watch your fingers.

5. Attach the cassette cover and replace the cassette.


• Look at it from the side to confirm it looks like the diagram.


6. Pull out the paper output tray.

7. Press the OK button.

8. Press the OK button.


   Scan the QR code for a video tutorial of the setup procedure.
9. Check that the following screen appears.


If you use the printer without connecting any other devices, setup is now complete.

Connecting to a Computer
If you are using multiple computers, perform these steps on each computer.

1. Access the Canon website from a computer.

2. Select Set Up.
3. Enter your printer's model name and click Go.
4. Click Start.
5. Click If you have already prepared your printer, go to Connect.
   Note The following steps are for Windows (except Windows 10 in S mode) and macOS users. For other operating systems, continue setup by following the on-screen instructions instead.
6. Click Download.
7. Run the downloaded file.
8. Click Start Setup.

9. Follow the on-screen instructions.

• These operations may take some time.
• To connect to a smartphone as well, see "Connecting to a Smartphone".

Using the Setup CD-ROM for Windows
Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install the printer driver.

Connecting to a Smartphone
If you are using multiple smartphones, perform these steps on each smartphone.

Prepare the following before starting.

1. Enable the Wi-Fi setting on your smartphone.
2. Connect your smartphone to the wireless router (if you have a wireless router).

Refer to your smartphone and wireless router manuals for more details.

Loading Photo Paper

1. Open the rear tray cover and extend the paper support.

2. Open the feed slot cover and slide the righthand side paper guide to the far right.

3. Load several sheets of photo paper with the print side facing up and slide the side paper guide against the edge of the paper stack.

4. Close the feed slot cover.


Copying

1. Turn on the printer.
2. Load Letter or A4 sized plain paper.
3. Open the document cover and place the document face down on the platen. Align the document with the alignment mark ().

4. Close the document cover.
5. Press the OK button.
6. Select Copy settings, and then press the OK button.
7. Specify print settings using the and OK buttons.

8. Press the Start button.
