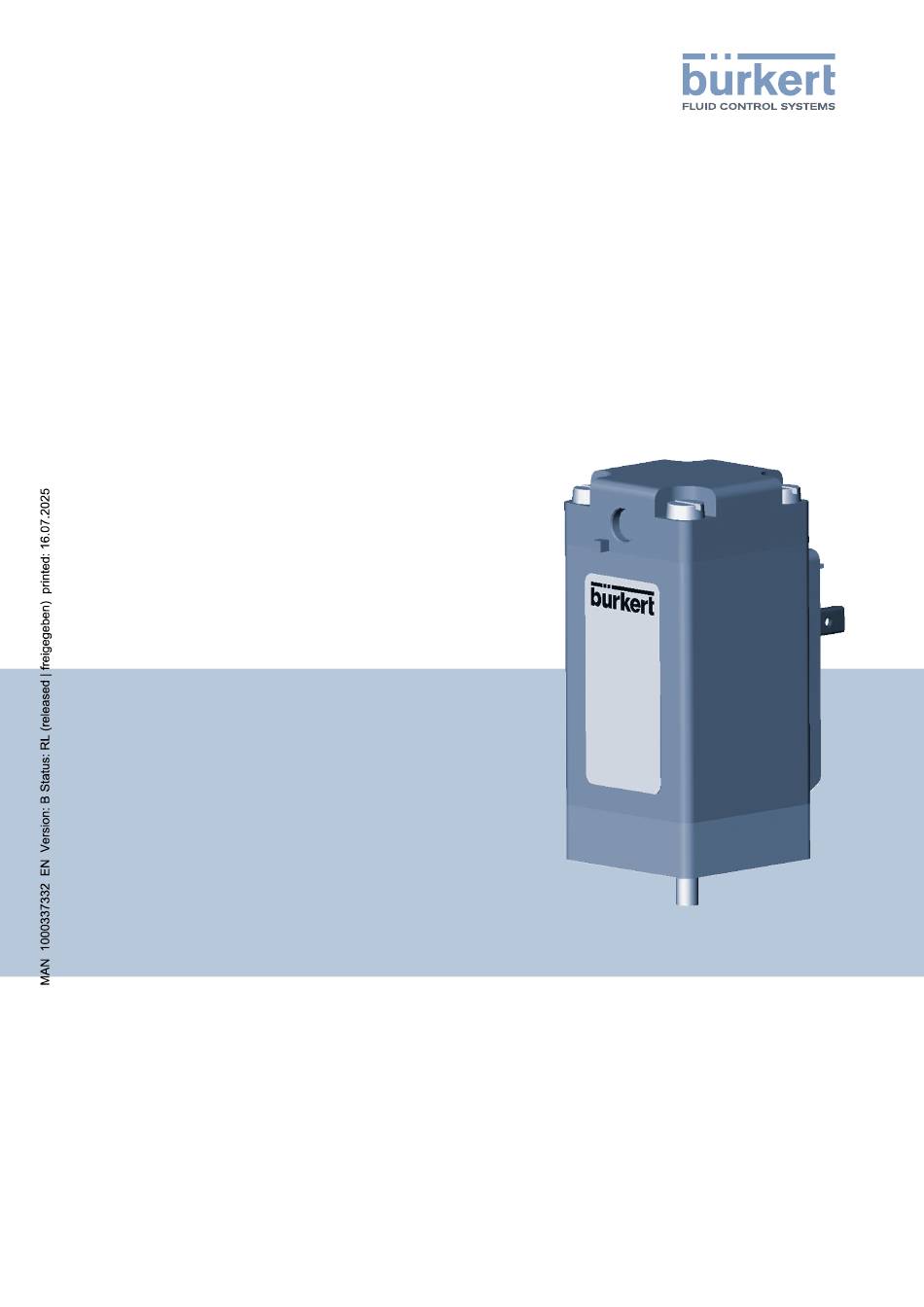

- Page 1 Type 0212 B 2/2-way solenoid valve Operating Instructions for all variants...
- Page 2 We reserve the right to make technical changes without notice. © Bürkert Werke GmbH & Co. KG 2017 - 2025 Technical documentation 2507/03_GBen_00805662_971125515_971289995 / Original DE...
- Page 3 Type 0212 B Table of contents Table of contents About this document 4 Symbols 4 Terms and abbreviations 5 Manufacturer 5 2 Safety 6 Intended use 6 Basic safety instructions 6 3 Technical data 8 Standards and directives 8 Structure and function 8...
- Page 4 Type 0212 B About this document About this document The document is an important part of the product and guides the user to safe installation and operation. The information and instructions in this document are binding for the use of the product.
- Page 5 Type 0212 B About this document Terms and abbreviations The terms and abbreviations are used in this document to refer to following definitions. Product Solenoid valve Type 0212 Manufacturer Bürkert Fluid Control Systems Christian-Bürkert-Str. 13−17 74653 Ingelfingen GERMANY The contact addresses are available at Contact.
- Page 6 Type 0212 B Safety Safety Intended use Unauthorised use of the Type 0212 solenoid valve may be dangerous to people, nearby equipment and the environment. ▶ When using the device, the permissible data specified in the operating instructions and on the type label must be observed, as well as the operating and usage conditions.
- Page 7 Type 0212 B Safety ▶ Only the media listed in Technical data [} 8] should be fed into the medium ports. ▶ Do not make any modifications to the device and do not subject it to mechanical stress. ▶ Operate the device only when it is in perfect condition and in accordance with the operating Instructions.
- Page 8 Type 0212 B Technical data Technical data Standards and directives This product complies with the legal requirements applicable at the time of placing on the market and has been developed and tested in accordance with the relevant European directives/regulations and harmonized standards.
- Page 9 0-10 0-10 Tab. 2: Pressure range Port connections: Bürkert flange 001-01-06 (32×32) Observe the data for voltage, current type and pressure listed on the type label. Type label 0212 B 2,0 FKM MS FLNSCH PN0-12bar 50-60Hz 8W 00450000 W14UN 1 Type...
- Page 10 Type 0212 B Technical data Electrical data Operating voltage 12 V DC 24 V DC 24 V 50 - 60 Hz 110 V 50 - 60 Hz 120 V, 60 Hz 230 V 50 - 60 Hz 240 V 50 - 60 Hz Voltage tolerance ±...
- Page 11 Type 0212 B Installation Installation Safety instructions WARNING! Risk of injury when installing the valve ▶ Maintenance must always be carried out by qualified and skilled staff and with the appropriate tools! ▶ After an interruption in the power or pneumatic supply, ensure that the process is restarted in a...
- Page 12 Type 0212 B Installation Connection plates can be linked together using body connections (order no.: 005040). Electrical installation DANGER! Danger from electrical voltage when working on the system ▶ Before starting work, always switch off the power supply and secure it against being switched back on! ▶...
- Page 13 Type 0212 B Maintenance, troubleshooting Maintenance, troubleshooting The valve operates maintenance-free under normal conditions. Troubleshooting In the event of a malfunction, check the following: • Port connections • Operating pressure • Power supply and valve control unit Solenoid not actuating...
- Page 14 Type 0212 B Spare parts Spare parts CAUTION! Danger due to incorrect accessories and spare parts Incorrect accessories and unsuitable spare parts may cause injuries and damage the device and the surrounding area. ▶ Use only original accessories and original spare parts from Bürkert.
- Page 15 Type 0212 B Logistics Logistics Transport and storage ▶ Protect the device against moisture and dirt in the original packaging during transportation and storage. ▶ Avoid UV radiation and direct sunlight. ▶ Protect connections from damage with protective caps. ▶ Observe permitted storage temperature.
