Summary of Contents for Burkert 0142

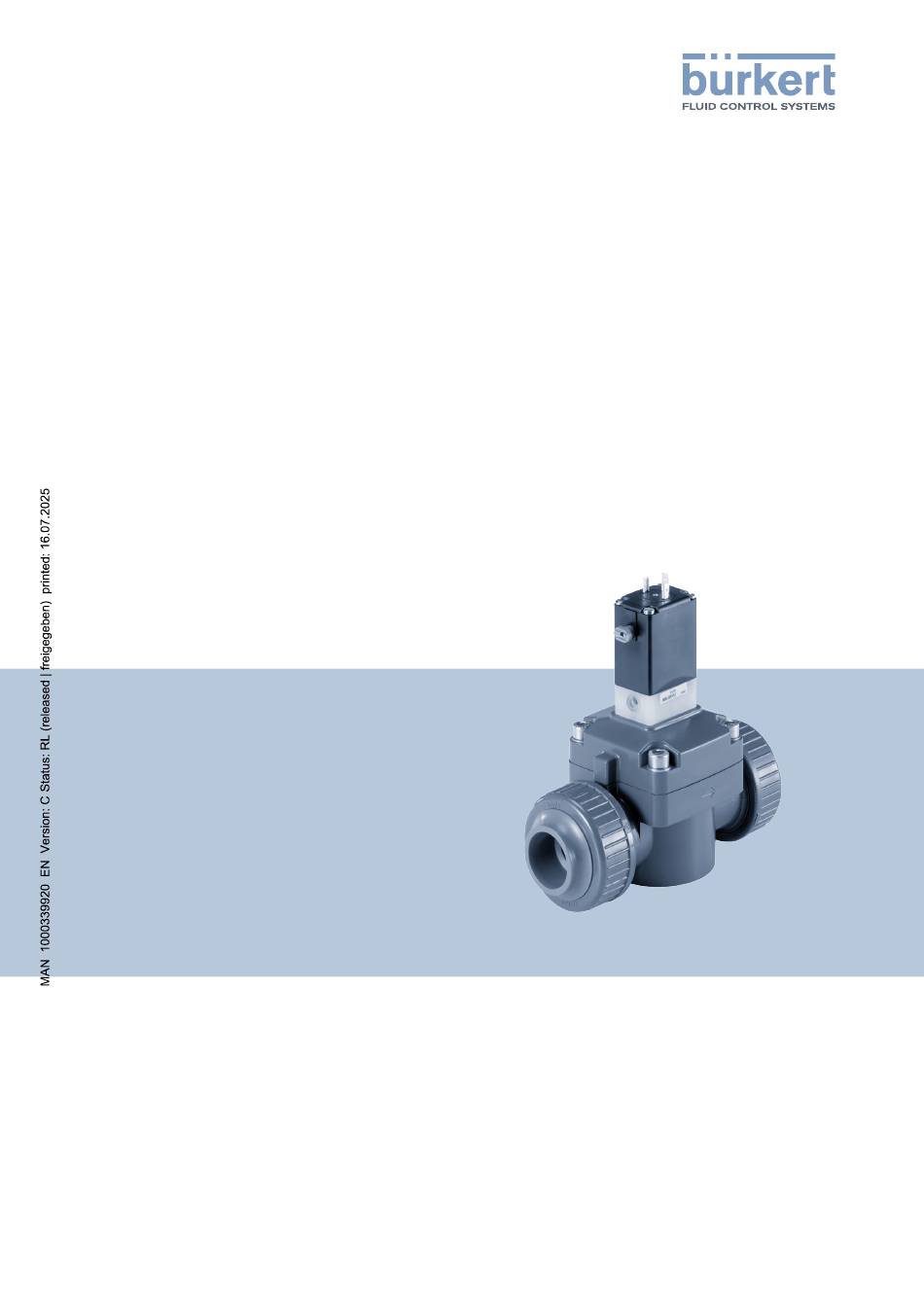

- Page 1 Type 0142 2/2-way solenoid valve Operating Instructions for all variants...
- Page 2 We reserve the right to make technical changes without notice. © Bürkert Werke GmbH & Co. KG 2013-2025 Technical documentation 2507/07_GBen_00893140_953247243_953407499 / Original DE...
- Page 3 Type 0142 Table of contents Table of contents About this document 4 Symbols 4 Terms and abbreviations 5 Manufacturer 5 2 Safety 6 Intended use 6 Basic safety instructions 6 3 Technical data 8 Operating conditions 8 Usage conditions 8 Standards and directives 9...
- Page 4 Type 0142 About this document About this document The document is an important part of the product and guides the user to safe installation and operation. The information and instructions in this document are binding for the use of the product.
- Page 5 Type 0142 About this document Terms and abbreviations The terms and abbreviations are used in this document to refer to following definitions. Product Solenoid valve Type 0142 Manufacturer Bürkert Fluid Control Systems Christian-Bürkert-Str. 13−17 74653 Ingelfingen GERMANY The contact addresses are available at Contact.
- Page 6 ▶ Make sure the seal is properly seated. ▶ Screw valve and connection cables together carefully. To prevent injuries/damage, observe the following: ▶ Do not make any internal or external modifications to Type 0142. Secure the system/device against unintentional activation. 6 | 17...
- Page 7 Type 0142 Safety ▶ Installation and maintenance must be performed by authorised technicians and with the appropriate tools. ▶ The process must be restarted in a defined or controlled manner after an interruption in the power supply or pneumatic supply.
- Page 8 Type 0142 Technical data Technical data Operating conditions The following values are indicated on the type label (see Type label [} 9]): • Voltage (tolerance ± 10%) / current type • Coil power (active power in W – at operating temperature) •...
- Page 9 The conformity is documented and, if necessary, supported by evidence. The EU Declaration of Conformity can be found behind the respective type on the home page country.burkert.com Type label 0142 A 20,0 FKM P N 0,5 - 6 bar 230V 50-60Hz 5W...
- Page 10 Type 0142 Installation Installation Safety instructions DANGER! Risk of injury from high pressure in the system ▶ Before loosening lines or valves, switch off the pressure and bleed the lines. DANGER! Risk of injury from electric shock ▶ Before reaching into the device or the system, switch off the power supply and secure to prevent reactivation! ▶...
- Page 11 Type 0142 Installation Installation 1 Insert 2 Insert the O-ring 3 Tighten the cap nut evenly by hand only NOTICE! Breaking hazard ▶ Do not use the coil as a lever arm. Body with welding socket ▶ Use PVDF. Body with adhesive sleeves ▶...
- Page 12 Type 0142 Installation Manual override CAUTION! Escaping medium due to loss of O-rings Loss of the O-rings leads to valve leak. Medium may escape! Only press the manual override when the power is off. ▶ To override the valve manually, press the manual override and turn it 90° clockwise until it stops.
- Page 13 Type 0142 Installation max. 1 Nm 1 Seal 2 Approved cable plug, e.g. Type 2508 or other suitable cable plug in accordance with DIN EN 175301-803 Form A Observe voltage and current type according to type label. Approach ▶ Screw cable plug tight (for approved types see data sheet), ensuring a maximum torque of 1 Nm.
- Page 14 Type 0142 Installation Approach ▶ Connect pulse valves (variable code CF 02). ▶ For DC voltage variants, connect the negative pole to terminal 2. NOTICE! ▶ Avoid impulses being simultaneously generated on both coil windings. ▶ No additional loads (such as relays or similar devices) must be connected in parallel to the terminals.
- Page 15 Type 0142 Maintenance, troubleshooting Maintenance, troubleshooting Safety instructions WARNING! Risk of injury due to improper maintenance work ▶ Maintenance must be carried out by authorised technicians using the appropriate tools! WARNING! Risk of injury due to unintentional activation of the system and uncontrolled restart ▶...
- Page 16 Type 0142 Spare parts Spare parts CAUTION! Risk of injury and/or damage to property due to incorrect parts Incorrect accessories and unsuitable spare parts may cause injuries and damage the device and the surrounding area. ▶ Use only original accessories and original spare parts from Bürkert.
- Page 17 Type 0142 Logistics Logistics Transport and storage ▶ Protect the device against moisture and dirt in the original packaging during transportation and storage. ▶ Avoid UV radiation and direct sunlight. ▶ Protect connections from damage with protective caps. ▶ Observe permitted storage temperature.
