Introduction
The M-PHY GEAR5 Teledyne LeCroy Solder-In Probe™
allows developers using an embedded bus in their PCB
designs to tap into the signal traces directly and capture bus
traffic for protocol analysis and debugging. The probe
connects to a Teledyne LeCroy Eclipse M52 Analyzer via a
Probe Amplifier. Figure 1 shows the complete assembly of
the M-PHY GEAR5 Solder-In Probe and its components.
M-PHY GEAR5 Solder-In Probe
Quick Start /User Guide
Use this document for quick installation and setup. If you expe-
rience problems or need more information, see the MIPI Proto-
col User Manual or the Teledyne LeCroy web site:
https://teledynelecroy.com/protocolanalyzer/mipi.
Support is provided for M-PHY systems including GEAR1,
GEAR2, GEAR3, GEAR4, and GEAR5 for both rate A and
rate B.
One Probe Amplifier is required for link widths of up to x1.
Figure 1 shows a x1 connection.
Two Probe Amplifiers are needed for link widths of up to x2.
See Section 5 for analyzer cable configurations and lane
mapping.

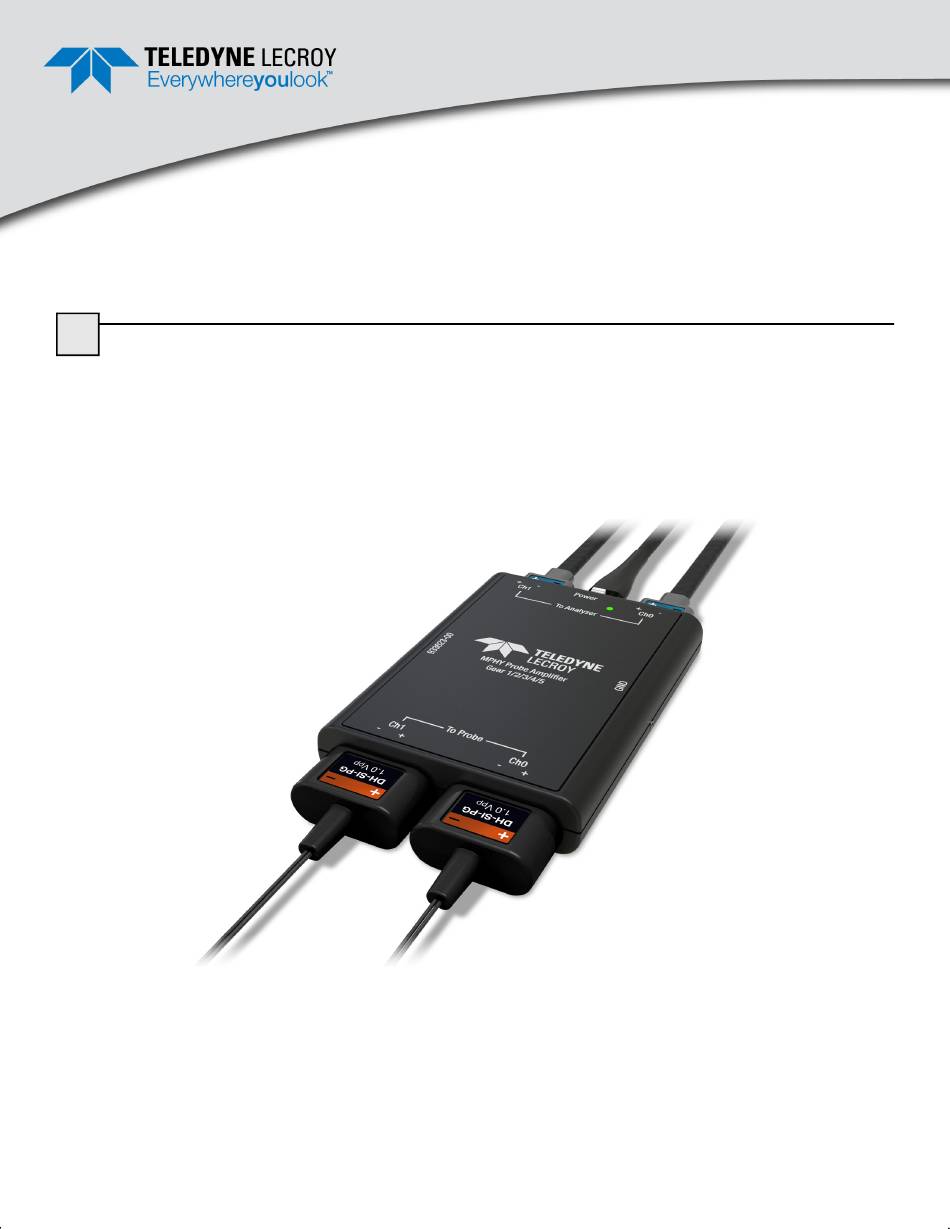

Figure 1: M-PHY GEAR5 Solder-In Probe System
Advertisement
Related Manuals for Teledyne Lecroy M-PHY GEAR5
Summary of Contents for Teledyne Lecroy M-PHY GEAR5
- Page 1 The probe Figure 1 shows a x1 connection. connects to a Teledyne LeCroy Eclipse M52 Analyzer via a Two Probe Amplifiers are needed for link widths of up to x2. Probe Amplifier. Figure 1 shows the complete assembly of See Section 5 for analyzer cable configurations and lane the M-PHY GEAR5 Solder-In Probe and its components.
- Page 2 Components M-PHY GEAR5 Probe Amplifier ( The Teledyne LeCroy M-PHY GEAR5 Solder-In Probe has the following components as shown in Figure 2: 40Ghz SMP-SMP Differential Coax Cable Assembly ( Teledyne LeCroy DH-SI-PG Solder-In tip ( Molex to Lemo Power Cable ( ...
- Page 3 Once probe points have been selected, you are now ready to prepare for installation of the M-PHY GEAR5 Solder-In Each probe amplifier handles up to two (2) probe tips. Probe. Figure 5 shows the EYE diagram requirements at the The probe amplifiers are then connected back to the probing point.
- Page 4 Install the Probe Because of their small size, the probe tips provide the soldered to the small PCB at the end of the DH-SI-PG Solder- maximum signal fidelity at the highest frequency response. In tip are soldered to the small PCB's top side. When The + input is indicated by a small + symbol on the tip, and by soldering the tip resistors to the differential line to be probed, a white marker on the corresponding side of the tip lead.
- Page 5 Install the Probe (continued) Replace Tip Resistors on the DH-SI-PG The external tip resistors are subject to mechanical stress and may periodically need to be replaced, even if proper stress-relief precautions are taken. 1. Remove the old resistor tip and any remaining solder from the long solder pad using a fine-tip soldering iron.
- Page 6 Ω 3. Only adjust lanes that have symbol errors. 1. In the Teledyne LeCroy software, select Settings and 4. If you still have some symbol errors after adjusting the SmartTune Equalization. Under General, make sure probe gain, you can adjust the SmartTune equalization Probe is selected.
- Page 7 Tuning the Probes and Analyzer (continued) iii. Try stepping through ATT (0x0 to 0x7) in calibration and may update itself when the Teledyne LeCroy coarse steps of 0x2. software is updated. The probe must be connected to the host PC via the USB-C cable. After the update is complete a.
- Page 8 Product specifications are subject to change without notice. Eclipse M52 are trademarks of Teledyne LeCroy. Microsoft Teledyne LeCroy reserves the right to revise the information in and Windows are registered trademarks of Microsoft Inc. All this document without notice or penalty.
