Teledyne Lecroy PCI Express Gen 4x8 OCuLink User Manual

1

Introduction

Teledyne LeCroy's PCI Express Gen4 x8 OCuLink Cable Interposer for the Summit™ PCI Express Protocol Analyzer product line provides
individual dedicated probes, making it easy to capture and analyze data traffic between a host and device that are connected using a
PCIe® OCuLink type cable based on the PCI Express OCuLink Cable specification. The PCI Express Gen4 x8 OCuLink Interposer taps
into the OCuLink point to point connection to allow an analyzer to capture and decode data traffic between two systems. It supports data
rates of 2.5 GT/s, 5.0 GT/s, 8.0 GT/s and 16.0 GT/s. The interposer assures reliable data transmission while providing 100% capture of
all data traffic flowing through the PCIe interface. Connecting the interposer to a Teledyne LeCroy analyzer allows analyzer to decode and
display data in both directions and across all lanes.
One PCIe OCuLink Cable can support PCIe link widths from x1 to x4. Larger links can be achieved by adding additional cables, e.g. a x8
link uses two PCIe OCuLink cables. The PCI Express OCuLink Specification allows in addition to in-band PCIe signaling the passage of
sideband signals such as PERST#, WAKE#, CLKREQ# and SMBus by passing them electrically through the link. The sideband signaling
(PERST#, WAKE#, CLKREQ#, SMBus and other functionality) can be monitored by the protocol analyzer through the interposer, where
protocol issues and performance metrics can be analyzed and debugged. RefClk signals external to the cable are also available on the
PCIe OCuLink Cable Interposer for use with the protocol analyzer.
The PCI Express Gen3 x8 OCuLink Interposer works with the PCIe OCuLink cable (or set of cables) up to 0.6 meter in length as defined
in the PCI Express OCuLink Cable specification.
2

Components

The interposer package includes the following components:
• PCI Express Gen4 x8 OCulink Interposer
• PCIe OCuLink Internal Cables (Two PE017UCA-X cables 60cm each)
• DC Power Adapter (12 volts @ 5A)
• User Manual and Quick Start Guide (this document)
Inspect the received shipping container for any damage. Unpack the container and account for each of the system components listed on
the accompanying packing list. Visually inspect each component for absence of damage.
In the event of damage, notify the shipper and Teledyne LeCroy. Retain all shipping materials for shipper's inspection.
PCI Express
User Manual and Quick Start Guide
Before Starting
Use this document for quick installation and setup. If you experience problems or
need more information, see the product manuals available at the Teledyne LeCroy
web site or in the Documents folder in the PCIe Protocol Suite installation DVD.

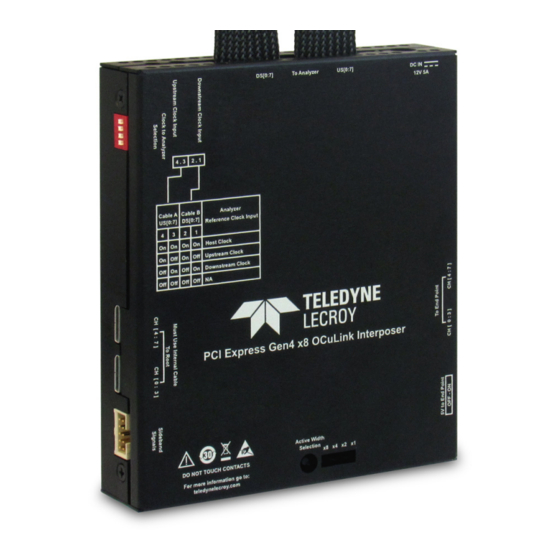

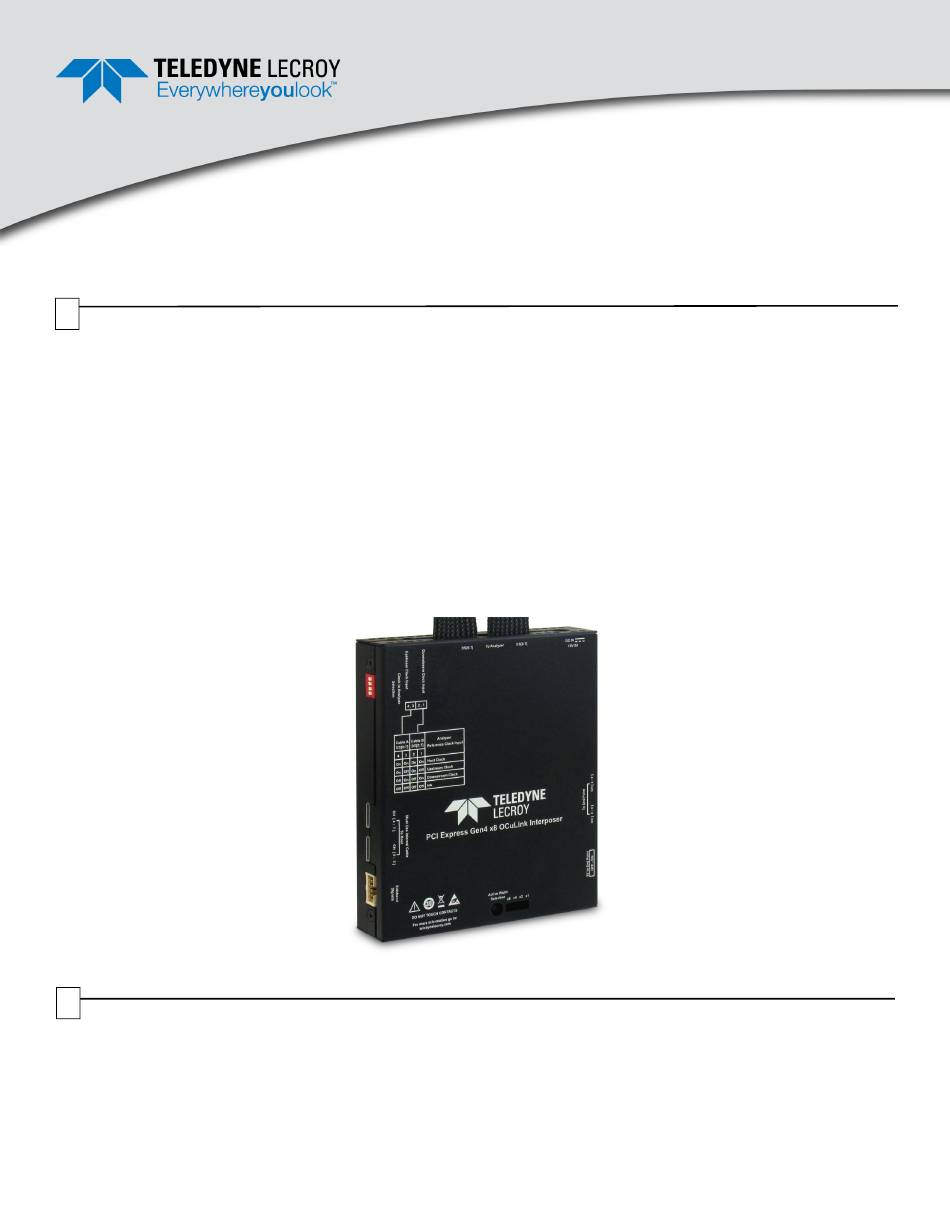

PCI Express Gen4 x8 OCuLink Interposer
®
Gen4 x8 OCuLink Interposer
