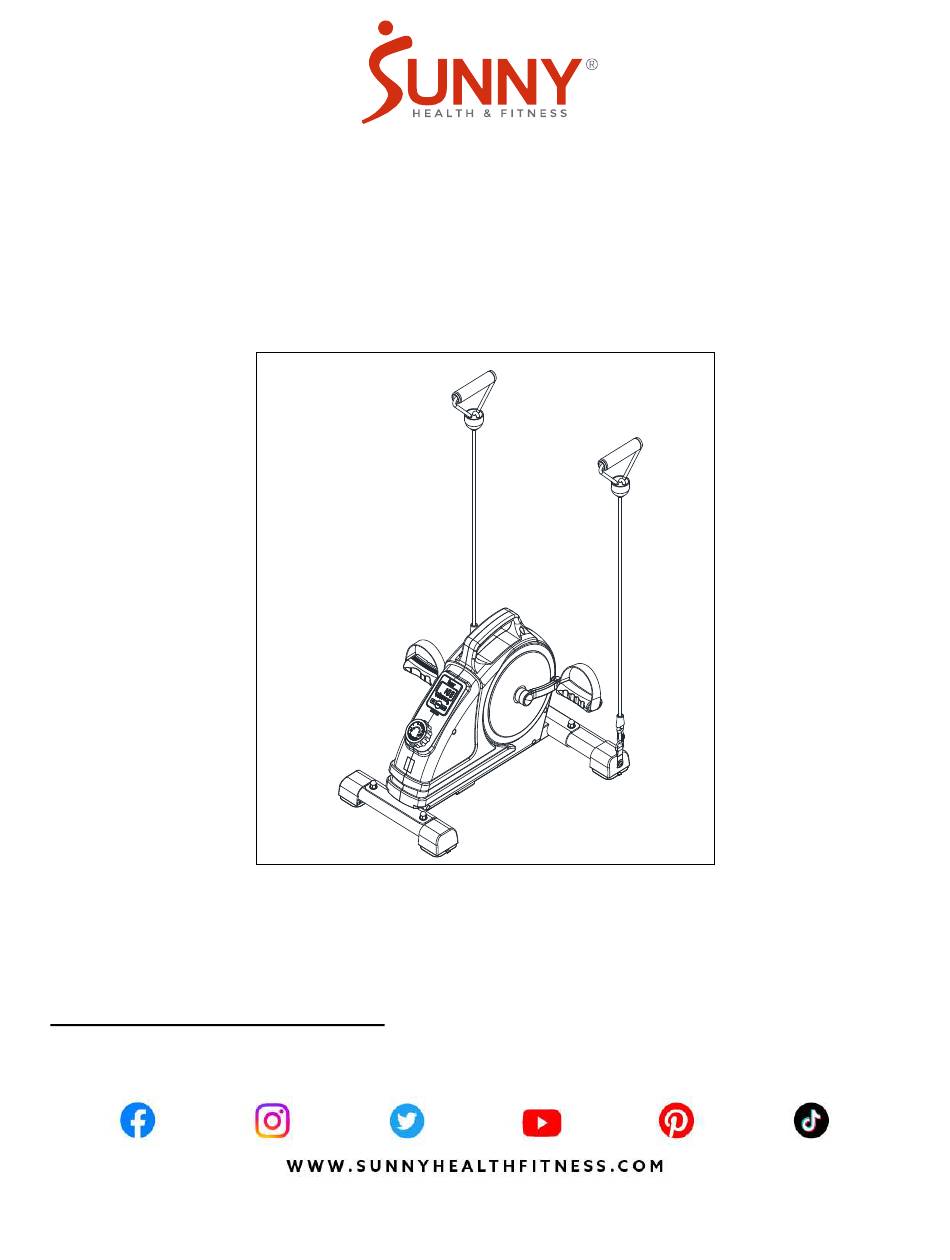

MAGNETIC SMART MINI EXERCISE PEDAL CYCLE
SF-B020026 SMART
USER MANUAL
DO NOT STAND ON THE UNIT.
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Related Manuals for Sunny Health & Fitness SF-B020026 SMART
Summary of Contents for Sunny Health & Fitness SF-B020026 SMART
- Page 1 MAGNETIC SMART MINI EXERCISE PEDAL CYCLE SF-B020026 SMART USER MANUAL DO NOT STAND ON THE UNIT. IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION 1. We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Description Spec Description Spec Main Frame Resistance Band Rear Stabilizer Battery Front Stabilizer Hardware Package Right Pedal Thank You Card Left Pedal User Manual... -
Page 4: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: Attach Rear Stabilizer (No. 14) to the Main Frame (No. 1) with 2 Carriage Bolts (No. 21), 2 Washers (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 2: NOTE: The Left & Right Pedals (No. 7L & No. 7R) are marked “L” and “R” for Left and Right. WARNING! Read instructions carefully as improper assembly may cause permanent damage to your bike.
-
Page 7: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY BATTERY BATTERY INSTALLATION: 1. Take out 2 AAA batteries from the manual bag. 2. Remove the Meter (No. 10) from Main Frame (No. 1). Then disconnect the link wire of Inductor (No. 38) with the Meter (No. 10). 3. -
Page 8: Function Keys
EXERCISE METER BLUETOOTH 1. The Bluetooth icon will flash when the meter is on or wakes from sleep mode. If no Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off. 2. The Bluetooth icon will stay on when it is connected. WIRELESS HEART RATE 1. -
Page 9: Specifications
TIME: Count the total time from exercise start to end. Press “MODE” button until “TIME” appears, press “SET” button to set exercise time. When the “SET” is zero, the computer will stop 1 seconds after the start of the time. SPEED: Display current speed. - Page 10 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE TENSION Adjust the tension by rotating the Tension Control Knob (No. 9) clockwise to increase the level of resistance. Rotate the Tension Control Knob (No. 9) counterclockwise to decrease the level of resistance. Tension levels are set at Level 1 being the lowest and Level 8 being the highest.
-
Page 11: App Connection
APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. -
Page 12: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame End Cap Spindle High Cap Nut Left Crank Resistance Band Right Crank Connecting Hook Magnetic Board Belt Wheel Idler Wheel Shaft Belt J310 End cap φ6.5 C-clip Left Pedal Bearing 6003 Right Pedal Screw... -
Page 13: Exploded Diagram
EXPLODED DIAGRAM #48 S13-S14-S15 1PC #49 S17-S19 1PC Version: 1.1...
