ELECTRIC TWO-STAGE HYDRAULIC PUMP
Litho in USA
Tech. Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031
MODEL C

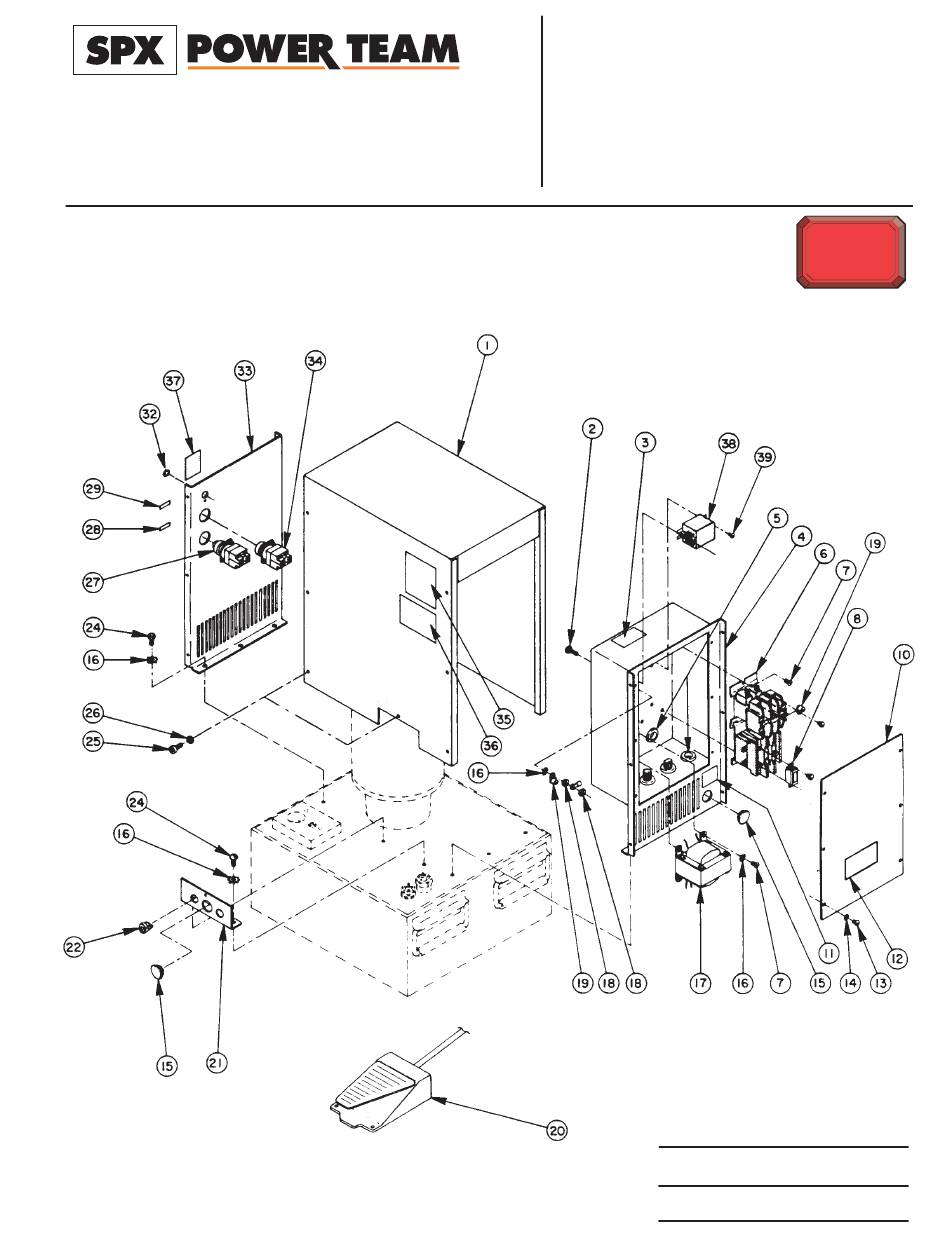

CONTROL BOX & COVER ASSEMBLY
®
Parts List for:
Form No. 101366
PQ1203-CCL
PQ1203-CCL-380
To Parts
List
Sheet No.
1 of 4
Rev. 2
Date: 27 Oct. 2000
Advertisement
Table of Contents
Related Manuals for SPX POWER TEAM PQ1203-CCL
Summary of Contents for SPX POWER TEAM PQ1203-CCL
- Page 1 Form No. 101366 ® Parts List for: SPX Corporation Tech. Services: (800) 477-8326 5885 11th Street Fax: (800) 765-8326 Rockford, IL 61109-3699 USA Order Entry: (800) 541-1418 PQ1203-CCL Fax: (800) 288-7031 PQ1203-CCL-380 Internet Address: http://www.powerteam.com MODEL C To Parts ELECTRIC TWO-STAGE HYDRAULIC PUMP List CONTROL BOX &...
- Page 2 Parts List, Form No. 101366, Back sheet 1 of 4 Item Part Item Part Req'd Description Req’d Description 50946WH2 Shroud Cover 14394 Self-Tapping Screw (#10 X 3/8 Lg.) 104484 Machine Screw 12356 Serrated Washer (#10-24 X 3/4 Lg.) (#10 Internal) 202504 Rotation Decal 251277...
-
Page 3: Basic Pump Assembly
Parts List Form No. 101366 To Parts List BASIC PUMP ASSEMBLY Sheet No. 2 of 4 Rev. 2 Date: 27 Oct. 2000... -
Page 4: Bolt Tightening Sequence
Parts List, Form No. 101366, Back sheet 2 of 4 Item Part Item Part Req'd Description Req'd Description 12178 Retaining Ring 60231WH2 Cover Plate (.104 Thk.) **12178 Retaining Ring **60922 Cover Plate (.164 Thk.) 35272 Pump Shaft 50712 Cover Gasket **303009 Pump Shaft 10004... -
Page 5: High Pressure Pump Assembly
Parts List Form No. 101366 HIGH PRESSURE PUMP ASSEMBLY To Parts List UNLOADING PRESSURE VALVE ADJUSTMENT SCREW SUPERCHARGE VALVE ADJUSTMENT SCREW Note: Supercharge Valve and Unloading Pressure Valve of the high pressure pump assembly are NOT factory set! They require adjustment at final pump assembly. Refer to the pump’s hydraulic schematic for specifications. - Page 6 Parts List, Form No. 101366, Back sheet 3 of 4 Item Part Item Part Req'd Description Req'd Description *24549 Valve Guide 10379 Steel Ball (1/2 Dia.) *10445 Compression Spring 15319 Compression Spring (5/32 O.D. X 3/4 Lg.) (1/4 O.D. X 3/4 Lg.) *12223 Steel Ball 12099...
- Page 7 Parts List Form No. 101366 ELECTRIC SCHEMATIC - 230 V. 60 Hz., Three Phase WARNING: To help prevent personal injury, all electrical work must be done by a qualified electrician. T1 BLUE T7 PINK T2 WHITE T8 RED T3 ORANGE T9 BROWN T4 YELLOW T5 BLACK...
-
Page 8: Hydraulic Schematic
Parts List, Form No. 101366, Back sheet 4 of 4 HYDRAULIC SCHEMATIC PRESSURE SWITCH 10,200 P.S.I. INTERNAL RELIEF VALVE 11,750 P.S.I. BLEED VALVE 2 POSITION 3-WAY VALVE SUPERCHARGE VALVE 190 P.S.I. EXTERNAL RELIEF VALVE 11,000 P.S.I. UNLOADING VALVE 900 P.S.I. OPTIONAL PILOT OIL LINE/ACCUMULATOR ASSEMBLY Item Part...
