PURSOS

Installation Guide

•

Please read these instructions carefully before assembling and installing this luminaire.

•

Please keep this installation guide for future reference.

SHP FINESSE

V1.0

Table of Contents

Need help?

Do you have a question about the PURSOS SHP FINESSE and is the answer not in the manual?

Questions and answers

Summary of Contents for Traxon PURSOS SHP FINESSE

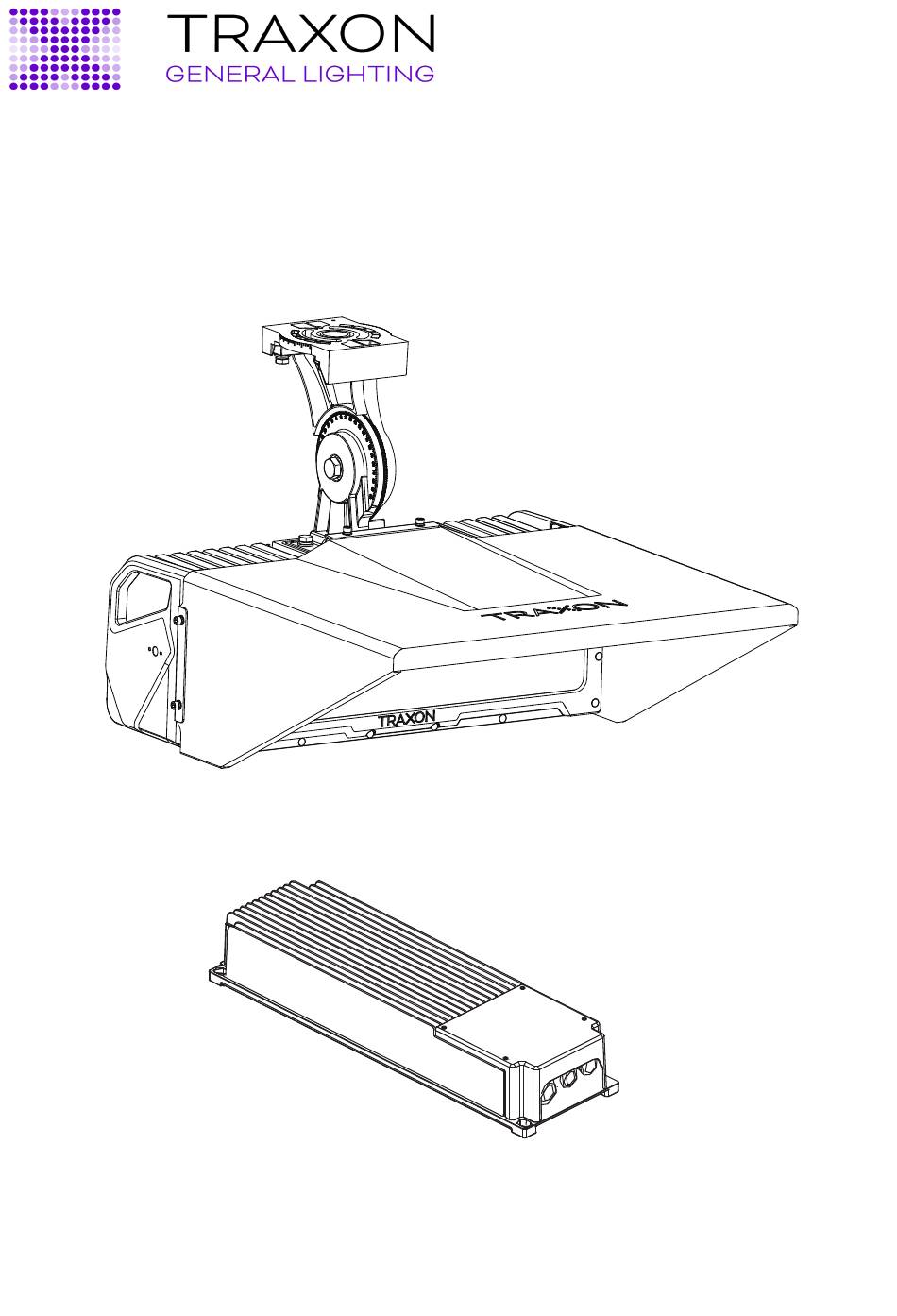

Page 1 PURSOS SHP FINESSE ® Installation Guide • Please read these instructions carefully before assembling and installing this luminaire. • Please keep this installation guide for future reference. V1.0...
Page 2: Table Of Contents
Content Safety And Operation Packaging Content Dimensions Installation System Wiring Care and Maintenance 7. Technical Specification Troubleshooting Warranty Statement www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 2 of 23...
Page 3: Safety And Operation
30M. Do not touch the luminaires while they are illuminated. Use screws, nuts, and bolts with the highest corrosion resistance grade (e.g., SUS316) for fixing, complying with C5 class according to ISO 9223. Avoid damaging the coating of the luminaire housing, as this will reduce the product’s corrosion resistance. www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 3 of 23...
Page 4: Packaging Content
Gear Box The gearbox may be different to the one depicted, dependent on the type and power of the luminaire ordered. Visor 6*M6 www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 4 of 23...
Page 5: Dimensions
Sc*30° a= 30° a= 60° Direction Front Side Front Side Maximum projected (m²) 0.33 0.1 2 0.1 2 EPA (ft²) 4.32 1 .55 2.58 1 .55 www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 5 of 23...
Page 6 Gear Box for White DMX Version Unit: mm (”) 800W 1200W 400 [15.75] 500 [19.68] Ø7 81 [3.19] 378 [14.88] [Ø0.28] Ø7 478 [18.82] 81 [3.19] [Ø0.28] 6.4kg 4.2kg www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 6 of 23...
Page 7: Installation
The luminaire should be mounted to a suitable steel mounting surface. No mounting height limit. At least 1 meter distance shall be kept from surrounding walls, floor and ceiling. www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 7 of 23...
Page 8: Fixture Installation
1. It is recommended to use SUS304 as the material for screws and washers. 2 x M10 2. Screws and washers are not provided. 142.5 [5.61] www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 8 of 23...
Page 9 5.12” Ø0.28” Gear Box for 478mm 130mm Ø7mm 1200W White 18.82” 5.12” Ø0.28” Fix the gear box in a suitable place according to the site requirements. www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 9 of 23...
Page 10 2 Horizontal Adjustments Loosen the bolt until the light engine can be rotated. 73mm [2.9”] After adjusting, make sure to tighten the bolt to the specified torque (80Nm). www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 10 of 23...
Page 11: Electrical Connection
Cable type Remark 3 x 2.5mm Rubber thread 1 pcs To be sourced locally Extension Cable H07RN-F / above according to site requirements. 1 pcs Juction box www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 11 of 23...
Page 12 Cable type Remark 4 x 2.5mm Rubber thread 1 pcs To be sourced locally Extension Cable H07RN-F / above according to site requirements. Juction box 1 pcs www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 12 of 23...
Page 13 3 x 2.5mm Rubber thread 1 pcs 1 pcs To be sourced locally Extension Cable H07RN-F / above according to site requirements. 1 pcs Juction box www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 13 of 23...
Page 14 Laser Aiming Device Installation FIG.13: Mounting the Laser Aiming Device Laser Aiming Device “L” Type Holder Screw Laser holder www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 14 of 23...
Page 18 • Record the UID data and associated addresses at the end of this document. • Test each luminaire to verify correct addressing prior to completing installation. www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 18 of 23...
Page 19 Read Only Parameter Supported RDM Sensors Sensor Number Sensor Description Unit of Measure Safe Operating Range Driver Temperature Celsius Drive Voltage DC Volts Driver Current On-Line Time www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 19 of 23...
Page 20: Care And Maintenance
Care and Maintenance Traxon products are of superior design and quality and should be treated with care. The recommendations below will help fulfill any warranty obligations and gain good use and longevity from the products. — Do not attempt or use the product(s) until you read and understand the installation instructions. Failure to adhere to these instructions could result in serious injury or property damage.
Page 21: Technical Specification
LED products with different service life spans to be the same. The rate of LED degradation is a complex function of many factors such as operating efficiency, duration of continuous operation, and operating conditions (e.g. ambient temperature). Because LEDs are semiconductor devices, their performances are subject to inherent variability commonly found in semiconductor industry. To improve consistency in performance across the same product, LED manufacturers “sort” LEDs into bins according to different preset parameters, such as forward driving voltage, illumination, etc. Whereas binning is a sorting function, it is not a correction process. Inherent variability in the manufacturing process always results in different binning distributions according to different production lots. Traxon uses automatically binned LEDs on its products, thereby minimizing output variations within the model range. www.traxon-ecue.com ©2025 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 03/25 V1.0 21 of 23...
Page 22: Troubleshooting
Ensure the power supplies are not overloaded due to an excess of products connected. If problems persist or the product is not working as specified, please contact your Traxon Technologies office for assistance. Warranty Statement Traxon Technologies warrants its Products against material or workmanship defects for a period of seven (7) years from date of invoicing, provided that the purchased items are used under the conditions stated in this user manual. Please refer for all warranty terms and conditions.
