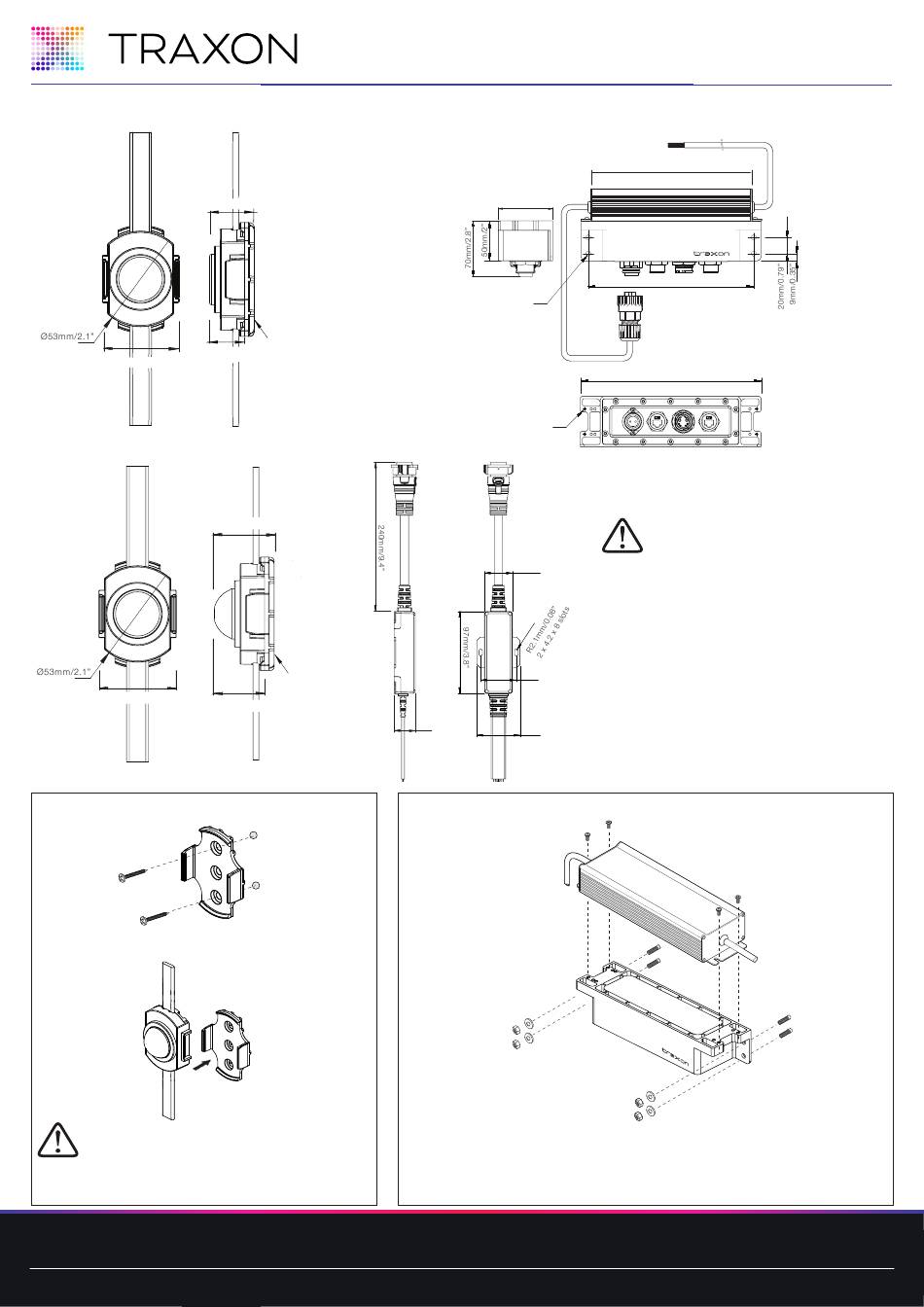

Traxon Allegro Dot S Direct View Installation Manual

This lighting chain can use for indoor and outdoor.
Direct View
18mm/0.7"
42.3mm/1.7"
Diffused View
42.3mm/1.7"

Mounting the Allegro Dot S

(M4 Screws not included)
CAUTION:
1. Always use the housing unit for mounting. Handle string with
care. Improper handling of lead cable and string will cause
damage.
2. Warning-This lighting chain must not be used without all
gaskets being in place.
www.traxon-ecue.com
Mounting Guide
23mm/1"
Mounting
Bracket
Smart Junction
31.5mm/1.2"
Mounting
Bracket
27mm/1.1"
Alleg ro D ot S
Mounting Guide
Distributor Box
68mm/2.7"
Ø6.3mm/0.25" x 4
Cable length:
300mm/11.8"
M4 x 4
33mm/1.3"
42mm/1.7"
25mm/0.98"
51mm/2"

Mounting the LED Engine and Pixel Distributor

LED Engine mounts
on top of the Pixel Distributor
(LED Engine is ordered
separately)
Mount Pixel Distributor
with connectors facing down
This class III lighting chains delivered without a supply source, please select the suitable power source.
Independent, constant voltage type, SELV DC 30 V output, the output power shall be not less than the
lighting chain's power, short-circuited proof, IP67 or above (if the IP rating is below IP67, the luminaire
manufacturer shall provide adequate instructions for connection to the supply ensuring an equivalent
degree of protection against harmful ingress of dust and moisture as that provided by the luminaire, for
example, the PSU use indoors), which is/are EN/IEC 61347-1 and EN/IEC 61347-2-13 certified.
09/23 V1.6
Cable length: 300mm/11.8"
204mm/8"
224mm/8.8"
244.2mm/9.6"
CAUTION:
1. The light source of this luminaire
is not replaceable; when the light
source reaches its end of life the
whole luminaire shall be replaced.
2. The length of the cable between
the pixel distributor and the first
lamp or lamp holder shall not be
less than 1.5m.
3. Do not connect the chain to the
supply while it is in the packing.
M4 × 8mm × 4
(Included)
M5 anchor bolts
(Not included)
©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED.
1 of 3
