Traxon e:cue Genius AM38213003I Information For Use

4ch and 8ch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Read the Information for Use and the Safety Instructions
carefully. Subject to modification without prior notice.
Typographical and other errors do not justify any claim for
damages. Modification of the product is prohibited.
This document is designed for electricians, system
administrators and product users..
All product names and trademarks mentioned in this manual are
trademarks of their respective owners.
Except for internal use, relinquishment of the instructions to a
third party, duplication in any type or form - also extracts - as
well as exploitation and / or communication of the contents is not
permitted.
Downloads and more information at:
www.ecue.com

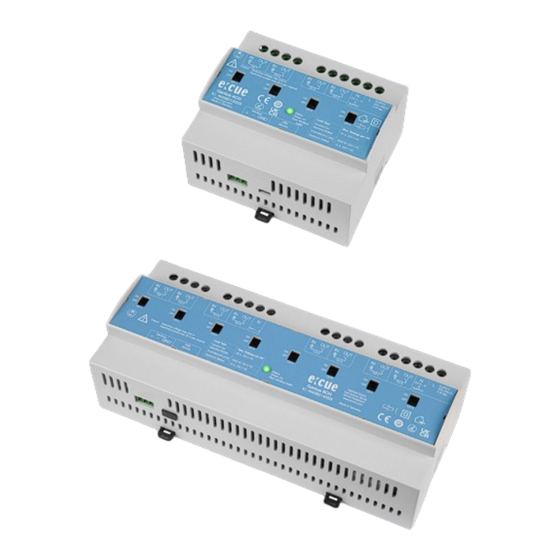

e:cue Genius (4CH and 8CH)
Edition:
09.03.23 [EN_ecue_Genius_Node_combined_Setup_v1p1]
Published by:
Traxon Technologies Europe GmbH
Karl-Schurz-Strasse 38
33100 Paderborn, Germany
©2023 Traxon Technologies Europe GmbH
All rights reserved
Traxon Technologies Europe GmbH
Sales Operations
Karl-Schurz-Str. 38
33100 Paderborn, Germany
+49 5251 54648-0
support@ecue.com
AM38213003I, AM38214003I
Information for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e:cue Genius AM38213003I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Traxon e:cue Genius AM38213003I

Summary of Contents for Traxon e:cue Genius AM38213003I

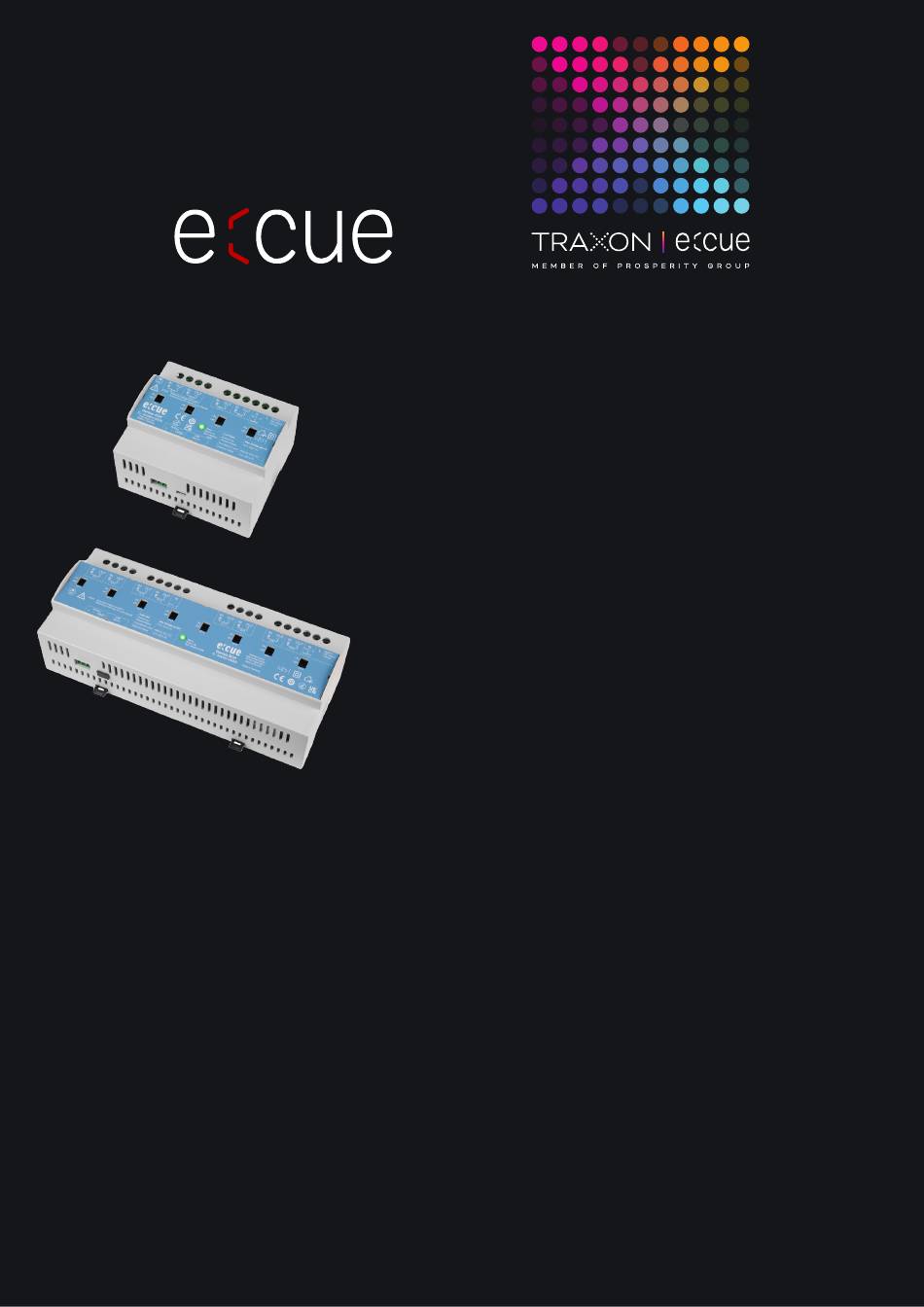

  • Page 1 33100 Paderborn, Germany All product names and trademarks mentioned in this manual are trademarks of their respective owners. ©2023 Traxon Technologies Europe GmbH Except for internal use, relinquishment of the instructions to a All rights reserved third party, duplication in any type or form - also extracts - as well as exploitation and / or communication of the contents is not permitted.
  • Page 2 Single Hold Registers Single Coil Register Port Status Firmware Update Dismounting Certifications Dimensions 12.1 Genius 4CH 12.2 Genius 8CH Modbus register list Example: Reading register WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 02 / 26...

  • Page 3: Safety Instructions

    Caution Risk of burns Device components can reach high temperatures. Let unit cool down after operation before mounting or removing unit. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 03 / 26...

  • Page 4: General Device Description

    — No user serviceable parts inside. Opening the device voids the warranty. Do not open or try to repair the device. Repairs must only be carried out by authorized Traxon e:cue specialists. Return it to your Traxon e:cue distributor for replacement or repair.
  • Page 5 Nominal voltage per channel: 115 ... 230 V AC Contact rating Cycles 20 A, 230 V AC resistive load 1 x 10 WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 05 / 26 4600 W, 230 V AC incandescent 3 x 10...
  • Page 6 Manual relay switches CH 1 ... 4 (left to right) Status LED (Device status, activity) Modbus interface (RS-485: +, –, GND left to right) Mini-USB interface (serial configuration interface) DIN rail handle WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 06 / 26...
  • Page 7 Modbus RTU / ASCII (RS-485), 3-pin pluggable connector USB port 1 x Mini-USB, Type B User interface Combined LED for data activity and device status WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 07 / 26...
  • Page 8 Activity: Modbus traffic (reception and sending). red, constant Self-protection shutdown active. Manual switches You can manually switch the relays using Manual switches on the Genius. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 08 / 26...

  • Page 9: General Remarks

    05). If there is apparent damage to content the device or parts are missing from the delivery scope, please contact the Traxon e:cue support service. Warranty regulations Depending on the product, warranty regulations are of different duration. The warranty time is usually noted in the quote and in the order confirmation.

  • Page 10: Installation

    — No user serviceable parts inside. Opening the device voids the warranty. Do not open or try to repair the device. Repairs must only be carried out by authorized Traxon e:cue specialists. Return it to your Traxon e:cue distributor for replacement or repair.
  • Page 11 This device is designed for a clean and dry environment, for indoor and intra-building connections only. Installation position Terminals on top and bottom Horizontal spacing No spacing necessary WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 11 / 26...
  • Page 12 The Genius 4CH can be connected to 4 loads, the Genius 8CH to 8 loads. At the relay interface of the Node, connect each relay device to IN, OUT, and N. For details see “4.5 Relay connection diagram” (page 13). WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 12 / 26...
  • Page 13 If this is to be avoided, it is recommended to place the IN connection on L or N. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 13 / 26...
  • Page 14 ICL "inrush current limiter" RCD "residual-current device" 4.5.2 Genius 8CH  content SUPPLY CH1 .. 4 CH5..8 & SUPPLY GENIUS 8CH ICL "inrush current limiter" RCD "residual-current device" WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 14 / 26...
  • Page 15 Loads 200 ... 230 V~ e:cue Genius RS485 GENIUS GENIUS GENIUS GENIUS GENIUS 32 Genius devices can be connected to the RS-485 bus. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 15 / 26...

  • Page 16: Modbus Settings

    The Mini-USB port is for configuration and service only. Apply appropriate protective measures (grounding, discharge of static electricity if necessary). Cable length is max 2 m. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 16 / 26...
  • Page 17 Get / Set register. This command reads a 32bit value consisting of the given Modbus address as the high word and the following as the low word. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 17 / 26...
  • Page 18 On how to bring the Genius device into a SYMPHOLIGHT project and on details about the Workflow options for Automation, see the SYMPHOLIGHT User Manual (v5.3 and higher). Note that in SYMPHOLIGHT the Genius is referred to as a “(Serial) Modbus Device”. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 18 / 26...

  • Page 19: Modbus Registers

    Port Status (for details see “8 Port Status” (page 20)) Single Coil Register Register Size (word) Description 0x2001 Relay port 1 0x2002 Relay port 2 … WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 19 / 26...

  • Page 20: Port Status

    Parity: none Stop Bits: 1 (UART settings: 57600 8n1) Enter the bootloader mode of the node: a) restart the device while pressing “x” in the Terminal WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 20 / 26...
  • Page 21 Attention: Failure  Before dismounting, appropriate measures must be taken to protect the respective components against content damage caused by electrostatic discharge (ESD protection). 11 Certifications WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 21 / 26...
  • Page 22 Genius (4CH and 8CH) — Information for Use | Dimensions 12 Dimensions All dimensions in mm 12.1 Genius 4CH 106.3 90.5 48.5 12.2 Genius 8CH  content 90.5 48.5 WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 22 / 26...

  • Page 23: Modbus Register List

    Phase port 4 0x1406 5126 Frequency port 4 0x1408 5128 Active Power port 4 0x140a 5130 Active Energy port 4 0x140c 5132 mvar Reactive Power port 4 WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 23 / 26...
  • Page 24 6162 Port Status port 8 0x2001 8193 Relay port 1 0x2002 8194 Relay port 2 0x2003 8195 Relay port 3 0x2004 8196 Relay port 4 WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 24 / 26...
  • Page 25 Enter the complete AT command in the terminal: ATS0x1404? or ATS5122?  content The terminal shows the returned value in hexadecimal or decimal: The current at port 4 flows with 3,2 A. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Information for Use 03/23 Sheet: 25 / 26...
  • Page 26 Genius (4CH and 8CH) — Information for Use  content Please check for the latest updates and changes on the Traxon website. © 2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. www.traxon-ecue.com...
