Traxon RGB 50 144PXL Quick Start Manual

Product Specifications
Model (Surface Color)
Light Source (LEDs)
Color Range
LED Pitch
Luminous Flux
Luminance Pitch
Lumen Maintenance
Frame Rate
White Point
PWM frequency
Surface / Foil Material
Dimensions (L x W)
Height
Weight
Mounting
Bending Radius X Direction (left to right)
Bending Radius Y Direction (top to bottom)
Environment
Operating Temperature
Storage Temperature
Humidity
Approbation
Warranty
Electrical Specifications
Operating Voltage
Power Consumption (typical)
Power Consumption (maximum)
System Specifications
Power / Data Interface
Control
Addressing
Starter Cable
Power Daisy-Chain
WWW.TRAXONTECHNOLOGIES.COM
WWW.OSRAM.US/TRAXON
TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT™ ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS,
JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

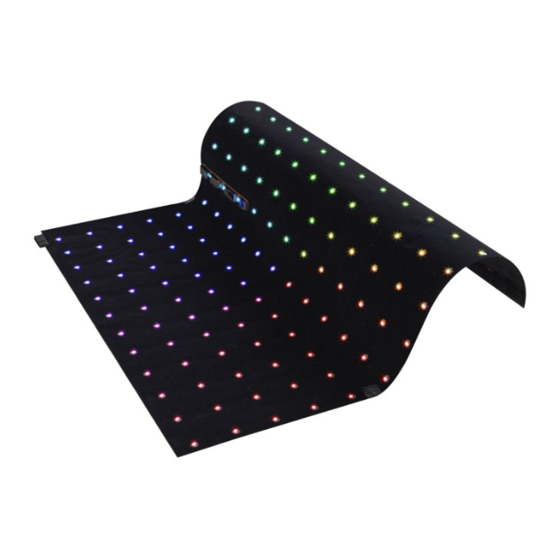

Media Wall Paper RGB 50 144PXL
The Traxon Media Wall Paper features individually controllable RGB SMT LEDs on a 12 x 12
matrix (60 x 60 cm) with a 50 mm pitch. Alongside the provision of ultra bright LEDs (1200 cd/m²),
medium resolution videos and graphic replays can be displayed by combining multiple foil
sheets. Flexible to uneven surfaces, cut and freely arrange the foil sheets to fit your
illumination surface. Using TX CONNECT in combination with e:cue's advanced e:pix control
and Smart Chip technology makes the Media Wall Paper the perfect solution for any
backdrop application. Combined with e:cue's SYMPHOLIGHT software it is possible to
create stunning effects, play video or map pictures along with all other needed lighting control
features.
White, Black, Deep Black
144 RGB SMD LEDs, individually controllable
16.7 million additive RGB color
50 mm / 1.96 (400 LEDs per m²)
"
768 lm calibrated
1200 cd/m² calibrated
L70 @ 25 °C - 50,000 hrs
2k Hz
PI (Polyimide)
"
(LED driver 10 mm / 0.4
"
Hook-and-loop tape, self-adhesive
"
IP20, indoor
+5 °C to +40 °C / +41 °F to 104 °F
-20 °C to +70 °C / -4 °F to 158 °F
0 - 90 %, non-condensing
CE, RoHS, FCC, Reach, (ETL in progress, EAC in progress)
24 V DC
16 W
25 W (max 4 foil sheets per PSU with 100 W)
TX CONNECT
e:pix
4 foil sheets (one e:pix universe)
) - without hook-and-loop tape
"
OSRAM GmbH, Karl-Schurz-Str. 38, 33100 Paderborn, Germany
" )
