Summary of Contents for Inovance AM500 Series

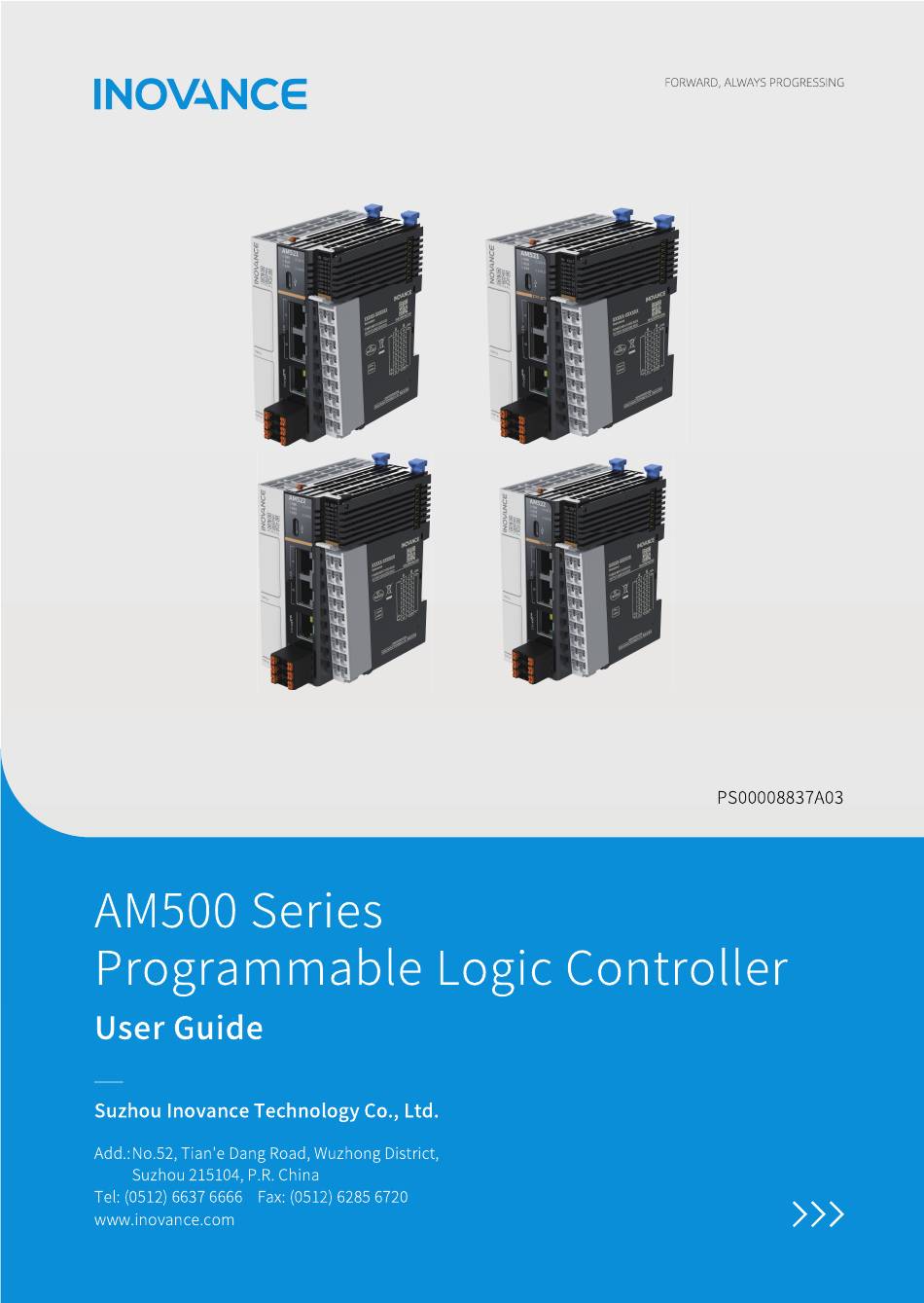

Page 1 *PS00008837A03*...
Page 3 Introduction This product is a new generation of medium‑sized programmable logic controller (PLC) independently developed by Inovance. It supports EtherCAT bus control and network switching over dual network ports. It allows process encapsulation and reuse through the Function Block (FB) and Function (FC) features, and supports multi‑layer network communication through the RS485, Ethernet, and EtherCAT ports.
Page 4 Certifica‑ Directive Standard tion EMC Directive 2014/30/EU 24 VDC products: EN 61131‑2 220 VAC products: EN 61131‑2 EN 61000‑3‑2 EN 61000‑3‑3 2014/35/EU EN 61010‑1 EN 61010‑2‑201 RoHS Directive 2011/65/EU EN IEC 63000 amended by (EU) 2015/863 UL/cUL ‑ UL 61010‑1 UL 61010‑2‑201 CAN/CSA‑C22.2 No.
Page 5 Medium‑Sized PLC 19012377 Describes basic instructions of the Instruction Guide medium‑sized PLC AM500 Series Programmable PS00008837 Describes the installation and wiring Logic Controller User Guide of the product, including product (this guide) information, mechanical installation, and electrical installation ‑...
Page 6 ■ Revision History Date Version Description Added the PNP model in " 1.1 Model February 2024 ● Number and Nameplate " on page 15 Updated the descriptions of status ● indicators in " 1.2 Components " on page 16 Added the PNP specifications in the ●...
Page 7 ● then download the PDF file. Scan the QR code on the product with your smart phone. ● Scan the QR code below to install the My Inovance app, and search for the file in ● the app. ■ Warranty For faults and damage incurred during normal use in the warranty period, Inovance provides free repair service.
Page 8 Damage caused by use beyond the specified scope of application of the product ● Damage or secondary damage caused by force majeure (natural disaster, ● earthquake, and lightning strike) The maintenance fee will be charged according to our latest Price List if not otherwise agreed upon.
Page 9 Use this product in an environment that complies with the design specifications. ● Malfunctions or component damage caused by improper use is not covered by warranty. Inovance shall take no responsibility for any physical injuries or property damage ● caused by improper use. ■...
Page 10 Operators must take mechanical protective measures to protect personal safety. ● For example, wear and use necessary protective equipment, such as crush‑ resistant shoes, safety clothing, safety glasses, protective gloves, and sleeves. Unpacking Do not install the product if you find damage, rust, or signs of use on it or its accessories ●...
Page 11 Handle the equipment with care and mind your steps. Failure to comply may result in ● physical injuries or equipment damage. When carrying the equipment with bare hands, hold the equipment casing firmly with ● care to prevent parts from falling. Failure to comply may result in physical injuries. Store and transport the equipment based on the storage and transportation ●...
Page 12 Read through the user guide and safety precautions before installation. ● Do not install the product in places with strong electric or magnetic fields. ● Before installation, check that the mechanical strength of the installation site can bear ● the weight of the equipment. Failure to comply will result in mechanical hazards. Do not wear loose clothes or accessories during installation.
Page 13 Never allow non‑skilled personnel to carry out installation, wiring, maintenance, ● inspection, or part replacement. Before wiring, cut off all the power supplies of the equipment. Wait for at least the time ● designated on the equipment warning label before further operations because residual voltage still exists after power‑off.
Page 14 During wiring, follow the proper electrostatic discharge (ESD) procedures and wear an ● anti‑static wrist strap. Failure to comply will result in damage to the equipment or internal circuits of the product. Use shielded twisted pairs for the control circuit. Connect the shield to the grounding ●...
Page 15 Do not touch the equipment casing, fan, or resistor to check the temperature. Failure to ● comply may result in burns. Prevent metal or other objects from falling into the equipment during operation. Failure ● to comply may result in fire or equipment damage. Maintenance Never allow non‑skilled personnel to carry out installation, wiring, maintenance, ●...
Page 16 Submit the repair request according to the warranty agreement. ● When the fuse is blown or the circuit breaker or earth leakage current breaker (ELCB) ● trips, wait for at least the time designated on the equipment warning label before power‑ on or further operations.
Page 17 1 Product Information Model Number and Nameplate ■ Model number ① Product series ③ Input and output channels AM: AM series programmable logic 08: 8‑channel input controller 08: 8‑channel output ② Model code ④ Output type 5: 500 series platform X indicates N or P.
Page 18 AM521-0808TP Model Description Code AM521‑0808TN AM500 series 8‑input 8‑output 8‑axis 01440477 programmable controller AM522‑0808TN AM500 series 8‑input 8‑output 16‑axis 01440475 programmable controller AM521‑0808TP AM500 series 8‑input 8‑output 8‑axis 01440608 programmable controller AM522‑0808TP AM500 series 8‑input 8‑output 16‑axis 01440610 programmable controller Components Components are identical for the entire AM52X series.
Page 19 ‑ ‑...
Page 20 Port Type Mark Meaning Indicator Description Color Steady ON: Input or ● output active Yellow‑ IN/OUT I/O status ① OFF: Input or green indicator ● output inactive Steady ON: Power ● supply normal Yellow‑ Power supply green OFF: Power supply normal ●...
Page 21 Port Type Mark Meaning Indicator Description Color RS485 communication RS485+ ‑ ‑ signal+ RS485 communication ⑦ RS485 RS485– ‑ ‑ signal– RS485 communication ‑ ‑ ground 24 VDC power +24V ‑ ‑ supply+ Power 24 VDC power ⑧ ‑ ‑ terminal supply–...
Page 22 Product Specifications 1.3.1 General Specifications Item Specifications Program capacity 10 MB Data capacity 20 MB, including 512 kB retentive at power failure AM521: 8 axes EtherCAT ● AM522: 16 axes ● Axis driving performance 4‑axis synchronization in 1 ms (execution time of motion control calculation) Electronic cam and Supported...
Page 23 Item Specifications All‑in‑one network; support for 127 EtherCAT ● EtherCAT slaves; minimum synchronization period: 1 ms Slaves support disabling and scanning. ● Dual Ethernet ports corresponding to one network interface card. The two Ethernet ports share one IP address and support network switching.
Page 24 Item Specifications CANopen master: Support for one Continued ● CANopen master and up to 63 slaves through expansion cards Support for the CAN free protocol ● Channel quantity: 1 USB cable length: 1.5 m USB communication version: USB 2.0, full speed USB interface: Type‑C Master/Slave: Can only be used as a slave,...
Page 25 Item Specifications Ethernet Support for Ethernet‑based PLC monitoring and user program upload and download User program TF card Support for user program download upload through GE20 series memory expansion cards download Type‑C Support for Type‑C‑based PLC monitoring and user program upload and download SD card Support for firmware programming through Firmware...
Page 26 Note [1]: Expansion modules are powered by the AM500 series programmable logic controller. Therefore, the sum of the rated current values of the bus input power for expansion modules must not be greater than the current value specified in the table (≤...
Page 27 Item Specifications Isolation mode Capacitive isolation for integrated chip Common terminal mode 8‑point/common terminal (positive/ negative polarity of input power being changeable) 1.3.4 Output Specifications Item Specifications TN: Transistor NPN output Output type ● TP: Transistor PNP output ● Number of output channels Output voltage class 24 VDC±10% (21.6 VDC to 26.4 VDC) Output load (resistive load)
Page 28 Item Specifications External inductive load protection A flywheel diode is required when an external inductive load is connected. Output action display The output indicator lights up (controlled by software) when the output is in drive state. [1]: Use a 1N4001 (50 V/1 A) or similar diode, as marked by "D" in the following figure. AM52X1-0808TN ●...
Page 29 2 Mechanical Installation Installation Environment Requirements When installing the programmable controller on the guide rail, take the operability, maintainability, and environment adaptation into account. Item Specifications Operating environment Places without corrosive or inflammable gas or severe conductive dust Altitude ≤ 2,000 m (80 kPa) Pollution degree Interference immunity 2 kV on power supply line (IEC 61000‑4‑4)
Page 30 Item Specifications Installation position and limit Installation position: The PLC can be installed in four directions. For details, see " 2.2 Installation Position Requirements " on page 29 Limit: Horizontal installation: Input derating: When the ambient ● temperature is 45°C, the PLC can work at full load.
Page 31 Item Specifications Continued Continued Output derating: When the ambient ● temperature is 45°C, the PLC can work at full load (that is, the total current of the eight outputs not higher than 2 A). When the ambient temperature is 55°C, the total current of simultaneously active outputs shall be reduced to 50% (that is, the total current of the eight outputs not higher...
Page 32 space, sufficient clearance must be reserved around the product, as shown in the following figure. If there is a high‑temperature heat source (heater, transformer, large resistor, etc.) in vicinity of the product, keep the product away from the heat source by at least 100 ■...
Page 33 In case of vertical installation: PLC must be installed below all I/O modules. ● Hold the cables with a cable duct to prevent the weight of cables being ● applied to the lower end plate, which may result loose of the PLC from the DIN rail.
Page 34 Do not connect/disconnect the module with power ON. This may lead to master restart or user data loss or damage. To avoid damage to the PLC and modules, prevent their enclosures and terminals ● from falling off or being impacted. Installation Dimensions Installation dimensions are shown below in millimeters (mm).
Page 35 When installed on a DIN rail other than the recommended one (especially the one whose thickness is not 1.0 mm), the product will not fit in place as the mounting hook does not work. ■ Installing the PLC 1. Align the PLC with the DIN rail and push the PLC toward the direction marked by the arrow until you hear a click sound, as shown in the following figure.
Page 36 When the PLC is not installed on the rail, keep the mounting hook in the locked state. Keeping the mounting hook unlocked for a prolonged time may cause the hook to fail. ■ Inserting modules to the PLC Modules are slid onto the PLC through the rails on the top and bottom of the modules, as shown in the following figure.
Page 37 ■ Removal Use a straight screwdriver or similar tool to pry up the rail buckles, pull the PLC forward, and press the buckles down after the PLC is pulled out. ‑ ‑...
Page 38 3 Electrical Installation Terminal Arrangement Left Signal Left Right Right Signal Termi‑ Terminal X0 input Y0 output X1 input Y1 output X2 input Y2 output X3 input Y3 output X4 input Y4 output X5 input Y5 output X6 input Y6 output X7 input Y7 output Input common terminal...
Page 39 The length of a high‑speed I/O interface extension cable must be within 3.0 ● To prevent interference, route the I/O interface extension cable and the ● power cable (high‑voltage/high‑current cables) through different non‑ parallel routes. Wiring of Input Terminals ■ Wiring of sink input ‑...
Page 40 ■ Wiring of source input Output Terminal Wiring AM52X‑0808TN ● Note An external flywheel diode is required when an inductive load is connected. In this case, use a 1N4001 or similar diode. AM52X‑0808TP ● ‑ ‑...
Page 41 Note An external flywheel diode is required when an inductive load is connected. In this case, use a 1N4001 or similar diode. ‑ ‑...
Page 42 4 Communication Connection Communication Networking This product uses the Ethernet port to connect to other stations or ERP or MES systems. It uses the EtherCAT port to connect to other slaves, such as the MD520 and MD800 series AC drives, SV660N and SV680N series servos, and other EtherCAT‑ enabled modules.
Page 43 Material Name Applicable Cable Size Tubular lug 0.75 If other tubular lugs are used, crimp them to twisted cables. The following figure shows requirements of the shape and size. Cable Connection ■ RS485 communication The RS485 communication port and power supply port share the same terminal block, with RS485 communication port on the left and 24 V power supply port on the right.
Page 44 Description Left Terminal Right Terminal Description 485+ +24V 24 VDC (+) RS485 differential pair (+) RS485 differential 485‑ 24 VDC (‑) pair (‑) RS485 ground Wiring ● Select tubular cables referring to " 4.2 Cable Selection " on page 40 and insert the cables into the communication ports.
Page 45 Item Description Number of slaves Up to 127 EtherCAT frame length 44 to 1,498 bytes Process data A maximum of 1486 bytes per Ethernet frame ■ Wiring The PLC provides a CN3 port for EtherCAT bus communication. The communication cable must meet the following requirements: Communication cable requirements Signal pin assignment Signal...
Page 46 The cable between devices cannot exceed 100 m when the EtherCAT bus is used, exceeding of which may attenuate the signal and affect normal communication. Technical requirements 100% continuity test, without occurrence of short circuit, open circuit, misalignment, or poor contact. Cables meeting the following requirements are recommended. Item Specification Cable type...
Page 47 To avoid interference, do not bundle the cable together with an AC power cable or high voltage cable. ‑ ‑...
Page 48 5 Operation and Maintenance Start and Stop After the PLC is programmed, start and stop it as follows. To run the PLC: 1. Set the system to RUN. 2. Check that the RUN indicator light is solid ON in green 3.
Page 49 If the ERR indicator blinks slowly, it is indicated that the download has failed. Check whether the downloaded file is applicable to the PLC model. If all the check items are correct, but the download still fails, contact our technical support for help.
Page 50 6 Appendix ■ AM52X series programmable controllers Model Description Code AM521‑0808TN AM500 series 8‑input 8‑output 8‑ 01440477 axis programmable controller AM522‑0808TN AM500 series 8‑input 8‑output 16‑ 01440475 axis programmable controller AM521‑0808TP AM500 series 8‑input 8‑output 8‑ 01440608 axis programmable controller AM522‑0808TP...
Page 51 Type Model Description Code Slot Storage GE20‑TF TF expansion card 01480030 GE20‑TF‑ Memory expansion card (with 01480050 integrated RTC) Clock GE20‑RTC Clock expansion card 01480031 Note The ID is "0" when there is no expansion card. For expansion card IDs, see the relevant expansion card user guides.
Page 52 ■ GL20 series expansion modules Module Model Description Code GL20‑ 16‑channel digital output (PNP) 01440292 0016ETP GL20‑ 16‑channel digital input 01440291 1600END GL20‑ 16‑channel digital output (NPN) 01440293 0016ETN GL20‑ 8‑channel digital input 01440381 0800END GL20‑ 8‑channel digital output (PNP) 01440380 0008ETP Digital...
