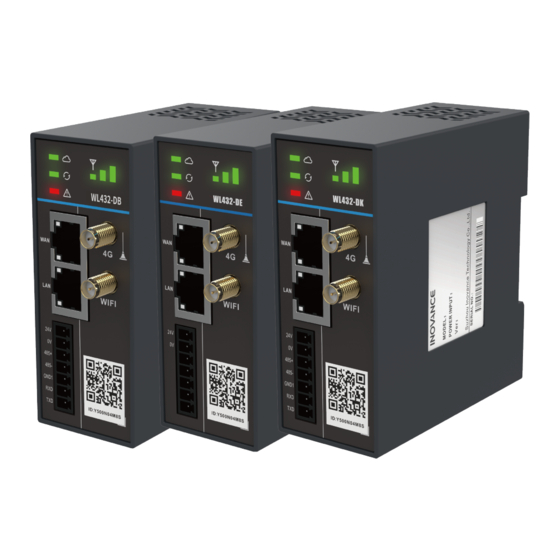

WL432 Series IoT Module
Hardware Guide
S S u u z z h h o o u u I I n n o o v v a a n n c c e e T T e e c c h h n n o o l l o o g g y y C C o o . . , , L L t t d d . .
Address: No.16, Youxiang Road, Yuexi Town, Wuzhong District,
Suzhou 215104, P.R. China
Website: http://www.inovance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL432 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Inovance WL432 Series

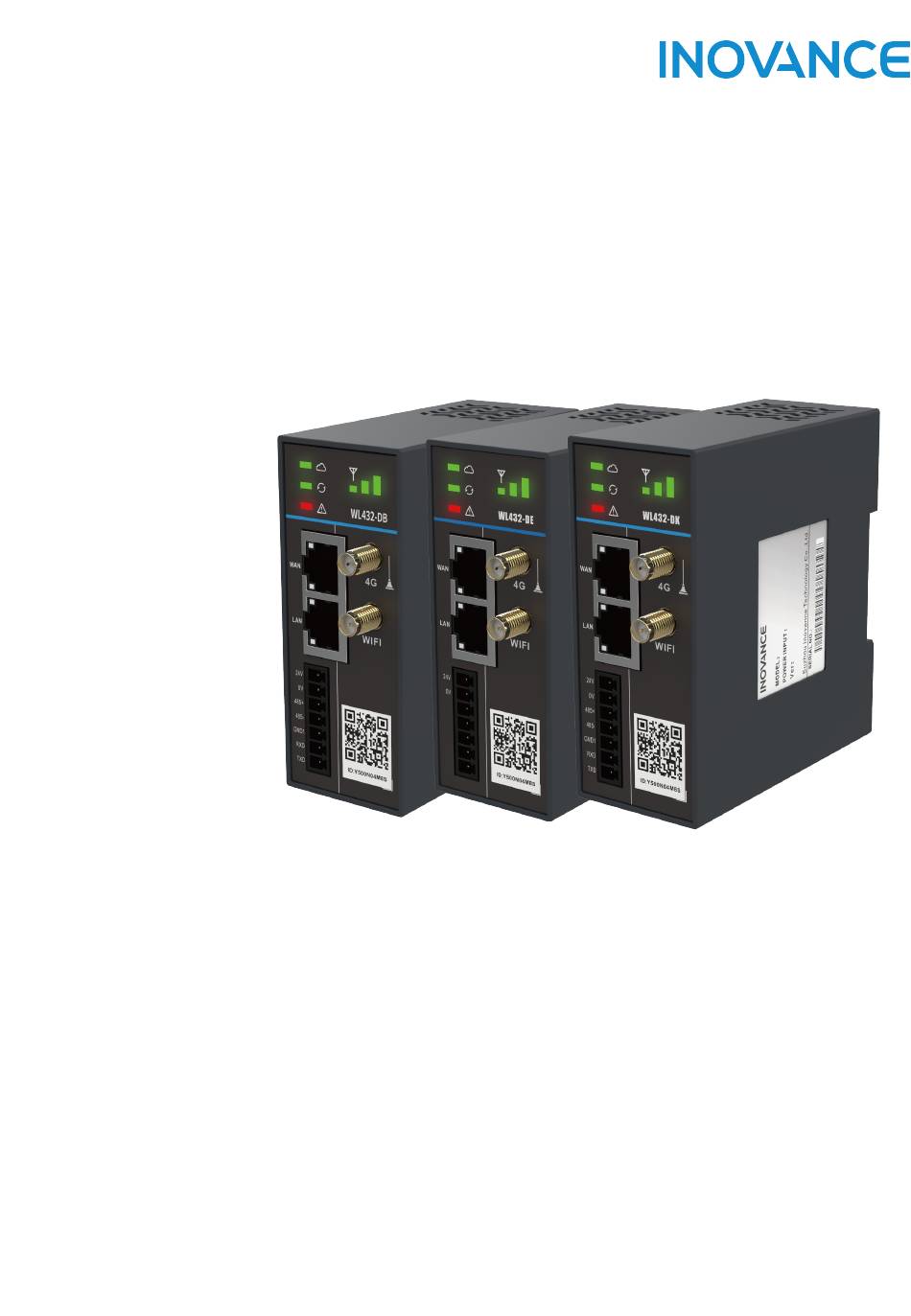

  • Page 1 WL432 Series IoT Module Hardware Guide S S u u z z h h o o u u I I n n o o v v a a n n c c e e T T e e c c h h n n o o l l o o g g y y C C o o . . , , L L t t d d . .
  • Page 2: Table Of Contents

    T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Preface ............. 1 Safety Instructions .
  • Page 3: Preface

    Introduction This series of 4G smart hardware products can collect local device data including running status and faults and interwork with Inovance’s Internet of Things (IoT) server using 4G, Wi‑Fi, or Ethernet to enable remote commissioning and maintenance functions. Users can access the web server to monitor status and analyze faults of local devices.
  • Page 4: Safety Instructions

    Inovance has taken necessary technical measures to ensure data security. However, network risks (such as hacking) that Inovance cannot control may still exist, and Inovance is not responsible for losses caused by such network risks.
  • Page 5: Product Information

    Product Information ■ Model number ① ① P P r r o o d d u u c c t t t t y y p p e e ③ ③ C C o o m m m m u u n n i i c c a a t t i i o o n n ⑤...
  • Page 6 Functional Model Description Advantage Supported Based on SSL VPN, the safety of remote WL432–DE Remote safety commissioning, upgrade, and maintenance of target commissioning WL432–DK devices is ensured. When an external power supply failure occurs, the Power failure product automatically reports the power supply All models reporting failure event to a specified server and saves the event...
  • Page 7: Ports

    Ports Figure ‑1 Port locations ‑ ‑...
  • Page 8 Standard card dimension: 25 mm x 15 mm Note: It is not recommended that users change SIM SIM card slot cards. If users have such requirements, contact Inovance’s technical engineers. Short press (for 1s to 20s) to restore Wi‑Fi parameters. Reset key Long press (for over 20s) to restore factory settings.
  • Page 9 Description Port Terminal Cloud service state indicator (green) Data communication indicator (green) LED indicators Fault indicator (red) 4G or Wi‑Fi signal strength indicator (green) The specific states indicated by the LED indicators are described as follows. Steady Off Steady On Blinking Device online Cloud service...
  • Page 10: Wireless Indicators

    Wireless Indicators Table –1 Wireless Indicators Category Specifications Parameter RF output power 13–17 dBm (ERP/EIRP) 2.4G Frequency band 2412–2472 (center frequency) WIFI (MHz) Modulation DSSS, OFDM RF output power GSM900: 33 dBm ± 2 dB (ERP/EIRP) GSM1800: 30 dBm ± 2 dB Frequency band EGSM900: 880–915 MHz (TX), 925–960 MHz (RX) (MHz)
  • Page 11 Table –2 Other Technical Indicators Specifications Port Parameter AP (default) and Wi‑Fi. For details about the Operating mode switchover operations, see the commissioning method in " Operations " on page 17 802.11 b/g/n Wireless indicators Max. 150 Mbps Transmission rate Frequency band 2412–2472 (center frequency) (MHz)
  • Page 12: Installation Information

    Installation Information ■ Operating environment Environmental Parameters Operating Transport Storage Category Environment Environment Environment Parameter Unit Lowest °C ‑5 ‑40 ‑40 temperature Temperature Highest °C temperature Relative humidity % 10–95 10–95 Humidity Yes/No Condensation Lowest air pressure Air pressure Highest air pressure IP rating IP20...
  • Page 13 ■ Mounting on a DIN rail 1. Pull down the DIN rail mounting hook at the back of the module. 2. Hook the upper fixing jaw on the module to the top edge of the DIN tail along direction A, and press the module along direction B, until the module is completely embedded in the DIN rail.
  • Page 14: Panel And Wiring

    Panel and Wiring PWR+BAT 00 01 02 03 04 0 5 06 0 7 20 21 22 23 24 2 5 26 2 7 10 11 12 13 14 1 5 16 1 7 30 31 32 33 34 3 5 36 3 7 00 01 02 03 04 0 5 06 0 7 20 21 22 23...
  • Page 15 PWR+BAT 00 01 02 03 04 0 5 06 0 7 20 21 22 23 24 2 5 26 2 7 10 11 12 13 14 1 5 16 1 7 30 31 32 33 34 3 5 36 3 7 00 01 02 03 04 0 5 06 0 7 20 21 22 23...
  • Page 16: Typical Application

    Typical Application The module provides remote monitoring, commissioning, and serial port functions. The basic data path is as follows: target device <–> module <–> server <–> user’s PC. The following figure shows the typical application. Figure ‑4 Typical application in the elevator industry ‑...
  • Page 17 Figure ‑5 Typical application in the air compressor industry ‑ ‑...
  • Page 18 Figure ‑6 General‑purpose typical application ‑ ‑...
  • Page 19: Operations

    Domain name .dataserver.cn/. Domain name indicates the user account. See the commissioning method in the commissioning guide, which can be http://doc.dataserver.cn/web/#/4 downloaded from The Inovance Inovance Industry Cloud platform user guide can be downloaded from https://doc.dataserver.cn/web/#/4?page_id=110 ‑ ‑...
