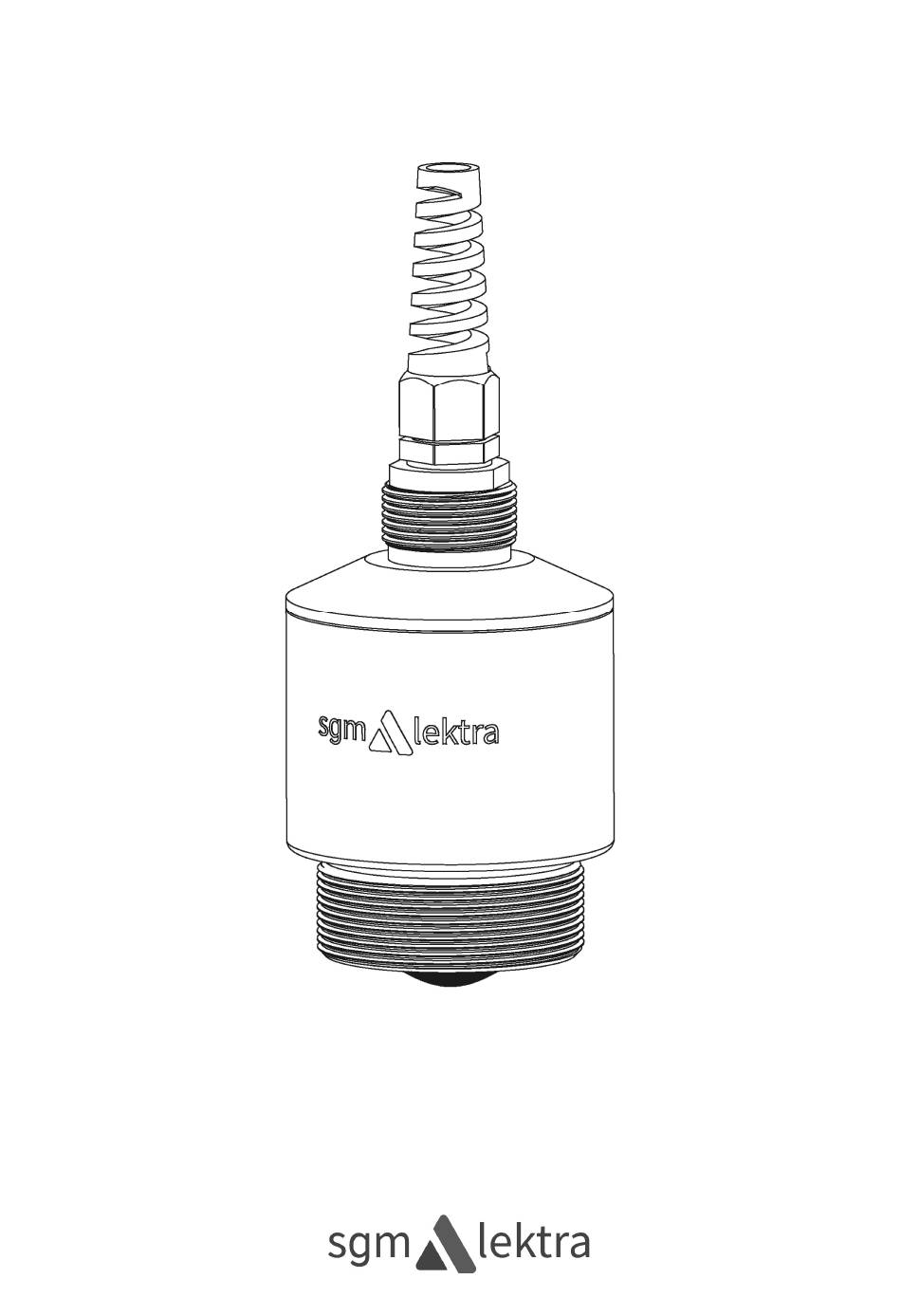

- Page 1 GREENBEAT R80 level transmitter with 80GHz radar technology technical documentation EN Rev. of 28/01/2025...
-
Page 2: Table Of Contents
R80 - index TABLE OF CONTENTS 1-WARRANTY page 3 2-PRODUCT page 4 3-TECHNICAL SPECIFICATIONS page 5 4-DIMENSIONS page 6 5-INSTALLATION page 8 6-ELECTRICAL CONNECTIONS page 12 7-CONFIGURATION / CALIBRATION MODE page 13 8-GREEN TOLS APP (OPERATOR INTERFACE) page 14 9-MAINTENANCE page 19 10-RETURN OR DISPOSAL page 19... -
Page 3: 1-Warranty
SGM LEKTRA SRL may choose whether to repair or replace the faulty Products. The Products replaced under warranty will be covered by an additional 12-month warranty. -
Page 4: 2-Product
R80 - product 2-PRODUCT 1. Head fi xing ring 1”G 2. Outgoing cable L=10m IP68 3. Thread 1” 4. Thread 2” 5. Sensor 2.1 - IDENTIFICATION Each instrument has an identifi cation plate on which the main data of the meter are reported. The following image describes the information and data on the plate. -
Page 5: 3-Technical Specifications
R80 - specifi cations 3-TECHNICAL SPECIFICATIONS Housing/sensor material “GREEN” PP [Recycled Polypropylene] or PVDF Mechanical installation Lower thread 2” GAS (Flanges optional) Upper thread 1” GAS Installation environment Indoor/Outdoor Protection rating IP68 Electrical connection Outgoing cable L=10m Working temperature (process) -40 - +80°C Pressure Max. -
Page 6: 4-Dimensions
R80 - dimensions 4-DIMENSIONS 4.1 - PHYSICAL DIMENSIONS Page 6 of 24 www.sgm-lektra.com... - Page 7 R80 - dimensions 4.2 - J-BOX DIMENSIONS (Code: 490B074C) Page 7 of 24 www.sgm-lektra.eu...
-
Page 8: 5-Installation
R80 - installation 5-INSTALLATION 5.1 - PRECAUTIONS FOR INSTALLATION 5.1.1 - Authorised personnel All operations described in this documentation must be performed only by qualifi ed personnel authorised by the plant manager. CAUTION: Unauthorised personnel could, intentionally or accidentally, cause signifi cant damage and/or incorrect confi... - Page 9 R80 - installation 5.1.5 - Installation in tanks Leave a minimum distance of 300mm between the sensor and the smooth wall of the tank (d). Use a cover (c) to protect the sensor from rain and direct light. Do not install the sensor near the loading area (a). Make sure that there are no obstacles (f-e) in the emission range (lobe “ɑ”8°) of the probe that can be intercepted as a level.
- Page 10 R80 - installation 5.1.7 - Installation in a trunk If the R80 sensor is installed in a stub pipe, you should make sure that the emitting part protrudes at least 10 mm from the stub pipe. 5.1.8 - Installation with bracket (Code: 844A003A) By installing R80 with the bracket accessory, it is possible to orient the emission lobe in the direction that guarantees a better quality of signal reception.
- Page 11 R80 - installation 5.1.9 - Presence of agitators Level measurement is still possible thanks to the automatic measurement fi ltering system. It is only very rarely necessary to adjust the fi lter setting by changing the 2 programming parameters of the R80 sensor: - FILTER: increasing the value of this parameter decreases the sensitivity of the sensor to sudden changes in level, consequently increasing the response delay.
-
Page 12: 6-Electrical Connections
R80 - electrical connections 6-ELECTRICAL CONNECTION 6.1 - ELECTRICAL CONNECTION 1) Electrical connections must be made only by qualifi ed personnel, in compliance with the safety regulations of the system 2) Make sure that the power source is compatible with the data on the instrument plate (see page 6) and that the power supply can be sectioned via an external device to the easily accessible source. -
Page 13: 7-Configuration / Calibration Mode
R80 - confi guration / calibration mode 7-7- CONFIGURATION / CALIBRATION MODE R80 can be confi gured / calibrated via Bluetooth with the Android or iOS App available free of charge. Page 13 of 24 www.sgm-lektra.eu... -
Page 14: 8-Green Tols App (Operator Interface)
R80 - green tools app 8-GREEN TOOLS APP 8.1 - CONFIGURATION VIA BLUETOOTH To be able to communicate via BLUETOOTH with the R80, it is necessary to download and install the Green Tools app from the Google Play Store or Apple store. Once the installation is complete, the icon to start the app will be available on the smartphone display. - Page 15 R80 - app green tools 8.1 - BLUETOOTH DEVICE PAIRING When you connect to an R80 for the fi rst time, the window for pairing the BLUETOOTH device to the smartphone automatically opens. The PIN to be entered in the appropriate box is: 123456 Tap on ok to confi...
- Page 16 R80 - app green tools 8.3 - App menu By tapping on the icon, the side menu opens where the R80 confi guration, diagnostics or info pages can be selected. The active page when the menu is opened is highlighted in green. 8.4 - Measurement On this page, the following quantities can be displayed: - “Distance”...
- Page 17 R80 - app green tools 8.5 - Confi guration On this page, the following parameters can be confi gured: a) FILTER; Enter a value from 1 to 99. 1 maximum speed, 99 slowest speed and 0 excludes the fi lter making the response immediate b) BLIND ZONE;...
- Page 18 R80 - app green tools 8.7 - Graph This function is useful for: - Correctly positioning the direction of the transducer. - Checking that the acquired echo signal is correct. - Identifying any echo causing a disturbance that could generate incorrect measurements. The vertical green marker indicates on the graph the echo signal considered valid for the measurement.
-
Page 19: 9-Maintenance
Warning: always check the integrity of the packaging received; if the packaging is not intact, the instrument must be carefully checked before putting it into service. In case of doubt about the correct functioning of the instrument, contact SGM Lektra immediately for any return. - Page 20 NOTE __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________...
- Page 21 NOTE __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________...
- Page 22 NOTE __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________...
- Page 23 Page 23 of 24 www.sgm-lektra.eu...
-
Page 24: 11-Test And Quality Certificate
documentation subject to technical changes without prior notice 10-TESTING/QUALITY CERTIFICATE In accordance with production and testing procedures, I certify that the instrument: (Radar level meter) satisfi es the technical specifi cations mentioned in the TECHNICAL DATA paragraph and complies with the manufacturing procedures Quality control manager: ..........
