The Handy THS50 Assembly And Operating Instructions Manual
80lb push spreader
Hide thumbs
Also See for THS50:
- Operator's manual and parts list (15 pages) ,
- Instruction manual (24 pages)
Related Manuals for The Handy THS50
Summary of Contents for The Handy THS50

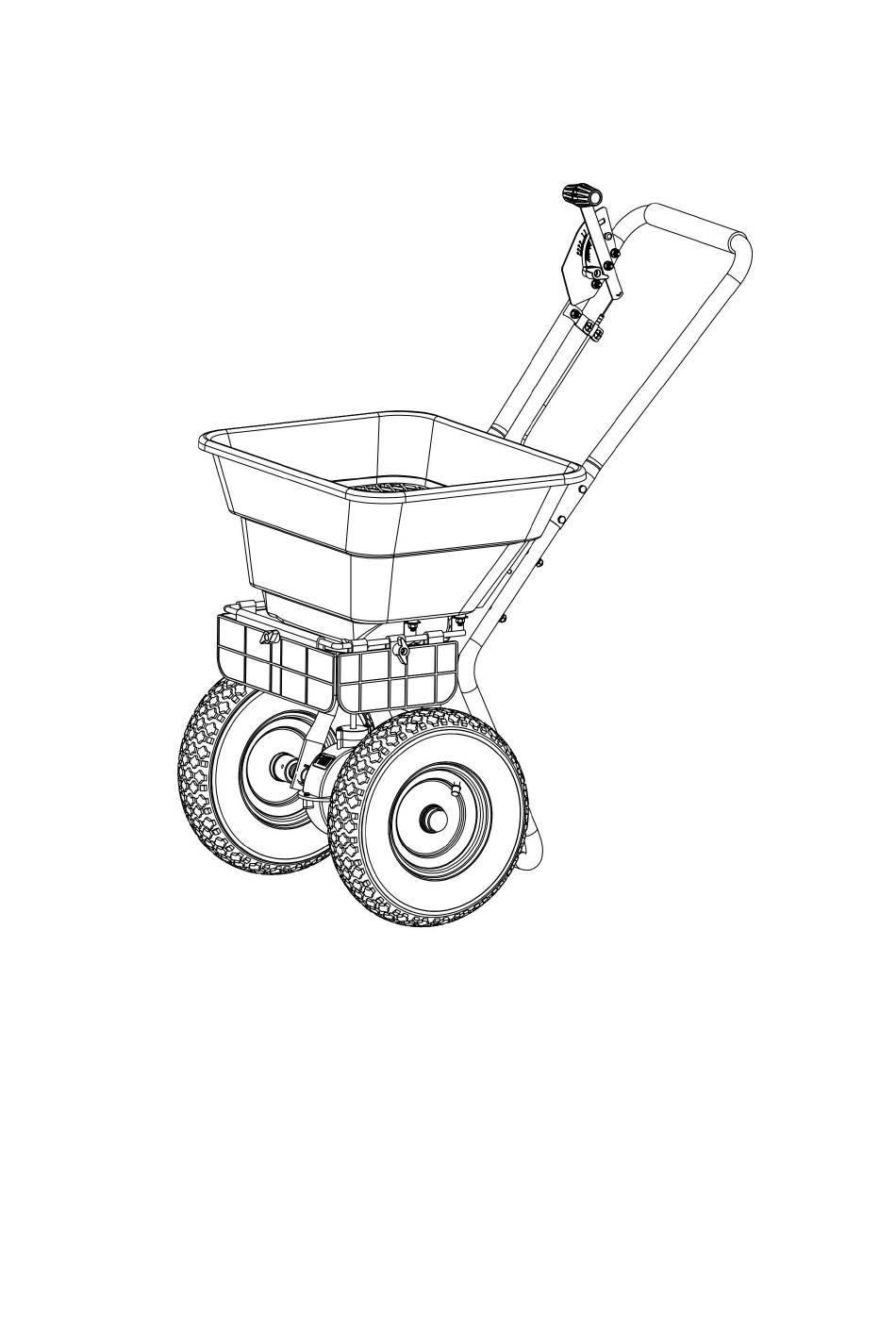

- Page 1 80LB PUSH SPREADER Assembly and Operating Instructions SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 GENERAL WARNINGS READ and UNDERSTAND this manual completely before using Walk Behind Spreader. Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain the walk behind spreader could result in serious injury to the operator or bystanders.
- Page 3 Hazard Signal Word Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous DANGER situation which, if not avoided, will result in death or serious injury.
- Page 4 CAUTION Read and follow all instructions for assembly and operation. Failure to properly assemble this equipment could result in serious injury to the user or bystanders, or cause equipment damage. Component and Hardware Parts...
- Page 5 Assembly Instructions Step1: Install right wheel assembly to right axle using bolt M5x45 and lock nut M5, and then install the cap onto right axle using a wooden or rubber hammer. Step 2: Push another Wheel onto the axle. Insert one flat washer to the two sides of the wheel, then attach end cap by tapping with a wooden or rubber mallet.
- Page 6 STEP 3: 1）Insert the Steel Wire head of control cable into the small hole on gauge and lever assembly. 2） Install the line clamp press plate to upper handle using bolt M6x35 and lock nut M6. STEP 4: Insert upper handle into the support leg and tighten using bolts M6x40 and Lock Nuts M6.
- Page 7 to do the following steps. (1)Release two bolts M5x10 on clamp as shown. (2). Push the handle to the top position, use your hand to adjust the adjustable plate so as to make sure the hole at the bottom of hopper can be closed completely. (3). Push the handle to the lowest position, use your hand to adjust the adjustable plate so as to make sure the hole at the bottom of hopper can be opened completely.
- Page 8 3. Break up any lumpy fertilizer as you fill the hopper. 4. Set the adjustable stop with the flow control arm still in the off position. Refer to the application chart on this page and to the instructions on the fertilizer bag to select the proper flow rate setting.
