600 MAX
600 MAX / E
INSTALLATION MANUAL (ENGLISH)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 600 MAX and is the answer not in the manual?

Questions and answers

Related Manuals for RAIS 600 MAX

Summary of Contents for RAIS 600 MAX

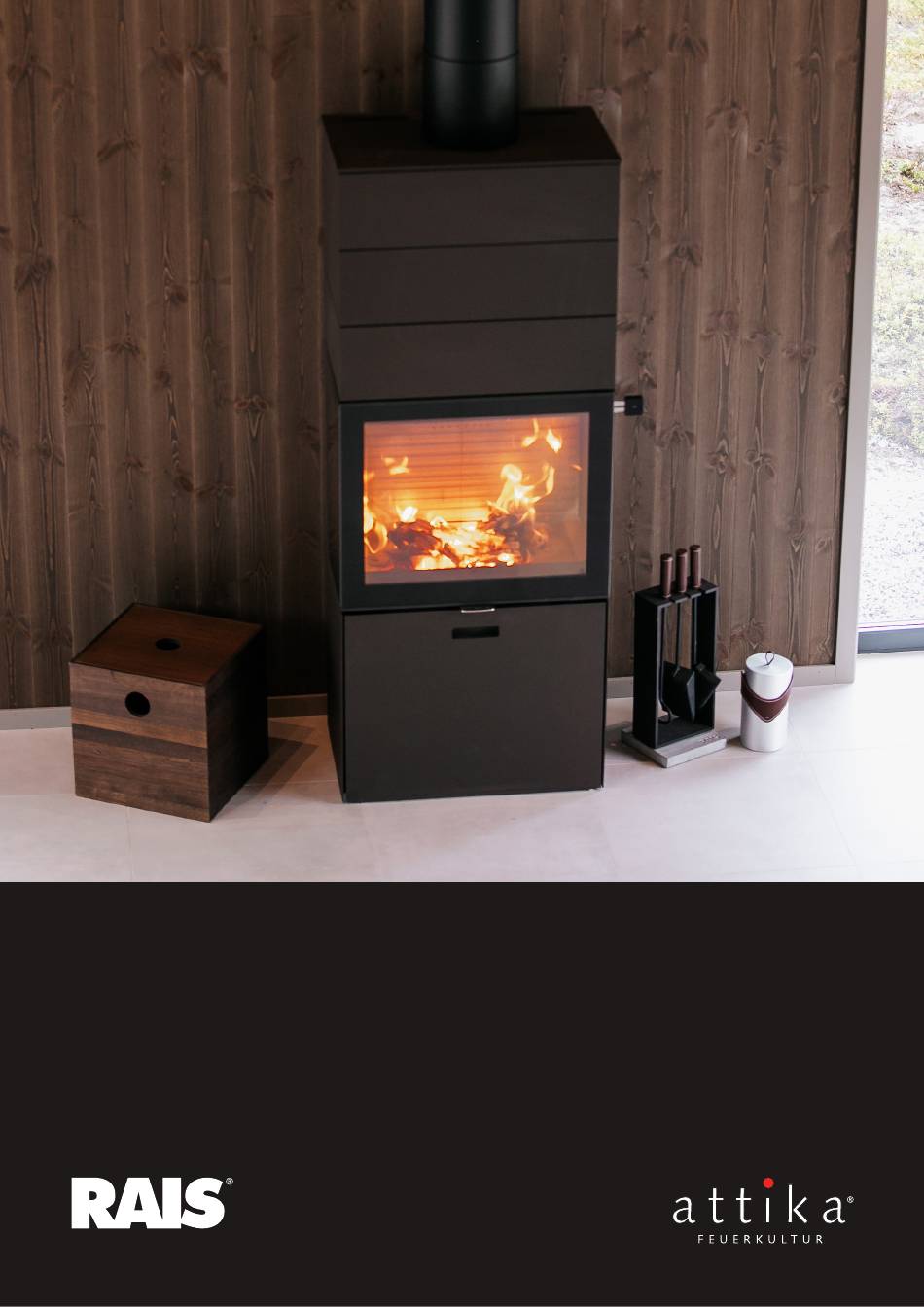

  • Page 1 600 MAX 600 MAX / E INSTALLATION MANUAL (ENGLISH)
  • Page 2 PRODUCTION NUMBER The production number is located in the compartment by the drawer and on the first page of the user manual. THIS MANUAL APPLIES TO THE FOLLOWING MODELS: • 600 MAX • 600 MAX / E 2 - EN...
  • Page 3 CONTENT PRODUCTION NUMBER INSTALLATION MANUAL Malfunctions ........... . . TECHNICAL DATA Specifications .
  • Page 4 INSTALLATION MANUAL INSTALLATION GUIDE installed in the room for the stove’s combustion air - th- Thank you for choosing your new RAIS or ATTIKA prod- rough the AirSystem connection. Under no circumstan- uct! This installation instructions manual will ensure ces should this air supply be closed during operation.
  • Page 5 ATTENTION! Before the stove may be put to use, the set-up must be reported to your local chimney sweeper. ATTENTION! RAIS/ATTIKA recommends having the insert installed by an authorised technician. Please ask your dealer for further information. MALFUNCTIONS STOVE IS BURNING TOO WEAK If you are experiencing disturbances, some of the most •...
  • Page 6 *Max. load limit FRONT MODEL CORNER MODEL THREE-SIDED MODEL RATING PLATE All RAIS/attika stoves have a rating plate indicating the stove’s distance to combustibles, efficiency etc. The name- plate can also be found by scanning the QR code. 6 - EN...
  • Page 7 TECHNICAL DATA Set-up distances 600 MAX, 600 MAX / E Minimum distance from the back of the stove to combustible material Minimum distances from the sides to combustible material (Steel side) (Side glass) Minimum distances from the top of the door to combustible material at...
  • Page 8 INSTALLATION DISTANCE IN CASE OF COMBUSTIBLE WALL To clarify whether the stove installation wall is flamma- ble or otherwise, contact your building architect or lo- 600 MAX - FRONT MODEL cal building authorities. Please make sure that objects made of combustible materials (such as furniture) are...
  • Page 9 1100 INSTALLATION DISTANCE IN CASE OF COMBUSTIBLE WALL 600 MAX - THREE-SIDED MODEL 600 MAX - CORNER MODEL Front Combustible ceiling Combustible ceiling 1100 1100 1100 1100 1100 1100 1100 1100 Combustible wall Combustible wall 1100 1100 1100 1100 1100...
  • Page 10 1100 INSTALLATION DISTANCE IN CASE OF NON-COMBUSTI- BLE WALL We recommend a minimum distance to non-combusti- ble material of 50 mm for cleaning purposes. 600 MAX - THREE-SIDED MODEL 600 MAX - CORNER MODEL Non-combustible wall Non-combustible wall 1100 1100...
  • Page 11 DIMENSIONAL SKETCHES DIMENSIONAL SKETCH: 600 MAX & 600 MAX / E - THREE-SIDED MODEL 600MAX - Glass 3S 11-0801-6402 1311 1208 1097 340 (G) 115 * *The same dimensions are repeated in the corner model, whe- re one side glass is replaced with a closed side.
  • Page 12 DIMENSIONAL SKETCHES DIMENSIONAL SKETCH: 600 MAX & 600 MAX / E - THREE-SIDED MODEL WITH ONE TOP BOX 1506 1208 1097 340 (G) 115 * *The same dimensions are repeated in the corner model, whe- re one side glass is replaced with a closed side.
  • Page 13 DIMENSIONAL SKETCHES DIMENSIONAL SKETCH: 600 MAX & 600 MAX / E - THREE-SIDED MODEL WITH TWO TOP BOXES 1696 1696 1208 1208 1097 1097 340 (G) 340 (G) 115 * 115 * *The same dimensions are repeated in the corner model, whe- re one side glass is replaced with a closed side.
  • Page 14 INSTALLATION RECYCLING OF PACKAGING The stove is delivered in recyclable packaging. This packaging must be disposed of in accordance with na- tional regulations relating to the disposal of waste. Styrofoam Plastic straps Cardboard Plastic Sheet metal Pallet wood DISPOSAL AFTER END OF LIFE When your stove can no longer be used in the distant fu- ture, it is important that it is disposed of correctly.
  • Page 15 INSTALLATION PACKAGING AT DELIVERY Upon delivery, the stove is secured to a transport pallet using four transport safety fittings. The safety fittings are attached with screws which must be unscrewed. The safety fittings can then be removed. HEIGHT ADJUSTMENT There are four adjustment screws underneath the ap- pliance.
  • Page 16 INSTALLATION INSTALLATION OF SMOKE OUTLET IN TOP OUTLET Mount the flue outlet with the supplied bolts, washers and nuts. INSTALLATION OF SMOKE OUTLET IN REAR OUTLET Mount the rear outlet spout with the supplied bolts and washers as illustrated. 16 - EN...
  • Page 17 INSTALLATION MOUNTING THE TOP BOXES Install the nuts on the spacers and replace them with the screws that are mounted in the top of the stove. Place the starter section on the stove and lightly tigh- ten the bolts. Adjust the gap between the door and the starter section to 5 mm by turning the spacers.
  • Page 18 INSTALLATION EFFICIENCY MODULE - 600 MAX / E If you have a 600 MAX / E, the difference is that it is equipped with an efficiency module. The module is loca- ted in the top box above the smoke outlet.
  • Page 19 INSTALLATION MOUNTING/CHANGING THE HANDLES On delivery, the stove is fitted with a temporary handle. This is removed by removing the screws. The new hand- le can then be mounted on the stove with the screws. EN - 19...
  • Page 20 600 MAX & 600 MAX / E - x 600 MAX & 600 MAX / E with one top box - 60 kg. 600 MAX & 600 MAX / E with two top boxes - 120 kg.
  • Page 21 CLEANING AND MAINTENANCE CLEANING AND MAINTENANCE It is important that the stove is cleaned and maintained both inside and out. When this is done, the stove must be cold. The stove should be inspected by a chimney sweep once a year. Always check the chimney and flue collar for blockages before a heating season.
  • Page 22 AirSystem, it is installed before you be connected to the stove from the outside. All RAIS/ receive it from us. All you have to do is connect it in your attika stoves have the option to supply external air.
  • Page 23 EXTERNAL AIR CONNECTION - AIRSYSTEM so that the tube collapses and the airflow cannot get th- use to allow outside air to enter the stove. If the stove rough as intended. is unused for a period of time, you can close the air vent to prevent cold air from entering the installation room.
  • Page 24 5kW, confer with administrations. Building regulation Approved Document J. The 600 MAX & 600 MAX/E (All variants) have been re- Permanently open air vents should be non-adjusta- commended as suitable for use in smoke control areas ble, sized to admit sufficient air for the purpose inten- when burning wood logs.
  • Page 28 Article number: 11-6522ENG RAIS A/S ATTIKA FEUER AG Industrivej 20 Brunnmatt 16 DK-9900 Frederikshavn CH-6330 Cham Denmark Switzerland www.rais.com www.attika.ch...
