Vertiv Liebert GXT5 Quick Installation Manual

Vertiv™ Liebert® GXT5 UPS
8 to 10KVA, MV
208V IN (L1, L2, N, G), 208V OUT
Quick Installation Guide
IMPORTANT: Before installing,
connecting to supply or operating
your Vertiv™ Liebert® GXT5 UPS,
please review the Safety and
Regulatory Statements sheet. For
detailed installation, operating,
maintenance and troubleshooting
information refer to the Liebert
GXT5 User Guide for your model
available at www. V ertiv. com.
Installation
1. Inspecting the UPS
Inspect the UPS for any signs of
obvious damage. If damage is
visible, do not proceed. Call our
warranty support line for
assistance at 1-800-222-5877
menu option 3, or email at
microups.warranty@vertiv.com.
2. Choosing a location
Install the UPS in a temperature-
controlled environment that is free
of corrosive and conductive
contaminants. Avoid locations near
heat or water sources and exposed
to direct sunlight.
For proper ventilation, leave four
inches clearance on all sides of the
UPS.
The input outlet should be nearby
and easily accessible.
Thank you for your recent purchase of a Vertiv UPS! We appreciate your
business and are confident that your new product will provide many years of
uninterruptible power to your connected equipment. With this purchase, you
may also want to consider Vertiv's complete line of racks, PDUs, thermal
solutions, KVM switches, and serial consoles. Vertiv also offers a broad array of
services and extended warranties. If you require any assistance or support
please don't hesitate to reach out to one of our resellers, local rep firms, or
directly to us at 1-800-222-5877 menu option 3, or email at microups.
warranty@vertiv.com. We stand ready to support you. We sincerely hope that
you'll continue to select Vertiv for all of your future infrastructure needs!
The Vertiv Team

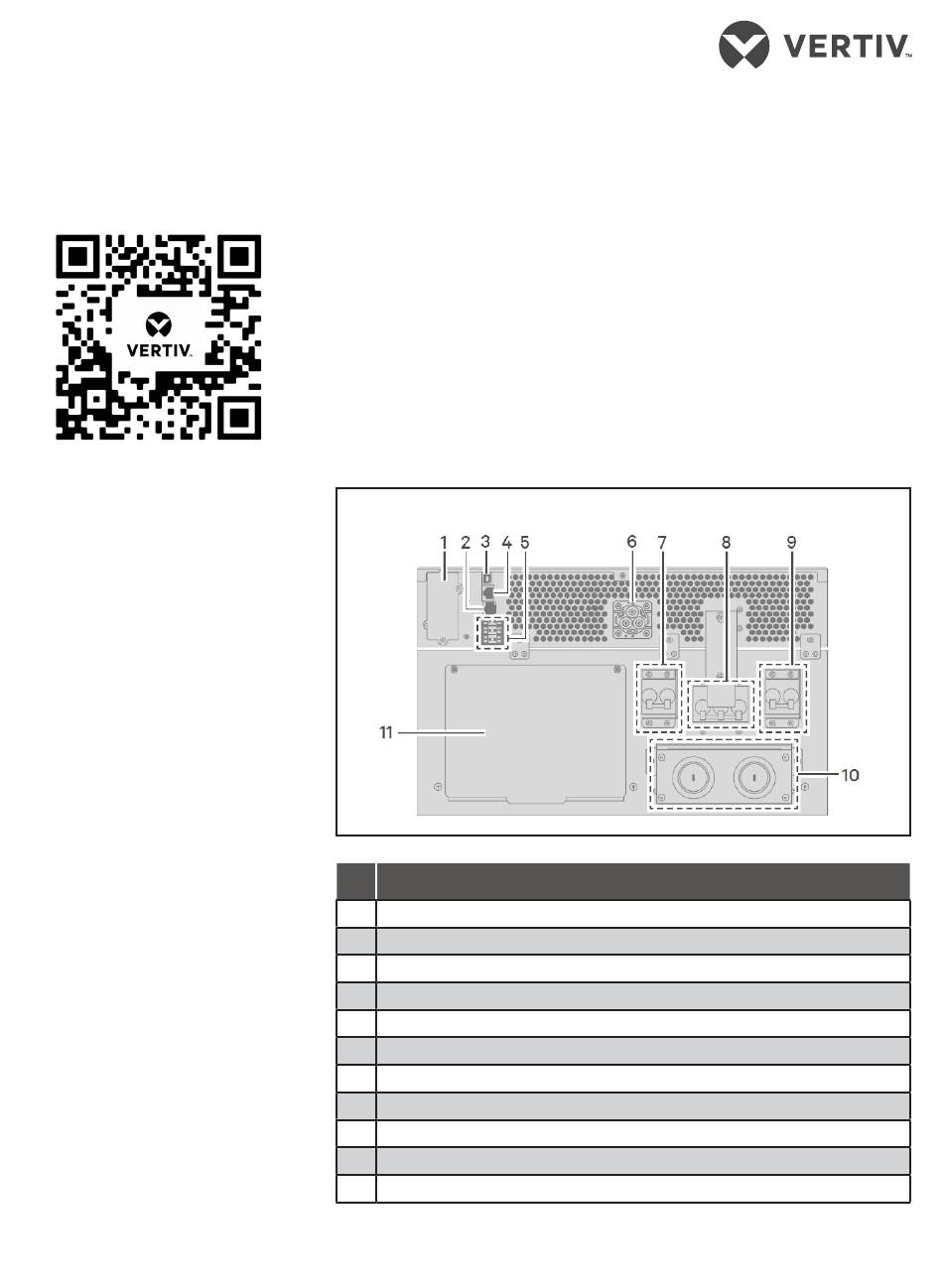

Rear of GXT5 UPS 8000/10KMVRT6UXLN Shown
# Description
1 Liebert® IntelliSlot Port
2 RS-232 port - Used for CLI
3 USB port
4 RS-485 port - Used for external temperature sensors
5 Dry-contacts, Battery Detection (3), REPO input (REPO)
6 External-battery-cabinet connector
7 Output breaker
8 Maintenance breaker
9 Input breaker
10 Knockouts for hard-wired input and output
11 Cover for power-distribution box connector
1
SL_70311_REV2_11_21
