Vertiv Liebert GXT5 Quick Installation Manual

Vertiv™ Liebert® GXT5 UPS
500-3000VA LV, 120V In, 120V Out
Quick Installation Guide
Model Design Configurations
GXT5-2000LVRT2UXL and GXT5-2000LVRT2UXLTAA
IMPORTANT: Before installing,
connecting to supply, or operating
your Vertiv Liebert® GXT5 UPS,
TM
please review the Safety and
Regulatory Statements sheet. For
detailed installation, operating,
maintenance and troubleshooting
information refer to the GXT5 User
Guide for your model by scanning
the QR code above, or visiting
www.vertiv.com.
PROPRIETARY AND CONFIDENTIAL ©2023 VERTIV GROUP CORP.
Thank you for your recent purchase of a Vertiv UPS! We appreciate your business and are
confident that your new product will provide many years of uninterruptible power to your
connected equipment. With this purchase, you may also want to consider Vertiv's complete
line of racks, PDUs, thermal solutions, KVM switches, and serial consoles. Vertiv also offers a
broad array of services and extended warranties. If you require any assistance or support
please don't hesitate to reach out to one of our resellers, local rep firms, or directly to us at
1-800-222-5877 menu option 1. We stand ready to support you. We sincerely hope that
you'll continue to select Vertiv for all of your future infrastructure needs!
The Vertiv Team

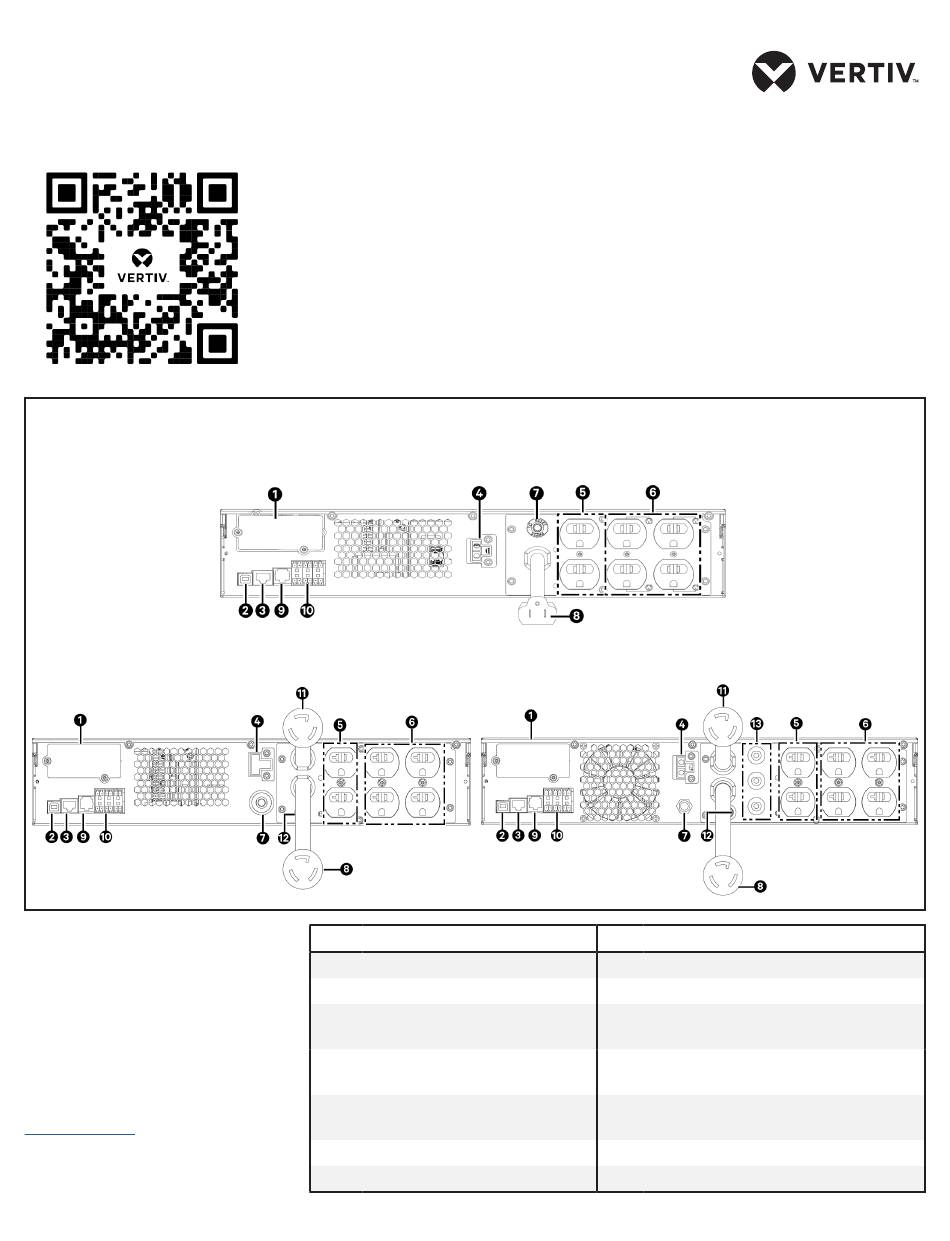

GXT5-500/750/1000/1500LVRT2UXL and GXT5-1000/1500LVRT2UXLTAA
Item Description
1 Vertiv
2 USB port
3 RS-485 port - Used for external
temperature sensors
4 External battery connector
5 Non-programmable output
receptacles
6 Programmable output receptacles
13 Output circuit breaker
GXT5-3000LVRT2UXL and GXT5-3000LVRT2UXLTAA
Liebert® IntelliSlot Port
TM TM
Item Description
7 Input circuit breaker
8 Power cable plug
9 RS-232 port - Used for CLI
10 Dry contacts, Battery Detection (3), REPO
input (REPO)
11 Power cable receptacle
12 Ground screw (behind the power plug cable)
SL-70307_REV5_04-23 1
