Vertiv™ Liebert® GXT5
36V/48V/72V External Battery Cabinet
Quick Installation Guide
Important: Before installing,
connecting to supply, or operating
your Liebert® GXT5 UPS, please
review the Safety and Regulatory
Statements sheet. For detailed
installation, operating, maintenance
and troubleshooting information,
refer to the Liebert® GXT5 User
Guide for your model available at
www.Vertiv.com.
1 Product Introduction
The battery cabinet is used to
accommodate external batteries
for UPS. Before delivery, the
Liebert GXT5-EBC36VRT2U/
UE battery cabinet has been
fitted with six 12Vdc batteries;
Liebert GXT5-EBC48VRT2U/
UE cabinet with eight 12Vdc
batteries; Liebert GXT5-
EBC72VRT2U/UE cabinet with
twelve 12Vdc batteries.
1.1 Appearance and Port
The rear panel of the battery
cabinet1 provides battery ports
(silk print: BATTERY
CONNECTOR) and BATTERY
BREAKER (silk print: CIRCUIT
BREAKER), as shown in Figure 1-1.
1.2 Technical Specifications
See Table 1-1 for the
mechanical specifications
of the battery cabinet.
See Table 1-2 for the
environmental specifications
of the battery cabinet.
UPS and EBC combination / compatibilities requirements
Battery Cabinet
GXT5-EBC36VRT2U (with rack rail)
GXT5-EBC36VRT2UE (without rack
rail)
GXT5-EBC48VRT2U (with rack rail)
GXT5-EBC48VRT2UE (without rack
rail)
GXT5-EBC72VRT2U (with rack rail)
GXT5-EBC72VRT2UE (without rack
rail)

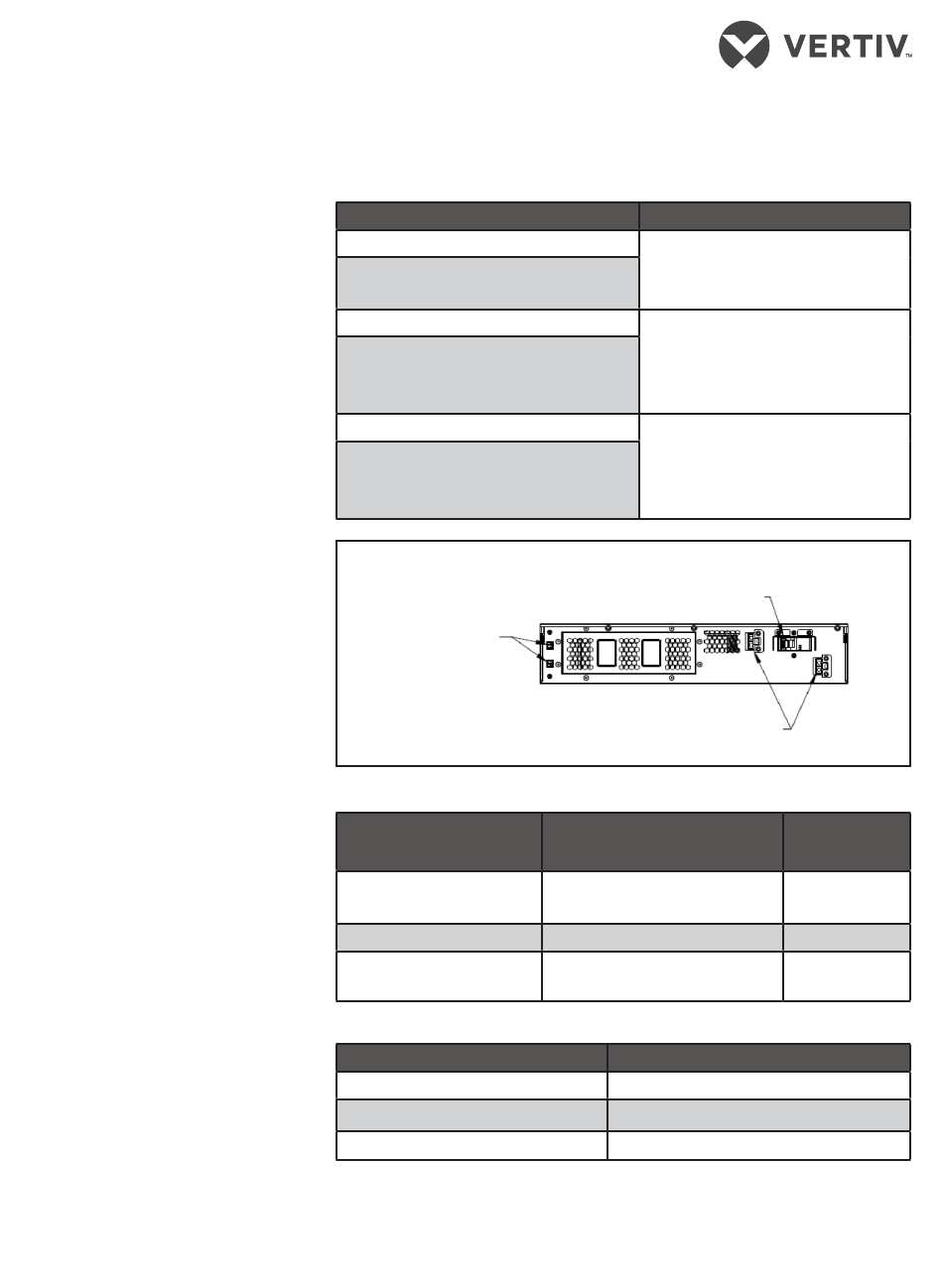

Figure 1-1 GXT5-EBCXXVRT2U Battery cabinet (rear view)
EXTERNAL BATTERY
CABINET DETECTION
TERMINALS
Table 1-1 Mechanical specifications
Model
GXT5-EBC36VRT2U/UE 370× 430 × 85
GXT5-EBC48VRT2U/UE 440 × 430 × 85
GXT5-EBC72VRT2U/UE
Table 1-2 Environmental specifications
Parameter
Ambient temperature
Relative humidity
Altitude
NOTE: Non-certified technicians are prohibited from opening the chassis
cover of the battery cabinet.
UPS
GXT5-750IRT2UXL/XLA/XLB
GXT5-1000IRT2UXL/XLA/XLB
GXT5-1000LVRT2UXL/XLA/XLB
GXT5-1500IRT2UXL/XLA/XLB
GXT5-1500LVRT2UXL/XLA/XLB
GXT5-2000IRT2UXL/XLA/XLB
GXT5-2000LVRT2UXL/XLA/XLB
GXT5-3000IRT2UXL/XLA/XLB
GXT5-3000LVRT2UXL/XLA/XLB
GXT5-3KL620RT2UXL
GXT5-3KL630RT2UXL
ISOLATION BREAKER
EXTERNAL BATTERY
CONNECTOR
Dimension (D × W × H) mm
510 × 430 × 85
Recommended range
0 C to 50 C
o o
0%RH ~ 90%RH (non-condensing)
≤ 3,000m
Weight kg
(with battery)
20
30
45
SL-70791_REVB_11-24
