Kinze 1321 Operator's Manual

Kinze 1321 Operator's Manual

Dual auger grain carts
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
This manual is applicable to:
Record model number and serial number of your grain cart along with date purchased:
SERIAL NUMBER
Record your serial number and purchase date above for quick reference.
The serial number provides important information about your grain cart and is required to obtain correct replacement
parts. Always provide grain cart model and serial number to your Kinze Dealer when ordering parts or anytime
correspondence is made with Kinze Manufacturing, Inc.
Kinze
Microsoft
®
MODEL 1321/1421/1521/1721
DUAL AUGER GRAIN CARTS
OPERATOR MANUAL
M0316-01
2022 Production and on
Model Number __________________________________
Serial Number ___________________________________
Date Purchased __________________________________

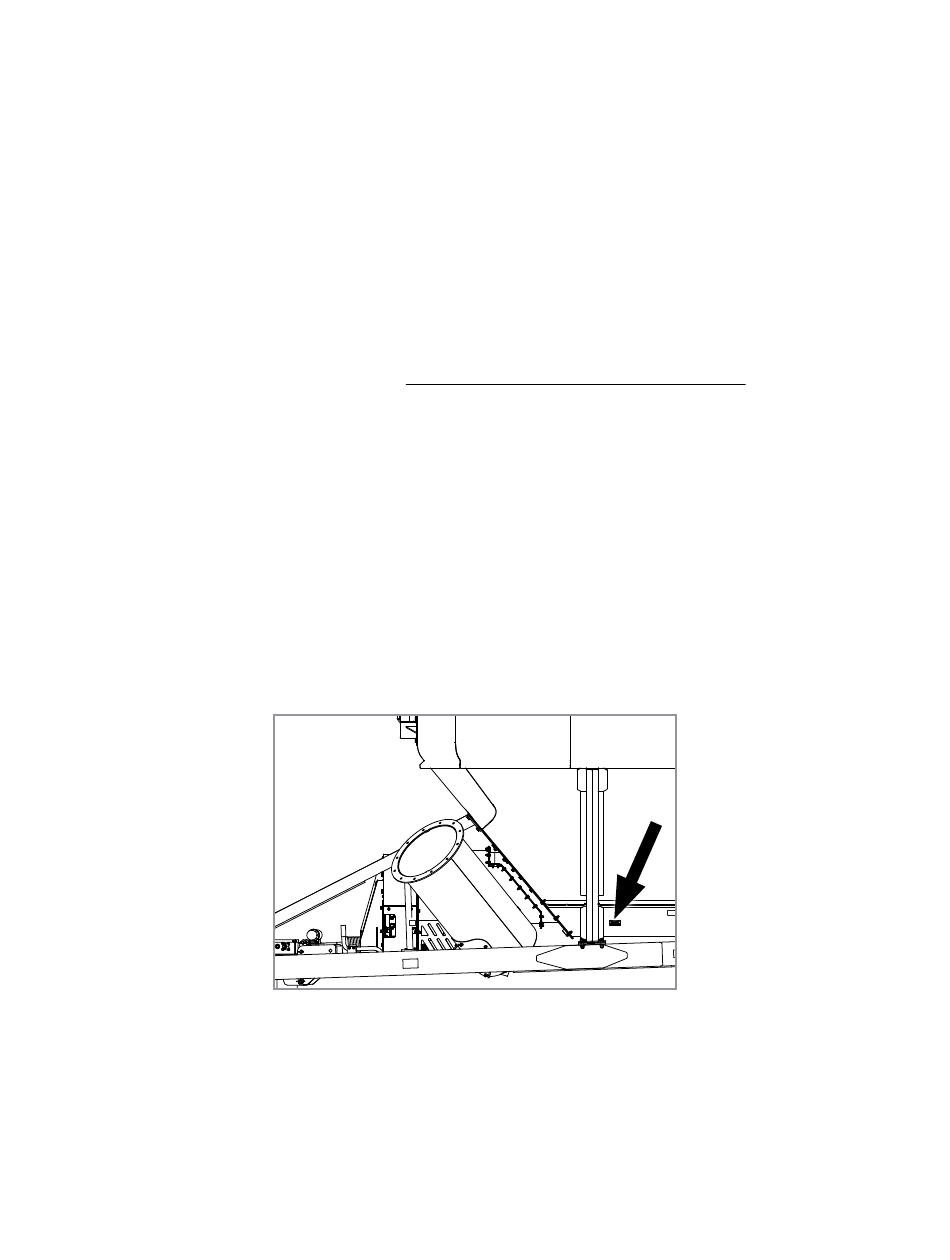

Serial number plate location
and the Kinze
logo are registered trademarks of Kinze Manufacturing, Inc.
®
®
Shur-Co
, LLC is a registered trademark of Shur-Co.
®
Excel
, and Internet Explorer
®
Grain Tracker™ is a trademark of Digi-Star LLC
All other tradmarks are the property of their respective owners.
Rev. 4/25
are registered trademarks of Microsoft Coroporation.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1321 and is the answer not in the manual?

Questions and answers

Related Manuals for Kinze 1321

Summary of Contents for Kinze 1321

  • Page 1 The serial number provides important information about your grain cart and is required to obtain correct replacement parts. Always provide grain cart model and serial number to your Kinze Dealer when ordering parts or anytime correspondence is made with Kinze Manufacturing, Inc.
  • Page 2 Page intentionally blank.

  • Page 3: Predelivery Checklist

    Predelivery/Delivery Checklist M0316-01 Dual Auger Grain Cart 1321-1421-1521-1721 Grain Cart PREDELIVERY/DELIVERY CHECKLIST TO THE DEALER Predelivery service includes assembly, lubrication, adjustment and test. This service ensures cart is delivered to retail customer/end user ready for field use. PREDELIVERY CHECKLIST Use this checklist to inspect cart after it is completely assembled. Check off each item as it is found satisfactory or after proper adjustment is made.

  • Page 4: Delivery Checklist

     Check recommended lubrication procedures are being followed. (Signature Of Follow-Up Person/Dealer Name/Date) Tear Along Perforation All registrations must be submitted online at “business.kinze.com” within 5 business days of delivery. Retain a copy of this form for auditing purposes. 4/22...

  • Page 5: Table Of Contents

    Safety Instructions, Signs, and Decals ....1-10 Track Removal - 1321/1421/1521 Only ....3-14 OPERATION Track Installation - 1321/1421/1521 Only.
  • Page 6 This page intentionally blank.

  • Page 7: To The Owner

    Kinze Manufacturing, Inc. thanks you for your patronage. We appreciate your confidence in Kinze farm machinery. Your Kinze grain cart has been carefully designed to provide dependable operation in return for your investment. This manual has been prepared to aid you in the operation and maintenance of the grain cart. It should be considered a permanent part of the machine and remain with the machine when you sell it.
  • Page 8 NOTE: Photos in this manual may be of prototype machines. Production machines may vary in appearance. NOTE: Some photos and illustrations in this manual show optional attachments installed. Contact your Kinze Dealer for purchase of optional attachments. 4/22...

  • Page 9: Warranty

    Warranty And Delivery Receipt to the Kinze Dealer for service. Kinze warranty does not include cost of travel time, mileage, hauling or labor. Any prior arrangement made between the Dealer and the retail purchaser in which the Dealer agrees to absorb all or part of this expense should be considered a courtesy to the retail purchaser.

  • Page 10: Specifications

    Specifications Dual Auger Grain Cart M0316-01 1321 Grain Cart Feature Specification Heaped Capacity* 1300 Bushels (Track); 1250 Bushels (Flotation) Bushels/Minute - Max* * 750 Bushels/minute Vertical Auger Front fold, corner auger, computer balanced with concave double flighting with a thickened edge for increased durability;...
  • Page 11 Drive Sheaves 8 groove - 8" drive/16" driven 1¾" - 20 spline, 1000 RPM PTO Kinze Tracks by Camso 36"W; 100" ground contact length; 7,214 Total Footprint (sq. in.); (2) 311/2" end wheels per track; (4) 13.77" mid wheels per track Spindle Two 6"...
  • Page 12 Drive Sheaves 8 groove - 8" drive/16" driven 1¾" - 20 spline, 1000 RPM PTO Kinze Tracks by Camso 36"W; 100" ground contact length; 7,214 Total Footprint (sq. in.); (2) 311/2" end wheels per track; (4) 13.77" mid wheels per track Spindle Two 6"...
  • Page 13 Drive Sheaves 8 Groove - 8" Drive/16" Driven 1¾" - 20 spline, 1000 RPM PTO Kinze Tracks 36"W; 108" ground contact length; 7,776 Total Footprint (sq. in.); (2) 311/2" end wheels per track; 8 mid wheels per track Track-End Wheels (Per Track) (2) cast iron-segmented 361/2"...

  • Page 14: General Safety Rules

    General Safety Rules Dual Auger Grain Cart M0316-01 1. Read and understand instructions provided in this 16. Make sure parked machine is on a hard, level manual and warning labels. Review these instructions surface. Wheel chocks may be needed to prevent unit frequently! from rolling.

  • Page 15: Safety Instructions, Signs, And Decals

    Safety Instructions, Signs, and Decals M0316-01 Dual Auger Grain Cart Following are some common hazard warnings associated with this equipment. Pay close attention to all safety, operating, and maintenance information in this manual and decals applied to your equipment. Contacting or coming close to power DANGER lines or other high energy sources will cause death or serious injury.

  • Page 16: Safety Signs And Decals

    Safety Instructions, Signs, and Decals Dual Auger Grain Cart M0316-01 Safety Signs And Decals All safety/warning lights, reflective WARNING decals, and SMV sign must be in place and visible before transporting machine on public roads or death, serious injury, and damage to property and equipment may result.

  • Page 17: Operation

    Operation M0316-01 Dual Auger Grain Cart MACHINE PREPARATION Lubricate grain cart per lubrication information in this manual prior to initial operation and at prescribed intervals. Make sure all tires are properly inflated or track tension is properly adjusted before each use. Check drive V-belts for proper tension and alignment.
  • Page 18 Operation Dual Auger Grain Cart M0316-01 Jack handle stowed Jack handle installed 3. Remove hairpin clip and jack handle from storage location. 4. Install jack handle on jack shaft and raise cart. Clean and grease PTO shaft coupling NOTICE each time PTO is installed. Apply coating of high-speed industrial coupling grease, such as Chevron Coupling Grease, that...
  • Page 19 Operation M0316-01 Dual Auger Grain Cart Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries. Fluid injected under skin must be IMMEDIATELY removed by a surgeon familiar with this type of injury. Make sure connections are tight and hoses and fittings are not damaged before applying system pressure.

  • Page 20: Handheld Remote Control

    Operation Dual Auger Grain Cart M0316-01 Handheld Remote Control Horizontal auger ON/OFF Spout adjust Flow gate open Pivot OUT Flow gate Pivot IN close Spout adjust Joystick Joystick side view • Push trigger to open flow gate. • Pull trigger to close flow gate. •...

  • Page 21: Cart Operation

    Operation M0316-01 Dual Auger Grain Cart CART OPERATION Contact with rotating driveline will cause WARNING death or serious injury. Keep away at all times when operating. Never operate without all guards and equipment shields properly installed. Towing loaded grain carts on public WARNING roads and bridges can result in death, serious injury, and damage to property...
  • Page 22 Operation Dual Auger Grain Cart M0316-01 Contacting or coming close to power DANGER lines or other high energy sources will cause death or serious injury. Keep away from power lines or high energy sources at all times. Entering the grain cart can result in DANGER death or serious injury.

  • Page 23: Unload Grain Cart

    Operation M0316-01 Dual Auger Grain Cart Unload Grain Cart Operating tractor PTO above 750 NOTICE RPM with augers empty will damage equipment. Make sure grain is flowing properly before increasing to higher RPM’s. Read Operator’s Manual for instructions. Roll tarp must be completely open NOTICE during unloading operations or suction will damage equipment.

  • Page 24: Pto Torque Limiting/Overrunning Clutch Protection

    Operation Dual Auger Grain Cart M0316-01 PTO TORQUE LIMITING/OVERRUNNING CLUTCH PROTECTION Torque limiting clutch Overrunning clutch The torque limiting clutch disengages if auger becomes obstructed to prevent driveline and gearbox damage.The torque limiting clutch resets automatically when PTO RPM is reduced. The overrunning clutch allows auger system to freewheel and protects tractor and cart from shock damage withPTO brake-equipped tractors.

  • Page 25: Auger Inspection Cover

    Operation M0316-01 Dual Auger Grain Cart AUGER INSPECTION COVER Vertical Auger Cleanout door Horizontal Auger Cleanout door Never open inspection cover while PTO DANGER and/or augers are running. Grain Carts are equipped with two inspection covers one at the bottom of the vertical auger and one located on the grain transfer that are used for clean out purposes.

  • Page 26: Grain Tank Clean Out Sweep

    Operation Dual Auger Grain Cart M0316-01 GRAIN TANK CLEAN OUT SWEEP Never use clean out sweep while PTO DANGER and/or augers are running. Never remove dump door while PTO and/ DANGER or augers are running. Never work around PTO, gerabox, or belt DANGER drive system or allow anyone else to do so while PTO is running.
  • Page 27 Operation M0316-01 Dual Auger Grain Cart Clean out Sweep Rod Storage Cover Plate Push Stop Clean out Push Rod Slide Pan Nut and Washer Slide Pan Washer Clean out Push Rod Assembly Hex Socket Set Cleanout Screw, ½"-13 x 2" Door Handle Slide Pan Nut Rear Inspection Cover...

  • Page 28: Vertical Auger Work Light

    Operation Dual Auger Grain Cart M0316-01 VERTICAL AUGER WORK LIGHT Work light is mounted in a fixed location on the vertical auger and cannot be moved. Limited adjustments can be made by swiveling light on its base. Work light 2-12 4/22...

  • Page 29: Manual And Electric Roll Tarp

    Operation M0316-01 Dual Auger Grain Cart MANUAL AND ELECTRIC ROLL TARP NOTE: Mount the circuit breaker as close to the power source as possible. Direct connection to the battery or a primary battery-direct power buss is advised. Run 6ga minimum wire size to the tarp system connector plug. Electric Roll Tarp can be operated with remote or Manual switches.
  • Page 30 Operation Dual Auger Grain Cart M0316-01 Channel programming example: The transmitter in this example is labeled with the following five channels: • Tarp System • Front Hopper • Back Hopper • Lights • Auxiliary These channel labels are for a standard agricultural transmitter. Your transmitter label may differ. The task is to enable the Tarp System, Front Hopper and Back Hopper channels.
  • Page 31 Operation M0316-01 Dual Auger Grain Cart Single SMART1+™ remote: 1. On remote, press Open/On button five times. Red light on receiver will flash after each button press. After receiving last signal, light will flash twice, then begin flickering, indicating it has been successfully programmed. 2.

  • Page 32: Roll Tarp Remote Control Troubleshooting

    Operation Dual Auger Grain Cart M0316-01 ROLL TARP REMOTE CONTROL TROUBLESHOOTING PROBLEM SOLUTION No lights on remote turn on when I open Close lid for three seconds, then reopen lid. the lid. Make sure there are no magnets close to the transmitter. Open transmitter case and make sure battery is placed correctly in the remote.

  • Page 33: Track System Components - Models 1321/1421/1521

    Operation M0316-01 Dual Auger Grain Cart TRACK SYSTEM COMPONENTS - MODELS 1321/1421/1521 Rear Idlers Track Frame Top Roller Front Idlers Midrollers Frame The main frame consists of a casting, and the front alignment yoke and rear tension link are cast members.

  • Page 34: Track Transport Speeds - All Track Models

    Track tension is provided by the spring and does not need adjustment during operating and changing field conditions. Provisions are made to compress the spring allowing for removal of idlers and track assemblies during maintenance and servicing. Special tools are available from Kinze to compress the spring and detension the tracks.

  • Page 35: Track System Minimum Turning Radius Limitations - All Track Models

    Operation M0316-01 Dual Auger Grain Cart TRACK SYSTEM MINIMUM TURNING RADIUS LIMITATIONS - ALL TRACK MODELS On either field or road, the minimum turning radius is 3 times the overall length of the tractor plus the implement. Track systems operate best when running straight or in gentle turns. If a track system is pivot or spot-turned, the opportunity exists for soil and dirt to be ingested into the system.

  • Page 36: Track System Operational Guidelines - All Track Models

    The track system does not damage standard road-bed constructions. Operators must know and respect road traffic laws. Rubber tracks have not been designed for extended use on the road. Kinze is not responsible for track and system damage resulting for extended road use. Long road periods and/or roading at higher than recommended maximum speeds may cause premature wear or failure of the track or wheels.

  • Page 37: Electronic Scale - Gt 400

    Operation M0316-01 Dual Auger Grain Cart ELECTRONIC SCALE - GT 400 Electronic scale option includes four load cells, one hitch weigh beam, a tractor-mounted scale indicator console and cables, brackets, and mounting hardware. To measure what is unloaded, press “TARE” before starting to unload.
  • Page 38 Operation Dual Auger Grain Cart M0316-01 Turn on Output to Display - GT 400 Step 1 Push and hold Until it scrolls, press select or net for Menu’s 1,2,3,4,5, etc. Step 2 Press and hold until Menu 2 appears Step 3 Press until SCOREM appears.

  • Page 39: Electronic Scale - Gt 560

    Operation M0316-01 Dual Auger Grain Cart ELECTRONIC SCALE - GT 560 NOTE: Indicator must be on active screen before loading or unloading. Suggested Operating Procedures - With AutoLog NOTE: Movement of cart causes scale indicator reading to fluctuate. Step 1 Press GT 560 Indicator Step 2 Press and hold for two seconds to...
  • Page 40 Operation Dual Auger Grain Cart M0316-01 Turn on Output to Display - GT 560 Step 1 Key in 2101. Step 2 Press , key in “2”. Step 3 Press Step 4 Key in “2201”. Step 5 Press , key in “9600”. Step 6 Press Step 7 Key in “5006”.

  • Page 41: Scale-Tec Point

    Operation M0316-01 Dual Auger Grain Cart SCALE-TEC POINT Scale-Tec POINT Mobile App Electronic scale option includes four load cells, one 1. Download and install the Scale-Tec Mobile app. hitch weigh beam, a tractor-mounted scale indicator console and cables, brackets, and mounting hardware. 2.

  • Page 42: Auxiliary Scale Display

    Operation Dual Auger Grain Cart M0316-01 AUXILIARY SCALE DISPLAY Auxiliary Scale Display, requires electronic scale package. Display size 20.25" x 5.83" x 1.00" sealed in a polyurethane epoxy, 6 digits 4" tall sunlight readable LEDs, 50' cable, 6 magnets included to place in preferred location for viewing by combine operator.

  • Page 43: Electronic Scale Troubleshooting

    Operation M0316-01 Dual Auger Grain Cart ELECTRONIC SCALE TROUBLESHOOTING Does indicator come on? If display is unstable, or Defective Indicator: If you suspect Is reading on indicator flashes “±”, disconnect a bad indicator, the easiest way to stable? j-box cable from check is to try another indicator.
  • Page 44 Operation Dual Auger Grain Cart M0316-01 ELECTRONIC SCALE TROUBLESHOOTING Continued from bottom of previous page. Have you found a poor Fix or replace j-box connection or a loose wire? NOTE: You are going to hook up load cells to the j-box one at a time (meaning only one load cell connected at a time).

  • Page 45: Point Isobus Troubleshooting

    Operation M0316-01 Dual Auger Grain Cart POINT ISOBUS TROUBLESHOOTING 1. Check to make certain that the cables When connecting POINT to ISOBUS the power port on the far left should be empty. are connected correctly. The ISOBUS harness that provides power and connects POINT to the tractor must be plugged into the DT8 port on the far right of POINT.
  • Page 46 Operation Dual Auger Grain Cart M0316-01 POINT ISOBUS TROUBLESHOOTING 7. Test for CAN HI and CAN LO at the DT8 end of the ISO Harness Keys Place black probe on Pin 1 for ground Pin 4 is CAN LO and should show -2.5V Pin 5 is CAN HI and should show +2.5V 8.

  • Page 47: Enable Isobus Pto And Gps Detection For Use With Reap

    Operation M0316-01 Dual Auger Grain Cart ENABLE ISOBUS PTO AND GPS DETECTION FOR USE WITH REAP POINT now allows both the detection of PTO status and GPS coordinates over ISOBUS. If a StarFire receiver is connected, POINT will use its position data to add Lat./Lon. coordinates to each load ticket that is recorded. To enable these features, follow the steps below.

  • Page 48: Track System Troubleshooting

    Operation Dual Auger Grain Cart M0316-01 TRACK SYSTEM TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Uneven tread wear High amount of roading Swap tracks side to side Splits/opening on the side or top of High amount of roading or overheat of Swap tracks side to side. Replace tracks if tread tread necessary.

  • Page 49: Splines

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart Proper lubrication of all moving parts will help ensure efficient operation of your Kinze Grain Cart and prolong the life of friction producing parts. SPLINES Clean and grease all splines before assembly to prolong life, and to prevent damage and ease disassembly when removing.

  • Page 50: Lubrication And Maintenance

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 DRIVE BELTS AND PULLEYS Keep all oil and grease off V-belts and NOTICE belt pulleys. Do not use belt dressing on V-belts. 4-Band V-Belts (2) Shown See “V-Belt Tension Adjustment and Alignment” in Maintenance section for additional information. GEARBOX OIL LEVEL Gearbox Oil Capacity .

  • Page 51: Grease Fittings

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart GREASE FITTINGS Those parts equipped with grease fittings should be lubricated at the frequency indicated with an SAE multipurpose grease. Be sure to clean the fitting thoroughly before using grease gun. The frequency of lubrication recommended on the following pages is based on normal operating conditions.
  • Page 52 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 NOTE: Numbers on illustrations below corresponds to photos on following pages showing lubrication frequencies. 2022 Production 2022 Production Only Only 2022 Production Only 2022 Production Only View A-A Rev. 4/23...
  • Page 53 Lubrication and Maintenance M0316-01 Dual Auger Grain Cart 2023 Production and On Facing Inside Facing Outside Model 1721 Track Only NOTE: For 1321/1421/1521 Track Models, proceed to page 3-10 for Lubrication Information. Rev. 4/23...
  • Page 54 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 1.Intermediate Drive Line - 1 Zerk 2.Vertical Auger Upper Bearing - 1 Zerk (2022 Production) WEEKLY 7100-110 WEEKLY 7100-110 3. Cam Rollers - 1 Zerk (2022 Production) 4.Vertical Auger Center Bearing - 1 Zerk (2022 Production) WEEKLY 7100-110 WEEKLY...
  • Page 55 Lubrication and Maintenance M0316-01 Dual Auger Grain Cart 7. Cleanout Doors - 1 Zerk WEEKLY 7100-110 8.Fold Linkage And Hinge - 6 Zerks (2022 Production) WEEKLY 7100-110 WEEKLY 7100-110 9. Model 1721 Track Only - Axle Pin - 1 Zerk Per Side Spindle Bolt - 12 Zerks Per Assembly, 6 Zerks Per Side Zerks are located on inside and outside of track wheel assemblies.

  • Page 56: Track System Maintenance

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 TRACK SYSTEM MAINTENANCE Every 50 Hours or Weekly GREASE UPPER CARRIER HUBS, UNDERCARRIAGE AND TRACK SYSTEM PIVOT POINTS Visually check oil in mid rollers through clear covers. Carrier Roller - Left and Right Side of Track Main Central Pin Tension Link Pin (Located between...

  • Page 57: Off-Season Storage

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart Every 500 Hours or Yearly REPACK CARRIER ROLLER WHEEL BEARINGS Bearing Lock Nut Torque Chart Size Torque (N-m) Torque (ft-lb) N-06 10 +/− 2 7.4 +/− 1.5 NOTE: Torque lock nut while rotating or oscillating hub. If any lock nut slot and lock washer tang are aligned, bend the aligned tang into the slot to lock in place.

  • Page 58: Check Track Alignment - 1321/1421/1521 Only

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 CHECK TRACK ALIGNMENT - 1321/1421/1521 ONLY Prior to checking track alignment the implement should be empty. Guide Lug Midroller Measure the inside distance left to right. Undercarriage toe must be parallel to within 1/4" (6mm). A suitable location for measurement is noted by arrows, shown on the diagram above, between the idler hub covers.

  • Page 59: Track Alignment Procedure - 1321/1421/1521 Only

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart TRACK ALIGNMENT PROCEDURE - 1321/1421/1521 ONLY Retainer Lock Plate Retainer Lock Plate Cap Screw Track Alignment Cap Screw Remove the retainer lock plate cap screw and lock plate from the inboard and outboard sides of the track needing adjustment.

  • Page 60: Track System Inspection - All Track Models

    “Track Transport Speeds - ALL Track Models” on page 2-18. Adjusting Track Tension - 1321/1421/1521 Only Tension is pre-set at the factory and requires no adjustment during operation. Provision is made to detension the track system allowing for removal of the rubber track.
  • Page 61 This page intentionally blank.

  • Page 62: Track Removal - 1321/1421/1521 Only

    WARNING Install safety lock on cylinder before removing track. IMPORTANT: A detensioning kit (PN A24944) is required for track removal and available from Kinze. Contact your Kinze dealer. NOTE: A Porta Power is also required for track removal. Kinze recommends Blackhawk 10 Ton Porta Power Model B65115.
  • Page 63 Lubrication and Maintenance M0316-01 Dual Auger Grain Cart TRACK REMOVAL - 1321/1421/1521 ONLY (CONTINUED) Install one end of Porta Power on existing hook located between rear idlers. Existing Hook Place detensioning mount where plugs were removed in step 1. Install other end of Porta Power on mount and secure with two M16 bolts.
  • Page 64 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 TRACK REMOVAL - 1321/1421/1521 ONLY (CONTINUED) Remove the rear M20 idler wheel bolts and Idler Wheel torque plate castings. Remove idler wheel. Bolts Torque Plate Castings Install cylinder lock plate on Porta Power cylinder.

  • Page 65: Track Installation - 1321/1421/1521 Only

    Lift the track up and away from the undercarriage, placing in a suitable location. Place track on its side. TRACK INSTALLATION - 1321/1421/1521 ONLY Raise the undercarriage to allow for the lower surface of the belt to slide underneath.

  • Page 66: Mid-Roller Wheel Seal And Bearing Removal And Installation

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 MID-ROLLER WHEEL SEAL AND BEARING REMOVAL AND INSTALLATION Remove locking washer and thrust washer. Locking Washer Thrust Washer Remove hub to dislodge outer bearing cone and remove bearing from axle, then remove inner bearing cone. Inner Bearing Outer Bearing Cone...
  • Page 67 Lubrication and Maintenance M0316-01 Dual Auger Grain Cart Remove outer face seal and load ring from hub. Outer Face Seal NOTE: If replacing face seals only proceed to Step 2 “Mid-Roller Wheel Seal and Bearing Installation” on page 3-20. If there was a bearing failure proceed to next step.

  • Page 68: Mid-Roller Wheel Seal And Bearing Installation

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 MID-ROLLER WHEEL SEAL AND BEARING INSTALLATION Use a bearing driver to install both bearing cups in hub until they are seated firmly against inner shoulder of hub. Inner Shoulder of Hub Use denatured alcohol to clean inner bearing cup and seal contact area. Wipe seal contact area with a clean lint free cloth.

  • Page 69: Metal Face Seal Preparation And Installation

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart METAL FACE SEAL PREPARATION AND INSTALLATION Metal face seals are made of a hard and brittle metal alloy with a highly polished contact surface. Never place seal rings face down on a hard or rough surface. Before seal installation the undercarriage must be completely cleaned and dried.
  • Page 70 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 Lubricate seal load ring with denatured alcohol use the service installation tool to install seal and load ring in hub. Seal Flood collar ring with denatured alcohol to remove any dust or lint from seal cup. Use installation tool to install face seal assembly on collar ring.
  • Page 71 Lubrication and Maintenance M0316-01 Dual Auger Grain Cart Install thrust washer on axle, then install locking washer. Thrust Washer Locking Washer Install locknut and tighen to 32 ft-lb (43 N-m). Locknut Rotate hub five revolutions and check nut for correct torque.
  • Page 72 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 Install a new hub cover O-Ring. O-Ring Install hub cover and six retaining bolts. Tighten bolts in a cross pattern evenly to 132 in-lb (11 ft-lb) (15 Nm). Remove Plug Install Hub Cover Remove plug and fill hub with 7.3 fl oz (215 ml) of Northland Transdraulic Fluid or equivalent.

  • Page 73: Top Roller Wheel And Seal Removal

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart TOP ROLLER WHEEL AND SEAL REMOVAL Remove track see “Track Removal - 1321/1421/1521 only” on page 3-14 Remove five mounting bolts, remove top roller wheel, and then remove hub cover. Mounting Bolts Hub Cover Bend lock washer tab out of lock nut, remove lock nut and lock washer.
  • Page 74 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 Remove thrust washer, remove outer bearing, and remove hub. Thrust Washer Outer Bearing 3-26 Rev. 4/23...

  • Page 75: Track Tension - Model 1721 Only

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart TRACK TENSION - MODEL 1721 ONLY 11/4" Spindle Bolt 11/4" Spindle Bolt Sidebar ¾" Cap Screws 1" Adjusting Bolt (Each Side) Track tension adjustment There should be approximately 2" sag in track at midpoint between front and rear end wheels. 1.

  • Page 76: Track Alignment - Model 1721 Only

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 TRACK ALIGNMENT - MODEL 1721 ONLY ¾" Cap Screws Track alignment Check track alignment daily to prevent NOTICE damage and ensure maximum track life. Track centering lugs should run centered between end wheel segments as lugs enter end wheels when tracks are rotated.

  • Page 77: Mounting Bolts And Hardware

    Hardware used on Kinze grain carts are Grade 5 (high strength) unless otherwise noted. Grade 5 cap screws are marked with three radial lines on the head. Hardware must be replaced with equal size, strength, and thread type.
  • Page 78 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 Grain entrapment will result in death or DANGER serious injury. Never enter grain cart unless completely empty. Always use safety lines and have another person present when working on grain carts. Falling grain auger cart can crush and DANGER will cause death or serious injury.

  • Page 79: Vertical Auger Counter Balance Valves

    NOTE: Model 1721 Only: Torque hardware which attaches the segments to hubs to 220 ft. lbs. NOTE: Models 1321/1421/1521 Only: Retorque all track system idler and midroller bolts daily during first 3 days of use and monthly thereafter. Torque bolts to 457 ft-lbs (620 N-m).

  • Page 80: Tire Servicing

    Inflate to correct pressure for specific rim size. Check tire pressure before each use. 1250/50R32 189 A8 (1321/1421/1521 Flotation Cart)..46 PSI (320 kPa) 3-32 Rev. 4/23...

  • Page 81: V-Belt Tension Adjustment And Alignment

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart V-BELT TENSION ADJUSTMENT AND ALIGNMENT Never operate cart when inspection WARNING cover is removed, or work around belt drive system or allow anyone else to do so while PTO is running or death or serious injury may result.
  • Page 82 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 Installed Links 1/4"-3/8" Clearance With Belt Tension Engaged Spring Adjustment Bolts Properly Install Link 3. Inspect all linkages to make sure all components have been installed correctly and are moving freely. 4. Hydraulically engage the belt tensioner. 5.
  • Page 83 Lubrication and Maintenance M0316-01 Dual Auger Grain Cart 8. Collapse belt tension springs by tightening nylon lock nuts. 9. Remove two bolts which secure idler assembly to tower auger housing. Slide idler assembly to the side for clearance to remove belt from lower pulley. 10.
  • Page 84 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 2¾" 14. Check and adjust belt tension. NOTE: Do not use belt dressing on V-belts. Keep all oil and grease off V-belts and belt pulleys. Drive and driven sheaves (pulleys) do not need to be loosened to remove/replace V-belts. Low belt tension will reduce V-belt life.

  • Page 85: V-Belt Replacement

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart V-BELT REPLACEMENT NOTE: Drive and driven sheaves (pulleys) do not need to be loosened to remove/replace belts. NOTE: Cart must be attached to a tractor to use hydraulic system in later steps. 1.
  • Page 86 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 4. Remove linkage bolt. 5. Push idler assembly away from belt. Check Spring Adjustment When Disengaged 2¾" 6. Check and adjust spring dimension. See “V-Belt Tension Adjustment And Alignment” NOTE: Replace V-belts as a matched pair. 7.

  • Page 87: Driveline Inspection

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart DRIVELINE INSPECTION Inspect driveline after first 20 loads, at beginning of each season, and after every 150 loads or annually thereafter. Remove inspection cover and proceed as follows:  Make a general inspection of driveline looking for loose hardware. ...

  • Page 88: Upper Vertical Auger Replacement

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 UPPER VERTICAL AUGER REPLACEMENT ⅝" Hardware And Flange Bearing Bearing Spindle Bolt Auger Drive Lug Onto ½" Lower Portion Of Auger Remove Spring Plate And Spring Mounting Hardware Sleeve 1. Position the vertical auger in a horizontal position as illustrated. 2.

  • Page 89: Lower Vertical Auger Replacement

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart LOWER VERTICAL AUGER REPLACEMENT 1. Position vertical auger in the storage/transport folded position as shown. 2. Remove four ½" x 1½" hanger bearing bracket carriage bolts at upper end of lower vertical auger. Carefully work hanger bearing bracket loose from auger housing.

  • Page 90: Horizontal Auger Replacement

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 HORIZONTAL AUGER REPLACEMENT Rear Inspection Cover 1. Remove 12 cap screws and lock nuts from rear inspection cover. Remove inspection cover and bearing hub assembly. 2. Pull horizontal auger through opening at rear of cart. 3.

  • Page 91: Track Endwheel/Midwheel Bearing Replacement - Model 1721 Only

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart TRACK ENDWHEEL/MIDWHEEL BEARING REPLACEMENT - MODEL 1721 ONLY 1. Position jack at axle and raise side of machine. 2. Mark position of inside and outside sidebars nearest end wheel being serviced. 3. Loosen four ¾" cap screws and 11/4" spindle bolt on each sidebar. 4.
  • Page 92 Lubrication and Maintenance Dual Auger Grain Cart M0316-01 5. Remove double nuts and slide spindle from hub. 6. Remove bearings, seals and cups and discard. Clean and dry hub. 7. Press in new bearing cups with thickest edge facing in. 8.

  • Page 93: Wheel Bearing Replacement

    11. Fill dust cap half full of wheel bearing grease and install on hub with attachment bolts. 12. Lubricate wheel nuts and install wheel. Remove jack. Torque wheel nuts to 350 ft-lb. NOTE: Wheel hubs on Kinze grain carts contain high strength ductile iron material. Replace hub with proper part. 3-45...

  • Page 94: Preparation For Storage

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 PREPARATION FOR STORAGE Store machine in a dry sheltered area. Remove all trash that may be wrapped on shafts and remove dirt that can draw moisture. Remove auger inspection cover at front of cart and open cleanout doors at rear of cart. Clean out all accumulated grain and debris from auger chamber.

  • Page 95: Hydraulic Control Schematic - Remote

    Lubrication and Maintenance M0316-01 Dual Auger Grain Cart HYDRAULIC CONTROL SCHEMATIC - REMOTE Auger Fold A16825 Flow Tippy Auger Gate Spout Pivot A16822 A16824 Horizontal A16823 Auger Blue 3-47 Rev. 4/23...

  • Page 96: Handheld Control Wiring Diagram

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 HANDHELD CONTROL WIRING DIAGRAM SW1DS1 3-48 Rev. 4/24...
  • Page 97 Lubrication and Maintenance M0316-01 Dual Auger Grain Cart WIRE WIRE FROM GAUGE FUNCTION CONTROLS SWITCH POSITION COLOR SW1-1 SW2-C COMMON P1-1 SW3-1 +12V POWER SW4-1 DS1-1 DS1-2 P1-2 CHASSIS GND CHASSIS GND SW1DS1-1 P1-3 SW1-2 SWITCHED 12V AUGER ON/OFF BUTTON IN/OUT P1-4 SW2-1 SWITCHED 12V...

  • Page 98: Wiring Diagram

    Dual Auger Grain Cart WIRING DIAGRAM Additional auxiliary work lights are available from Kinze Repair Parts which may be wired into existing auxiliary light wires in the harness. The vertical auger work light is wired into the black terminal connector.

  • Page 99: Electronic Scale

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 ELECTRONIC SCALE The major elements of the electronic scale are the indicator, two 50,000 lb. rated compression type load cells at the rear of the axle assembly (applicable to track and flotation type carts) and four spindle type weigh axles (applicable to row crop carts), 3¾"...

  • Page 100: Control Cable Extension (P/N: A16354)

    Lubrication and Maintenance Dual Auger Grain Cart M0316-01 CONTROL CABLE EXTENSION (P/N: A16354) CONNECT ATTACHMENT WIRE TO PIN 12 SIGNAL RECEPT GAUGE COLOR PLUG POWER (12VDC) GROUND GREEN AUGER ON BLACK AUGER OFF VIOLET PIVOT DOWN YELLOW PIVOT UP ORANGE SPOUT DOWN BROWN SPOUT UP...
