Kinze 5900 Operator's Manual

Kinze 5900 Operator's Manual

Front fold planter
Hide thumbs

Advertisement

Quick Links

Download this manual
This manual is applicable to:
Record the model number and serial number of your planter along with date purchased:
Monitor Serial Number _______________________________________________
Measured Pulses Per Mile/Km (Radar Distance Sensor) ____________________
Measured Pulses Per Mile/Km (Magnetic Distance Sensor) _________________
SERIAL NUMBER

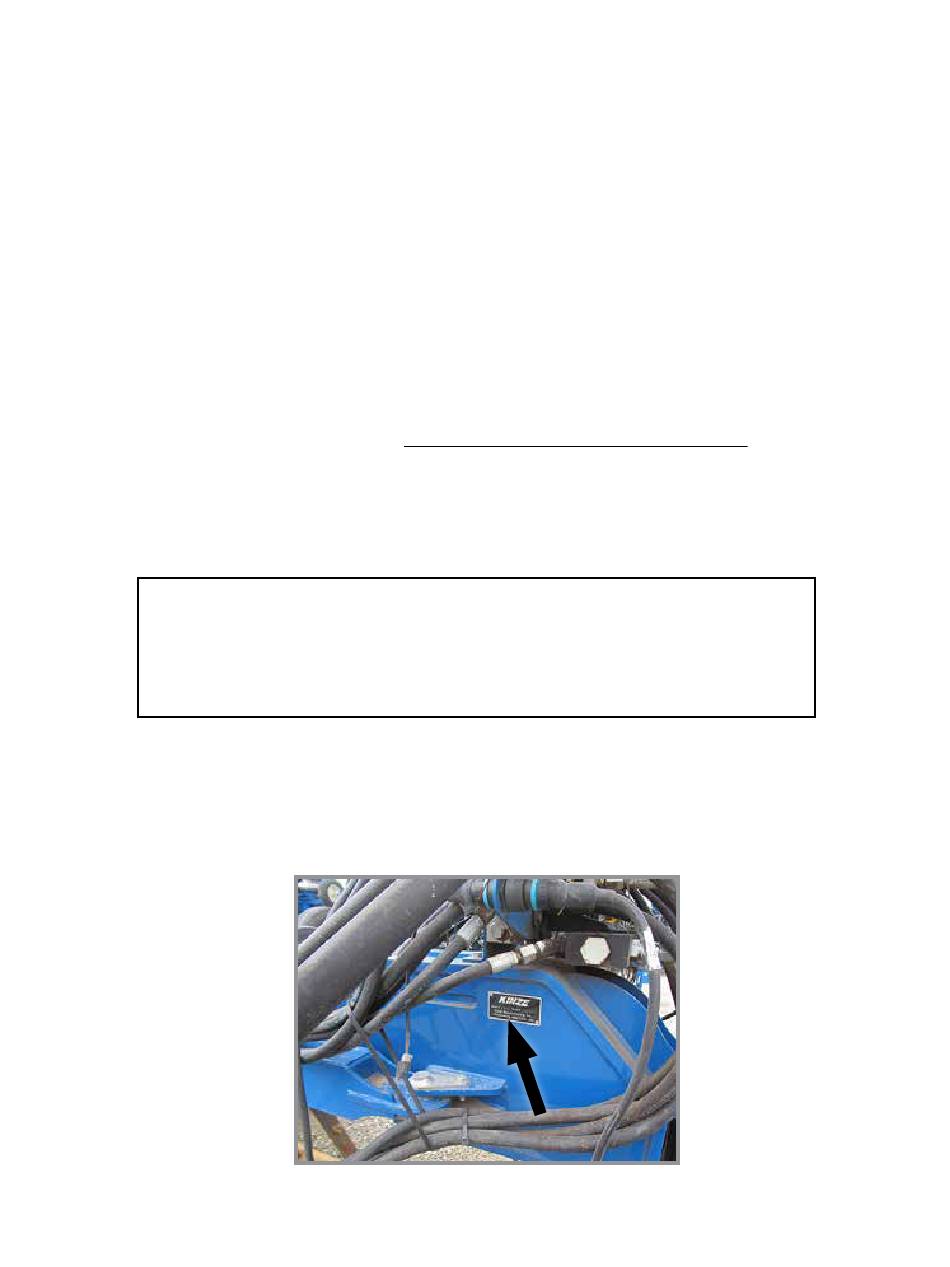

The serial number plate is located on the planter frame as shown below. The serial number provides important information
about your planter and is needed to obtain correct replacement parts. Always provide model number and serial number
to your Kinze Dealer when ordering parts or when contacting Kinze Manufacturing, Inc.
MODEL 5900
FRONT FOLD PLANTER
OPERATOR MANUAL
M0321-01
Model 5900 Forward Folding Planters
2024 Production and On
Model Number ___________________________________
Serial Number ___________________________________
Date Purchased __________________________________
Serial Number Plate Location
Kinze
, Blue Drive
, Blue Vantage
®
®
and the Kinze
logo are registered trademarks of Kinze Manufacturing, Inc.
®
Rev. 7/24
5900
, True Speed
, True Rate
®
®
, True Depth
,
®
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kinze 5900

Summary of Contents for Kinze 5900

  • Page 1 The serial number plate is located on the planter frame as shown below. The serial number provides important information about your planter and is needed to obtain correct replacement parts. Always provide model number and serial number to your Kinze Dealer when ordering parts or when contacting Kinze Manufacturing, Inc. Serial Number Plate Location...
  • Page 2 This page intentionally left blank.

  • Page 3: Predelivery Checklist

    Predelivery/Delivery Checklist M0321-01 Model 5900 TO THE DEALER Predelivery service includes assembly, lubrication, adjustment and test. This service helps ensure planter is delivered to retail customer/end user ready for field use. PREDELIVERY CHECKLIST Use the following checklist after planter is completely assembled. Check off each item as it is found satisfactory or after proper adjustment is made.

  • Page 4: Delivery Checklist

    Predelivery/Delivery Checklist Model 5900 M0321-01 DELIVERY CHECKLIST Use the following checklist at time planter is delivered as a reminder of very important information which should be conveyed to retail customer/end user. Check off each item as it is fully explained.

  • Page 5: Table Of Contents

    Knife Adjustment ....... 4-29 Kinze Blue Vantage ......2-34 In Furrow .
  • Page 6 Table of Contents Model 5900 M0321-01 Mounting Bolts and Hardware ..... . 5-9 12V Power Harness, Toolbar - 12 Row and 16 Row (P/N: 10815102);...
  • Page 7 Table of Contents M0321-01 Model 5900 True Speed PUll Row Unit W/IPP Harness (P/N: 10916001) ......5-80 Yetter Row Cleaner Compressor Harness (P/N:10558202) .
  • Page 8 This page intentionally left blank.

  • Page 9: To The Owner

    M0321-01 Model 5900 Kinze Manufacturing, Inc. thanks you for your patronage. We appreciate your confidence in Kinze farm machinery. Your Kinze planter has been carefully designed to provide dependable operation in return for your investment. This manual has been prepared to aid you in the operation and maintenance of the planter. It should be considered a permanent part of the machine and remain with the machine when you sell it.
  • Page 10 NOTE: Some photos in this manual may have been taken of prototype machines. Production machines may vary in appearance. NOTE: Some photos and illustrations in this manual show optional attachments installed. Contact your Kinze Dealer for purchase of optional attachments.

  • Page 11: Warranty

    Warranty And Delivery Receipt to the Kinze Dealer for service. Kinze warranty does not include cost of travel time, mileage or hauling. Any prior arrangement made between the Dealer and the retail purchaser in which the Dealer agrees to absorb all or part of this expense should be considered a courtesy to the retail purchaser.

  • Page 12: Tools Required

    Model 5900 M0321-01 Information used in these instructions was current at time of printing. However, due to Kinze’s ongoing product improvement, production changes may cause your machine to appear slightly different in detail. Kinze Manufacturing, Inc. reserves the right to change specifications or design without notice and without incurring obligation to install the same on machines previously manufactured.

  • Page 13: Specifications

    Specifications M0321-01 Model 5900 True Rate and True Speed Metering 12 Row 30 16 Row 30 24 Row 30 Blue Drive / True Rate / Bulk Fill Bulk Fill Hopper Capacity 80 bu. 80 bu. 120 bu. Number of Rows Row Spacing 30"...
  • Page 14 NOTES: All SCVs should be set to max flow at all times. PTO Hydraulic pump comes standard on 5900 and supplies oil flow for all circuits (bulk fill, weight distribution,  vacuum, True Rate or True Speed meters, True Depth hydraulic down force, fertilizer, Yetter hydraulic air compressor) except lift, markers/fold.
  • Page 15 This page intentionally left blank.

  • Page 16: General Safety Rules

    If you install such drives, follow all appropriate safety standards and practices to protect you and others Model 5900 planter consists of 85% recyclable metals, 10% near this planter from injury. recyclable plastic and rubber, and 5% waste.

  • Page 17: Safety Precautions

    Safety Precautions M0321-01 Model 5900 Following are some common hazard warnings associated with this equipment. Pay close attention to all safety, operating, and maintenance information in this manual and decals applied to your equipment. Contacting or coming close to power...

  • Page 18: Safety Instructions

    Safety Precautions Model 5900 M0321-01 SAFETY SIGNS AND DECALS All safety/warning lights, reflective WARNING decals, and SMV sign must be in place and visible before transporting machine on public roads or death, serious injury, and damage to property and equipment may result.

  • Page 19: Machine Operation

    Machine Operation M0321-01 Model 5900 ROW MARKER SAFETY LOCKUP Row marker can lower at any time and WARNING could cause death or serious injury. Stay away from row markers! Install safety lockup device when not in use. Row Marker Safety Lockup Installed Row Marker Safety Lockup Stored Always install row marker lockups when working on, storing, or transporting planter.

  • Page 20: Transport Axle Cylinder Safety Lockup

    Machine Operation Model 5900 M0321-01 TRANSPORT AXLE CYLINDER SAFETY LOCKUP Transport axle can lower from transport WARNING position without the use of any controller, causing death, serious injury, or damage to property and equipment. Do not operate any hydraulic function while transporting the planter.

  • Page 21: Drawbar Hitch Lockup (Option)

    Machine Operation M0321-01 Model 5900 DRAWBAR HITCH LOCKUP (OPTION) Planter hitch may raise uncontrollably WARNING during folding/unfolding and can cause death, serious injury, or damage property and equipment. DO NOT fold or unfold planter without planter attached to a tractor. DO NOT unhitch planter from...

  • Page 22: 2-Point Hitch Option

    Machine Operation Model 5900 M0321-01 2-POINT HITCH OPTION Jacks in Maintenance Position For transporting, store jacks on both sides of hitch. Secure in place with spring pin. 10/23...

  • Page 23: Initial Planter Preparation

    Machine Operation M0321-01 Model 5900 Improperly operating or working on WARNING this equipment could result in death or serious injury. Read and follow all instructions in Operator Manual before operating or working on this equipment. INITIAL PLANTER PREPARATION Following information is general in nature to aid in preparation of tractor and planter for use, and to provide general operating procedures.
  • Page 24 Machine Operation Model 5900 M0321-01 Row marker Wing Wing Transport Tire locations (16 Row Shown) 1. Torque transport wheel 5/8"- 18 lug nuts to 200 ft-lb (244 N-m). 2. Inflate tires to the following specifications: • Wing: - 12 Row and 16 Row: 7.5” x 20” - 40 psi (275.7 kPa) - 24 Row: VF 295-75R22.5 - 65 psi (448 kPa)

  • Page 25: Tractor Requirements

    Machine Operation M0321-01 Model 5900 TRACTOR REQUIREMENTS Loss of control of equipment during WARNING transport can result in death, serious injury, or damage to property and equipment. Tractor gross weight must be greater than planter gross weight with attachments and options.

  • Page 26: Piston Pto System

    Machine Operation Model 5900 M0321-01 PISTON PTO SYSTEM Oil reservoir 20 gal (75.7 L) Reservoir PTO Hydraulic Pump Connects to PTO Terminal “P4” NOTE: A tractor model-specific mount kit is required for the PTO-mounted pump. Contact Command Hydraulics (800-778-6200 or www.commandhydraulics.com) for your tractor pump mount Connects to PTO Terminal “P9”...

  • Page 27: Tractor Preparation And Hookup

    Machine Operation M0321-01 Model 5900 TRACTOR PREPARATION AND HOOKUP 1. Back tractor to planter and connect to drawbar hitch (with minimum 13/4" diameter hitch pin) or 2 point hitch (Category 3N, Category 3, or Category 4 hitch). Make sure hitch pin is secured with a locking pin or cotter pin if tractor is not equipped with a hitch pin locking device or 2-point hitch.
  • Page 28 Attach safety chain at an unused clevis mounting hole on the planter hitch. Torque hardware to 840 ft-lb (1138.8 N-m). Model 5900 Planter 12 and 16 Row Planter Model 5900 24 Row Planter (24 Row Planters Require 2 Chains)
  • Page 29 Machine Operation M0321-01 Model 5900 Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries. Fluid injected under skin must be IMMEDIATELY removed by a surgeon familiar with this type of injury. Make sure connections...
  • Page 30 Machine Operation Model 5900 M0321-01 Clean and grease PTO shaft coupling NOTICE with high-pressure industrial coupling grease (Chevron coupling grease or ® equivalent) meeting AGMA CG-1 and CG-2 Standards each time driveshaft is installed or premature wear and equipment failure can occur.

  • Page 31: True Depth Hydraulic System Overview

    Machine Operation M0321-01 Model 5900 TRUE DEPTH HYDRAULIC SYSTEM OVERVIEW True Depth Pressure Gauge Remove all hydraulic power sources and WARNING verify True Depth pressure gauge reads zero before servicing. True Depth Cylinder Flow out of the rod end port of the...

  • Page 32: True Depth Filter

    Machine Operation Model 5900 M0321-01 TRUE DEPTH FILTER Replace filter cartridge annually, every 100 hours of operation, or when the clogging indicators point out the limit pressure drop created inside the filter. True Depth Filter To replace the cartridge: 1. Stop the system in “Machine Stopped” status 2.

  • Page 33: Transporting Planter

    Machine Operation M0321-01 Model 5900 TRANSPORTING PLANTER Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety pins before transporting equipment. Uncontrolled machine movement can...

  • Page 34: Level Planter

    If planter center is higher or lower than wings after rephasing, contact your Kinze Dealer for valve adjustment or maintenance.

  • Page 35: Jump Start Sensor

    One valve controls raise speed and other valve controls lower speed of both markers. “See “Row Marker Speed Adjustment” on page 2-23 “See “Row Marker Cable Adjustment” on page 2-24. If the planter is equipped with Blue Drive refer to M0288 - Kinze Blue Vantage Operator’s Manual for marker control. 2-17 10/23...

  • Page 36: Transport To Field Sequence Using Blue Vantage

    Machine Operation Model 5900 M0321-01 TRANSPORT TO FIELD SEQUENCE USING BLUE VANTAGE Position planter in a relatively flat open area without furrows, etc. Tractor must be in neutral and allowed NOTICE to roll freely when unfolding to prevent equipment damage, especially in soft conditions or when loaded with seed.
  • Page 37 Machine Operation M0321-01 Model 5900 1. Remove lockups. 2. Navigate to Actions, then select “UNFOLD”. 3. Press and hold “ROTATE TRANSPORT AXLE”. Operate proper hydraulic tractor control to lower transport axle to field turnaround position. Axle cylinders will automatically stop at correct height.

  • Page 38: Field To Transport Sequence Using Blue Vantage

    Machine Operation Model 5900 M0321-01 FIELD TO TRANSPORT SEQUENCE USING BLUE VANTAGE Position planter in a relatively flat open area without furrows, etc. Tractor must be in neutral and allowed NOTICE to roll freely when folding to prevent equipment damage, especially in soft conditions or when loaded with seed or fertilizer.
  • Page 39 Machine Operation M0321-01 Model 5900 1. If equipped with row markers, remove lockups from storage and installation marker cylinder rods. 2. Navigate to “ACTIONS”, then select “FOLD”. 3. Place planter into field turnaround position. 4. Press and hold “RAISE HITCH” (If equipped). Operate proper hydraulic tractor control to raise drawbar to level planter frame.

  • Page 40: Row Marker Operation Using Blue Vantage Display

    Keep away from power lines or high energy sources at all times. NOTE: See row marker adjustments on following pages. If the planter is equipped with Blue Drive refer to M0288 - Kinze Blue Vantage Operator’s Manual for marker control Row Marker Solenoid Valves 2-22 10/23...

  • Page 41: Row Marker Speed Adjustment

    Machine Operation M0321-01 Model 5900 ROW MARKER SPEED ADJUSTMENT Excessive row marker travel speed NOTICE can damage row markers. Adjust flow controls before row markers are first used. NOTE: Row markers should not operate faster than 8 mph (13 kph).

  • Page 42: Row Marker Cable Adjustment

    Machine Operation Model 5900 M0321-01 ROW MARKER CABLE ADJUSTMENT Uncontrolled marker movement can WARNING cause death or serious injury. Set marker switch to OFF and shut off tractor prior to adjustment. NOTE: Operate two-fold or three-fold row markers with the tractor's hydraulic valve in float position.

  • Page 43: Row Marker Length And Disc Blade Adjustment

    Set blade angle only as needed to leave a clear mark. NOTE: A notched marker blade is available from Kinze through your Kinze Dealer for use in more severe no till conditions. 2-25...

  • Page 44: Vacuum Meter System

    M0321-01 VACUUM METER SYSTEM Kinze vacuum meter seed metering system includes seed meters, seed discs, and an air system consisting of a hydraulic driven vacuum fan which draws air through manifolds, hoses, and seed meters on each row unit. Moving fan blades can cause amputation WARNING or severe injury.

  • Page 45: Bulk Fill System

    Machine Operation M0321-01 Model 5900 BULK FILL SYSTEM Do not remove lid during machine WARNING operation. Contents are pressurized and could result in death, serious injuries or equipment damage. Review operator manual for proper filling procedure. Seed flying out of disconnected delivery CAUTION tube at high velocity can cause injury.

  • Page 46: Bulk Fill Entrainer Access

    Machine Operation Model 5900 M0321-01 1. Before filling hoppers, See “Additives” on page 3-32 additives information. Fill hoppers with seed, then twist lid clockwise to close. 2. Start bulk fill delivery system with tractor engine at idle. Counterclockwise 3. Increase engine speed to full and set initial system to open pressure using flow control valve.

  • Page 47: Bulk Fill Tanks - Clean Out

    Machine Operation M0321-01 Model 5900 BULK FILL TANKS - CLEAN OUT Chute hooks Cleanout Chute Storage Location Cleanout Chute Installed 1. Remove bulk fill tank cleanout chute from storage location under L.H. bulk fill tank. 2. Position tube of chute under entrainer and attach hooks on each end of entrainment assembly.

  • Page 48: Bulk Fill Scale Package Option

    Machine Operation Model 5900 M0321-01 BULK FILL SCALE PACKAGE OPTION High-pressure water can damage display. NOTICE Remove display before power washing planter. Remove and store display at end of NOTICE planting season. Damage from sun and weather exposure may result.
  • Page 49 Machine Operation M0321-01 Model 5900 To monitor seed levels (Main Screen): NOTE: Refer to Blue Vantage manual for bulk fill scale user information. 1. Main screen displays information for left and right hoppers. 2. Tap "Weight" to display left and right hopper weight.
  • Page 50 Machine Operation Model 5900 M0321-01 To enter seed information (Not applicable on Blue Vantage): NOTE: Seed information entered must be accurate for remaining estimated acres to calculate correctly. • SEEDS/ACRE is population rate. • SEEDS/LB value comes from seed specifications.
  • Page 51 Machine Operation M0321-01 Model 5900 Software Version: 1. From main screen, tap "Planter Setup". 2. Tap on "English" to display software version. 4. Tap "English" to return to planter setup screen. 3. Tap "OK" to return to main screen. Language/Units: NOTE: English is the default language.

  • Page 52: Kinze Blue Vantage

    Blue Vantage can be ready to plant in three taps after proper setup. The health screen provides all critical planting parameters and controls. The grower can observe row-by-row planting performance in real-time. NOTE: See Kinze Blue Vantage Operator’s Manual for system operation and programming. Kinze Blue Vantage 2-34...

  • Page 53: Field Test

    Machine Operation M0321-01 Model 5900 FIELD TEST Perform a field test with any change of field and/or planting conditions, seed size or planter adjustment to ensure proper seed placement and operation of row units.  Check planter for front to rear and lateral level operation. See “See “Level Planter”...

  • Page 54: Field Check Seed Population

    Machine Operation Model 5900 M0321-01 FIELD CHECK SEED POPULATION Remove locking cotter pin. Lock up one or more sets of closing wheels putting in locked position. Pull closing wheel arm up and align with lock up hole. Secure with 1/2" x 31/2" clevis pin and locking cotter pin.

  • Page 55: Determining Pounds Per Acre

    Machine Operation M0321-01 Model 5900 Multiply number of seeds placed in 1∕1000 of an acre by 1000. This gives total population. EXAMPLE: 30" row spacing 17' 5" equals 1∕1000 acre. 26 seeds counted x 1000 = 26,000 seeds per acre DETERMINING POUNDS PER ACRE Seeds per acre ÷...

  • Page 56: Field Check Granular Chemical Application

    Machine Operation Model 5900 M0321-01 FIELD CHECK GRANULAR CHEMICAL APPLICATION Temperature, humidity, speed, ground conditions, flowability of different material, or meter obstructions can affect granular chemical rate of delivery. Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property.

  • Page 57: Yetter 2940 Air Adjust Residue Manager

    Machine Operation M0321-01 Model 5900 YETTER 2940 AIR ADJUST RESIDUE MANAGER Serious injury or death may occur DANGER if modifications are made to water seperator valve, pressure switch, safety relief valve or other comonents that control tank pressure. Never make adjustments to components that control tank pressure.
  • Page 58 6 Rows in Center (3-6-3) 5900 16 Row 6 Rows in Center (5-6-5) 5900 24 Row 8 Row Center Section (8-8-8) Kinze Air Tubing Chart Kinze Part Number Size Color Function • Yetter UP Pressure • Electric Compressr to Tank GD17150-17 (250') 3/8"...
  • Page 59 Machine Operation M0321-01 Model 5900 Wheel track layouts shown below and on next page: WT circuit is dictated by where the wing flex happens. Stub wing row units are all on wheel track circuit. 12 Row RU (Up Pressure) = 3/8" Blue RD (Wing Down Pressure) = 3/8"...
  • Page 60 Machine Operation Model 5900 M0321-01 24 Row 30" RU (Up Pressure) = 3/8" Blue RD (Wing Down Pressure) = 3/8" Black WT (Wheel Track Down Pressure) = 3/8" Brown Operation Failure to properly set the planter frame height and levelness can result in less than successful operation of the planter and the Yetter product.
  • Page 61 Machine Operation M0321-01 Model 5900 System Start Up Procedure NOTE: For proper operation, the planter frame must operate level (fore, aft, and side to side) and at the correct height. NOTE: Regularly inspect the residue managers for loose or worn bolts and hardware. Repair or replace as needed.
  • Page 62 Machine Operation Model 5900 M0321-01 ROW CLEANER DO’S AND DON’TS 1. DO NOT use as a tillage tool; Residue Managers are designed to move crop residue and to break up clods and crust. 2. DO NOT operate planter at slow speeds. Ground speed affects how aggressive the residue manager wheels are.
  • Page 63 Machine Operation M0321-01 Model 5900 Residue Manger Control Box Pressure Relief Valve Residue Manager Control Box Pressure Switch Pressure Regulator Inlet Manifold and Tank Pressure Gauge Air to Water Seperator Residue Manger Control Box - Contains valves that control air pressure delivered to 3 circuits on planter.
  • Page 64 Machine Operation Model 5900 M0321-01 Air Compressor Prior to daily operation check the oil in the compressor when the planter is on level ground. The oil level can 2/3 Full be checked in the clear sight glass on the end of the Max.

  • Page 65: Yetter 2940 Air Adjust Residue Manager

    Machine Operation M0321-01 Model 5900 YETTER 2940 AIR ADJUST RESIDUE MANAGER Residue Manager Settings Adjustment Tube The default position for the wheel mount arm will be set in the fifth hole from the top. Lock-Up Pin Hole Heavy tillage conditions - move wheel mount arm up to the 3rd or 4th hole.
  • Page 66 This page intentionally left blank.

  • Page 67: Row Unit Operation

    Row Unit Operation M0321-01 Model 5900 PLANTING DEPTH MANUAL ADJUST Planting depth adjustment handle Planting depth is maintained by adjustable row unit gauge wheels. Depth adjustment range is approximately ½” to 3½” (1.2 to 8.8 cm). Raise planter to remove weight from wheels.

  • Page 68: Closing Wheel General Adjustments

    Row Unit Operation Model 5900 M0321-01 CLOSING WHEEL GENERAL ADJUSTMENTS Eccentric bushings in the wheel arm stop allow for lateral Eccentric bushing adjustment of the “V” closing wheel assembly. Use a 3/4” wrench to loosen hardware attaching closing wheel arm to wheel Set closing wheels in arm stop.

  • Page 69: Spring Closing Wheel

    Row Unit Operation M0321-01 Model 5900 SPRING CLOSING WHEEL “V” closing wheels should have enough down pressure to close the seed trench and ensure good soil to seed contact. Down pressure Move 5-position quick adjustable down force lever on the top of...

  • Page 70: Air Adjust Closing Wheel Arm (Pcw)

    If a bag is folded, reduce air pressure to 25 psi and straighten out bag. If bag runs folded, this will reduce the performance life of the air bag. Kinze Air Tubing Chart Kinze Part Number Size Color Function •...

  • Page 71: Pdp And Air Closing Wheel Schematics

    Row Unit Operation M0321-01 Model 5900 PDP AND AIR CLOSING WHEEL SCHEMATICS Air Closing Control Valves PCW Wing (Gray) PCW Center (White) Air Closing Control Valves PCW Wing (Gray) Air Closing Control Valves PCW Wing (Gray) PDP Control Valves PDP (Purple)

  • Page 72: Row Unit Mounted No Till Coulter

    Row Unit Operation Model 5900 M0321-01 ROW UNIT MOUNTED NO TILL COULTER Row unit mounted no till coulter blades may be used on row units. Coulter blade can be adjusted to one of four ½" incremental settings in the forked arm. Initial location is the top hole.

  • Page 73: Coulter Mounted Residue Wheels W/Treader

    Row Unit Operation M0321-01 Model 5900 COULTER MOUNTED RESIDUE WHEELS W/TREADER Coulter mounted residue wheels are designed for use on pull row units and push row units. Row unit extension brackets are required on the four center pull row units if the planter is equipped with coulter mounted residue wheels.

  • Page 74: Pneumatic Down Pressure (Pdp)

    NOTE: Air tank can be prefilled using the valve stem. DO NOT prefill above 120 psi. This is not applicable if Yetter is installed. Row Unit Air Spring Kinze Air Tubing Chart Kinze Part Number Size Color Function •...
  • Page 75 Row Unit Operation M0321-01 Model 5900 Electric Air Compressor Valve Stem Air Tank Electric Air Compressor Hydraulic Compressor: If equipped with a hydraulic compressor, tank pressure will be as high as 140 psi. An additional regulator is included to reduce pressure to air control valves for PDP as well as air adjust closing wheels (PCW) if equipped.

  • Page 76: Field Operation

    Air Tank ADJUST DOWN PRESSURE FROM CAB Use the monitor to adjust down pressure. Refer to your Blue Vantage manual for more information. Refer to M0288 - Kinze Blue Vantage Operator’s Manual for pressure adjustment with Blue Vantage. 3-10 10/23...

  • Page 77: True Depth

    Row Unit Operation M0321-01 Model 5900 TRUE DEPTH True Depth provides on demand row by row hydraulic row unit down force ranging from 150 lbs. up force to 650 lbs. down force at 2350 psi. True Depth 3-11 10/23...

  • Page 78: Seed Hoppers

    Row Unit Operation Model 5900 M0321-01 SEED HOPPERS Seed hoppers have a capacity option of 0.8 bushels (True Rate) or 0.9 bushels (True Speed). Use clean seed and make certain there are no foreign objects inside when filling seed hopper. Place hopper lids on hoppers after filling to prevent accumulation of dust or dirt in seed meter which can cause premature wear.

  • Page 79: True Rate Settings

    Row Unit Operation M0321-01 Model 5900 TRUE RATE SETTINGS Vacuum Seed Ejector Singulator Setting **Seed Disc Wheel Seed Size Zone Inches of Crop Disc Kit Part No. (Color) Cells Range Setting Water (kPa) Lubricant Corn Graphite* B1219 B1219 1 row...
  • Page 80 Row Unit Operation Model 5900 M0321-01 TRUE RATE SETTINGS Vacuum Seed Ejector Singulator Setting **Seed Disc Wheel Seed Size Zone Inches of Crop Disc Kit Part No. (Color) Cells Range Setting Water (kPa) Lubricant Graphite* 1 row Black turtle &...
  • Page 81 Row Unit Operation M0321-01 Model 5900 NOTE: See for more information. Always field check seed “Field Check Seed Population” on page 2-36 population to ensure planting rates are correct. NOTE: Singulator settings are marked from 0 - 3. NOTE: Mixing seed sizes and shapes affects meter performance. Use consistent seed size and shape.
  • Page 82 Row Unit Operation Model 5900 M0321-01 Ejector NOTE: Damaged seed or seed containing foreign material will cause plugging of seed disc orifices and require more frequent seed meter cleanout to prevent underplanting. Wheel-Type Ejectors Wheel-type ejectors expel seed remants from seed disc orifices. These ejectors are disc specific and colored coded to match disc.

  • Page 83: Wheat Disc Wiper Installation

    Row Unit Operation M0321-01 Model 5900 WHEAT DISC WIPER INSTALLATION 1. Disengage seed drive and remove seed hopper and meter. 2. Rotate seed disc hub clockwise to unlock and remove seed disc. Align Wheat 3. Remove singulator. Disc Wipers with Tabs 4.

  • Page 84: True Speed Meter Settings

    Row Unit Operation Model 5900 M0321-01 TRUE SPEED METER SETTINGS Crop Ejector - Seed Disc Part No. Wheel Seed Size Singulator Vacuum Setting Baffle - ‡Seed Disc Kit (color) Setting Range Population Installed Inches of Water Lubricant Corn, 32 Cell (Light *12 to 20 Graphite†...
  • Page 85 Row Unit Operation M0321-01 Model 5900 NOTE: See “Field Check Seed Population” on page --- for more information. Always field check seed population to ensure planting rates are correct. NOTE: Baffle settings are marked from 1 – 5. NOTE: Mixing seed sizes and shapes affects meter performance. Use consistent seed size and shape.

  • Page 86: True Speed Vacuum Settings Charts

    Row Unit Operation Model 5900 M0321-01 TRUE SPEED VACUUM SETTINGS CHARTS NOTE: Vacuum charts are a recommendation to help select the starting vacuum setting for a particular seed size and target planting speed. Due to variation in seed size, seed shape, and planting conditions, it is likely that additional adjustments in the vacuum setting may be necessary.
  • Page 87 Row Unit Operation M0321-01 Model 5900 Recommended Vac Chart for Soybeans (Single Row and Dual Row) 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 Seed Size (Sds/Lb) oybeans (Single Row and Dual Row)
  • Page 88 Row Unit Operation Model 5900 M0321-01 Recommended Vac Setting for Cotton Target Vac Recommended Vac Setting for Cotton Target Vac 4250 4500 4750 5000 5250 5500 5750 6000 6250 6500 Seed Size (Sds/lb) 4250 4500 4750 5000 5250 5500 5750 6000 6250 6500...
  • Page 89 Row Unit Operation M0321-01 Model 5900 Meter Speed (20" Row Spacing 32 Cell Disc- Corn) Ground Speed (mph) 24000 26000 28000 30000 32000 34000 36000 38000 40000 42000 44000 46000 48000 50000 Meter Speed (30" Row Spacing 32 Cell Disc- Corn)
  • Page 90 Row Unit Operation Model 5900 M0321-01 Meter Speed (20" Row Spacing 92 Cell Disc - Soybean) Target Ground Speed (mph) 80000 85000 90000 95000 100000 105000 110000 115000 120000 125000 130000 135000 140000 145000 150000 155000 160000 165000 170000 175000...
  • Page 91 Row Unit Operation M0321-01 Model 5900 Meter Speed (30" Row Spacing 92 Cell Disc - Soybean ) Target Ground Speed (mph) 80000 85000 90000 95000 100000 105000 110000 115000 120000 125000 130000 135000 140000 145000 150000 155000 160000 165000 170000...
  • Page 92 Row Unit Operation Model 5900 M0321-01 Meter Speed (15" Row Spacing 46 Cell Disc - Soybean, Cotton, Surgarbeet/Milo) Target Ground Speed (mph) 20000 25000 30000 35000 40000 45000 50000 55000 60000 65000 70000 75000 80000 85000 90000 95000 100000 105000...
  • Page 93 Row Unit Operation M0321-01 Model 5900 Meter Speed (20" Row Spacing 46 Cell Disc - Soybean, Cotton, Surgarbeet/Milo) Target Ground Speed (mph) 20000 25000 30000 35000 40000 45000 50000 55000 60000 65000 70000 75000 80000 85000 90000 95000 100000 105000...
  • Page 94 Row Unit Operation Model 5900 M0321-01 Meter Speed (30" Row Spacing 46 Cell Disc - Soybean, Cotton, Surgarbeet/Milo) Target Ground Speed (mph) 20000 25000 30000 35000 40000 45000 50000 55000 60000 65000 70000 75000 80000 85000 90000 95000 100000 105000...
  • Page 95 Row Unit Operation M0321-01 Model 5900 Meter Speed (30" Row Spacing 23 Cell Sunflower Disc) Ground Speed (mph) 16000 18000 20000 22000 24000 26000 28000 30000 32000 34000 36000 Optimal Zone Low or high meter speed, may require vacuum adjustment...

  • Page 96: True Speed Seed Meter Cover Removal

    Row Unit Operation Model 5900 M0321-01 TRUE SPEED SEED METER COVER REMOVAL 1. Push latch and rotate cover clockwise. 3-30 10/23...
  • Page 97 Row Unit Operation M0321-01 Model 5900 2. Select seed disc and ejector to match crop and population. Seed Meter Baffle Door Most Open Numbers Front Cover Release Button Least Open Baffle NOTE: Damaged seed or seed containing foreign material will cause plugging of seed disc orifices and require more frequent seed meter cleanout to prevent underplanting.

  • Page 98: Additives

    Row Unit Operation Model 5900 M0321-01 ADDITIVES Lubricant Application Rate Graphite Conventional Hoppers 1 Tbs./Hopper Fill Bulk Fill Hoppers 1 Pound Bottle/50 Unit Fill 80/20 Talc-Graphite Conventional Hoppers ½ C.** Bulk Fill Hoppers 4 Pounds/50 Unit Fill** **Must be evenly mixed during fill.

  • Page 99: Bayer Fluency Agent

    This product, as tested by Kinze, is compatible with Kinze’s bulk fill system and vacuum meters. Due to limited testing, wear life characteristics of meters and bulk fill systems that use Bayer Fluency Agent are not yet known. Please follow Bayer Fluency Agent instructions for rates and mixing directions.

  • Page 100: Granular Chemical

    Row Unit Operation Model 5900 M0321-01 GRANULAR CHEMICAL Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property. Read and follow all chemical and equipment manufacturers labels and instructions.

  • Page 101: Fertilizer

    Fertilizer M0307-01 Model 5900 LIQUID FERTILIZER ATTACHMENT Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property. Read and follow all chemical and equipment manufacturers labels and instructions. Overfilling tank can cause siphoning,...
  • Page 102 Fertilizer Model 5900 M0307-01 Fertilizer Systems Parts Overview NOTE: See parts manual for part numbers. COMPONENT DESCRIPTION Small pump, used on 30' and 40' toolbars. Oil Capacity: 36 oz Diaphragm Kit: Available, see parts manual. Check Valve Kit: Available, see parts manual.
  • Page 103 Fertilizer M0307-01 Model 5900 COMPONENT DESCRIPTION 30 mesh. Clean regularly. Suction Strainer 80 mesh. Clean regularly. Pressure Strainer 0n/off valve that opens flow of fertilizer to the pump. This is feature is used when entering planting task in Blue Vantage.
  • Page 104 Fertilizer Model 5900 M0307-01 COMPONENT DESCRIPTION Closes to send flow through small flowmeter at low flow rates. Small Ball Valve Located in suction strainer. Sends pump suction pressure to Blue Vantage controls. Suction Sensor Sends delivery manifold pressure to Blue Vantage controls.
  • Page 105 Fertilizer M0307-01 Model 5900 Hose Clamp Torque Values Chart Diameter Standard Heavy Duty 11/4" 42 in-lb 75 in-lb 11/2" 42 in-lb 75 in-lb 2" 42 in-lb Standard Heavy Duty Flange Clamp Torque Values Chart Diameter Torque 1" 50-60 in-lb 2"...
  • Page 106 Fertilizer Model 5900 M0307-01 Liquid Fertilizer System Schematics Fertilizer is controlled through the Blue Vantage display. Increase or decrease fertilizer rate, turn fertilizer function on or off, and load perscription. Refer to your Blue Vantage manual for more information. Rear Trailer or Hitch Auxiliary Tank...
  • Page 107 Fertilizer M0307-01 Model 5900 System Overview Diaphragm Pump - Model Number AR120 Oil Sight Glass Suction Barb Pressure Barb Input Shaft Oil Drain Plug Operating Pressure Range Drain Plug AR120 AR160 Max GPM 30.8 43.9 Max PSI Weight 34 lbs...
  • Page 108 Fertilizer Model 5900 M0307-01 Diaphragm pumps are reciprocating positive displacement pumps. Reciprocating movement of the diaphragms expands and compresses volumes. This mechanical work and change in volumes cause transfer of liquid. The main difference between a diaphragm pump and other types of reciprocating pumps, is the presence of a flexible separating component (the diaphragm) between mechanical parts and pumped liquid circuit.
  • Page 109 Fertilizer M0307-01 Model 5900 When pump is new, oil in tank is clear and yellowish in color. After a few operating hours, the oil in tank loses its transparency and becomes dark due to metal particles removed by rubbing of internal components during functioning.

  • Page 110: Pulsation Damper (Diaphragm Pump) - Model Number Ar160 Only

    Fertilizer Model 5900 M0307-01 PULSATION DAMPER (DIAPHRAGM PUMP) - MODEL NUMBER AR160 ONLY The hydropneumatic damper consists of two half circular bodies separated by an elastomer diaphragm which also provides a watertight seal outwards. One of the two damper halves is connected to the delivery circuit, the other is filled with pressurized air, or in some cases Nitrogen, by means of an inflation valve of the kind used on car tires.

  • Page 111: Fertilizer Tank

    Fertilizer M0307-01 Model 5900 FERTILIZER TANK Fertilizer Level Fertilizer Pressure Gauge (Not Shown) Fluid Switch 12 Row - Side View Fertilizer Pressure Gauge Fluid Switch 24 Row - Front View 24 Row - Rear View Fertilizer Pressure Gauge Pressure gauge is connected directly to the fertilizer pressure manifold. The analog pressure gauge is located on the front of liquid fertilizer tank.

  • Page 112: Maintenance Interval

    Fertilizer Model 5900 M0307-01 Servicing Pump Refer to the parts manual for all service kit part numbers. Use the chart below for maintenance intervals. MAINTENANCE INTERVAL ACTION Each time used. Check level and status of oil. Check suction filter and clean if necessary.
  • Page 113 Fertilizer M0307-01 Model 5900 Changing Pump Oil Remove top two hoses from pump (suction and pressure will unscrew from pump). Suction Remove hydraulic motor from pump flange. Unplug pump speed sensor. Pressure Remove pump from planter. Loosen cap on oil sight glass.

  • Page 114: Row Flow Meter

    Fertilizer Model 5900 M0307-01 ROW FLOW METER 0 Degrees End View When planter toolbar is on level ground, check to ensure all flow meter are also as horizontal as possible for best operation. If flow meter is not level while planter is on level ground, adjust by rotating manifold(s).

  • Page 115: Row Flow Meter Cleanout

    Fertilizer M0307-01 Model 5900 ROW FLOW METER CLEANOUT Fertilizer can salt out when certain conditions of time and temperature are met. This causes a buildup of fertilizer granules in and around areas of low flow. This will cause errors in the performance of the fertilizer flow manifold.

  • Page 116: Row Flow Meter Jet Orifice Removal

    Fertilizer Model 5900 M0307-01 ROW FLOW METER JET ORIFICE REMOVAL 1. Turn cover counterclockwise to unlock and remove cover from flow meter. Cover Flow Meter Manifold 2. Remove paddle wheel from cavity. Flow Meter Paddle Wheel Rotate the nozzle assembly counterclockwise 90° and pull nozzle off.
  • Page 117 Fertilizer M0307-01 Model 5900 Remove jet orifice: • Insert #1 Phillips screwdriver from the nozzle assembly side until the tip is in the jet orifice as shown. Then push the jet orifice out. Jet Orifice Reassemble flow meter • Reinstall row shutoff valve and tighten nut clockwise.

  • Page 118: Row Flow Meter Jet Orifice Installation

    Fertilizer Model 5900 M0307-01 ROW FLOW METER JET ORIFICE INSTALLATION 1. Remove row shutoff valve by spinning nut counterclockwise and pulling valve out. Row Shutoff Valve Cover 2. Turn cover counterclockwise to unlock and remove cover from flow meter 3. Place jet orifice on the end of #1 Phillips screwdriver,...
  • Page 119 Fertilizer M0307-01 Model 5900 Locked Position 7. Reinstall cover and turn clockwise until the lock symbol is directly above the white line. 8. Reinstall strainer. Strainer 9. Reinstall gasket, orifice, and nozzle assembly. NOTE: Orifices must be installed correctly. Install orifice with the blank side towards the flow meter manifold and the stamped side facing nozzle assembly (pointing downstream toward the direction of delivery).

  • Page 120: Flow Meter Strainer And Orifice Cleaning And/Or Replacement

    Fertilizer Model 5900 M0307-01 FLOW METER STRAINER AND ORIFICE CLEANING AND/OR REPLACEMENT Strainer Rotate the nozzle assembly counterclockwise 90° and pull nozzle off. Nozzle Assembly Strainer Flange Pull strainer out of flow meter and clean or replace it. Strainer Part...
  • Page 121 Fertilizer M0307-01 Model 5900 Orifice Rotate the nozzle assembly counterclockwise 90° and pull nozzle off. Nozzle Assembly Remove gasket with orifice currently installed. Remove orifice from gasket. Gasket Orifice NOTE: Orifices must be installed correctly. Install orifice with the blank side towards the flow meter manifold and the stamped side facing nozzle assembly (pointing downstream toward the direction of delivery).

  • Page 122: Orifice Configuration Rates

    Fertilizer Model 5900 M0307-01 ORIFICE CONFIGURATION RATES 4-22 10/23...
  • Page 123 Fertilizer M0307-01 Model 5900 4-23 10/23...

  • Page 124: Pump Clean Out And Storage

    Fertilizer Model 5900 M0307-01 PUMP CLEAN OUT AND STORAGE NOTE: Do not let fertilizer sit in pump and system for longer than a day. Fertilizer will crystalize and cause issues with small moving parts and nozzles in the fertilizer system.
  • Page 125 Fertilizer M0307-01 Model 5900 Turn the pump over by hand (or with the motor) for 15-20 seconds to remove any fluid in the manifolds and heads. With onboard hydraulic system running and with solenoid connector unplugged, turn the knob clockwise to run pump, turn counterclockwise to turn off.

  • Page 126: Notched Single Disc Openers

    Fertilizer Model 5900 M0307-01 NOTCHED SINGLE DISC OPENERS Position 2 Position 3 (operating) (operating) Opener mount Position 1 8" - 9" spring length (stowed) (20 - 22 cm) Disc blade Depth adjustment cam Knife Lift point Notched single disc opener adjustments Never place fertilizer closer than 2"...

  • Page 127: Gauge Wheel Depth Adjustment

    Fertilizer M0307-01 Model 5900 GAUGE WHEEL DEPTH ADJUSTMENT Gauge Wheel Arm Liquid Drop Tube Depth Adjustment Cam Positions Depth Adjustment Cam Position Depth Cam and Handle 2" (5 cm) 2.4" (6 cm) 2.8" (7.1 cm) 3.2" (8.1 cm) 3.6" (9.1 cm) 4"...

  • Page 128: Down Force Settings

    Fertilizer Model 5900 M0307-01 DOWN FORCE SETTINGS Down Force Settings 9" (23 cm) 8.5" (21 cm) 8" (20 cm) Position 1 (Stowed) Position 2 110 - 160 150 - 210 200 - 250 Position 2 - Operating (Softer Soil Conditions)

  • Page 129: Knife Adjustment

    Fertilizer M0307-01 Model 5900 KNIFE ADJUSTMENT Compressed spring may fly out of this CAUTION assembly if attempting to disassemble and cause injury. Do not take apart this assembly. Disc blades are sharp and can cut causing serious injury. Wear gloves when working on or turning disc blades by hand.

  • Page 130: In Furrow

    Fertilizer Model 5900 M0307-01 IN FURROW In Furrow is available for in-line installation to ensure equal distribution of product at low rates and siphon protection for field turns. 4-30 10/23...

  • Page 131: Auxiliary Plumbing For Liquid Fertilizer

    Fertilizer M0307-01 Model 5900 AUXILIARY PLUMBING FOR LIQUID FERTILIZER Rear Trailer Hitch Auxiliary Plumbing Front Hitch Auxiliary Plumbing Rear trailer hitch is used to tow a 3 or 4 wheel wagon behind planter. Hitch height during field operation and transport is 15".
  • Page 132 Fertilizer Model 5900 M0307-01 Auxiliary Valves Front Auxiliary Valve Located on the front hitch. This valve should be opened when hooked to a tractor tank for the planting season, it can remain open all season while hooked to tractor tank(s). Before disconnecting planter from tractor, close this valve and disconnect fluid supply from tractor tanks.

  • Page 133: Fertilizer Pump Troubleshooting

    Fertilizer M0307-01 Model 5900 FERTILIZER PUMP TROUBLESHOOTING PROBLEM CAUSE SOLUTION Pump does not prime. Air being sucked in from suction line. Check suction line connections and inspect it for damage. Control unit lever in “Pressure” mode. Set control unit on “By-pass” mode.

  • Page 134: Fertilizer System Troubleshooting

    Fertilizer Model 5900 M0307-01 FERTILIZER SYSTEM TROUBLESHOOTING PROBLEM CAUSE SOLUTION Fertilizer flow not detected. Plugged orifice. Clean debris from orifice. Row shutoff valve plugged. Clean debris from shutoff valve, replace if necessary. Flow meter plugged. Open cover and check for debris.

  • Page 135: Lubrication And Maintenance

    LUBRICATION Following pages show locations of all lubrication points. Proper lubrication of moving parts helps ensure efficient operation of your Kinze planter and prolongs the life of friction producing parts. LUBRICATION SYMBOLS Lubricate at frequency indicated Lubricate at frequency indicated with high quality SAE 10 weight oil or spray lubricant.

  • Page 136: Grease Fittings

    Lubrication and Maintenance Model 5900 M0321-01 GREASE FITTINGS Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety lockup devices before transporting equipment. Parts equipped with grease fittings should be lubricated at frequency indicated with an SAE multipurpose grease.
  • Page 137 Lubrication and Maintenance M0321-01 Model 5900 1. Wheel modules, 8 per machine 2. Fold pivot, 2 per machine 2 fittings per module 2 fittings per pivot 3. Fold cylinders, 2 per machine 4. Wing pivot, 2 per machine 2 fittings per cylinder (one each end) 2 fittings per pivot 6.
  • Page 138 Lubrication and Maintenance Model 5900 M0321-01 7. Lift Cylinder, 16 per machine 2 fitting per cylinder Planting position shown Transport position shown 8. Flip Axle, one each at four center wheels 4 fittings per axle 10/23...
  • Page 139 Lubrication and Maintenance M0321-01 Model 5900 9. 2-point Hitch, front side 10. 2-point Hitch, back side 1 fitting 2 fittings 12. Trailer Hitch 11. Drawbar Hitch 1 fitting 1 fitting 13. Pull Row Unit Parallel Linkages 8 Per Row 10/23...
  • Page 140 Lubrication and Maintenance Model 5900 M0321-01 14. Row Markers (12 & 16 Row) 14. Row Markers (24 Row) 10/23...

  • Page 141: Notched Single Disc Opener

    Lubrication and Maintenance M0321-01 Model 5900 NOTCHED SINGLE DISC OPENER Add grease here until it comes out location shown in photo at right. Grease to purge - 1 fitting Grease to purge - 2 fittings 10/23...

  • Page 142: Pto Shaft Coupling

    Lubrication and Maintenance Model 5900 M0321-01 PTO SHAFT COUPLING Clean and grease PTO shaft coupling each time pump is installed. Apply coating of high-speed industrial coupling grease, such as Chevron® Coupling Grease meeting AGMA CG-1 and CG-2 Standards to extend shaft spline life.

  • Page 143: Mounting Bolts And Hardware

    All hardware used on the Kinze planter is Grade 5 (high strength) unless otherwise noted. Grade 5 cap screws are marked with three radial lines on the head. Hardware must be replaced with equal size, strength, and thread type.
  • Page 144 Lubrication and Maintenance Model 5900 M0321-01 SPECIAL TORQUE VALUES AND INSTRUCTIONS Row unit parallel linkage bushing hardware 190 ft-lb (258 N-m) 5/8" No till coulter spindle hardware 120 ft-lb (162 N-m) 125 ft-lb (169 N-m) Row Unit Disc Opener Blade Bolt** **Left hand side is left hand thread.

  • Page 145: Tire Pressure

    Lubrication and Maintenance M0321-01 Model 5900 TIRE PRESSURE Explosive separation of rim and tire WARNING parts can cause death or serious injury. Overinflation, rim and tire servicing, improper use of rims and tires, or worn or improperly maintained tires could result in a tire explosion.

  • Page 146: Inflation Specifications

    Lubrication and Maintenance Model 5900 M0321-01 INFLATION SPECIFICATIONS Row marker Wing Wing Transport Tire locations (16 Row Shown) • Wing: - 12 Row and 16 Row: 7.5" x 20" - 40 psi (275.7 kPa) - 24 Row: VF 295-75R22.5 - 65 psi (448 kPa) •...

  • Page 147: True Rate Meter Maintenance

    Lubrication and Maintenance M0321-01 Model 5900 TRUE RATE METER MAINTENANCE Seed Meter with Back Singulator Cover Removed Vacuum Front Cover Before each planting season inspect seed discs and singulator and clean or replace as needed. Use clean, high quality seed for maximum meter accuracy. Damaged or cracked seed, hulls, and foreign material may become lodged in seed disc orifices and greatly reduce meter accuracy.

  • Page 148: Vacuum Manifold Maintenance

    Lubrication and Maintenance Model 5900 M0321-01 VACUUM MANIFOLD MAINTENANCE Dust accumulates in manifolds and hoses during normal operation. Clean manifolds annually. Abnormally dusty planting conditions may require more frequent cleaning. 1. Remove vacuum hose from each seed meter. 2. Operate vacuum fan at full hydraulic flow fromtractor for two minutes to clear manifolds, hoses, and fittings of dust and debris.

  • Page 149: True Speed Seed Meter Maintenance

    Lubrication and Maintenance M0321-01 Model 5900 TRUE SPEED SEED METER MAINTENANCE Hose Elbow Ejector Front Cover Release Button Seed Meter With Back Cover Removed Before each planting season inspect seed discs and Singulator and clean or replace as needed. Use clean, high quality seed for maximum meter accuracy. Damaged or cracked seed, hulls, and foreign material may become lodged in seed disc orifices and greatly reduce meter accuracy.

  • Page 150: True Speed Seed Meter Cleanout

    Lubrication and Maintenance Model 5900 M0321-01 TRUE SPEED SEED METER CLEANOUT NOTE: Use of damaged seed or seed containing foreign material will cause plugging of seed cell orifices and require more frequent seed meter cleanout to prevent underplanting. Thorough seed meter cleanout is important to maintain genetic purity.

  • Page 151: True Speed Delivery Tube Maintenance

    Lubrication and Maintenance M0321-01 Model 5900 TRUE SPEED DELIVERY TUBE MAINTENANCE Lower Housing Cover Release Tab Upper Housing Cover Seed Delivery Tube Delivery Tube Disassembly 1. Unplug electrical connections and remove delivery tube from row unit. 2. Unscrew and remove seed sensor from delivery tube.
  • Page 152 Lubrication and Maintenance Model 5900 M0321-01 Belt Tensioning Procedure: When installing or changing parts, tensioning belt will be necessary. 1. Loosen belt tension screws. 2. Compress and loosen upper and lower halves of delivery tube to verify the two parts moves freely.
  • Page 153 Lubrication and Maintenance M0321-01 Model 5900 NOTE: Inspect delivery belt after first season of use and re-tension as needed. Seed Belt Replacement 1. Lift release tab and slide lower housing cover downward. Lift and remove. 2. Unscrew the seed sensor bolt with triangular head and remove seed sensor.

  • Page 154: True Speed Maintenance Chart

    Lubrication and Maintenance Model 5900 M0321-01 TRUE SPEED MAINTENANCE CHART COMPONENT INSPECT REPLACE WEAR CHARACTERISTICS Singulator Annually Every 500 1. Reduced volume of wear indicator. row acres or 2. Reduced depth in wear indicator. as needed 3. Reduced brush pack stiffness.
  • Page 155 Lubrication and Maintenance M0321-01 Model 5900 COMPONENT INSPECT REPLACE WEAR CHARACTERISTICS 1. Reduced comb tip length. Every 500 Good Comb Annually row acres or as needed 1. Reduced volume on both sides of block. Replace when ribs are less than .025 tall.

  • Page 156: Gauge Wheel Adjustment

    Lubrication and Maintenance Model 5900 M0321-01 GAUGE WHEEL ADJUSTMENT Gauge Wheel Arm Adjustment Nut Lock Pin Clevis Pin Adjust gauge wheel adjustment nut to lightly contact opener disc blade in this area for 4" to 6". Check adjustment in operating Align the closest adjustment nut slot and hole in spindle, position.

  • Page 157: Gauge Wheel Arm Pivot Spindle Replacement

    Lubrication and Maintenance M0321-01 Model 5900 GAUGE WHEEL ARM PIVOT SPINDLE REPLACEMENT NOTE: Spindle replacement should take place if threads are damaged and/or worn. Remove lock pin and clevis pin from gauge wheel arm adjustment nut, that locks pivot spindle in place. Rotate nut counter-clockwise to unscrew from spindle.

  • Page 158: Gauge Wheel Arm Bushing/Seal

    Lubrication and Maintenance Model 5900 M0321-01 GAUGE WHEEL ARM BUSHING/SEAL NOTE: Replace when bushing/seal is worn or damaged. Bushing Seal Spacer Gauge Wheel Arm Seal Bushing Gauge Wheel Arm Adjustment Nut Internal Retaining Ring 5-24 10/23...

  • Page 159: 15" Seed Opener Disc Blade/Bearing Assembly

    Lubrication and Maintenance M0321-01 Model 5900 15" SEED OPENER DISC BLADE/BEARING ASSEMBLY Excessive blade contact may result in NOTICE premature disc opener bearing/hub failures and excessive wear on seed tube guard/ inner scraper. When properly adjusted, if one blade is held in fixed position, opposite blade should rotate with less than 5 pounds force (22 newtons) at outer edge of blade.

  • Page 160: Seed Tube Guard/Inner Scraper

    Lubrication and Maintenance Model 5900 M0321-01 15" SEED OPENER DISC BLADE/BEARING ASSEMBLY (CONTINUED) REPLACE BEARING ONLY 1. Remove gauge wheel, scraper, bearing cap, cap screw, washer and disc blade/bearing assembly. 2. Remove ¼" rivets from bearing housing to expose bearing.

  • Page 161: Row Unit Mounted No Till Coulter

    Lubrication and Maintenance M0321-01 Model 5900 ROW UNIT MOUNTED NO TILL COULTER Check nuts and hardware periodically for proper torque. NOTE: Torque ⅝" spindle hardware to 120 ft-lb (162 N-m). Be sure coulter is positioned square with row unit and aligned in front of row unit disc opener.

  • Page 162: Yetter 2940 Air Adjust Residue Manager Maintenance

    Lubrication and Maintenance Model 5900 M0321-01 YETTER 2940 AIR ADJUST RESIDUE MANAGER MAINTENANCE Serious injury may occur from moving WARNING parts such as belts, pulleys, flywheels, or fans if they come in contact with you or your clothing. Do not operate air compressor without protective belt guards installed.
  • Page 163 Lubrication and Maintenance M0321-01 Model 5900 Compressor oil change Compressor needs oil changed after initial 50 hour break in, then oil should be changed every 1000 hours. 17 ounces (1/2 liter) of oil is required to fill compressor. TEMPERATURE Fahrenheit 0°-32°F...
  • Page 164 Lubrication and Maintenance Model 5900 M0321-01 Replacing Air Filter Air Cleaner Air filter needs to be replaced annually. Wing Nut 1. Remove wing nut on the air filter housing. 2. Remove air filter cover and air filter. 3. Reinstall new air filter. See parts manual for filter part number.
  • Page 165 Pneumatic Tubing Do not distort or crush tubing when NOTICE cutting. Cut tubing square using tube cutters (Kinze part number GA13169). An angle cut can cause air leaks affecting performance. Air connections are made using push to connect adapters. If an airline pops out of an adapter, push it all the way back in.

  • Page 166: Tractor Mounted Pump Drive And Oil Cooler

    Lubrication and Maintenance Model 5900 M0321-01 TRACTOR MOUNTED PUMP DRIVE AND OIL COOLER Clean and grease PTO shaft coupling with NOTICE high-pressure industrial coupling grease (Chevron coupling grease or equivalent) ® meeting AGMA CG-1 and CG-2 Standards each time driveshaft is installed or premature wear and equipment failure can occur.

  • Page 167: Check Valve

    Lubrication and Maintenance M0321-01 Model 5900 CHECK VALVE A check valve is located in each vacuum fan motor block assembly and operates as a return line check to prevent vacuum fan motor reverse operation. Remove and inspect valve If it does not operate properly. Check for foreign material and if O-ring is leaking internally.

  • Page 168: Pressure Compensator

    True Depth hydraulic down force system. These valves are factory set and should require no additional adjustment. Each valve acts independently and controls the fluid pressure on the cap end of the down force cylinder. Consult your Kinze Dealer for service. PNEUMATIC DOWN PRESSURE AIR COMPRESSOR TANK Moisture should be drained daily from the tank.

  • Page 169: Row Marker Break Away

    Lubrication and Maintenance M0321-01 Model 5900 ROW MARKER BREAK AWAY When replacing marker shear bolts, the jam bolt must be re-adjusted. The jam bolt acts as a stop and puts a slight pre-load on the shear bolt. Remove broken shear bolt.

  • Page 170: Row Marker Bearing Lubrication Or Replacement

    Lubrication and Maintenance Model 5900 M0321-01 ROW MARKER BEARING LUBRICATION OR REPLACEMENT Grease seal Outer cup Bearing Flat washer Spindle Slotted hex nut Dust cap Inner cup Marker blade Hub shield Bearing Cotter pin Retainer 1. Remove retainer and marker blade.

  • Page 171: Transport And Lift/Ground Drive Wheel Bearing Repack Or Replacement

    Lubrication and Maintenance M0321-01 Model 5900 Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety lockup devices before transporting equipment. TRANSPORT AND LIFT/GROUND DRIVE WHEEL BEARING REPACK OR REPLACEMENT...

  • Page 172: Battery Care

    Lubrication and Maintenance Model 5900 M0321-01 BATTERY CARE Read and follow all manufacturers labels NOTICE and instructions. Battery Specifications Chemistry: Wet lead acid (Low maintenance) Voltage: 12.00 Milliamp Hours: 0 mAH Capacity: 17.00 AH Weight: 15.30 lb Length: 7.72" Width: 5.19"...

  • Page 173: Preparation For Storage

    Lubrication and Maintenance M0321-01 Model 5900 PREPARATION FOR STORAGE • Store planter in a dry sheltered area if possible. • Remove all trash from row units and frame. Remove dirt that can draw and hold moisture. • Lubricate planter and row units at all lubrication points.

  • Page 174: 12V Asabe Light Harness - 12 Row And 16 Row

    Lubrication and Maintenance Model 5900 M0321-01 12V ASABE LIGHT HARNESS - 12 ROW AND 16 ROW Pin A 2 PL LH TAIL RH TAIL Pin A LH FLASH RH FLASH 2 PL Pin A J1- WORKLIGHT PART NUMBER REV / DATE...

  • Page 175: Center Work Light Cable - 12 Row, 16 Row, And 24 Row (P/N: A19409)

    Lubrication and Maintenance M0321-01 Model 5900 CENTER WORK LIGHT CABLE - 12 ROW, 16 ROW, AND 24 ROW (P/N: A19409) (W1) Master Module (MM) (W2) Signal Wire Gauge Color Power Red/White Work Light Gray WORK LIGHT HARNESS (P/N: A22547) PIN 87...

  • Page 176: Wing Worklight Harness - 12 Row, 16 Row, And 24 Row

    Lubrication and Maintenance Model 5900 M0321-01 WING WORKLIGHT HARNESS - 12 ROW, 16 ROW, AND 24 ROW (P2) (P3) WORKLIGHT WORKLIGHT (SP2) LEFT WING RIGHT WING (SP1) PART NUMBER REV / DATE VENDOR ID (P1) P/N: A25217 (12 Row and 24 Row); P/N: A25984 (16 Row)

  • Page 177: Tractor Console Harness - 12 Row, 16 Row, And 24 Row (P/N: A25031)

    Lubrication and Maintenance M0321-01 Model 5900 TRACTOR CONSOLE HARNESS - 12 ROW, 16 ROW, AND 24 ROW (P/N: A25031) (P3) KPAC PWR (XF1) (P5) (P2) (SP1) SW PWR TRACTOR RELAY (SP2) POWER Signal Wire Gauge Color FROM 12V Switched (PWR)

  • Page 178: Tractor Power 10' Extension Harness - 12 Row, 16 Row, And 24 Row

    Lubrication and Maintenance Model 5900 M0321-01 TRACTOR POWER 10' EXTENSION HARNESS - 12 ROW, 16 ROW, AND 24 ROW PIN 4 PIN 6 PIN 2 P1 - POWER EXTENSION PART NUMBER POWER REV / DATE EXTENSION PIN 1 VENDOR ID...

  • Page 179: Power Harness, Toolbar - 12 Row And 16 Row (P/N: 10815102); 24 Row (P/N: 10815101)

    Lubrication and Maintenance M0321-01 Model 5900 12V POWER HARNESS, TOOLBAR - 12 ROW AND 16 ROW (P/N: 10815102); 24 ROW (P/N: 10815101) 5-45 10/23...

  • Page 180: Power Harness (Rows 1-6), 12 Row (P/N: A25934)

    Lubrication and Maintenance Model 5900 M0321-01 24V POWER HARNESS (ROWS 1-6), 12 ROW (P/N: A25934) Wire Function Color From Gauge Power J1-6 Ground Black J1-4 Power Power Ground Black Ground Black RU 6 (Power) P6-1 RU 6 (Power) P6-3 RU 5 (Power)

  • Page 181: Power Harness (Rows 7-12), 12 Row (P/N: A25935)

    Lubrication and Maintenance M0321-01 Model 5900 24V POWER HARNESS (ROWS 7-12), 12 ROW (P/N: A25935) Wire Function Color From Gauge Power J1-6 Ground Black J1-4 Power RU 7 (Power) RU 8 (Power) RU 7 (Power) RU8 (Power) P6-1 Ground Black...

  • Page 182: Power Harness (Rows 1-8), 16 Row (P/N: A25872)

    Lubrication and Maintenance Model 5900 M0321-01 24V POWER HARNESS (ROWS 1-8), 16 ROW (P/N: A25872) Wire Function Color From Gauge P9-6 Black P9-4 Black Black RU 8 (Power) P8-1 RU 8 (Power) P8-3 RU 7 (Power) P7-1 RU 7 (Power)

  • Page 183: Power Harness (Rows 9-16), 16 Row (P/N: A25873)

    Lubrication and Maintenance M0321-01 Model 5900 24V POWER HARNESS (ROWS 9-16), 16 ROW (P/N: A25873) Wire Function Color From Gauge P9-6 RU 9 (Power) P8-1 RU 9 (Power) P8-3 RU 10 (Power) P7-1 RU 10 (Power) P7-3 Black P9-4 Black...

  • Page 184: Power Harness (Rows 1-12), 24 Row (P/N: A25196)

    Lubrication and Maintenance Model 5900 M0321-01 24V POWER HARNESS (ROWS 1-12), 24 ROW (P/N: A25196) 5-50 10/23...
  • Page 185 Lubrication and Maintenance M0321-01 Model 5900 Wire Wire Function Color From Function Color From Gauge Gauge Power P13-6 Ground Black SP12 SP14 Power Ground Black SP12 P7-2 Power Ground Black SP12 P7-4 Ground Black P13-4 Power SP13 SP15 Ground Black...

  • Page 186: Power Harness (Rows 13-24), 24 Row (P/N: A25197)

    Lubrication and Maintenance Model 5900 M0321-01 24V POWER HARNESS (ROWS 13-24), 24 ROW (P/N: A25197) 5-52 10/23...
  • Page 187 Lubrication and Maintenance M0321-01 Model 5900 Function Wire Color From Function Wire Color From Gauge Gauge Power P13-6 Power SP11 SP13 Power Power SP11 P6-1 Power Power SP11 P6-3 Ground Black P13-4 Ground Black SP12 Sp14 Ground Black Ground Black...

  • Page 188: Can Stub Harness (P/N: 10286101/10286102)

    Lubrication and Maintenance Model 5900 M0321-01 CAN STUB HARNESS (P/N: 10286101/10286102) PIN 1 PIN 2 PIN 6 PIN 3 BF-J6 SCALE MODULE PART NUMBER SCALE PWR REV / DATE VENDOR ID PIN 1 PIN 4 5-54 10/23...

  • Page 189: Fold Harness, Left Wing - 12 Row, 16 Row, And 24 Row (P/N: 10015101)

    Lubrication and Maintenance M0321-01 Model 5900 FOLD HARNESS, LEFT WING - 12 ROW, 16 ROW, AND 24 ROW (P/N: 10015101) PIN 1 MARKER (C1 MARKER (C2) FOLD (B1) FOLD (E5) L WHEEL (C2) AXLE (C1) L LOCK (C2) PART NUMBER...

  • Page 190: Fold Harness, Right Wing - 12 Row, 16 Row, And 24 Row (P/N: 10015201)

    Lubrication and Maintenance Model 5900 M0321-01 FOLD HARNESS, RIGHT WING - 12 ROW, 16 ROW, AND 24 ROW (P/N: 10015201) PIN 1 R LOCK (C2) AXLE (C1) R WING (C3) PART NUMBER REV / DATE VENDOR ID PIN 1 PIN 3...

  • Page 191: Ipn Harness, Left Wing - 12 Row And 16 Row (P/N: 10806302); 24 Row (P/N: 10806301)

    Lubrication and Maintenance M0321-01 Model 5900 IPN HARNESS, LEFT WING - 12 ROW AND 16 ROW (P/N: 10806302); 24 ROW (P/N: 10806301) TRUE DEPTH PTO SENSOR PART NUMBER REV / DATE LH VAC LW - J4 SENSOR VENDOR I.D. WIRE HOOKUP CHART...

  • Page 192: Ipn Harness, Left Wing - 24 Row (P/N: 10200101)

    Lubrication and Maintenance Model 5900 M0321-01 IPN HARNESS, LEFT WING - 24 ROW (P/N: 10200101) 5-58 10/23...

  • Page 193: Ipn Harness, Right Wing - 12 Row And 16 Row (P/N: 10806102); 24 Row (P/N: 10806101)

    Lubrication and Maintenance M0321-01 Model 5900 IPN HARNESS, RIGHT WING - 12 ROW AND 16 ROW (P/N: 10806102); 24 ROW (P/N: 10806101) RW - J7 RW - J5 RW - J6 CLOSING WHEEL PART NUMBER REV / DATE RW - J4 FOLD VENDOR I.D.

  • Page 194: Bulk Fill Harness - 12 Row, 16 Row, And 24 Row (P/N: A25200)

    Lubrication and Maintenance Model 5900 M0321-01 BULK FILL HARNESS - 12 ROW, 16 ROW, AND 24 ROW (P/N: A25200) FERTILIZER CONTROL VALVE PART NUMBER REV / DATE BF-J5 VENDOR ID BULK FILL BF-J4 PRESSURE SENSOR BULK FILL SOLENOID Signal Wire Gauge...

  • Page 195: Taillight Extension Harness - 12 Row, 16 Row, And 24 Row (P/N: A25207)

    Lubrication and Maintenance M0321-01 Model 5900 TAILLIGHT EXTENSION HARNESS - 12 ROW, 16 ROW, AND 24 ROW (P/N: A25207) PART NUMBER *U.S.* REV / DATE TAIL LIGHTS VENDOR ID (P1) (P2) Signal Wire Gauge Color From Ground P1-1 P2-1 LH Turn...

  • Page 196: Pdp Control/Sensor Harness (P/N: 10820101/10820102)

    Lubrication and Maintenance Model 5900 M0321-01 PDP CONTROL/SENSOR HARNESS (P/N: 10820101/10820102) PDP VALVES PART NUMBER PDP SENSOR REV / DATE VENDOR I.D. 5-62 10/23...

  • Page 197: Ethernet Cables

    Lubrication and Maintenance M0321-01 Model 5900 ETHERNET CABLES WIRE COLOR WHITE/ORANGE WHITE/GREEN WIRE COLOR ORANGE WHITE/ORANGE GREEN WHITE/GREEN ORANGE GREEN SHIELDING COUPLING SCREW M12 X 1.0 STRAIGHT M12 X 1.0 STRAIGHT SHIELDING COUPLING SCREW M12 X 1.0 STRAIGHT M12 X 1.0 STRAIGHT...

  • Page 198: Integrated True Depth Harness (P/N: 10803401)

    Lubrication and Maintenance Model 5900 M0321-01 INTEGRATED TRUE DEPTH HARNESS (P/N: 10803401) DUMP PRESSURE SHUT PFF (A2) SENSOR (A3) WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION P4:1 P2:C HDP SENSOR (SIGNAL) P4:2 P2:A HDP SENSOR 12V (PWR)

  • Page 199: Pto Reverser Harness (P/N: 10263101)

    Lubrication and Maintenance M0321-01 Model 5900 PTO REVERSER HARNESS (P/N: 10263101) PIN 12 PIN 6 PIN 1 COIL A 2 PL PIN 1 REVERSER PIN 1 PTO REVERSER PART NUMBER COIL B REV / DATE VENDOR ID 5-65 10/23...

  • Page 200: Pto Harness (P/N: 10200301)

    Lubrication and Maintenance Model 5900 M0321-01 PTO HARNESS (P/N: 10200301) PIN 1 PIN 3 PIN 2 PIN 1 4 PL 2 PL PIN 1 GREEN FLUID LEVEL SENSOR (E8) BV / HOT OIL SOLENOID ALARM SWITCH POWER TAKEOFF PART NUMBER...

  • Page 201: Insecticide Harness (P/N: A22522)

    Lubrication and Maintenance M0321-01 Model 5900 INSECTICIDE HARNESS (P/N: A22522) INSECT SENSOR A22522 REV X DATE VENDOR ID INSECT METER WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION P1:1 P2:1 INSECTICIDE METER MOTOR 1+ P1:2...

  • Page 202: Ipn Fold Harness - 24 Row (P/N: 10266001)

    Lubrication and Maintenance Model 5900 M0321-01 IPN FOLD HARNESS - 24 ROW (P/N: 10266001) 5-68 10/23...
  • Page 203 Lubrication and Maintenance M0321-01 Model 5900 5-69 10/23...

  • Page 204: Ipn Fold Harness - 12 Row And 16 Row (P/N: 10266301)

    Lubrication and Maintenance Model 5900 M0321-01 IPN FOLD HARNESS - 12 ROW AND 16 ROW (P/N: 10266301) 5-70 10/23...
  • Page 205 Lubrication and Maintenance M0321-01 Model 5900 WIRE HOOKUP CHART REF DES FROM USED WITH ITEM USED WITH ITEM GAUGE COLOR FUNCTION J1-1 J6-1 18 (TP) RS232 RX IPP UPDATE/DEBUG J1-2 J6-2 18 (TP) RS232 TX IPP UPDATE/DEBUG J1-3 P13-1 WING FOLD SOLENOIDS +...

  • Page 206: Pto Draft Link Harness - 24 Row (P/N: 10803501); 16 Row (P/N 10803502); 12 Row (P/N 10803503)

    Lubrication and Maintenance Model 5900 M0321-01 PTO DRAFT LINK HARNESS - 24 ROW (P/N: 10803501); 16 ROW (P/N 10803502); 12 ROW (P/N 10803503) PART NUMBER REV / DATE PRESSURE VENDOR I.D. WIRE HOOKUP CHART REF DES FROM USED W/ USED W/...
  • Page 207 Lubrication and Maintenance M0321-01 Model 5900 BATTERY PACK EXTENSION HARNESS - 12 ROW AND 24 ROW (P/N: 10176305); 16 ROW (P/N: 10176304) PIN 1 PIN 1 PIN 4 PIN 4 PIN 7 PIN 7 RIGHT RIGHT WING WING RU PWR...

  • Page 208: Camera Power Harness (P/N: 10269201)

    Lubrication and Maintenance Model 5900 M0321-01 CAMERA POWER HARNESS (P/N: 10269201) INJECTION INJECTION CAMERA PWR PART NUMBER REV / DATE INJECTION VENDOR I.D. PIN 1 INJECTION PIN 2 PIN 3 PIN 1 SWITCH PIN 4 WIRE HOOKUP CHART REF DES FROM USED W/ ITEM TO USED W/ ITEM GAUGE COLOR...

  • Page 209: Air Pump Harness (P/N: 10188101)

    Lubrication and Maintenance M0321-01 Model 5900 12V AIR PUMP HARNESS (P/N: 10188101) WIRE HOOK UP CHART REF DES FROM USED WITH ITEM USED WITH ITEM GAUGE COLOR DESCRIPTION J1-3 PDP PWR XF1-1 PDP PWR XF1-2 PDP PWR P1-1 PDP PWR...

  • Page 210: Pto System 12V Power Harness (P/N: 10292601)

    Lubrication and Maintenance Model 5900 M0321-01 M0321-01 PTO SYSTEM 12V POWER HARNESS (P/N: 10292601) FUSE (5A) PART NUMBER REV / DATE PTO CTRL/ PTO PWR SENSE IN VENDOR ID USED USED REF DES FROM WITH WITH GAUGE COLOR DESCRIPTION ITEM...

  • Page 211: Bulk Fill Scale Can Cable Phd28 Harness (P/N: 10242801)

    Lubrication and Maintenance M0321-01 Model 5900 BULK FILL SCALE CAN CABLE PHD28 HARNESS (P/N: 10242801) PIN 20 PIN 10 PIN 2 PIN 1 SCALE MODULE PART NUMBER SCALE PWR REV / DATE VENDOR ID PIN 4 PIN 1 SCALE COM...

  • Page 212: Bus Box Harness (P/N: 10291901)

    Lubrication and Maintenance Model 5900 M0321-01 12V BUS BOX HARNESS (P/N: 10291901) PIN 1 OUT 1 OUT 3 PIN 6 BUS IN PART NUMBER REV / DATE VENDOR ID PIN 1 PIN 2 OUT 2 5-78 10/23...

  • Page 213: True Rate Pull Row Unit W/Ipp Harness (P/N: 10915901)

    Lubrication and Maintenance M0321-01 Model 5900 TRUE RATE PULL ROW UNIT W/IPP HARNESS (P/N: 10915901) LABEL TABLE CONNECTOR CONNECTOR CONNECTOR CONNECTOR LABEL LABEL RU IPN J7 SEED METER RU IPN J6 SEED SENSOR RU IPN J3 FERTILIZER TRUE DEPTH RU IPN J4...

  • Page 214: True Speed Pull Row Unit W/Ipp Harness (P/N: 10916001)

    Lubrication and Maintenance Model 5900 M0321-01 TRUE SPEED PULL ROW UNIT W/IPP HARNESS (P/N: 10916001) SP10 SP11 LABEL TABLE CONNECTOR CONNECTOR CONNECTOR CONNECTOR LABEL LABEL RU IPN J7 SEED SENSOR RU IPN J6 FERTILIZER TRUE DEPTH RU IPN J3 SOLENOID...

  • Page 215: Yetter Row Cleaner Compressor Harness (P/N:10558202)

    Lubrication and Maintenance M0321-01 Model 5900 YETTER ROW CLEANER COMPRESSOR HARNESS (P/N:10558202) COMPRESSOR PRESSURE SWITCH PART NUMBER REV / DATE VENDOR I.D. COMPRESSOR SOLENOID WIRE HOOK UP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION P1-1 J1-1...

  • Page 216: Yetter Row Cleaner Pwr/Can Harness (P/N:10631701)

    Lubrication and Maintenance Model 5900 M0321-01 YETTER ROW CLEANER PWR/CAN HARNESS (P/N:10631701) 5-82 10/23...

  • Page 217: Fertilizer Module Harness (P/N:10741001)

    Lubrication and Maintenance M0321-01 Model 5900 FERTILIZER MODULE HARNESS (P/N:10741001) LABEL TABLE CONNECTOR CONNECTOR LABEL CONNECTOR CONNECTOR LABEL FLOW METER LOW RAIL PRESS SENSOR LOW LEVEL TANK PUMP SUCTION SENSOR RPM SENSOR PULL UP RPM SENSOR INLET SWITCH FLOW METER HIGH...

  • Page 218: Fertilizer Ipn Harness (P/N:10765601)

    Lubrication and Maintenance Model 5900 M0321-01 FERTILIZER IPN HARNESS (P/N:10765601) WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION J1:17 P3:2 FERT LOW LEVEL SENSOR (GND) SP1:OUT P2:11 FERT LOW LEVEL SENSOR (PWR) SP1:OUT P3:5 FERT FLOW METER (PWR)

  • Page 219: Air Closing Wheel Harness (P/N:10806501/10806502)

    Lubrication and Maintenance M0321-01 Model 5900 AIR CLOSING WHEEL HARNESS (P/N:10806501/10806502) AIR CLOSING WHEEL SENSOR PART NUMBER REV / DATE VENDOR I.D. AIR CLOSING WHEEL SOLENOID WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION J1:1...

  • Page 220: True Rate Pull Row Unit Harness (P/N:10915701)

    Lubrication and Maintenance Model 5900 M0321-01 TRUE RATE PULL ROW UNIT HARNESS (P/N:10915701) WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION P1:3 P7:5 FERT ROW CUT OFF VALVE (PWR) P1:4 P7:6 FERT ROW CUTOFF VALVE (GND)

  • Page 221: True Speed Pull Row Unit Harness (P/N:10915801)

    Lubrication and Maintenance M0321-01 Model 5900 TRUE SPEED PULL ROW UNIT HARNESS (P/N:10915801) LABEL TABLE CONNECTOR CONNECTOR CONNECTOR CONNECTOR LABEL LABEL RU IPN J7 SEED METER RU IPN J6 SEED SENSOR RU IPN J3 FERTILIZER TRUE DEPTH RU IPN J4...

  • Page 222: Hydraulic Hose Life

    Lubrication and Maintenance Model 5900 M0321-01 HYDRAULIC HOSE LIFE Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries. Fluid injected under skin must be IMMEDIATELY removed by a surgeon familiar with this type of injury.

  • Page 223: Troubleshooting

    Troubleshooting M0321-01 Model 5900 BULK FILL PROBLEM POSSIBLE CAUSE SOLUTION Seed does not travel through System pressure set too low. Increase system pressure. delivery tubes. Seed stops flowing to row unit Seed surging. Shut down air seed delivery system and during planting.

  • Page 224: Air Closing Wheels

    Troubleshooting Model 5900 M0321-01 AIR CLOSING WHEELS PROBLEM POSSIBLE CAUSE SOLUTION Closing wheel(s) leave severe Too much closing wheel down pressure. Adjust closing wheel pressure. imprint in soil. Closing wheel(s) not firming Not enough closing wheel down Adjust closing wheel pressure. Severe soil around seed.

  • Page 225: Row Marker Operation

    Troubleshooting M0321-01 Model 5900 ROW MARKER OPERATION PROBLEM POSSIBLE CAUSE SOLUTION Right marker lowering slower Solenoid valve cartridge in port C2 not Switch with cartridge in port C1. If problem than left marker. opening completely. repeats, replace cartridge. Hose pinched or collapsed.

  • Page 226: True Rate Seed Meter

    Troubleshooting Model 5900 M0321-01 TRUE RATE SEED METER PROBLEM POSSIBLE CAUSE SOLUTION Low seed count. Meter RPM too high. Reduce planting rate or planting speed. Singulator blade setting too aggressive. Adjust singulator blade. Vacuum level too low. Increase fan speed.
  • Page 227 Troubleshooting M0321-01 Model 5900 TRUE RATE SEED METER - Continued PROBLEM POSSIBLE CAUSE SOLUTION Not planting seed. Seed baffle (if applicable) not allowing seed Mix talc thoroughly to coat all seeds. Remove (Continued) flow due to bridging of seed. seed baffle. Row Unit Operation section.

  • Page 228: Solenoid Valve

    Desired fan speed cannot be Low oil level. Check oil level and add as required. achieved. Plugged filter. Check and change as required. BLUE DRIVE Refer to M0288 - Kinze Blue Vantage Operator’s manual for Blue Drive / Blue Vantage troubleshooting. 10/23...

  • Page 229: Yetter System

    Troubleshooting M0321-01 Model 5900 YETTER SYSTEM PROBLEM POSSIBLE CAUSE SOLUTION Tank Pressure drops when Improper check valve function. Replace check valve on compressor. compressor shuts off. Loose connections/air leak. Perform leak check. Water separator drain valve leaking. Replace water separator drain valve.

  • Page 230: Yetter System Compressor

    Troubleshooting Model 5900 M0321-01 YETTER SYSTEM COMPRESSOR PROBLEM POSSIBLE CAUSE SOLUTION Knocking. Lack of oil in crankcase. Add oil. Worn piston pin. Consult dealer. Worn main bearings. Consult dealer. Worn connecting rod. Consult dealer. Excessive crankshaft end play. Consult dealer.

  • Page 231: Yetter Row Cleaner Blue Vantage Alerts

    Troubleshooting M0321-01 Model 5900 YETTER ROW CLEANER BLUE VANTAGE ALERTS ALERT REASON CONDITION Row cleaners lost. Lost CAN communication with row No communication with Yetter control box. cleaners control box. Row cleaners error. Error with the row cleaners system System pressure error or battery voltage error (<11.7V).

  • Page 232: True Speed Meter

    Troubleshooting Model 5900 M0321-01 TRUE SPEED METER PROBLEM POSSIBLE CAUSE SOLUTION Low seed count. Vacuum level too low. Increase fan speed. Plugged orifices in seed disc. Inspect and clean disc. Check remnant ejector. Loss of vacuum at meter. Check for foreign material between vacuum cover and disc.
  • Page 233 Troubleshooting M0321-01 Model 5900 PROBLEM POSSIBLE CAUSE SOLUTION Not planting seed. Low/no vacuum. Inspect vacuum system and repair as necessary. Worn ejector. Replace ejector. Seed bridging in mini hopper. Add graphite to improve seed flow. Adjust baffle setting Meter drive damaged.

  • Page 234: Seed Sensor Color Scheme
