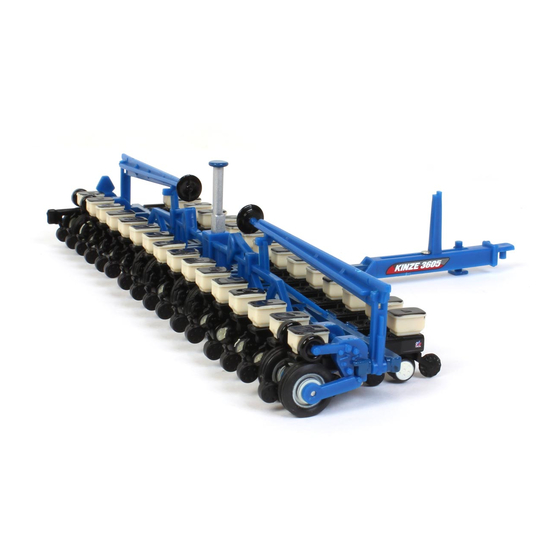

Kinze 3605 Operator's Manual
  1. Manuals
  2. Brands
  3. Kinze Manuals
  4. Farm Equipment
  5. 3605
  6. Operator's manual

Kinze 3605 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
M0312-01
MODEL 3605 PIVOT FOLD EXPORT PLANTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3605 and is the answer not in the manual?

Questions and answers

Иван
April 17, 2025

сколько графита и талька нужно засыпать в сеялку при засыпке семян сои

0
1 comments:
Mr. Anderson
May 9, 2025

When planting soybean seeds with a Kinze planter:

- Use graphite lubricant with the appropriate seed disc (Black GD11122, 60 cells for standard soybeans).
- For bulk fill hoppers: Mix 1 pound (~0.5 kg) of powdered graphite each time the hopper is filled. Add it in layers as the hopper is filled.
- For conventional hoppers: Apply graphite around the outer perimeter of the hopper, not just in the center.
- Use 80/20 talc-graphite blend for treated seeds to prevent bridging and reduce static electricity.

The exact amount of talc is not specified, but it should be used as needed based on seed treatment and hopper type.

This answer is automatically generated

0

Related Manuals for Kinze 3605

Summary of Contents for Kinze 3605

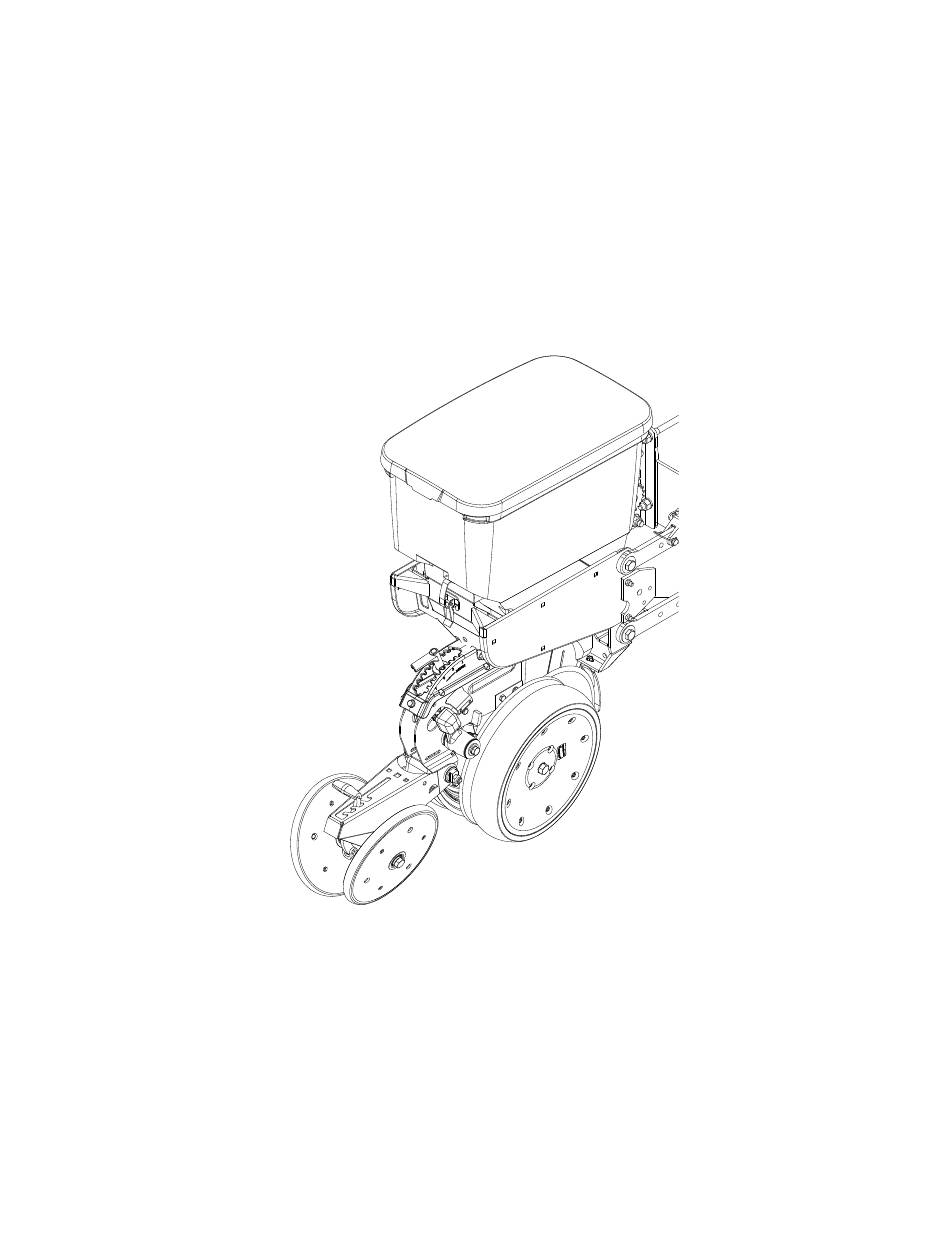

  • Page 1 OPERATOR’S MANUAL M0312-01 MODEL 3605 PIVOT FOLD EXPORT PLANTER...
  • Page 3 The serial number provides important information about your planter and is required to obtain correct replacement parts. Always provide planter model and serial number to your Kinze Dealer when ordering parts or anytime correspondence is made with Kinze Manufacturing, Inc.
  • Page 7 Predelivery/Delivery Checklist M0312-01 Model 3605 TO THE DEALER Predelivery service includes assembly, lubrication, adjustment and test. This service helps ensure planter is delivered to retail customer/end user ready for field use. PREDELIVERY CHECKLIST Use the following checklist after planter is completely assembled. Check off each item as it is found satisfactory or after proper adjustment is made.
  • Page 8 Replace if damaged or missing.  Check safety/warning lights are working properly. (Signature Of Follow-Up Person/Dealer Name/Date) All registrations must be submitted online at “business.kinze.com” within 5 business days of delivery. Retain a copy of this form for auditing purposes. Tear Along Perforation...

  • Page 9: Table Of Contents

    Kinze ISOBUS Option . . . . . . . . . . . . . . . . . . .
  • Page 10 Table of Contents Model 3605 M0312-01 FERTILIZER Granular Chemical Attachment . . . . . . . . . . . . . . . . . . . . 6-25 Point Row Clutch Maintenance .

  • Page 11: To The Owner

    M0312-01 Model 3605 Kinze Manufacturing, Inc . thanks you for your patronage . We appreciate your confidence in Kinze farm machinery . Your Kinze planter has been carefully designed to provide dependable operation in return for your investment . This manual has been prepared to aid you in the operation and maintenance of the planter. It should be considered a permanent part of the machine and remain with the machine when you sell it.
  • Page 12 NOTE: Some photos in this manual may have been taken of prototype machines. Production machines may vary in appearance. NOTE: Some photos and illustrations in this manual show optional attachments installed. Contact your Kinze Dealer for purchase of optional attachments. 07/20...

  • Page 13: Warranty

    Warranty And Delivery Receipt to the Kinze Dealer for service . Kinze warranty does not include cost of travel time, mileage, hauling or labor . Any prior arrangement made between the Dealer and the retail purchaser in which the Dealer agrees to absorb all or part of this expense should be considered a courtesy to the retail purchaser .

  • Page 14: General Information

    Model 3605 M0312-01 The Model 3605 Twin-Line Planter is available with vacuum or mechanical meters, conventional hoppers or bulk fill, Split Rows, and various other options . Liquid or dry fertilizer application equipment and various row unit attachments are also available .

  • Page 15: Specifications

    Specifications M0312-01 Model 3605 Specification Conventional Hoppers Number of Rows 12R 70 CM Y 16R 70 CM Y Base Machine (Empty)* 12,780-13,185 lb (5795-5980 kg) 15,730-16,210 lb (7135-7350 kg) Axle Weight Empty 10,376 lb (4707 kg) 19,903 lb (9028 kg)

  • Page 16: General Safety Rules

    . 16 . Follow all federal, state/provincial, and local regulations Model 3605 planter consists of 85% recyclable metals, 10% when towing farm equipment on a public highway . Use recyclable plastic and rubber, and 5% waste .

  • Page 17: Safety Precautions

    Safety Precautions M0312-01 Model 3605 Following are some common hazard warnings associated with this equipment . Pay close attention to all safety, operating, and maintenance information in this manual and decals applied to your equipment . Contacting or coming close to power...
  • Page 18 Safety Precautions Model 3605 M0312-01 SAFETY SIGNS AND DECALS All safety/warning lights, reflective WARNING decals, and SMV sign must be in place and visible before transporting machine on public roads or death, serious injury, and damage to property and equipment may result.

  • Page 19: Machine Operation

    Machine Operation M0312-01 Model 3605 MANUAL SAFETY LOCKUP Uncontrolled machine movement can WARNING crush or cause loss of control resulting in death, serious injury, or damage to property and equipment. Install all safety lockup devices before working under or transporting this equipment.

  • Page 20: Tongue Safety Pin

    Machine Operation Model 3605 M0312-01 Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety pins before transporting equipment. TONGUE SAFETY PIN Tongue safety pin installed for transport Tongue safety pin stored for field operation Never transport planter without installing tongue safety pin.

  • Page 21: Initial Preparation

    Machine Operation M0312-01 Model 3605 INITIAL PREPARATION Following information is general in nature to aid in preparation of tractor and planter for use, and to provide general operating procedures. Operator experience, familiarity with the machine, and the following information should combine for efficient planter operation and good working habits.

  • Page 22: Tractor Requirements

    Machine Operation Model 3605 M0312-01 Contact drive 1. Torque wheel lug nuts to the following specifications: Transport wheel 5∕8"- 18 lug nuts to 270 Nm. Ground drive wheel 9/16"- 18 lug nuts to 170 Nm. 2. Inflate tires to the following specifications: Transport (center section) 255-70R 22.5 (“224”...

  • Page 23: Tractor Mounted Pto Pump And Oil Cooler Option

    Machine Operation M0312-01 Model 3605 TRACTOR MOUNTED PTO PUMP AND OIL COOLER OPTION The tractor mounted PTO pump and oil cooler option is for tractors with less than required hydraulic output needed to operate hydraulic-driven vacuum fan and other planter hydraulic requirements.

  • Page 24: Tractor Preparation And Hookup

    1. Adjust tractor drawbar 33-43 cm above ground with hitch pin hole directly below PTO shaft center line. Make sure drawbar is in a stationary position. 2. Install control console or Kinze Blue Vantage Display on tractor in a convenient location within easy reach of operator and close to hydraulic controls.
  • Page 25 Machine Operation M0312-01 Model 3605 Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries. Fluid injected under skin must be IMMEDIATELY removed by a surgeon familiar with this type of injury. Make sure connections...

  • Page 26: Oil Specification

    Machine Operation Model 3605 M0312-01 6. Connect ASABE Standards 7 terminal connector for safety/warning lights on planter to ASABE Standards receptacle on tractor. If your tractor is not equipped with an ASABE Standards receptacle, check with your tractor manufacturer for availability. Check warning lights on planter work in conjunction with warning lights on tractor.
  • Page 27 For tractors not equipped with a method for finite adjustment of hydraulic flow, Flow Control Needle Valve Kit G1K426 is available from Kinze Repair Parts through your Kinze Dealer. NOTE: Not to be used in Blue Drive applications. G1K426 needle valve kit...

  • Page 28: Cylinder Information

    Machine Operation Model 3605 M0312-01 CYLINDER INFORMATION Wing Down Pressure Row Marker Cylinder Rotation Cylinder Tongue Cylinder Wing Lift Cylinder Cylinder Double acting Double acting Double acting Double acting Double acting Intended Use applications applications applications applications applications Piston Ductile iron...
  • Page 29 Machine Operation M0312-01 Model 3605 CYLINDER INFORMATION (Continued) Transport Latch Tongue Lock Center Lift Cylinder Wing Lock Cylinder Cylinder Cylinder Double acting Double acting Double acting Double acting Intended Use applications applications applications applications Piston Ductile iron Ductile iron Ductile iron...

  • Page 30: Hydraulic Hose Information

    Machine Operation Model 3605 M0312-01 HYDRAULIC HOSE INFORMATION Part Number A1018 A1076 A1110 A1139 A12090 A1424 Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Description ⅜" x 1.02 m (40") ⅜" x 3.30 m (130") ¼" x 3.81 m (150") ¼"...
  • Page 31 Machine Operation M0312-01 Model 3605 HYDRAULIC HOSE INFORMATION (Continued) Part Number A1116 A12042 A1404 A11443 A11442 A3122 Hose Assembly, Hose Assembly Hose Assembly Hose Assembly, Hose Assembly, Hose Assembly, 5/8" x ~349 cm Description ¼" x 3.45 m (136") ⅜" x 5.79 m (228") ½"...
  • Page 32 Machine Operation Model 3605 M0312-01 HYDRAULIC HOSE INFORMATION (Continued) Part Number A8266 A12751 A1464 A3117 A12076 A12085 Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly ½" x ~681 cm ½" x ~362 cm ½" x ~183 cm ⅜"...
  • Page 33 Machine Operation M0312-01 Model 3605 HYDRAULIC HOSE INFORMATION (Continued) Part Number A25487 A11440 A21530- A12097 A15081- A7678- Hose Assembly, Hose Assembly Hose Assembly, Hose Assembly, Hose Assembly Hose Assembly 5/8" x ~620 cm ⅜" x ~625 cm Description 5/8" x - cm 5/8"...
  • Page 34 Machine Operation Model 3605 M0312-01 HYDRAULIC HOSE INFORMATION (Continued) Part Number A1027 A3152 A11447 A11445 A12753 A11459 Hose Assembly Hose Assembly Hose Assembly Hose Assembly, Hose Assembly, Hose Assembly, ⅜" x ~462 cm ⅜" x ~157.5 cm ½" x ~145 cm 5/8"...

  • Page 35: Level Planter

    Machine Operation M0312-01 Model 3605 LEVEL PLANTER Lateral adjustment is maintained by tire pressure. Check tires are inflated to specification. Front and rear level adjustment is maintained by hitch clevis position unless tractor drawbar is adjustable for height. Planter frame and row unit parallel arms must be level for proper planter and row unit operation.

  • Page 36: Ridge Planting

    Machine Operation Model 3605 M0312-01 Component interference can damage NOTICE equipment. Check clearance between tires and drill shaft U-joint when using top hole setting. NOTE: To allow adequate drive force after lowering ground drive wheels, it may be necessary to lower contact drive wheel arms to lower sets of holes in wheel modules and lower down pressure springs to lower mounting rods on wheel modules.

  • Page 37: True Depth Hydraulic System Overview

    Machine Operation M0312-01 Model 3605 TRUE DEPTH HYDRAULIC SYSTEM OVERVIEW True Depth Pressure Gauge Remove all hydraulic power sources and WARNING verify True Depth pressure gauge reads zero before servicing. True Depth Cylinder Flow out of the rod end port of the...

  • Page 38: True Depth Filter

    Machine Operation Model 3605 M0312-01 True Depth Filter TRUE DEPTH FILTER Replace filter cartridge annually, every 100 hours of operation, or when the clogging indicators point out the limit pressure drop created inside the filter. To replace the cartridge: 1. Stop the system in “Machine Stopped” status 2.

  • Page 39: Contact Wheel Drive Sprockets

    Machine Operation M0312-01 Model 3605 CONTACT WHEEL DRIVE SPROCKETS Contact drive wheel sprocket Sprocket idler Contact wheel drive Optional half-rate drive sprocket Contact wheel drive works the same for mechanical or vacuum planters except for sprocket size. Chain tension is controlled by a spring-loaded sprocket idler. Planting rate charts in “Rate Chart” section help you select correct sprockets.

  • Page 40: Contact Wheel Spring Adjustment

    Machine Operation Model 3605 M0312-01 CONTACT WHEEL SPRING ADJUSTMENT 20 cm Spring length measurement (Factory setting) Contact drive springs There are two down pressure springs on each contact drive wheel. Spring tension is factory set to approximately 90 kg of down force at tire contact point and should require no further adjustment.

  • Page 41: Shear Protection

    Machine Operation M0312-01 Model 3605 SHEAR PROTECTION 3∕16" shear pin 3∕16" shear pin Transmission shaft Dry fertilizer attachment transmission Shear pins protect planter driveline and row unit components from damage. 1. Determine where binding has occurred before replacing a pin. Turn shaft by hand (with the aid of a wrench) and check for misalignment and seized parts.

  • Page 42: Hydraulic/Electric Operation

    Machine Operation Model 3605 M0312-01 HYDRAULIC/ELECTRIC OPERATION Control console switches and tractor’s hydraulic system are used to raise planter to transport position, operate rotate and tongue extension functions, lock and release planter wings, and raise and lower row markers. NOTE: Turn console backlighting OFF during extended periods of non-use using push button switch on back of console.
  • Page 43 M0312-01 Model 3605 Model 3605 planters operate from three dual remote (SCV) hydraulic outlets and tractor mounted control console. One SCV and a control console switch operate raise to transport function. A second SCV and control console switches operate row markers and fold/unfold functions. A third SCV operates vacuum fan motor circuit.

  • Page 44: Transport To Field Sequence

    Machine Operation Model 3605 M0312-01 TRANSPORT TO FIELD SEQUENCE Position planter in a relatively flat open area. Avoid an area with furrows, etc. SUMMARIZED TRANSPORT TO FIELD SEQUENCE • Remove tongue safety pin. • Remove transport latch locking pin. • Remove manual safety lockup.
  • Page 45 Machine Operation M0312-01 Model 3605 3. Remove manual safety lockup from under front center lift cylinder and place it in storage location on left side of planter hitch. Storage position Hold control console “ROTATE/TONGUE” switch in “ROTATE” and operate hydraulic control to unfold planter.
  • Page 46 Machine Operation Model 3605 M0312-01 8. Hold hydraulic control (to lower planter) to rephase planter lift cylinders. Time to rephase system may vary due to tractor hydraulic flow and/or oil temperature. Normally 5 to 20 seconds is adequate to rephase system.

  • Page 47: Field Operation

    Machine Operation M0312-01 Model 3605 FIELD OPERATION Contacting or coming close to power DANGER lines or other high energy sources will cause death or serious injury. Keep away from power lines or high energy sources at all times. Raise planter out of ground when making...

  • Page 48: Field To Transport Sequence

    Machine Operation Model 3605 M0312-01 FIELD TO TRANSPORT SEQUENCE Position planter in a relatively flat area. Avoid areas with furrows, etc. SUMMARIZED FIELD TO TRANSPORT SEQUENCE • Install row marker lockups. • Raise planter to raised field position. • Extend tongue.
  • Page 49 Machine Operation M0312-01 Model 3605 5. Hold control console “RAISE/WING LOCK” switch in “RAISE” and operate hydraulic control until two center lift cylinders are fully extended and safety hook at top of center section rotates into locking position. 6. Lower planter onto safety hook using hydraulic control.
  • Page 50 Machine Operation Model 3605 M0312-01 9. Install transport latch locking pin. Transport latch locking pin installed 10. Remove manual safety lockup from storage location on left side of axle hitch and position it behind front center lift cylinder. Manual safety lockup installed...

  • Page 51: Transport To Field Sequence Using Blue Vantage

    Machine Operation M0312-01 Model 3605 TRANSPORT TO FIELD SEQUENCE USING BLUE VANTAGE Tractor must be in neutral and allowed NOTICE to roll freely when unfolding to prevent equipment damage, especially in soft conditions or when loaded with seed. Use tractor assist as needed to aid in unfolding and to reduce stress on frame and transport components.

  • Page 52: Vacuum System

    M0312-01 VACUUM SYSTEM Kinze vacuum seed metering system includes seed meters, seed discs, and an air system consisting of a hydraulic driven vacuum fan which draws air through manifolds, hoses, and seed meters on each row unit. Moving fan blades can cause amputation WARNING or severe injury.

  • Page 53: Bulk Fill System

    Machine Operation M0312-01 Model 3605 BULK FILL SYSTEM Seed flying out of disconnected delivery CAUTION tube at high velocity can cause injury. Do not disconnect delivery tubes when system is operating. Foreign materials can plug system. Make NOTICE sure seed is clean and free of debris when filling bulk fill hoppers.

  • Page 54: Analog Vacuum Or Pressure Gauge

    Machine Operation Model 3605 M0312-01 ANALOG VACUUM OR PRESSURE GAUGE The analog vacuum or pressure gauge connects directly to the vacuum and is teed into the digital sending units. KILOPASCALS Only adjustment is to “zero” needle with no vacuum or MAX PRESSURE 15 PSIG (103 KPA) pressure present.

  • Page 55: Bulk Fill Scale Package Option

    • Provides seed weight or estimated acres remaining for each bulk fill hopper. • Displays total (gross) seed weight or estimated acres remaining for both hoppers combined. • Warns operator when seed goes below a pre-defined level (when using a Kinze Vision display). UP/DOWN arrow buttons...
  • Page 56 Machine Operation Model 3605 M0312-01 SETUP BULK FILL SCALE PACKAGE DISPLAY Press SET-UP button. 2. First setup screen displays and ALARM LEVEL box is highlighted. 3. Press SELECT button. 4. Press UP or DOWN arrows to change alarm weight level.
  • Page 57 Machine Operation M0312-01 Model 3605 ENTER SEED INFORMATION 1. Highlight and select either L (left) or R (right) for the appropriate input screen. 2. At input screen, L or R side is indicated at left side of screen and seed weight or acres remaining is on right side.

  • Page 58: Ag Leader Integra Display

    The health screen provides all critical planting parameters and controls. The grower can observe row-by-row planting performance in real-time. NOTE: See Kinze Blue Vantage Operator’s Manual for system operation and programming. Kinze Blue Vantage AG LEADER INCOMMAND 1200 DISPLAY The InCommand 1200 is a full-featured display for any precision farming operation.

  • Page 59: Kinze Isobus Option

    Model 3605 KINZE ISOBUS OPTION Kinze ISOBUS option consists of a planter monitor module (PMM), and planter control module (PCM). Kinze planters will communicate directly with most ISO compatible monitors. See the Kinze ISOBUS manual for more information. AUXILIARY WORK LIGHTS PACKAGE...

  • Page 60: Row Marker Operation

    Machine Operation Model 3605 M0312-01 ROW MARKER OPERATION Contacting or coming close to power DANGER lines or other high energy sources will cause death or serious injury. Keep away from power lines or high energy sources at all times. Row marker solenoid valves (Cover removed) Marker switch Two solenoid valves on valve block at rear R.H.

  • Page 61: Row Marker Speed Adjustment

    Machine Operation M0312-01 Model 3605 ROW MARKER SPEED ADJUSTMENT Excessive row marker travel speed NOTICE can damage row markers. Adjust flow controls before row markers are first used. Marker hydraulic system includes two flow control valves. One flow control valve sets lowering speed and one sets raising speed of both markers.

  • Page 62: Row Marker Adjustments

    5. Loosen hardware and move assembly as required. 6. Tighten bolts to specified torque. 7. Do a field test to ensure markers are properly adjusted. NOTE: A notched marker blade is available from Kinze through your Kinze Dealer for use in more severe no till conditions. 2-44...

  • Page 63: Row Marker Even-Row Length Adjustment

    Machine Operation M0312-01 Model 3605 ROW MARKER EVEN-ROW LENGTH ADJUSTMENT Adjust marker extensions as shown below when using even-row push row unit option. To center of outer row unit Planter centerline To center of outer row unit Center Of 35 cm...

  • Page 64: Point Row Clutches

    Machine Operation Model 3605 M0312-01 POINT ROW CLUTCHES L.H. point row clutch switch R.H. point row clutch 10 amp time delay fuse switch 10 amp time delay fuse Point row clutch switch Single point row clutch control box Point row clutch...

  • Page 65: Auxiliary Hydraulic Option

    Machine Operation M0312-01 Model 3605 AUXILIARY HYDRAULIC OPTION A customer-supplied auxiliary hydraulic option provides 38 L/min of oil flow at rear of planter for powering fertilizer attachments, bulk seed handling equipment, etc. Two customer-supplied solenoid valve kits (G1K275) are required to activate auxiliary hydraulic option with control console auxiliary switch.

  • Page 66: Rear Trailer Hitch

    Machine Operation Model 3605 M0312-01 REAR TRAILER HITCH Rear trailer hitch can tow a 3 or 4 wheel wagon behind planter. A spring, chain, and mounting bracket supports a 3 cm feed hose from hitch to piston pump. This extra length or loop is required to allow for planter to move into transport position without stretching hose.

  • Page 67: Field Test

    Machine Operation M0312-01 Model 3605 FIELD TEST Perform a field test with any change of field and/or planting conditions, seed size or planter adjustment to ensure proper seed placement and operation of row units.  Check planter for front to rear and lateral level operation. See “Level Planter”.

  • Page 68: Determining Kilograms Per Hectare (Brush-Type Meter)

    Machine Operation Model 3605 M0312-01 3. Measure 1∕1000 of an hectare. See chart for correct distance for row width being planted. For example, if planting 70 cm rows 1∕1000 of an hectare would be 14.28 meters. 1∕1000 Hectare Seed Population Count Row Width/Distance...

  • Page 69: Field Check Granular Chemical Application

    Machine Operation M0312-01 Model 3605 FIELD CHECK GRANULAR CHEMICAL APPLICATION Temperature, humidity, speed, ground conditions, flowability of different material, or meter obstructions can affect granular chemical rate of delivery. Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property.

  • Page 70: Water Tank

    Machine Operation Model 3605 M0312-01 WATER TANK The water tank is to only be filled with clean water or preferably potable water (water meeting local standards for drinking). The tank holds 15 L of water. Be sure to check for regulations pertaining to this use.

  • Page 71: Row Unit Operation

    Row Unit Operation M0312-01 Model 3605 PLANTING DEPTH Planting Planting depth is maintained by adjustable row unit gauge wheels. depth adjustment Depth adjustment range is approximately 1.2 cm to 8.9 cm. handle Raise planter to remove weight from wheels. Push down on depth adjustment handle and reposition it forward to decrease or rearward to increase planting depth.

  • Page 72: Drag Closing Attachment

    Row Unit Operation Model 3605 M0312-01 DRAG CLOSING ATTACHMENT Drag closing attachment pulls loose soil over seed trench. NOTE: Use of a seed firming wheel or other seed firming Eccentric device is recommended with drag closing attachment. bushing Front and rear adjustment is made using slotted holes in blades.

  • Page 73: Seed Hoppers

    Row Unit Operation M0312-01 Model 3605 SEED HOPPERS Mechanical seed hopper has a capacity of 67 L. Vacuum seed hopper has a capacity of 62 L. Use clean seed and make certain there are no foreign objects inside when filling seed hopper. Replace hopper lids after hoppers are filled to prevent accumulation of dust or dirt in seed meter which can cause premature wear.

  • Page 74: Row Unit Chain Routing

    Row Unit Operation Model 3605 M0312-01 ROW UNIT CHAIN ROUTING Row unit drive chains must be properly tensioned and aligned for proper operation and to minimize wear. Inspect and replace weak, worn or broken springs, idlers, and idler bushings. Mechanical pull row unit meter drive...

  • Page 75: Quick Adjustable Down Force Springs Option

    Row Unit Operation M0312-01 Model 3605 QUICK ADJUSTABLE DOWN FORCE SPRINGS OPTION Quick adjustable down force springs increase penetration in hard soil and keep row unit from bouncing in rough field conditions. Two springs per row, one on each side parallel arms, are used unless equipped with row unit mounted no till coulters.

  • Page 76: Pneumatic Down Pressure Package Option

    NOTE: If additional down pressure is needed with the Pneumatic Down Pressure Package, assist springs are available through your Kinze dealer. One spring is installed on the outer side of the parallel arms on each side of the row unit as shown below.
  • Page 77 NOTE: If control console is ON and pneumatic down force is not set to zero, compressor will start when electric power supply is reconnected. 5. Reconnect electric power supply to compressor. Refer to M0288 - Kinze Blue Vantage Operator’s Manual for pressure adjustment with Blue Vantage. 07/20...
  • Page 78 2350 psi. The system includes a 7" in cab standalone touchscreen display with antiglare screen protector and RAM mount, electronic control modules, harnesses, gauge wheel sensors, hydraulic cylinders, upper and lower cylinder mounts, and valves. See M0288 - Kinze Blue Vantage Operator’s Manual. True Depth...
  • Page 79 This page left blank intentionally.

  • Page 80: Split Row Push Row Unit Clutch Sprocket

    Row Unit Operation Model 3605 M0312-01 SPLIT ROW PUSH ROW UNIT CLUTCH SPROCKET Push row unit clutch sprocket disengages Split Row drive from push row unit drill shaft when only pull row units are used. DISENGAGE Rotate knurled collar ¼ turn. Rock drill shaft slightly using a ⅞"...

  • Page 81: Split Row Lockups

    Row Unit Operation M0312-01 Model 3605 SPLIT ROW LOCKUPS Split row lockups are designed to allow the push row units to be locked in the raised position. Improper lifting of row units can cause CAUTION serious injury. An empty row unit requires minimum 84 lb (38.1 kg) lift.
  • Page 82 2. Lower the planter to the planting position. 3. Empty seed hoppers. Note: If planter is equipped with True Depth, enable Lift Assist Mode with the True Depth Display. See M0288 - Kinze Blue Vantage Manual. Turning Lift Assist on or off may cause WARNING the planter to move or row units to fall causing injury or death.
  • Page 83 1. Lower the planter to the planting position. Note: If planter is equipped with True Depth, enable Lift Assist Mode with the True Depth Display. See M0288 - Kinze Blue Vantage Manual, Page 18. Turning Lift Assist on or off may cause...

  • Page 84: Brush-Type Seed Meter

    Row Unit Operation Model 3605 M0312-01 BRUSH-TYPE SEED METER Upper Disc Color-Code Brush Seed Size Crop (Disc Part No.) Retainer Cells Range *Lubricant Graphite Soybean Black Black GD11122 4,840 to (GA5794) (GA5794) 8,800 Talc seeds/kg Specialty Soybean Dark Blue Dark Blue...

  • Page 85: Finger Pickup Seed Meter

    Row Unit Operation M0312-01 Model 3605 Turn seed disc counterclockwise when installing on meter hub while tightening two wing nuts that retain disc. Seed disc should have slight resistance when rotated counterclockwise after wing nuts are tight. Brush-type seed meter attaches to seed hopper same as finger pickup seed meter.

  • Page 86: Vacuum Settings

    Row Unit Operation Model 3605 M0312-01 VACUUM SETTINGS Vacuum Seed Ejector Singulator Setting **Seed Disc Wheel Seed Size Zone Inches of Crop Disc Kit Part No. (Color) Cells Range Setting Water (cm) Lubricant Corn B1219 B1219 1 row 35-70 lbs/80k...
  • Page 87 Row Unit Operation M0312-01 Model 3605 VACUUM SETTINGS Vacuum Seed Ejector Singulator Setting **Seed Disc Wheel Seed Size Zone Inches of Crop Disc Kit Part No. (Color) Cells Range Setting Water (cm) Lubricant Pinto & Great Specialty B1234 B1234 1 row...
  • Page 88 Row Unit Operation Model 3605 M0312-01 NOTE: See for more information. Always field check seed population "Field Check Seed Population" on page 2-49 to ensure planting rates are correct. NOTE: Singulator settings are marked from 0 - 3. NOTE: Mixing seed sizes and shapes affects meter performance. Use consistent seed size and shape.
  • Page 89 Row Unit Operation M0312-01 Model 3605 NOTE: Damaged seed or seed containing foreign material will cause plugging of seed disc orifices and require more frequent seed meter cleanout to prevent underplanting. Wheel-Type Ejectors Wheel-type ejectors expel seed remants from seed disc orifices. These Ejector ejectors are disc specific and colored coded to match disc.

  • Page 90: Rapeseed Planting Section

    VACUUM SETTINGS Due to rapeseed size and weight variations planting settings may vary. Testing with a Kinze T4000 test stand is recommended to verify vacuum level setting and to achieve best planting accuracy. See your Kinze dealer for testing.
  • Page 91 It is essential to use graphite to neutralize electrostatic rapeseed properties. Mix rapeseed with Kinze graphite thoroughly in a closed container. Keep mixing until all seed becomes evenly coated. Excessive graphite will stay on the bottom of container. It is recommended to prepare an even amount of seed-graphite mix for each hopper separately.
  • Page 92 Row Unit Operation Model 3605 M0312-01 VACUUM METER INSULATION FOR RAPESEED PLANTING Additional insulating shims for Vacuum Meters are needed in order to successfully and efficiently plant rapeseed with Blue Drive equipped machines, as they prevent the seeds from getting crushed, thus clogging up the seed disc.
  • Page 93 Row Unit Operation M0312-01 Model 3605 Removing the Insulation Shim: Pull Push To remove the Insulation Shim, push down with your fingers on one end, while pulling on another end (see img. above). Washing Seed Discs: When planting Rapeseed, Seed Discs will periodically...

  • Page 94: Seed Meter Cleanout

    Row Unit Operation Model 3605 M0312-01 SEED METER CLEANOUT NOTE: Use of damaged seed or seed containing foreign material will cause plugging of seed cell orifices and require more frequent seed meter cleanout to prevent underplanting. Thorough seed meter cleanout is important to maintain genetic purity.
  • Page 95 Row Unit Operation M0312-01 Model 3605 Adding graphite to conventional hopper Adding graphite bulk fill hopper 80/20 TALC-GRAPHITE Talc-Graphite lubricant is to be used for treated seed, providing benefits of both talc and graphite. It absorbs mositure to prevent bridging, minmizes static electricity for improved seed flow, and lubricates seed and meters.

  • Page 96: Row Unit Mounted Residue Wheel

    Row Unit Operation Model 3605 M0312-01 ROW UNIT MOUNTED RESIDUE WHEEL Row unit mounted residue wheels are used on pull and push row units. Row Unit Mounted Residue Wheel Two adjustable springs on each residue wheel parallel links provide down force adjustment. Position 1 provides minimum down pressure and position 3 maximum down pressure.

  • Page 97: Row Unit Mounted No Till Coulter

    Row Unit Operation M0312-01 Model 3605 ROW UNIT MOUNTED NO TILL COULTER Row unit mounted no till coulters with 1" (25 mm) bubbled, 1" (25 mm) fluted (8 flutes) or ¾" (19 mm) fluted (13 flutes) blades may be used on pull row units and push row units (¾" fluted shown).

  • Page 98: Spiked Closing Wheel

    Row Unit Operation Model 3605 M0312-01 SPIKED CLOSING WHEEL Spiked closing wheels crumble the sidewall, allowing roots to pentrate soil. They can be used on pull row units and push row units. Align spiked closing wheels straight across from each other, in most rearward holes on closing wheel arm.

  • Page 99: Granular Chemical Hopper And Drive

    Row Unit Operation M0312-01 Model 3605 GRANULAR CHEMICAL HOPPER AND DRIVE Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property. Read and follow all chemical and equipment manufacturers labels and instructions.

  • Page 100: Granular Chemical Banding Options

    Row Unit Operation Model 3605 M0312-01 GRANULAR CHEMICAL BANDING OPTIONS Granular chemical banding options allow 4½" (115 mm) slope-compensating banding or straight drop in-furrow placement. 4½" (115 mm) slope- Straight drop in-furrow placement compensating bander GRANULAR CHEMICAL BANDER SHIELD Wheel arm stop Bander shield ⅜"-16 x 1½"...

  • Page 101: Fertilizer

    Fertilizer M0312-01 Model 3605 DOUBLE DISC FERTILIZER OPENER Pin storage position Pin lockup position Maintain 0.8 mm - 1.6 mm gap at closest point. Double disc fertilizer opener Position double disc fertilizer openers to place fertilizer no closer than 5 cm to either side of row. Fertilizer depth is approximately 10 cm If planter frame is level and at proper 51 cm operating height.

  • Page 102: Notched Single Disc Opener

    Fertilizer Model 3605 M0312-01 NOTCHED SINGLE DISC OPENER Middle screw sets blade Opener mount angle. Tighten first! Disc blade ½" hex head cap screws Jam nuts 5∕16" hex head cap screws R.H. Opener Shown ⅜" lock nuts Scraper Drop tube...
  • Page 103 Fertilizer M0312-01 Model 3605 2. Adjust scraper and drop tube. Loosen two 5∕16" hex head cap screws. Adjust scraper until just touching disc blade. Adjust drop tube until it is centered between knife and disc blade. Tighten screws. Turn blade and check for slight resistance without freewheeling.

  • Page 104: Residue Wheel Attachment For Notched

    Fertilizer Model 3605 M0312-01 RESIDUE WHEEL ATTACHMENT FOR NOTCHED SINGLE DISC FERTILIZER OPENER Notched single disc opener residue wheel attachment Residue wheel attachment for notched single disc fertilizer opener is used where row unit mounted residue wheel attachments cannot be installed. Residue wheel is attached to notched single disc fertilizer opener with ⅝" x 7½" (L=190 mm) and ½"...

  • Page 105: Hd Single Disc Fertilizer Opener

    Fertilizer M0312-01 Model 3605 HD SINGLE DISC FERTILIZER OPENER Spring preset nut Inside blade depth Spring adjustment nut. Preset Outside blade depth adjustment nut. Block R.H. configuration shown (Overhead view) HD single disc opener Recommended placement of fertilizer with HD single disc fertilizer opener is 9 - 10 cm) from row.
  • Page 106 Fertilizer Model 3605 M0312-01 Adjust liquid drop tube/scraper so there is slight contact between blade and scraper lower leading edge, and 6 mm clearance between liquid drop tube trailing edge and blade. Blade should turn with minimum amount of drag.

  • Page 107: Dry Fertilizer Attachment

    Fertilizer M0312-01 Model 3605 DRY FERTILIZER ATTACHMENT Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property. Read and follow all chemical and equipment manufacturers labels and instructions. Dry fertilizer option installed...
  • Page 108 Fertilizer Model 3605 M0312-01 CLEANING Disconnect drive shaft and hoses Rotate lid to back and rotate hopper forward Dry fertilizer hoppers tip forward for dumping and ease of cleaning. Disconnect drive shaft from transmission and/or adjacent hopper. LOOSEN HOSE CLAMPS AND REMOVE HOSES FROM EACH HOPPER. Remove rear ½" x 1¼"...

  • Page 109: Liquid Fertilizer Attachment

    Fertilizer M0312-01 Model 3605 LIQUID FERTILIZER ATTACHMENT Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property. Read and follow all chemical and equipment manufacturers labels and instructions. Overfilling tank can cause siphoning,...
  • Page 110 Fertilizer Model 3605 M0312-01 PISTON PUMP NOTE: Keep manuals shipped with pump and flow divider with this manual. Piston pump Adjusting delivery rate NOTE: Delivery rate chart in the Rate Charts section of this manual provides approximate application rate only. Delivery varies with temperature and fertilizer.

  • Page 111: Rate Charts

    Rate Charts M0312-01 Model 3605 GENERAL PLANTING RATE INFORMATION These planting rate charts apply to Kinze Model 3605 70 cm planters. NOTE: BULK FILL SYSTEM CANNOT BE USED WITH RAPESEED. Sprocket combinations in these charts NOTICE are for average conditions. Changes in sprocket combinations may be required for desired planting population.
  • Page 112 Rate Charts Model 3605 M0312-01 MECHANICAL Finger Pickup Corn Meter Larger grades generally plant more accurately at the high end of ground speed range than smaller grades. Higher than optimum speeds may result in population rate increase or higher incidence of doubles, particularly with small seed. Medium round corn seed is most desirable for planting accuracy at optimum speed.
  • Page 113 Page intentionally blank.
  • Page 114 Rate Charts Model 3605 M0312-01 PLANTING RATES FOR FINGER PICKUP SEED METERS (STANDARD DRIVE) APPROXIMATE SEEDS/HECTARE FOR VARIOUS ROW WIDTHS Transmission Sprockets Recomm. Speed Average Seed Drive Driven 70 CM Rows Range (km/h) Spacing In Centimeters 43539 6 to 10 32.7...
  • Page 115 Rate Charts M0312-01 Model 3605 PLANTING RATES FOR BRUSH-TYPE SEED METERS (STANDARD DRIVE) APPROXIMATE SEEDS/HECTARE FOR 35 CM/70 CM ROW WIDTHS 60 Cell Specialty Soybean 48 Cell Specialty Soybean Transmission Average Average Or High-Rate Milo/Grain Or High-Rate Acid-Delinted Sprockets Seed...
  • Page 116 Rate Charts Model 3605 M0312-01 PLANTING RATES FOR BRUSH-TYPE SEED METERS (STANDARD DRIVE) APPROXIMATE SEEDS/HECTARES FOR VARIOUS ROW WIDTHS 36 Cell 30 Cell Milo/Grain Sorghum Transmission Average Seed Average Seed Sprockets Spacing In Spacing In Speed Acid-Delinted Large Cotton Or Acid-Delinted Cotton...
  • Page 117 Rate Charts M0312-01 Model 3605 PLANTING RATES FOR BRUSH-TYPE SEED METERS (STANDARD DRIVE) APPROXIMATE HILLS/HECTARE FOR VARIOUS ROW WIDTHS Due to variations in cotton seed size, meters equipped with 12 cell acid-delinted hill-drop cotton discs plant from 3 to 6 seeds per cell. Select proper disc for seed size range to be planted.
  • Page 118 Rate Charts Model 3605 M0312-01 PLANTING RATES FOR (VACUUM) CORN/SUNFLOWER 40 CELL DISC 22 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS/HECTARE FOR VARIOUS ROW WIDTHS Transmission Sprockets Recomm. Speed Average Spacing 70cm Drive Driven (km/h) (cm) 63720 6 to 10 22.4...
  • Page 119 Rate Charts M0312-01 Model 3605 PLANTING RATES FOR (VACUUM) CORN/SUNFLOWER 40 CELL DISC 28 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS/HECTARE FOR VARIOUS ROW WIDTHS Transmission Sprockets Recomm. Speed Average Spacing 70cm Drive Driven (km/h) (cm) 81098 6 to 10 17.6...
  • Page 120 Rate Charts Model 3605 M0312-01 PLANTING RATES FOR (VACUUM) MILO/SUGARBEET/SPECIALTY 60 CELL DISCS 22 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS/HECTARE FOR VARIOUS ROW WIDTHS Transmission Sprockets Recomm. Speed Average Spacing 35cm 70cm (km/h) (cm) Drive Driven 191160 95580 6 to 10 14.9...
  • Page 121 Rate Charts M0312-01 Model 3605 PLANTING RATES FOR (VACUUM) MILO/SUGAR BEET/SPECIALTY 60 CELL 28 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS/HECTARE FOR VARIOUS ROW WIDTHS Transmission Sprockets Recomm. Speed Average Spacing 35cm 70cm (km/h) (cm) Drive Driven 243295 121647 6 to 10 11.7...
  • Page 122 Rate Charts Model 3605 M0312-01 PLANTING RATES FOR (VACUUM) SPECIALTY 60 CELL DISC 44 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS/HECTARE FOR VARIOUS ROW WIDTHS Transmission Sprockets Recomm. Speed Average Spacing 35cm 70cm (km/h) (cm) Drive Driven 382321 191160 6 to 10...
  • Page 123 Rate Charts M0312-01 Model 3605 PLANTING RATES FOR (VACUUM) SOYBEAN 120 CELL DISC 22 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS/HECTARE FOR VARIOUS ROW WIDTHS Transmission Sprockets Recomm. Speed Average Spacing 35cm 70cm (km/h) (cm) Drive Driven 382321 191160 6 to 10...
  • Page 124 Rate Charts Model 3605 M0312-01 PLANTING RATES FOR (VACUUM) SOYBEAN 120 CELL DISC 28 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS/HECTARE FOR VARIOUS ROW WIDTHS Transmission Sprockets Recomm. Speed Average Spacing 35cm 70cm (km/h) (cm) Drive Driven 486590 243295 6 to 10...
  • Page 125 Rate Charts M0312-01 Model 3605 PLANTING RATES FOR (VACUUM) RAPESEED 83 CELL DISC 22 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS/HECTARE FOR VARIOUS ROW WIDTHS Transmission Sprockets Recomm. Speed Average Spacing 35cm (km/h) (cm) Drive Driven 349646 6 to 10...
  • Page 126 Rate Charts Model 3605 M0312-01 PLANTING RATES FOR (VACUUM) RAPESEED 83 CELL DISC 28 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS/HECTARE FOR VARIOUS ROW WIDTHS Transmission Sprockets Recomm. Speed Average Spacing 35cm (km/h) (cm) Drive Driven 349023 6 to 10...
  • Page 127 Rate Charts M0312-01 Model 3605 DRY FERTILIZER APPLICATION RATES (MECHANICAL) APPROXIMATE RATE IN KILOGRAMS PER HECTARE Drive Driven Low Rate Position High Rate Position Sprocket Sprocket 70cm Rows 70cm Rows See notes on following page. DRY FERTILIZER APPLICATION RATES (VACUUM)
  • Page 128 Rate Charts Model 3605 M0312-01 DRY FERTILIZER APPLICATION RATES (VACUUM) 28 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE RATE IN KILOGRAMS PER HECTARE Drive Driven Low Rate Position High Rate Position Sprocket Sprocket 70cm Rows 70cm Rows NOTE: (VACUUM ONLY) 22, 28 and 44 tooth drive sprockets are NOT applicable to all rate charts. Check title to ensure proper rate chart is selected.
  • Page 129 Rate Charts M0312-01 Model 3605 LIQUID FERTILIZER PISTON PUMP APPLICATION RATES LITERS PER HECTARE Applies To Model NGP-7055 Pumps With 18 Tooth Sprocket And 7.60" x 15" Ground Drive Tire Pump Setting 12 Row 70cm 75.2 112.8 150.4 188.0 224.6 262.2...
  • Page 130 Rate Charts Model 3605 M0312-01 DRY INSECTICIDE APPLICATION RATES APPROXIMATE Kg/HECTARE AT 8 km/h FOR VARIOUS ROW WIDTHS Meter Setting 70cm Rows CLAY GRANULES 10.4 11.7 13.1 13.9 16.0 17.3 18.9 20.0 21.0 22.9 25.5 28.1 29.4 31.0 33.9 36.1 SAND GRANULES 10.9...
  • Page 131 Rate Charts M0312-01 Model 3605 DRY HERBICIDE APPLICATION RATES APPROXIMATE Kg/HECTARE AT 8 km/h FOR VARIOUS ROW WIDTHS CLAY GRANULES Meter Setting 70cm Rows 10.0 11.0 12.1 13.1 14.2 15.4 16.6 17.8 19.2 20.7 22.1 23.7 25.5 27.6 29.6 32.6 NOTE: Chart represents average values and should be used only as a starting point.
  • Page 132 Rate Charts Model 3605 M0312-01 Wheat Disc Section Drive Driven RPM/GS 5.91 6.13 Use a 28 tooth Drive sprocket and a 27 tooth Driven sprocket 6.36 6.36 a. Vacuum: use the instructions found on page 5-9 to find the seeds per revolution (SDS/REV) or see the Rate Charts.
  • Page 133 Rate Charts M0312-01 Model 3605 PLANTING RATES FOR (VACUUM) WHEAT 54 CELL DISC (HALF RATE DRIVE [15 TOOTH]) APPROXIMATE SEEDS/ACRE FOR 35 CM ROW WIDTH Transmission RPM/GS Speed 8INH2O, no sigulator 8INH2O, sigulator 3.3 Sprockets (Seed Disc Range RPM To Ground...
  • Page 134 Rate Charts Model 3605 M0312-01 PLANTING RATES FOR (VACUUM) WHEAT 54 CELL DISC (HALF RATE DRIVE [15 TOOTH]) APPROXIMATE SEEDS/ACRE FOR 15" ROW WIDTH Transmission RPM/GS Speed 8INH2O, no sigulator 8INH2O, sigulator 3.3 Sprockets (Seed Disc Range RPM To Ground...

  • Page 135: Lubrication And Maintenance

    Model 3605 LUBRICATION Following pages show locations of all lubrication points. Proper lubrication of moving parts helps ensure efficient operation of your Kinze planter and prolongs the life of friction producing parts. LUBRICATION SYMBOLS Lubricate at frequency indicated Lubricate at frequency indicated with high with SAE multipurpose grease.

  • Page 136: Drive Chains

    Lubrication and Maintenance Lubrication and Maintenance Model 3605 M0312-01 DRIVE CHAINS Lubricate all transmission and drive chains daily with a high quality chain lubricant. Extreme operating conditions such as dirt, temperature, or speed may require more frequent lubrication. If a chain becomes stiff, it should be removed, soaked, and washed in solvent to loosen and remove dirt from joints.

  • Page 137: Bushings

    Lubrication and Maintenance Lubrication and Maintenance M0312-01 Model 3605 Inner Wheel Module Drive Chains Dry Fertilizer Drive Chains BUSHINGS Lubricate bushings at frequency indicated. Check each bolt for proper torque. If bolt is loose, removed it and inspect bushing for cracks and wear. Replace bushing if necessary.
  • Page 138 Lubrication and Maintenance Model 3605 M0312-01 Hose take-up (6 locations) Contact wheel arm (2 per wheel assembly) Safety hook at top of center section Transport latch (1 location) Split Row Push Unit Lockups - 2 per row Row unit mounted disc furrower parallel...

  • Page 139: Center Post

    Lubrication and Maintenance M0312-01 Model 3605 CENTER POST Any oil or grease on center post and poly NOTICE wear pads will attract dirt and accelerate wear. Do not lubricate center post and poly wear pads. Center post is clad with stainless steel. Keep stainless steel surface clean and free of any lubrication to prolong service life.

  • Page 140: Wheel Bearings

    Lubrication and Maintenance Model 3605 M0312-01 WHEEL BEARINGS All drive, transport, and marker hub wheel bearings should be repacked annually and checked for wear. 1. Raise wheel off ground. 2. Check for bearing endplay by moving wheel side to side.
  • Page 141 Lubrication and Maintenance M0312-01 Model 3605 Wing lift cylinders - 1 per cylinder Cam follower - 1 per follower Wing wheel pivot - 2 per wheel module Wing hinges - 4 per wing Wing locks - 3 per wing Transport wheel bearings - 1 per hub...
  • Page 142 Lubrication and Maintenance Model 3605 M0312-01 Gauge wheel arms - 1 per arm Double disc fertilizer opener - 1 (Seals in gauge wheel arm are installed with lip facing out to allow grease to purge dirt away from seal. Pump grease into arm until fresh grease appears between washers and arm.)
  • Page 143 Lubrication and Maintenance M0312-01 Model 3605 Dry fertilizer transmission - 2 per transmission Dry fertilizer hopper - 2 per hopper U-joint - 1 per hinge area 07/20...

  • Page 144: Mounting Bolts And Hardware

    All hardware used on the Kinze planter is Grade 5 (high strength) unless otherwise noted. Grade 5 cap screws are marked with three radial lines on the head. Hardware must be replaced with equal size, strength, and thread type.
  • Page 145 Lubrication and Maintenance M0312-01 Model 3605 CYLINDER ROD PISTON RETAINING NUT TORQUE VALUES - TRUE DEPTH HYDRAULIC DOWN FORCE TORQUE CHART Cylinder Head to Body: 95 Nm Non-Nylock Nut Nylock Nut Cylinder Piston to Rod: 68 Nm 55-70 ft-lb 45-55 ft-lb ½"-20...

  • Page 146: Tire Servicing

    Lubrication and Maintenance Model 3605 M0312-01 TIRE SERVICING Explosive separation of rim and tire WARNING parts can cause death or serious injury. Overinflation, rim and tire servicing, improper use of rims and tires, or worn or improperly maintained tires could result in a tire explosion.

  • Page 147: Finger Pickup Seed Meter Inspection/Adjustment

    Lubrication and Maintenance M0312-01 Model 3605 FINGER PICKUP SEED METER INSPECTION/ADJUSTMENT Brush attachment screw Finger tabs should contact carrier Baffle attachment to meter. plate in this area. Finger tabs should raise in this area. Meter attachment to hopper. Removing meter and baffle Proper finger operation 1.

  • Page 148: Cleaning Finger Pickup Seed Meter For Storage

    Lubrication and Maintenance Model 3605 M0312-01 7. Check indentations on carrier plate for wear before installing finger holder on carrier plate. Excessive wear of carrier plate at indentations will cause over planting especially with small sizes of seed. Inspect carrier plate annually.

  • Page 149: Brush-Type Seed Meter Maintenance

    Lubrication and Maintenance M0312-01 Model 3605 BRUSH-TYPE SEED METER MAINTENANCE Meter housing Stainless steel wear Upper brush band Seed disc Lower brush Upper brush retainer Brush-type seed meter seed disc installed Brush-type seed meter parts Use clean, high quality seed. Damaged or cracked seed, hulls, or foreign materials can become lodged in upper brush and greatly reduce meter accuracy.

  • Page 150: Cleaning Brush-Type Seed Meter For Storage

    Lubrication and Maintenance Model 3605 M0312-01 UPPER BRUSH Upper brush Upper brush holds seed in seed disc pocket in seed retention area. Brush must apply enough pressure against seed in Seed retention area seed disc pocket as disc rotates through seed retention area to prevent seed from dropping out of disc pocket.

  • Page 151: Vacuum Seed Meter Maintenance

    Lubrication and Maintenance M0312-01 Model 3605 VACUUM SEED METER MAINTENANCE Front Cover Seed Meter with Back Singulator Release Button Cover Removed Vacuum Front Cover Before each planting season inspect seed discs and singulator and clean or replace as needed. Use clean, high quality seed for maximum meter accuracy. Damaged or cracked seed, hulls, and foreign material may become lodged in seed disc orifices and greatly reduce meter accuracy.

  • Page 152: Chain Tension Adjustment

    Lubrication and Maintenance Model 3605 M0312-01 CHAIN TENSION ADJUSTMENT Drive chains have spring loaded idlers and are self-adjusting. Remove link to shorten chain if wear stretches chain and reduces spring tension. Check idler pivot points to make sure they rotate freely. See “Wrap Spring Wrench Assembly” in this section for additional information.

  • Page 153: Gauge Wheel Arm Bushing/Seal Replacement

    Bushing Bushing Gauge wheel arm bushings/seals NOTE: Gauge Wheel Arm Bushing and Seal Driver Kit (G1K296) is available through your Kinze Dealer. 1. Remove gauge wheel from arm. 2. Remove gauge wheel arm from shank assembly. 3. Remove seal and bushing and discard. Clean and dry inner bore.

  • Page 154: Gauge Wheel Arm Pivot Spindle Replacement

    Lubrication and Maintenance Model 3605 M0312-01 GAUGE WHEEL ARM PIVOT SPINDLE REPLACEMENT Pivot spindle cap screw 2⅞" Gauge Wheel Pivot Spindle 1. Remove gauge wheel and arm assemblies from shank assembly. 2. Remove ½" x ¾" cap screw that locks pivot spindle in place and remove spindle.

  • Page 155: 15" Seed Opener Disc Blade/Bearing Assembly

    Lubrication and Maintenance M0312-01 Model 3605 15" SEED OPENER DISC BLADE/BEARING ASSEMBLY Excessive blade contact may result NOTICE in premature disc opener bearing/hub failures and excessive wear on seed tube guard/inner scraper. When properly adjusted, if one blade is held in fixed...
  • Page 156 Lubrication and Maintenance Model 3605 M0312-01 REPLACE DISC BLADE/BEARING ASSEMBLY NOTE: Only bearing may need to be replaced if there is excessive endplay or if bearing sounds or feels rough when disc blade is rotated. 1. Remove gauge wheel, scraper, and bearing dust cap.

  • Page 157: Seed Tube Guard/Inner Scraper

    Lubrication and Maintenance M0312-01 Model 3605 SEED TUBE GUARD/INNER SCRAPER Seed tube guard protects seed tube and acts as inner scraper for seed opener disc blades. Remove seed tube and check for wear. Excessive wear on seed tube indicates a worn seed tube guard. Replace seed tube guard if it measures 16 mm or less at lower end.

  • Page 158: Row Unit Mounted Disc Furrower

    Lubrication and Maintenance Model 3605 M0312-01 ROW UNIT MOUNTED DISC FURROWER Lubricate bushings in support arm mounting bracket at frequency indicated in Lubrication of this section. Check each bolt for proper torque. If bolt is loose, it should be removed and bushing inspected for cracks and wear.

  • Page 159: Coulter Mounted Residue Wheels

    Lubrication and Maintenance M0312-01 Model 3605 COULTER MOUNTED RESIDUE WHEELS Wheel hubs are equipped with sealed bearings. If bearings sound or feel rough when wheel is rotated, replace them. Coulter mounted residue wheels ROW UNIT MOUNTED RESIDUE WHEEL Wheel hub is equipped with sealed bearings. If a bearing sounds or feels rough when wheel is rotated, replace them.

  • Page 160: Point Row Clutch Maintenance

    Lubrication and Maintenance Model 3605 M0312-01 SPIKED CLOSING WHEEL Inner parts of spiked closing wheel will begin to wear at approximately 70% of life. Flip/reverse wheel to utilize remaining life of wheel. Row Unit Spiked Closing Wheel POINT ROW CLUTCH MAINTENANCE Point row clutch is permanently lubricated and sealed and requires no periodic maintenance.
  • Page 161 Lubrication and Maintenance M0312-01 Model 3605 TESTING AND FUSE REPLACEMENT Control box L.H. point R.H. point main fuse row clutch row clutch Single speed point row clutch control box (Front View) NOTE: Replace all point row fuses with MDL 10 amp slow blow fuses.

  • Page 162: Check Valve (Lift System)

    CHECK VALVE (LIFT SYSTEM) Check valves, located in valve block on right side of center post, trap oil flow in planter’s lift system to keep toolbar level during field operation. Consult your Kinze Dealer for service. CHECK VALVE (VACUUM FAN) Check valve located in valve block below vacuum fan motor assembly operates as a return line check to prevent vacuum fan motor reverse operation.

  • Page 163: Solenoid Valve

    True Depth hydraulic down force system. These valves are factory set and should require no additional adjustment. Each valve acts independently and controls the fluid pressure on the cap end of the down force cylinder. Consult your Kinze Dealer for service. PWM FLOW CONTROL VALVE PWM flow control valve is used to control the fans on the Blue Drive equipped planters.

  • Page 164: Row Marker Bearing Lubrication Or Replacement

    Lubrication and Maintenance Model 3605 M0312-01 ROW MARKER BEARING LUBRICATION OR REPLACEMENT Grease seal Outer cup Bearing Flat washer Spindle Slotted hex nut Dust cap Inner cup Marker blade Hub shield Bearing Cotter pin Retainer 1. Remove retainer and marker blade.

  • Page 165: Row Marker Transport Stand Adjustment

    Lubrication and Maintenance M0312-01 Model 3605 ROW MARKER TRANSPORT STAND ADJUSTMENT Row marker transport stands must be correctly adjusted to allow marker cushion cylinders to function properly. Transport stand 1. Raise markers to transport position. 2. Loosen mounting hardware to allow transport stands to drop down or remove transport stands.

  • Page 166: Wear Pad Field Replacement/Adjustment

    Lubrication and Maintenance Model 3605 M0312-01 WEAR PAD FIELD REPLACEMENT/ADJUSTMENT Over tightening wear pads will cause NOTICE premature wear and excessive hydraulic lift pressures. Torque wear pads to 14 Nm. Do not over tighten wear pads. Replace if less than ⅛"...
  • Page 167 Lubrication and Maintenance M0312-01 Model 3605 MAJOR PAD ADJUSTMENT Loosen cam rollers Loosen four cap mounting nuts Loosen cam rollers so they move freely. Lower planter to field operation position and release wing locks. Eliminate all uplift on planter frame by backing off row unit down pressure springs and uplift on any other planter attachments.
  • Page 168 Lubrication and Maintenance Model 3605 M0312-01 PAD REPLACEMENT Improperly operating or working on WARNING this equipment could result in death or serious injury. Read and follow all instructions before operating or working on this equipment. Loosen cam rollers so they move freely as shown.
  • Page 169 Lubrication and Maintenance M0312-01 Model 3605 Retaining Clip Pad Holder New Pad and Retaining Clip Wear Pad in Pad Holder Install new pad using retaining clip. Repeat for other side of pad holder. Reinstall pad holder in center section. Over tightening wear pads will cause...

  • Page 170: Tractor Mounted Pto Pump And Oil Cooler Option

    Lubrication and Maintenance Model 3605 M0312-01 TRACTOR MOUNTED PTO PUMP AND OIL COOLER OPTION Drain reservoir, clean strainer and change filter annually. Reservoir 1. Disconnect suction line (hose between reservoir and pump) from reservoir and drain. To fully drain tank, raise planter to field raised position.
  • Page 171 Lubrication and Maintenance M0312-01 Model 3605 PREPARATION FOR STORAGE Store planter in a dry sheltered area if possible. Remove all trash wrapped on sprockets or shafts and remove dirt that can draw and hold moisture. Clean all drive chains and coat with a rust preventative spray, or remove chains and submerge in oil.

  • Page 172: Fertilizer Check Valve Cleaning And Repair

    Lubrication and Maintenance Model 3605 M0312-01 FERTILIZER CHECK VALVE CLEANING AND REPAIR Spring Valve ball Guide O-ring Valve seat Direction of flow 1. Unscrew valve body and separate halves. Note direction and location of parts. 2. Clean and inspect parts. Flush with clean water. Replace damaged parts.

  • Page 173: Electrical Control Console Schematic

    Lubrication and Maintenance M0312-01 Model 3605 ELECTRICAL CONTROL CONSOLE SCHEMATIC NOTE: Disconnect control console from tractor battery before doing any electrical work. Keep wiring harnesses away from high temperature areas or sharp edges. DO NOT route wiring harnesses along battery cables.

  • Page 174: Valve Block - Located On Hitch

    Lubrication and Maintenance Model 3605 M0312-01 VALVE BLOCK - LOCATED ON HITCH Ground Clamp - Attached To Valve Block Ground Ground Ground GREEN Ground Terminal Ground strip 6. ORANGE/ 4. ORANGE/ 2. BLUE/ 1. BLACK/RED 3. BLUE/ 5. ORANGE/ 1. BLACK/RED - Pin “C” (Ground) 2.

  • Page 175: Valve Block - Located On Rear Center Frame

    Lubrication and Maintenance M0312-01 Model 3605 VALVE BLOCK - LOCATED ON REAR CENTER FRAME Ground Terminal Ground Strip 12. Yellow/Red 11. Yellow/Red 16. L.H. (Point Row) Red 10. Brown 15. R.H. (Point Row) Red 9. Orange 8. Blue 7. Red Ground 6.

  • Page 176: Hydraulic Hose Life

    Lubrication and Maintenance Model 3605 M0312-01 HYDRAULIC HOSE LIFE Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries. Fluid injected under skin must be IMMEDIATELY removed by a surgeon familiar with this type of injury.

  • Page 177: Hydraulic System Schematic

    Lubrication and Maintenance M0312-01 Model 3605 HYDRAULIC SYSTEM SCHEMATIC Rotate Cylinder Tongue Cylinder Valve Block Located on Red BB (Pressure) Hitch Blue BB (Pressure) Blue AA (Return) Red AA (Return) Rotate Latch Cylinder Tongue Latch Cylinder 1000 PSI Solenoid Valve...
  • Page 178 Lubrication and Maintenance Model 3605 M0312-01 Hydraulic System Schematic 12 Row (One Wing Lift Cylinder Per Wing) and 16 Row Shown (Two Wing Lift Cylinders Per Wing) Auxiliary Marker Speed Lower R.H. Wing L.H. Wing Lock Lock Cylinder Cylinder R.H. Marker L.H.
  • Page 179 Lubrication and Maintenance M0312-01 Model 3605 For Blue Drive Hydraulic Schematics see Parts Manual. x i l i Check Valve Solenoid Valve l i n l i n Row Marker Flow Control Valve i s e cated on er Frame...

  • Page 180: Hydraulic Schematic - Vacuum Fan Motor System

    Lubrication and Maintenance Model 3605 M0312-01 HYDRAULIC SCHEMATIC - VACUUM FAN MOTOR SYSTEM Fan motor assembly Drain hose Return Case drain Relief valve Case drain (⅜" hose) Pressure Check valve Vaccum fan motor valve block assembly Return (⅝" hose) Pressure (½" hose) HYDRAULIC SCHEMATIC - OPTIONAL TRACTOR DRIVEN PTO PUMP AND OIL COOLER SYSTEM Return (⅝"...

  • Page 181: Wing Down Pressure Schematic

    Lubrication and Maintenance M0312-01 Model 3605 WING DOWN PRESSURE SCHEMATIC (WEIGHT TRANSFER MECHANISM) Wing down pressure valve block 6-47 07/20...

  • Page 182: Electrical Control Console Connections - Isobus

    Lubrication and Maintenance Model 3605 M0312-01 ELECTRICAL CONTROL CONSOLE CONNECTIONS - ISOBUS MARKERS FUNCTION LEFT RIGHT PLANT FOLD VACUUM WORK AXLE FOLD DP INCR L INCR R INCR LIGHTS WING HITCH DP DECR L DECR R DECR LATCH ONLY SW12...
  • Page 183 Lubrication and Maintenance M0312-01 Model 3605 Wire Hookup Chart (Continued) Reference From Color Function Designator SW5-2 SW11-2 Jumper Wire SW8-1 SW8-3 Jumper Wire SW1-3 SW2-5 Jumper Wire SW1-1 SW4-2 Jumper Wire SW1-2 Tractor Power SW8-2 Tractor Power SW2-4 Marker LED...

  • Page 184: Power Pack Wiring Diagram (Blue Drive)

    Lubrication and Maintenance Model 3605 M0312-01 POWER PACK WIRING DIAGRAM (BLUE DRIVE) W10P2 W3E2 ALTERNATOR 12V RELAY K2 ROW UNIT W4E1 W4E2 W10E4 W10E3 W5E2 CIRCUIT W10P1 BREAKER CIRCUIT BREAKER W1E1 W5E1 W8E1 W2E2 W2E1 12V RELAY K1 W3E1 W10E1...

  • Page 185: Cables And Harnesses

    Lubrication and Maintenance M0312-01 Model 3605 Component Hookup Chart, P/N 10112901 Reference From Used with Used with Color Function Designator Item Item K1A2- Power K1A1+ GB1+ Power GB1+ K2A1+ Power K2A2- CB2, Line Power CB1, CB2, Line Power Line Power...
  • Page 186 Lubrication and Maintenance Model 3605 M0312-01 Ethernet Cables Color From White/Orange P1-1 P2-1 White/Green P1-2 P2-2 Orange P1-3 P2-3 Green P1-4 P2-4 M12 x 1.0 Straight M12 x 1.0 Straight Ethernet Cable Part Number Description A22554- Ethernet Ca CAT 5E (M12 STR-M12 STR) M12 x 1.0 Straight...
  • Page 187 Lubrication and Maintenance M0312-01 Model 3605 M12 x 1.0 RA M12 x 1.0 Straight Ethernet Cable Part Number Description A24488- Ethernet Ca CAT 5 (M12 RA-M12 STR) M12 x 1.0 RA M12 x 1.0 RA Ethernet Cable Part Number Description...
  • Page 188 Lubrication and Maintenance Model 3605 M0312-01 Harness Row Unit Power Extension PART NUMBER REV X/ DATE VENDOR ID P/N A25029 Signal Wire Gauge Color FROM Power J1-1 P1-1 Ground Black J1-2 P1-2 Power J1-3 P1-3 Ground Black J1-4 P1-4 Strapping...
  • Page 189 Lubrication and Maintenance M0312-01 Model 3605 Worklights Relay Harness WORKLIGHT RELAY WORKLIGHT POWER A22547 REV X DATE VENDOR ID WORKLIGHT CONTROL P/N A22547 Signal Wire Gauge Color From Worklight Power - Blue P3-1 P1-1 Worklight Power + P3-2 XK1-30 Relay Ground...
  • Page 190 Lubrication and Maintenance Model 3605 M0312-01 Wing IPP Harness TERM IPN-J6 PART NUMBER REV / DATE IPN-J7 VENDOR ID P/N A25214 Signal Wire Gauge Color From RS232 RX 18(TP) P1-1 P3-1 RS232 TX 18(TP) P1-2 P3-2 CAN HI 18(TP) P2-1...
  • Page 191 Lubrication and Maintenance M0312-01 Model 3605 RU Seed Meter Harness Wire Hookup Chart, P/N A25038/A25039 Reference From Gauge Color Function Designator P1-1 P2-1 Seed Meter Motor #1, + P1-2 P2-2 White Seed Meter Motor #1, - P1-3 P2-4 Black Seed Meter Motor #2, -...
  • Page 192 Lubrication and Maintenance Model 3605 M0312-01 Worklight Harness (Ground Contact Drive) Wire Hookup Chart, P/N A24605 Reference From Gauge Color Function Designator P1-A White Ground P1-B Black Power White Ground P3-1 White Ground P2-2 Black Power P3-2 Black Power Worklight Switch Harness (Ground Contact Drive)
  • Page 193 Lubrication and Maintenance M0312-01 Model 3605 Worklight Switch Harness (Ground Contact Drive) FERT SENSOR ROW 10/15 P1 STUB WING PART NUMBER FERT CUTOFF REV/DATE ROW 10/15 VENDOR ID Wire Hookup Chart, P/N A25714 Reference From Gauge Color Function Designator Fertilizer Row Cutoff Valve...
  • Page 194 Lubrication and Maintenance Model 3605 M0312-01 Integrated True Depth RU Harness FERT/IPP HARNESS IPN-J7 P3 - TRUE DEPTH PART NUMBER REV LINK DATE SENSOR VENDOR ID SHIELD Wire Hookup Chart, P/N A26709 Reference From Gauge Color Function Designator P1-1 J7-1...
  • Page 195 Lubrication and Maintenance M0312-01 Model 3605 4K RU Seed Meter Harness Wire Hookup Chart, P/N A25203 Reference From Gauge Color Function Designator P1-1 P2-1 Seed Meter Motor #1, + P1-2 P2-2 White Seed Meter Motor #1, - P1-3 P2-4 Black...
  • Page 196 Lubrication and Maintenance Model 3605 M0312-01 Tail Light Harness P4 (RH) W.LIGHT P6 (RH) PART NUMBER REV / DATE VENDOR ID P5 (LH) W.LIGHT P3 (LH) Wire Hookup Chart, P/N 10174301 Reference From Gauge Color Function Designator P2-1 J3-B White...
  • Page 197 12V Power P1-4 Black 12V Ground Black 12V Ground P2-4 Black 12V Ground 3605 BDBV Raise Harness Adapter E1 LM+ E2 RM+ PART NUMBER E3 RAISE+ REV / DATE VENDOR ID E4 GND E5 WL+ Wire Hookup Chart, P/N 10172501...
  • Page 198 Lubrication and Maintenance Model 3605 M0312-01 Tractor Power Harness TRACTOR CONSOLE POWER POWER 12V (PWR) RELAY PART NUMBER 12V (GND) REV / DATE VENDOR ID Wire Hookup Chart, P/N 10132601 Reference From Gauge Color Function Designator 12V Power XK1-30 12V Power...
  • Page 199 Lubrication and Maintenance M0312-01 Model 3605 3605 Rotation Plug-In Harness P 1 1 TERM ROTATE-J7 ROTATE-J6 PART NUMBER J1 - ROTATE REV / DATE HYD BLOCK VENDOR ID ROTATE-J5 P5-VAC PRESS SENSOR ROTATE-J4 SPEED 6-65 07/20...
  • Page 200 Lubrication and Maintenance Model 3605 M0312-01 Wire Hookup Chart, P/N 10166701 Reference From Gauge Color Function Designator P1-1 P10-1 Orange IPP RS232 RX P1-2 P10-2 Brown IPP RS232 TX P1-3 P6-1 Vacuum Solenoid (+) P1-4 P6-2 Black Vacuum Solenoid (-)
  • Page 201 Lubrication and Maintenance M0312-01 Model 3605 3605 Raise Plug-In Harness POWER PACK RAISE J6 RAISE J7 RAISE J5 RAISE J4 PART NUMBER J1 - RAISE P6 - RH REV / DATE HYD BLOCK IMPLEMENT VENDOR ID WORKLIGHT RELAY Wire Hookup Chart, P/N 10166801...
  • Page 202 Lubrication and Maintenance Model 3605 M0312-01 12V Power Harness IPR-J10 BF/DF-J3 ROTATE-J3 FUSE (30A) PART NUMBER REV / DATE RAISE-J3 VENDOR ID WORKLIGHT Wire Hookup Chart, P/N 10158001 Reference From Gauge Color Function Designator J1-3 12V DC (Unprotected Power) XF1-1...
  • Page 203 Lubrication and Maintenance M0312-01 Model 3605 LED Worklight Harness WORKLIGHT WORKLIGHT PART NUMBER RELAY REV / DATE VENDOR ID WORKLIGHT Wire Hookup Chart, P/N 10171901 Reference From Gauge Color Function Designator J1-1 Black 12V DC (-) J1-2 12V DC (+)
  • Page 204 Color PCOM 12V DC Power C, E Ground Black CAN H Yellow CAN L Green 3605 Rotation Harness Adapter TONGUE + TONGUE + TONGUE + PART NUMBER REV / DATE VENDOR ID ROTATE + ROTATE + E1 GND Wire Hookup Chart, P/N 10150201...
  • Page 205 Lubrication and Maintenance M0312-01 Model 3605 Integrated True Depth Harness DUMP (A2) TRUE DEPTH PART NUMBE R PRESSURE REV / DATE SENSOR VENDOR ID SHUT OFF (A3) Wire Hookup Chart, P/N A26713 Reference From Gauge Color Function Designator P4-1 P2-1...
  • Page 206 Lubrication and Maintenance Model 3605 M0312-01 Bulk Fill PDP Harness BF PRESS SENSOR BF FAN HYD BLOCK BF/DF-J7 PDP VALVE SP3 SP4 SP5 PART NUMBER PDP PRESS REV / DATE BF/DF-J5 SENSOR VENDOR ID TRUE DEPTH BF/DF-J4 Wire Hookup Chart, P/N 10260101...
  • Page 207 Lubrication and Maintenance M0312-01 Model 3605 12V Power Harness IPR-J10 BF/DF-J3 ROTATE-J3 FUSE (30A) PART NUMBER REV / DATE RAISE-J3 VENDOR ID WORKLIGHT Wire Hookup Chart, P/N 10152701 Reference From Gauge Color Function Designator J1-3 12V DC (Unprotected Power) XF1-1...
  • Page 208 This page left blank intentionally.

  • Page 209: Troubleshooting

    Troubleshooting M0312-01 Model 3605 BULK FILL PROBLEM POSSIBLE CAUSE SOLUTION Seed does not travel through delivery tubes. System pressure set too low. Increase system pressure. Seed stops flowing to row unit during planting. Seed surging. Shut down bulk fill system and restart system from idle; seed should start flowing.

  • Page 210: Lift Circuit

    Switch remote outlets being used. Repair tractor hydraulics. Planter may be overloaded with hopper extensions and/or extra Remove weight. fertilizer tanks, coulters or other non-Kinze attachments. Center pivot wear pads may be adjusted too tight and are binding Adjust pads. on the post.

  • Page 211: Pto Pump Drive And Oil Cooler Option

    Troubleshooting M0312-01 Model 3605 PTO PUMP DRIVE AND OIL COOLER OPTION PROBLEM POSSIBLE CAUSE SOLUTION Pump is squealing. Lack of oil to pump. Check for plugged suction strainer. Check oil level. Oil temperature is high. Low oil level. Check oil level and add as required.

  • Page 212: Rotation Circuit

    Troubleshooting Model 3605 M0312-01 ROTATION CIRCUIT PROBLEM POSSIBLE CAUSE SOLUTION Cylinder does not extend, but will retract. Solenoid valve coil in port V12 defective. Switch coil from port V12 with coil in port V9. If cylinder extends but will not retract, replace defective coil from port V12.

  • Page 213: Seed Meter (Brush-Type)

    Troubleshooting M0312-01 Model 3605 SEED METER (BRUSH-TYPE) PROBLEM POSSIBLE CAUSE SOLUTION Low count. Meter RPM too high. Reduce planting speed. Seed sensor not picking up all seeds dropped. Clean seed tube. Switch meter to different row. If problem stays in same row, replace sensor.

  • Page 214: Seed Meter (Vacuum)

    Troubleshooting Model 3605 M0312-01 SEED METER (VACUUM) PROBLEM POSSIBLE CAUSE SOLUTION Low seed count. Meter RPM too high. Reduce planting rate or planting speed. Singulator brush setting too aggressive. Adjust singulator brush. Vacuum level too low. Increase fan speed. Seed sensor not picking up all seeds dropped.
  • Page 215 Troubleshooting M0312-01 Model 3605 SEED METER (VACUUM) - Continued PROBLEM POSSIBLE CAUSE SOLUTION Not planting seed. (Continued) Seed baffle (If Applicable) not allowing seed flow due to bridging of seed. Thoroughly mix talc to coat all seeds. Remove seed baffle. See “Seed Meter” in Seed Meter Operation/ Maintenance section.

  • Page 216: Seed Meter (Finger Pickup)

    Troubleshooting Model 3605 M0312-01 SEED METER (FINGER PICKUP) PROBLEM POSSIBLE CAUSE SOLUTION Drive release not engaged. Engage drive release mechanism. One row not planting seed. Foreign material in hopper. Clean hopper and finger carrier mechanism. Seed hopper empty. Fill seed hopper.

  • Page 217: Tongue Cylinder Circuit

    Troubleshooting M0312-01 Model 3605 TONGUE CYLINDER CIRCUIT PROBLEM POSSIBLE CAUSE SOLUTION Tongue cylinder will not extend, but will retract. No power to solenoid valve coil in port V10 and/or V14. Both must Check wiring between control console and solenoid coils looking be energized.
  • Page 218 This page left blank intentionally...
  • Page 220 Kinze Manufacturing, Inc. I-80 at Exit 216 North, Williamsburg, Iowa 52361...

Table of Contents

Save PDF
