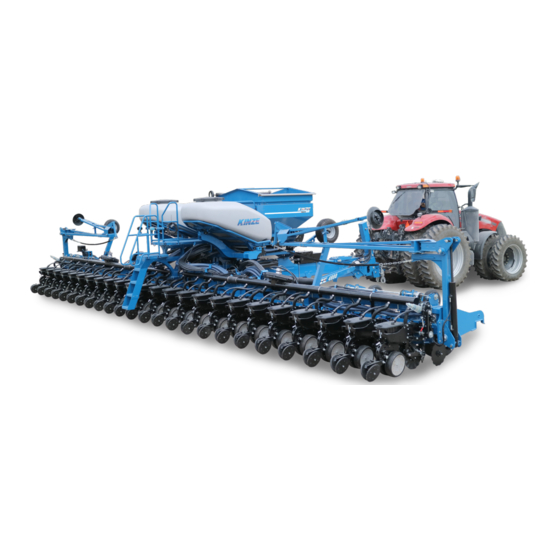

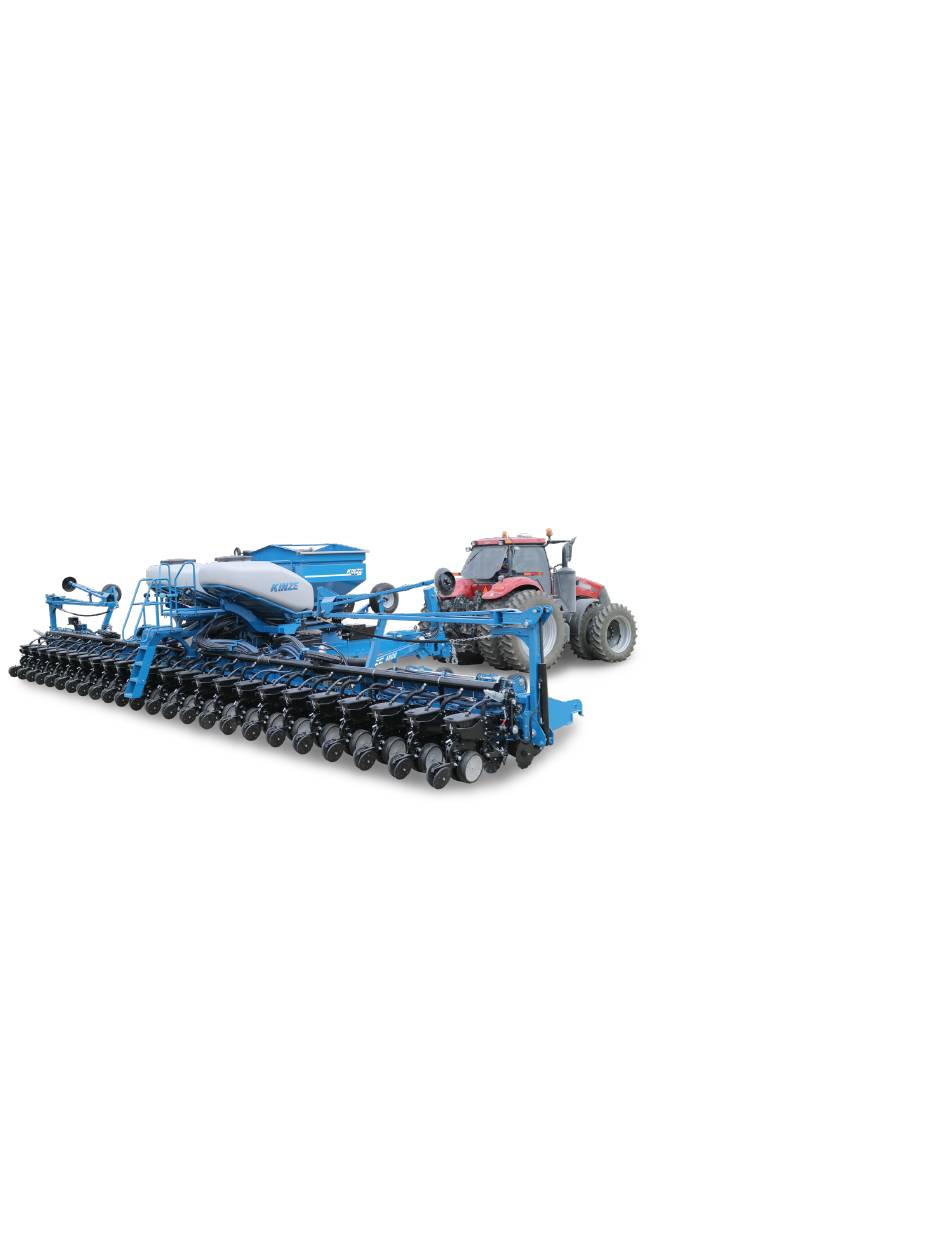

Page 1 OPERATOR’S MANUAL M0282-01 MODEL 4800 70CM EXPORT FRONT FOLD PLANTER 02/20...
Page 5 Predelivery/Delivery Checklist M0282-01 Model 4800 TO THE DEALER Predelivery service includes assembly, lubrication, adjustment and test. This service helps ensure planter is delivered to retail customer/end user ready for field use. PREDELIVERY CHECKLIST Use the following checklist after planter is completely assembled. Check off each item as it is found satisfactory or after proper adjustment is made.
Page 6 Predelivery/Delivery Checklist Model 4800 M0282-01 DELIVERY CHECKLIST Use the following checklist at time planter is delivered as a reminder of very important information which should be conveyed to retail customer/end user. Check off each item as it is fully explained.
Page 7 The serial number plate is located on the planter frame as shown below. The serial number provides important information about your planter and is needed to obtain correct replacement parts. Always provide model number and serial number to your Kinze Dealer when ordering parts or when contacting Kinze Manufacturing, Inc. Serial Number Plate Location...
Page 8 This page intentionally left blank.
Page 9: Table Of Contents
Row Marker Operation using Control Box . . . . . . . . . . . . 2-33 Depth/Gauge Wheel Attachment for Notched Single Disc Row Marker Operation using kinze Blue vantage system 2-34 01/19...
Page 10 Model 4800 M0282-01 Fertilizer Opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 Harness PDP PWR .
Page 11 M0282-01 Model 4800 Bulk Fill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 Closing Wheel .
Page 12: To The Owner
M0282-01 Model 4800 Kinze Manufacturing, Inc . thanks you for your patronage . We appreciate your confidence in Kinze farm machinery . Your Kinze planter has been carefully designed to provide dependable operation in return for your investment . This manual has been prepared to aid you in the operation and maintenance of the planter. It should be considered a permanent part of the machine and remain with the machine when you sell it.
Page 13 NOTE: Some photos in this manual may have been taken of prototype machines. Production machines may vary in appearance. NOTE: Some photos and illustrations in this manual show optional attachments installed. Contact your Kinze Dealer for purchase of optional attachments.
Page 14: Warranty
Warranty And Delivery Receipt to the Kinze Dealer for service . Kinze warranty does not include cost of travel time, mileage or hauling . Any prior arrangement made between the Dealer and the retail purchaser in which the Dealer agrees to absorb all or part of this expense should be considered a courtesy to the retail purchaser .
Page 15 Model 4800 M0282-01 Information used in these instructions was current at time of printing . However, due to Kinze’s ongoing product improvement, production changes may cause your machine to appear slightly different in detail . Kinze Manufacturing, Inc . reserves the right to change specifications or design without notice and without incurring obligation to install the same on machines previously manufactured .
Page 16: Specifications
Specifications M0282-01 Model 4800 SPECIFICATIONS - GROUND CONTACT DRIVE Specification Bulk Fill Bulk Fill with Dry Fer- Bulk Fill with Liquid Conventional tilizer Fertilizer Number of Rows Row Spacing 70 cm 70 cm 70 cm 70 cm Weight Empty 14670 kg...
Page 17: Tire Specifications
Power Beyond requires an external load signal . Kinze suggests that if Power Beyond must be used, only the bulk fill circuit be connected using all three connections (Pressure, Return, Load Sense) . Consult your tractor manufacturer to ensure proper connection, hydraulic flow, pressure and heat dissipation are met .
Page 18: Specifications
All 4800 planters require an external case drain hose. • All SCVs should be set to max flow at all times with the exception of the bulk fill circuit on mechanical 4800. • Tractor RPM not recommended below 1750 RPM.
Page 19: General Safety Rules
. If you install such drives, follow all appropriate safety standards and practices to protect you and others Model 4800 planter consists of 85% recyclable metals, 10% near this planter from injury . recyclable plastic and rubber, and 5% waste .
Page 20: Safety Precautions
Safety Precautions M0282-01 Model 4800 Following are some common hazard warnings associated with this equipment . Pay close attention to all safety, operating, and maintenance information in this manual and decals applied to your equipment . Contacting or coming close to power...
Page 21 Safety Precautions Model 4800 M0282-01 SAFETY SIGNS AND DECALS All safety/warning lights, reflective WARNING decals, and SMV sign must be in place and visible before transporting machine on public roads or death, serious injury, and damage to property and equipment may result.
Page 22: Machine Operation
Machine Operation M0282-01 Model 4800 LOADING AND UNLOADING The planter is to be rolled on and off the trailer. If roll- on-off is not possible, lift locations have been identified by a label. ROW MARKER SAFETY LOCKUP Row marker can lower at any time and WARNING could cause death or serious injury.
Page 23: Transport Axle Cylinder Safety Lockup
Machine Operation Model 4800 M0282-01 TRANSPORT AXLE CYLINDER SAFETY LOCKUP Transport axle can lower from transport WARNING position without the use of any controller, causing death, serious injury, or damage to property and equipment. Do not operate any hydraulic function while transporting the planter.
Page 24: Drawbar Hitch Lockup
Machine Operation M0282-01 Model 4800 Tanks must be empty when transporting WARNING to avoid death, serious injury, or damage to property or equipment. Do not pull planters in transport configuration with seed or fertilizer in tanks. Planter hitch may raise uncontrollably...
Page 25: Wing Latch Lockup
Machine Operation Model 4800 M0282-01 WING LATCH LOCKUP Place pin here during operation Place pin here during transport Hitch Release from Wing Latch Improperly operating or working on WARNING this equipment could result in death or serious injury. Read and follow all instructions in Operator Manual before operating or working on this equipment.
Page 26 Machine Operation M0282-01 Model 4800 Row Marker (Not Shown) Contact Drive (N/A with Blue Vantage System) Transport Wing Tire Locations (R.H. shown) 1. Torque transport wheel ¾"- 16 lug nuts to 244 Nm. 2. Inflate tire. See “Tire Specifications” on page 1-6.
Page 27: Tractor Requirements
Machine Operation Model 4800 M0282-01 TRACTOR REQUIREMENTS Loss of control of equipment during WARNING transport can result in death, serious injury, or damage to property and equipment. Tractor gross weight must be greater than planter gross weight with attachments and options.
Page 28: Hydraulics
Machine Operation M0282-01 Model 4800 BULK FILL TRACTOR MOUNTED PTO PUMP AND PLANTER MOUNTED HYDRAULICS One-section PTO Hydraulic Pump Two-section PTO Hydraulic Pump PTO Oil Reservoir OIL SPECIFICATION Hydraulic transmission oil is used in the planter and PTO. The oil chemical properties: Viscosity, mm2/s @ 100 ºC.
Page 29: Tractor Preparation And Hookup
Machine Operation Model 4800 M0282-01 Bulk fill/vacuum meter equipped planters require a 1¾" (~5 cm)-20 or 1³/8"(~4 cm)-21 spline 1000 RPM PTO to operate PTO-driven two section hydraulic pump capable of supplying 98 l/min to vacuum and bulk fill fans.
Page 30 Machine Operation M0282-01 Model 4800 Routing of hydraulic hoses from planter NOTICE to tractor is very important. If done improperly, hoses can be pinched, cut or broken when planter is operated. Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries.
Page 31 Machine Operation Model 4800 M0282-01 3. Connect hydraulic hoses to tractor ports in a sequence familiar and comfortable to the operator. Refer to chart on the following page. Color and Label Machine Function Hose Size Hose Function Red AA Pressure/Return ½"...
Page 32: Cylinder Information
Machine Operation M0282-01 Model 4800 CYLINDER INFORMATION Drawbar Hitch Row Marker Cylinder Fold Cylinder Wing Cylinder Master Cylinder Cylinder Double acting Double acting Double acting Double acting Double acting Intended Use applications applications applications applications applications Piston Ductile iron Ductile iron...
Page 33 Machine Operation Model 4800 M0282-01 CYLINDER INFORMATION Wing Down Pressure Cylinder Wing Hooks Hitch Latch Intended Use Double acting applications Double acting applications Double acting applications Piston Ductile iron Ductile iron Ductile iron Gland Ductile iron Ductile iron Ductile iron...
Page 34: Hydraulic Hose Information
Machine Operation M0282-01 Model 4800 HYDRAULIC HOSE INFORMATION Part Number A3155 A3290 A3387 A7678-17 A7678-19 A7679-24 Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Description ⅜” x 28” ⅜” x 98” 3⁄4” X 100” 1⁄4” X 17”...
Page 35 Machine Operation Model 4800 M0282-01 HYDRAULIC HOSE INFORMATION Part Number A12776 A12935-250 A12935-262 A12935-309 A15056 A15071-115 Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Description ½” x 252” 3⁄4” x 250” 3⁄4” x 262” 3⁄4” x 309”...
Page 36: Hydraulic Hose Information
Machine Operation M0282-01 Model 4800 HYDRAULIC HOSE INFORMATION Part Number A15081-148 A15081-205 A15081-248 A15081-295 A15081-310 A15081-365 Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Description ⅜" x 148” ⅜" x 205” ⅜" x 248” ⅜" x 295”...
Page 37: Hydraulic Hose Information
Machine Operation Model 4800 M0282-01 HYDRAULIC HOSE INFORMATION Part Number A18666-390 A18667-41 A18667-53 A18667-88 A18667-200 A18667-215 Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Description 1⁄2" x 390” 1⁄2" x 41” 1⁄2" x 53” 1⁄2" x 88”...
Page 38: Hydraulic Hose Information
Machine Operation M0282-01 Model 4800 HYDRAULIC HOSE INFORMATION Part Number A18674-36 A18674-415 A18671-482 A18673-115 A18674-36 A18674-415 Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Description 1⁄2” x 36” 1⁄2" x 415” 1⁄2" x 482” 1⁄2" x 115”...
Page 39: Hydraulic Hose Information
Machine Operation Model 4800 M0282-01 HYDRAULIC HOSE INFORMATION Part Number A21533-13.5 A21533-26 A21533-30 A11481-217 A11481-284 A11482-30 Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Description 3⁄4" x 13.5” 3⁄4" x 26” 3⁄4" x 30” ” x 217”...
Page 40: Hydraulic Hose Information
Machine Operation M0282-01 Model 4800 HYDRAULIC HOSE INFORMATION Part Number A18686-482 A21525-12 A21533-13.5 A21534-114 A21536-242 A25704-128 Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Hose Assembly Description 1⁄2” x 482” ¾” x 13.5” 1⁄2” x 128” ” x 12”...
Page 41: Hydraulic Hose Information
Machine Operation M0282-01 Model 4800 HYDRAULIC HOSE INFORMATION Part Number A25704-128 A25704-242 Hose Assembly Hose Assembly Description 1⁄2” x 128” 1⁄2” x 242” (~325,12 cm) (~614,68 cm) JIC Size* 08F - 08M 08F - 08M Product Hydraulic Hose Hydraulic Hose...
Page 42: Transporting Planter
Machine Operation Model 4800 M0282-01 TRANSPORTING PLANTER Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety pins before transporting equipment. Uncontrolled machine movement can...
Page 43: Level Planter
If planter center is higher or lower than wings after rephasing, contact your Kinze Dealer for valve adjustment or maintenance.
Page 44: Field Operation
Machine Operation Model 4800 M0282-01 FIELD OPERATION Planters are designed to operate within a speed range of 3 - 13 km/h. Higher ground speeds can cause more variation in seed spacing. Speeds above 10 km/h are typically not recommended. Always raise planter out of ground when NOTICE making sharp turns or backing up.
Page 45: Transport To Field Sequence Using Control Box
Machine Operation M0282-01 Model 4800 TRANSPORT TO FIELD SEQUENCE USING CONTROL BOX Position planter in a relatively flat open area without furrows, etc. It is critically important to follow the fold NOTICE and unfold sequence to avoid possible significant damage to the planter.
Page 46 Machine Operation Model 4800 M0282-01 DO NOT fold or unfold planter without NOTICE planter attached to a tractor. DO NOT unhitch planter from tractor unless fully folded for transport or fully unfolded with planting units lowered to ground. When adjusting vacuum fans with the...
Page 47 Machine Operation M0282-01 Model 4800 2. Place FUNCTION switch on control box in fold MARKERS FUNCTION position. LEFT RIGHT PLANT FOLD 3. Operate the proper hydraulic tractor control and press and hold the AXLE switch up to lower transport axle to...
Page 48 Machine Operation Model 4800 M0282-01 5. Operate the proper hydraulic tractor control and MARKERS FUNCTION press and hold the WING LATCH switch down to unlatch wings. LEFT RIGHT PLANT FOLD VACUUM WORK AXLE FOLD DP INCR L INCR R INCR...
Page 49: Transport To Field Sequence Using Kinze Blue Vantage
7. Move drawbar hitch to level machine during planting. 8. Lower planter and hold hydraulic lever until toolbar is level. TRANSPORT TO FIELD SEQUENCE USING KINZE BLUE VANTAGE SYSTEM NOTE: Refer to the Blue Vantage (M0288) manual for more information. 2-28...
Page 50: Field To Transport Sequence Using Control Box
Machine Operation Model 4800 M0282-01 FIELD TO TRANSPORT SEQUENCE USING CONTROL BOX Position planter in a relatively flat open area without furrows, etc. It is critically important to follow the fold NOTICE and unfold sequence to avoid possible significant damage to the planter.
Page 51 Machine Operation M0282-01 Model 4800 DO NOT fold or unfold planter without NOTICE planter attached to a tractor. DO NOT unhitch planter from tractor unless fully folded for transport or fully unfolded with planting units lowered to ground. If equipped with row markers, remove lockups from storage and install on marker cylinder rods.
Page 52 Machine Operation Model 4800 M0282-01 Unfolding planter without using tractor NOTICE to assist may cause equipment damage especially in soft conditions or when loaded with seed or fertilizer. Use tractor to reduce stress on frame, drive, and transport components. Operate the proper hydraulic tractor control...
Page 53: Field To Transport Sequence Using Kinze Blue Vantage
8. Raise transport axle. 9. Install locking pin on drawbar. 10. Install lockups. Locking pin storage Locking Pin for Drawbar Hitch FIELD TO TRANSPORT SEQUENCE USING KINZE BLUE VANTAGE SYSTEM NOTE: Refer to the Blue Vantage (M0288) manual for more information. 2-32 01/19...
Page 54: Row Marker Operation Using Control Box
Machine Operation Model 4800 M0282-01 ROW MARKER OPERATION USING CONTROL BOX Contacting or coming close to power DANGER lines or other high energy sources will cause death or serious injury. Keep away from power lines or high energy sources at all times.
Page 55: Row Marker Operation Using Kinze Blue Vantage System
• Check fuse. • Check wiring connections. • Check control switch. • Check solenoid. SOLENOID HOUSING IS MAGNETIZED WHEN ENERGIZED. ROW MARKER OPERATION USING KINZE BLUE VANTAGE SYSTEM NOTE: Refer to the Blue Vantage (M0288) manual for more information. 2-34 01/19...
Page 56: Row Marker Speed Adjustment
Machine Operation Model 4800 M0282-01 ROW MARKER SPEED ADJUSTMENT Excessive row marker travel speed NOTICE can damage row markers. Adjust flow controls before row markers are first used. Marker hydraulic system includes two flow control valves. One flow control valve sets lowering speed and one sets raising speed of both markers.
Page 57: Row Marker Cable Adjustment
Machine Operation M0282-01 Model 4800 ROW MARKER CABLE ADJUSTMENT Uncontrolled marker movement can WARNING cause death or serious injury. Set marker switch to OFF and shut off tractor prior to adjustment. NOTE: Operate two-fold or three-fold row markers with the tractor's hydraulic valve in float position.
Page 58: Row Marker Length And Disc Blade Adjustment
7. Do a field test to ensure markers are properly adjusted (see “Field Test” on page 2-44). NOTE: A notched marker blade is available from Kinze through your Kinze Dealer for use in more severe no till conditions. 2-37 0719...
Page 59: Vacuum Meter System
Model 4800 VACUUM METER SYSTEM Kinze vacuum meter seed metering system includes seed meters, seed discs, and an air system consisting of a hydraulic driven vacuum fan which draws air through manifolds, hoses, and seed meters on each row unit.
Page 60: Bulk Fill System
Machine Operation Model 4800 M0282-01 BULK FILL SYSTEM Do not remove lid during machine WARNING operation. Contents are pressurized and could result in death, serious injuries or equipment damage. Review operator manual for proper filling procedure. Seed flying out of disconnected delivery CAUTION tube at high velocity can cause injury.
Page 61: Bulk Fill Entrainer Access
Machine Operation M0282-01 Model 4800 1. Before filling hoppers, refer to “Additives” on page 3-12 for more information. Fill hoppers with seed, then twist lid clockwise to close. 2. Start bulk fill delivery system with tractor engine at idle. Counterclockwise 3.
Page 62: Bulk Fill Tanks - Clean Out
Machine Operation Model 4800 M0282-01 BULK FILL TANKS - CLEAN OUT Chute hooks Cleanout Chute Installed Cleanout Chute Storage Location 1. Remove bulk fill tank cleanout chute from storage location under L.H. bulk fill tank. 2. Position tube of chute under entrainer and attach hooks on each end of entrainment assembly.
Page 63: Monitor Seed Levels
Machine Operation M0282-01 Model 4800 MONITOR SEED LEVELS 1. Main screen displays information for left and right hoppers. 2. Select L or R for individual hopper status information. 3. Select BACK to return to main screen. 4. Press down arrow once or twice for GROSS screen to appear.
Page 64: Point Row Clutches
Machine Operation Model 4800 M0282-01 POINT ROW CLUTCHES MARKERS FUNCTION LEFT RIGHT PLANT FOLD VACUUM WORK AXLE FOLD DP INCR L INCR R INCR LIGHTS WING DP DECR L DECR HITCH R DECR LATCH ONLY POINT ROW LEFT RIGHT Control box...
Page 65: Field Test
Machine Operation M0282-01 Model 4800 FIELD TEST Perform a field test with any change of field and/or planting conditions, seed size or planter adjustment to ensure proper seed placement and operation of row units.  Check planter for front to rear and lateral level operation. See “Level Planter”...
Page 66: Determining Kilograms Per Hectare
Machine Operation Model 4800 M0282-01 3. Measure 1⁄1000 of a hectare. See chart for correct distance for row width being planted. For example, if planting 70 cm rows 1⁄1000 of a hectare would be 14,28 m. 1∕1000 Hectare Seed Population Count Row Width/...
Page 67: Field Check Granular Chemical Application
Machine Operation M0282-01 Model 4800 FIELD CHECK GRANULAR CHEMICAL APPLICATION Temperature, humidity, speed, ground conditions, flowability of different material, or meter obstructions can affect granular chemical rate of delivery. Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property.
Page 68: Water Tank
Machine Operation Model 4800 M0282-01 WATER TANK The water tank is to only be filled with clean water or preferably potable water (water meeting local standards for drinking). The tank holds 4 gallons (~15 l) of water. Be sure to check for regulations pertaining to this use.
Page 69: Row Unit Operation
Row Unit Operation M0282-01 Model 4800 PLANTING DEPTH Planting Planting depth is maintained by adjustable row unit gauge depth wheels. Depth adjustment range is approximately ½” to 3½” (~1 adjustment cm to 9 cm). handle Raise planter to remove weight from wheels.
Page 70: Covering Discs/Single Press Wheel Adjustment
Row Unit Operation Model 4800 M0282-01 COVERING DISCS/SINGLE PRESS WHEEL ADJUSTMENT Adjusting bolt ½" Locking nut Press Wheel Down Force Adjustment Check operation of covering discs/single press wheels after adjusting planting depth. Initial press wheel down force spring setting is 2 ½” (~6 cm) between mounting arm tab and locking nut. Loosen ½" locking nut and turn adjusting bolt in to increase down force or out to decrease down force.
Page 71: Quick Adjustable Down Force Springs Option
Row Unit Operation M0282-01 Model 4800 QUICK ADJUSTABLE DOWN FORCE SPRINGS OPTION Standard and heavy duty quick adjustable down force springs are available to increase penetration in hard soil and keep row unit from bouncing in rough field conditions. Two springs per row, one on each side parallel arms, are used unless equipped with row unit mounted no till coulters.
Page 72: Pneumatic Down Pressure
Packages include upper and lower air spring mounting castings for pull row units, 150 PSI (~1034 kPa) rated air springs, ⅜" O.D. nylon hoses, dual solenoid air valve and stainless steel, 160 PSI (~1103 kPa), 2" liquid-filled gauge and planter wiring harness. NOTE: Assist springs are available through your Kinze dealer if additional down pressure is needed. 07/19...
Page 73: Field Operation
For models equipped with a control box, toggle the Down Pressure Switch up or down to increase or decrease down force. For models equipped with Kinze Blue Vantage system refer to Blue Vantage manual (M0288). 07/19...
Page 74: Vacuum Settings
Row Unit Operation Model 4800 M0282-01 VACUUM SETTINGS Vacuum Seed Ejector Singulator Setting **Seed Disc Wheel Seed Size Zone Inches of Crop Disc Kit Part No. (Color) Cells Range Setting Water (cm) Lubricant Corn B1219 B1219 1 row Graphite* 2500-5000 18-20 ‡...
Page 75: Finger Pickup Seed Meter
Row Unit Operation M0282-01 Model 4800 Turn seed disc counterclockwise when installing on meter hub while tightening two wing nuts that retain disc. Seed disc should have slight resistance when rotated counterclockwise after wing nuts are tight. Brush-type seed meter attaches to seed hopper same as finger pickup seed meter.
Page 76: Brush-Type Seed Meter 2 .0
Row Unit Operation Model 4800 M0282-01 BRUSH-TYPE SEED METER 2.0 Upper Disc Color-Code Brush Seed Size Crop (Disc Part No.) Retainer Cells Range *Lubricant Graphite Black Black 4840 to 8800 Soybean GB1084 (GB1123) (GB1123) seeds/kg Talc Dark Gray Dark Gray...
Page 77 Row Unit Operation M0282-01 Model 4800 NOTE: See for more information. Always field check seed population “Field Check Seed Population” on page 2-44 to ensure planting rates are correct. NOTE: Singulator settings are marked from 0 - 3. NOTE: Mixing seed sizes and shapes affects meter performance. Use consistent seed size and shape.
Page 78 Row Unit Operation Model 4800 M0282-01 Ejector NOTE: Damaged seed or seed containing foreign material will cause plugging of seed disc orifices and require more frequent seed meter clean out to prevent underplanting. Wheel-Type Ejectors Wheel-type ejectors expel seed remnants from seed disc orifices. These ejectors are disc specific and colored coded to match disc.
Page 79: Seed Meter Clean Out
Row Unit Operation M0282-01 Model 4800 SEED METER CLEAN OUT NOTE: Use of damaged seed or seed containing foreign material will cause plugging of seed cell orifices and require more frequent seed meter clean out to prevent underplanting. Thorough seed meter clean out is important to maintain genetic purity.
Page 80: Additives
Row Unit Operation Model 4800 M0282-01 ADDITIVES Lubricant Application Rate The use of graphite is recommended to promote seed flow, provide Graphite lubrication for the seed meter and to help dissipate static charge buildup. Among the available dry seed lubricants graphite is the most Conventional Hoppers 1 Tbs (~15 ml)/Hopper Fill effective and easiest to use and it requires no mechanical agitation.
Page 81: Spiked Closing Wheel
Row Unit Operation M0282-01 Model 4800 SPIKED CLOSING WHEEL Spiked closing wheels crumble the sidewall, allowing roots to penetrate soil. They can be used on pull row units and push row units. Align spiked closing wheels straight across from each other, in most rearward holes on closing wheel arm.
Page 82: Coulter Mounted Residue Wheels
Row Unit Operation Model 4800 M0282-01 COULTER MOUNTED RESIDUE WHEELS Coulter mounted residue wheels are designed for use on row units. Weed guard NOTE: Opening in weed guard must face down. Coulter Mounted Residue Wheels Residue wheels attach to row unit mounted coulter with two cap screws and sleeves allowing unit to free-float. A 2-position spindle bolt mounting positions wheels interlocked or staggered.
Page 83: Granular Chemical Hopper And Drive
Rotate knob ¼ turn counterclockwise to disengage and ¼ turn clockwise to engage. Slotted holes in hopper support panel and clutch housing allow for alignment adjustment between clutch drive coupler and meter shaft. Drive NOTE: Not applicable with Kinze Blue Vantage system. Granular chemical drive release 3-15 01/19...
Page 84 This page intentionally blank.
Page 85: Fertilizer
Fertilizer M0282-01 Model 4800 Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries. Fluid injected under skin must be IMMEDIATELY removed by a surgeon familiar with this type of injury. Make sure connections...
Page 86: Preparing The System For Operation
Fertilizer Model 4800 M0282-01 PREPARING THE SYSTEM FOR OPERATION To optimize the performance of your applicator, it is best to make all adjustments before operation in the field. ADJUSTMENTS BEFORE OPERATION 1. If your applicator is equipped with hydraulic gates, ensure that all gates are open and work well.
Page 87: Piston Pump
Fertilizer M0282-01 Model 4800 PISTON PUMP NOTE: Keep manuals shipped with piston pump and flow divider with this manual. Piston pump Adjusting delivery rate NOTE: Delivery rate chart in Rate Chart section of this manual provides approximate application rate only.
Page 88: Startup Procedure (Continued)
Fertilizer Model 4800 M0282-01 STARTUP PROCEDURE Carefully take the time to follow all instructions listed in this section in order to benefit from optimal performance from your applicator. 1. Adjust the speed of transmission of the distribution system. Use handle for adjusting the indicator rule to the desired position.
Page 89 Fertilizer M0282-01 Model 4800 STARTUP PROCEDURE (CONTINUED) Reset Key Tarp Stoppers If the applicator is equipped with an electronic scale, be sure to press the ZERO / RESET key before filling the hopper. NOTE: For greater precision calibration, always use the same method. For example, if you take data with tool bar and planter on the ground, always be sure the planter is in the same configuration whenever taking data.
Page 90: Pto Pump Drive Startup Procedure
Fertilizer Model 4800 M0282-01 PTO PUMP DRIVE STARTUP PROCEDURE 1. While the engine is running at low speed, start the tractor PTO. 2. Increase the speed of the PTO gradually to a minimum of 800 RPM. If your applicator is equipped with electronic scale, make sure to take note of the weight reading and working area for future calibration.
Page 91: Calibration Procedure
Fertilizer M0282-01 Model 4800 CALIBRATION PROCEDURE Contact Drive Wheel Circumference: 50.79" (~129 cm) 1 ha: 10.000m2 FOR APPLICATOR WITHOUT ELECTRONIC SCALE: Open the gate and install the calibration pan under the metering system. Turn the contact drive wheel constantly for 10 rotations OR use the hand crank and turn for 28 rotations.
Page 92: Notched Single Disc Openers
Fertilizer Model 4800 M0282-01 NOTCHED SINGLE DISC OPENERS Middle screw sets blade Opener mount angle. Tighten first! Disc blade ½" hex head cap screws Jam nuts 5∕16" hex head cap screws R.H. Opener Shown ⅜" lock nuts Scraper Drop tube...
Page 93 Fertilizer M0282-01 Model 4800 1. Adjust knife to disc blade contact. Loosen or tighten ⅜" lock nuts to adjust knife’s entire leading edge against disc blade. Turn blade and check for slight resistance without freewheeling. Readjust knife to blade’s tight spot as needed.
Page 94: Liquid Fertilizer Attachment
Placing fertilizer too close to seeds NOTICE or in excessive amounts can cause germination or seedling damage. Check with your fertilizer dealer or manufacturer for correct amount and placement. Liquid fertilizer installed on 4800 bulk fill 4-10 07/19...
Page 95: Check Valves
Fertilizer M0282-01 Model 4800 CHECK VALVES Low rate check valves are provided for in-line installation between liquid fertilizer piston pump and openers or in-furrow to ensure equal distribution of product at low rates and siphon protection for field turns. Check valves eliminate the need for anti-siphon loops.
Page 96 This page left blank intentionally.
Page 97: Rate Charts
Rate Charts M0282-01 Model 4800 GENERAL PLANTING RATE INFORMATION These planting rate charts apply to KINZE Model 4800 planters. Sprocket combinations in these charts NOTICE are for average conditions. Changes in sprocket combinations may be required for desired planting population. ALWAYS MAKE FIELD CHECKS TO BE SURE YOU ARE PLANTING AT THE DESIRED RATE.
Page 98 Rate Charts Model 4800 M0282-01 PLANTING RATES FOR FINGER PICKUP SEED METERS (STANDARD DRIVE) APPROXIMATE SEEDS/HECTARE FOR 70 CM ROWS Transmission Sprockets Recommended Average Seed 70 cm Rows Drive Driven Speed Range (km/h) Spacing (cm) 43539 6 to 10 32,8...
Page 99 Rate Charts M0282-01 Model 4800 PLANTING RATES FOR BRUSH-TYPE SEED METERS (STANDARD DRIVE) APPROXIMATE SEEDS/HECTARE FOR 70 CM ROWS 48 Cell 60 Cell Average Average Transmission Specialty Soybean Speed Soybean Or High-Rate Seed Seed Sprockets Or High-Rate Range Milo/Grain Sorghum...
Page 100 Rate Charts Model 4800 M0282-01 PLANTING RATES FOR BRUSH-TYPE SEED METERS (STANDARD DRIVE) APPROXIMATE SEEDS/HECTARE FOR 70 CM ROWS Transmission 36 Cell Acid-Delinted Large Average 30 Cell Milo/Grain Sorghum Or Average Sprockets Cotton Seed Acid-Delinted Cotton Seed Spacing Spacing 70 cm Rows...
Page 101 Rate Charts M0282-01 Model 4800 PLANTING RATES FOR BRUSH-TYPE SEED METERS (STANDARD DRIVE) APPROXIMATE HILLS/HECTARE FOR 70 CM ROWS Due to variations in cotton seed size, meters equipped with the 12 cell acid-delinted hill-drop cotton discs will plant from 3 to 6 seeds per cell, Select proper disc for seed size range to be planted,...
Page 102 Rate Charts Model 4800 M0282-01 VACUUM PLANTING RATES FOR CORN / SUNFLOWER 40 CELL DISC 15 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS / HECTARE FOR 70 CM ROWS 70 cm Transmission Sprockets Recomm, Speed Average Seed Rows Drive Driven...
Page 103 Rate Charts M0282-01 Model 4800 VACUUM PLANTING RATES FOR CORN /SUNFLOWER 40 CELL DISC 22 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS / HECTARE FOR 70 CM ROWS 70 cm Transmission Sprockets Recomm, Speed Average Seed Rows Drive Driven Range (km/h)
Page 104 Rate Charts Model 4800 M0282-01 VACUUM PLANTING RATES FOR CORN / SUNFLOWER 40 CELL DISC 28 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS / HECTARE FOR 70 CM ROWS 70 cm Transmission Sprockets Recomm, Speed Average Seed Rows Drive Driven...
Page 105 Rate Charts M0282-01 Model 4800 VACUUM PLANTING RATES FOR SUGAR BEET / MILO / SPECIALTY 60 CELL DISC 15 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS / HECTARE FOR 70 CM ROWS 70 cm Transmission Sprockets Recomm, Speed Average Seed...
Page 106 Rate Charts Model 4800 M0282-01 VACUUM PLANTING RATES FOR MILO/SUGAR BEET/SPECIALTY 60 CELL DISCS 22 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS / HECTARE FOR 70 CM ROWS 70 cm Transmission Sprockets Recomm, Speed Average Seed Rows Drive Driven Range (km/h)
Page 107 Rate Charts M0282-01 Model 4800 VACUUM PLANTING RATES FOR MILO/SUGAR BEET/SPECIALTY 60 CELL DISCS 28 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS / HECTARE FOR 70 CM ROWS 70 cm Transmission Sprockets Recomm, Speed Average Seed Spacing Rows Drive Driven...
Page 108 Rate Charts Model 4800 M0282-01 VACUUM PLANTING RATES FOR MILO/SUGAR BEET/SPECIALTY 60 CELL DISCS 44 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS / HECTARE FOR 70 CM ROWS 70 cm Transmission Sprockets Recomm, Speed Average Seed Spacing Rows Drive Driven...
Page 109 Rate Charts M0282-01 Model 4800 VACUUM PLANTING RATES FOR SOYBEAN 120 CELL DISC 22 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS / HECTARE FOR 70 CM ROWS 70 cm Transmission Sprockets Recomm, Speed Average Seed Spacing Rows Drive Driven Range (km/h)
Page 110 Rate Charts Model 4800 M0282-01 VACUUM PLANTING RATES FOR SOYBEAN 120 CELL DISC 28 TOOTH CONTACT WHEEL DRIVE SPROCKET APPROXIMATE SEEDS / HECTARE FOR 70 CM ROWS 70 cm Transmission Sprockets Recomm, Speed Average Seed Spacing Rows Drive Driven Range (km/h)
Page 111 Rate Charts M0282-01 Model 4800 DRY INSECTICIDE APPLICATION RATES APPROXIMATE POUNDS/ACRE AT 8 KM/H Meter Setting 70 cm Rows CLAY GRANULES 11,0 11,7 13,5 14,6 16,0 16,9 17,7 19,4 21,5 23,7 24,8 26,2 28,6 30,5 SAND GRANULES 10,5 11,5 13,0...
Page 112 Rate Charts Model 4800 M0282-01 FERTILIZER APPLICATION RATE CHART Model NGP-6055 Pumps With 18 Tooth Sprocket and Ground Drive (Planter equipped with two piston pumps) Pump Setting 24 Row 70 cm 41,1 86,0 127,2 170,2 213,2 256,2 299,2 342,2 385,2...
Page 113: Lubrication And Maintenance
LUBRICATION The following pages show locations of all lubrication points. Proper lubrication of moving parts helps ensure efficient operation of your Kinze planter and prolongs the life of friction producing parts. LUBRICATION SYMBOLS Lubricate at frequency indicated Lubricate at frequency indicated with high quality SAE 10 weight oil or spray lubricant.
Page 114: Grease Fittings
Lubrication and Maintenance Model 4800 M0282-01 GREASE FITTINGS Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety lockup devices before transporting equipment. Parts equipped with grease fittings should be lubricated at frequency indicated with an SAE multipurpose grease.
Page 115 Lubrication and Maintenance M0282-01 Model 4800 1. Wheel modules, 8 per machine 2. Fold pivot, 2 per machine 2 fittings per module 2 fittings per pivot 3. Fold cylinders, 2 per machine 4. Wing pivot, 2 per machine 2 fittings per cylinder (one each end) 2 fittings per pivot 5.
Page 116 Lubrication and Maintenance Model 4800 M0282-01 8. Trailer Hitch 7. Lift Cylinder, 2 per machine 1 fitting 1 fitting per cylinder 9. U-joint slide 10. Gauge wheel arms - 1 per arm 3 fittings (Seals in gauge wheel arm are installed with lip facing out to allow grease to purge dirt away from seal.
Page 117 Lubrication and Maintenance M0282-01 Model 4800 Row Markers 07/19...
Page 118: Notched Single Disc Opener
Lubrication and Maintenance Model 4800 M0282-01 NOTCHED SINGLE DISC OPENER Add grease here until it comes out location shown in photo at right. Grease to purge - 1 fitting Grease to purge - 2 fittings PTO SHAFT COUPLING Clean and grease PTO shaft coupling each time pump is installed.
Page 119: Liquid Fertilizer Piston Pump Crankcase Oil Level
Loose transport wheel lug bolts can WARNING result in wheel separation from planter All hardware used on the Kinze and result in death, serious injury, and planter is Grade 5 (high strength) damage to property and equipment.
Page 120 Lubrication and Maintenance Model 4800 M0282-01 CYLINDER ROD PISTON RETAINING NUT SPECIAL TORQUE VALUES & INSTRUCTIONS TORQUE CHART Row unit parallel linkage bushing hardware 130 ft-lb (~176 Nm) Non-Nylock Nut Nylock Nut 5/8" No till coulter spindle hardware 120 ft-lb (~162 Nm)
Page 121 Lubrication and Maintenance M0282-01 Model 4800 Wipe hose ends to remove any dirt NOTICE before connecting couplers to tractor ports or contamination may cause equipment failure. Hydraulic Fitting Installation The following info is to help you identify and properly install some of our standard hydraulic fittings.
Page 122: Fertilizer Maintenance
Lubrication and Maintenance Model 4800 M0282-01 FERTILIZER MAINTENANCE Plastic Caps CLEANING THE SYSTEM • Clean the hopper thoroughly. Abnormally dusty planting conditions may require more frequent cleaning. • Do not leave deposits of fertilizer in the bottom of the distribution system or on the frame of the applicator.
Page 123: Fertilizer Maintenance (Continued)
Lubrication and Maintenance M0282-01 Model 4800 FERTILIZER MAINTENANCE (CONTINUED) LUBRICANTS AND CAPACITIES APPLICATION LUBRICANT CAPACITY INTERVAL Variable Transmission Clear Trans-Hydraulic Oil 1,75 l Once per season. Check level daily. Oil Reservoir Dexron III Oil Once per season. Check level daily.
Page 124: Vacuum Seed Meter Maintenance
Lubrication and Maintenance Model 4800 M0282-01 VACUUM SEED METER MAINTENANCE Seed Meter with Back Singulator Cover Removed Vacuum Front Cover Before each planting season inspect seed discs and singulator and clean or replace as needed. Use clean, high quality seed for maximum meter accuracy. Damaged or cracked seed, hulls, and foreign material may become lodged in seed disc orifices and greatly reduce meter accuracy.
Page 125: Vacuum Manifold Maintenance
Lubrication and Maintenance M0282-01 Model 4800 VACUUM MANIFOLD MAINTENANCE Dust accumulates in manifolds and hoses during normal operation. Clean manifolds annually. Abnormally dusty planting conditions may require more frequent cleaning. 1. Remove vacuum hose from each seed meter. 2. Operate vacuum fan at full hydraulic flow from tractor for two minutes to clear manifolds, hoses, and fittings of dust and debris.
Page 126: Gauge Wheel Arm Bushing/Seal Replacement
Seal Bushing Bushing NOTE: Gauge Wheel Arm Bushing and Seal Driver Kit (G1K296) is available through your Kinze Dealer. 1. Remove gauge wheel from arm. 2. Remove gauge wheel arm from shank assembly. 3. Remove seal and bushing and discard. Clean and dry inner bore.
Page 127: 15" Seed Opener Disc Blade/Bearing Assembly
Lubrication and Maintenance M0282-01 Model 4800 15" SEED OPENER DISC BLADE/BEARING ASSEMBLY Excessive blade contact may result in NOTICE premature disc opener bearing/hub failures and excessive wear on seed tube guard/ inner scraper. When properly adjusted, if one blade is held in fixed position, opposite blade should rotate with less than 5 pounds force (~22 N) at outer edge of blade.
Page 128: Seed Tube Guard/Inner Scraper
Lubrication and Maintenance Model 4800 M0282-01 15" SEED OPENER DISC BLADE/BEARING ASSEMBLY (CONTINUED) REPLACE BEARING ONLY 1. Remove gauge wheel, scraper, bearing cap, cap screw, washer and disc blade/bearing assembly. 2. Remove ¼" rivets from bearing housing to expose bearing.
Page 129: Row Unit Mounted No Till Coulter
Lubrication and Maintenance M0282-01 Model 4800 ROW UNIT MOUNTED NO TILL COULTER Check nuts and hardware periodically for proper torque. NOTE: Torque ⅝" spindle hardware to 120 ft-lb (162 Nm). Be sure coulter is positioned square with row unit and aligned in front of row unit disc opener.
Page 130: Tractor Mounted Pump Drive And Oil Cooler
Lubrication and Maintenance Model 4800 M0282-01 TRACTOR MOUNTED PUMP DRIVE AND OIL COOLER Clean and grease PTO shaft coupling NOTICE with high-pressure industrial coupling grease (Chevron coupling grease or ® equivalent) meeting AGMA CG-1 and CG-2 Standards each time driveshaft is installed or premature wear and equipment failure can occur.
Page 131: Check Valve
Pressure relief valve located in valve block on tongue functions during tongue extend cycle. This pressure relief valve ensures latch cylinder extends and releases prior to tongue extending. Valve is factory set and should require no additional adjustment. Contact your Kinze Dealer for service. Connect hydraulic motor case drain to a NOTICE...
Page 132: Solenoid Valve
Lubrication and Maintenance Model 4800 M0282-01 Coil SOLENOID VALVE Solenoid valve consists of a chambered body with an electric coil actuated cartridge valve. If solenoid or solenoids fail to operate, first determine if problem is electrical or Cartridge hydraulic. If valve is working properly, a click will be heard when solenoid coil is energized and valve stem opens.
Page 133: Row Marker Bearing Lubrication Or Replacement
Lubrication and Maintenance M0282-01 Model 4800 ROW MARKER BEARING LUBRICATION OR REPLACEMENT Grease seal Outer cup Bearing Flat washer Spindle Slotted hex nut Dust cap Inner cup Marker blade Hub shield Bearing Cotter pin Retainer 1. Remove retainer and marker blade.
Page 134: Transport And Lift/Ground Drive Wheel Bearing Repack Or
Lubrication and Maintenance Model 4800 M0282-01 Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety lockup devices before transporting equipment. TRANSPORT AND LIFT/GROUND DRIVE WHEEL BEARING REPACK OR REPLACEMENT...
Page 135: Fertilizer Check Valve Cleaning And Repair
Lubrication and Maintenance M0282-01 Model 4800 FERTILIZER CHECK VALVE CLEANING AND REPAIR Spring Valve ball Guide O-ring Valve seat Direction of flow 1. Unscrew valve body and separate halves. Note direction and location of parts. 2. Clean and inspect parts. Flush with clean water. Replace damaged parts.
Page 136: Preparation For Storage
Lubrication and Maintenance M0282-01 Model 4800 PREPARATION FOR STORAGE Store planter in a dry sheltered area if possible. Remove all trash wrapped on sprockets or shafts and remove dirt that can draw and hold moisture. Clean all drive chains and coat with a rust preventative spray, or remove chains and submerge in oil.
Page 137: Electrical Control Console Connections - Isobus
Lubrication and Maintenance Model 4800 M0282-01 ELECTRICAL CONTROL CONSOLE CONNECTIONS - ISOBUS MARKERS FUNCTION LEFT RIGHT PLANT FOLD VACUUM WORK AXLE FOLD DP INCR L INCR R INCR LIGHTS WING HITCH DP DECR L DECR R DECR LATCH ONLY SW12...
Page 138 Lubrication and Maintenance M0282-01 Model 4800 Wire Hookup Chart (Continued) Reference From Color Function Designator SW5-2 SW11-2 Jumper Wire SW8-1 SW8-3 Jumper Wire SW1-3 SW2-5 Jumper Wire SW1-1 SW4-2 Jumper Wire SW1-2 Tractor Power SW8-2 Tractor Power SW2-4 Marker LED...
Page 139: Worklights Relay Cable
Lubrication and Maintenance M0282-01 Model 4800 WORKLIGHTS RELAY CABLE WORKLIGHT RELAY WORKLIGHT POWER A22547 REV X DATE VENDOR ID WORKLIGHT CONTROL P/N A22547 Signal Wire Gauge Color From Worklight Power - Blue P3-1 P1-1 Worklight Power + P3-2 XK1-30 Relay Ground...
Page 140: Ethernet Cables
Lubrication and Maintenance M0282-01 Model 4800 ETHERNET CABLES Color From White/Orange P1-1 P2-1 White/Green P1-2 P2-2 Orange P1-3 P2-3 Green P1-4 P2-4 M12 x 1.0 Straight M12 x 1.0 Straight Ethernet Cable Part Number Description A22554- Ethernet Ca CAT 5E (M12 STR-M12 STR) M12 x 1.0 Straight...
Page 141: Harness 12V Tail Light
Lubrication and Maintenance M0282-01 Model 4800 M12 x 1.0 RA Special M12 x 1.0 RA Ethernet Cable Part Number Description A24869- Ethernet Ca CAT 5E (M12 RA-M12 RA) HARNESS 12V TAIL LIGHT P/N A25159 Signal Wire Gauge Color From LH FASH...
Page 142: Harness Pdp Pwr
Lubrication and Maintenance M0282-01 Model 4800 HARNESS PDP PWR PART NUMBER PDR PWR REV X/ DATE VENDOR ID P/N A25158 Signal Wire Gauge Color From PDP Power J1-3 PDP Ground BLACK J1-4 PDP Power P1-1 PDP Ground BLACK P1-2 HARNESS ROW UNIT POWER EXTENSION...
Page 143: Harness Tail Light
Lubrication and Maintenance M0282-01 Model 4800 HARNESS TAIL LIGHT PART NUMBER TAILLIGHT REV / DATE VENDOR ID P/N A25160 Signal Wire Gauge Color From LH FLASH YELLOW J1-1 P1-1 BLUE J1-2 P1-2 WHITE J1-3 P1-3 RH FLASH GREEN J1-4 P1-4...
Page 144: Harness 4K Ru Seed Meter
Lubrication and Maintenance M0282-01 Model 4800 HARNESS 4K RU SEED METER MANUAL RUN ROW IPN-J4 PART NUMBER REV / DATE VENDOR ID SEED METER SEED SENSOR P/N A25203 Signal Wire Gauge Color From Seed Meter Motor 1+ P1-1 P2-1 Seed Meter Motor 1-...
Page 145: Harness Wing Ipp
Lubrication and Maintenance M0282-01 Model 4800 HARNESS WING IPP TERM IPN-J6 PART NUMBER REV / DATE IPN-J7 VENDOR ID P/N A25214 Signal Wire Gauge Color From RS232 RX 18(TP) P1-1 P3-1 RS232 TX 18(TP) P1-2 P3-2 CAN HI 18(TP) P2-1...
Page 146: Harness Power
Lubrication and Maintenance M0282-01 Model 4800 HARNESS POWER FOLD WORKLIGHT PART NUMBER WORKLIGHT REV / DATE VENDOR ID P/N A25588 Signal Wire Gauge Color From 12V DC+ J1-3 12V DC- BLACK J1-4 WORKLIGHT (PWR) P7-2 IPR (PWR) P1-1 (PWR) WORKLIGHT (GND)
Page 147: Harness Lw Ipn
Lubrication and Maintenance M0282-01 Model 4800 HARNESS LW IPN LH VAC SENSOR LH VAC CONTROL LH IMP SW WING WL CTRL WING WL MARKER LW-J5 LW-J4 POWER (B4) PART NUMBER REV/ DATE TOFERT LW-J7 HARNESS VENDOR ID TOHITCH HARNESS TOFOLD...
Page 148 Lubrication and Maintenance M0282-01 Model 4800 PLANTER GROUND BLACK WING WORKLIGHT (-) BLACK J1-1 WING WORKLIGHT (+) J1-2 LEFT WING WORKLIGHT (-) BLACK P11-1 RIGHT WING WORKLIGHT (-) BLACK J2-B LEFT WING WORKLIGHT (+) P11-2 RIGHT WING WORKLIGHT (+) J2-A...
Page 149: Harness Rw Ipn
Lubrication and Maintenance M0282-01 Model 4800 HARNESS RW IPN RH VAC RH VAC SENSOR SOLENOID RH IMP SW MARKER (B4) RW-J4 RW-J5 PART NUMBER WORK REV / DATE RW-J7 LIGHT VENDOR ID CENTER WL CONTROL TO FOLD WHEEL WING WING...
Page 150: Harness Drawbar Hitch
Lubrication and Maintenance M0282-01 Model 4800 WHEEL SPEED #2 (PWR) WHEEL SPEED #2 (GND) BLACK WHEEL SPEED #2 (FREQ) WHITE WING WORKLIGHT RH (+) BLACK WING WORKLIGHT RH (-) HARNESS DRAWBAR HITCH HITCH (A3) HITCH (A4) PART NUMBER DATE / REV...
Page 151: Harness Fold Ipn
Lubrication and Maintenance M0282-01 Model 4800 HARNESS FOLD IPN FOLD FOLD AXLE AXLE AXLE AXLE AXLE (LOWER D4) (LOWER D2) (UPPER B1) (UPPER B2) (UPPER A1) (UPPER A4) (UPPER A6) TO RW TO LW HARNESS HARNESS AXLE PART NUMBER POSITION...
Page 152 Lubrication and Maintenance M0282-01 Model 4800 HARNESS FOLD IPN IPP CAN HI 18 (TP) YELLOW P2-1 IPP CAN LO 18 (TP) GREEN P2-2 IPP PWR (+) P2-3 P5-12 IPP PWR (-) BLACK P2-4 P5-6 AXLE (+) P3-1 AXLE (-) BLACK...
Page 153: Harness Power (1-9)
Lubrication and Maintenance M0282-01 Model 4800 HARNESS POWER (1-9) SP15 SP17 SP13 SP11 SP18 SP16 SP14 SP12 SP10 PART NUMBER REV/ DATE VENDOR ID ROW 2 ROW 3 ROW 4 ROW 5 ROW 6 ROW 7 ROW 8 ROW12 ROW 9...
Page 154 Lubrication and Maintenance M0282-01 Model 4800 HARNESS POWER (1-9) RU 5 (PWR) SP11 P5-1 RU 5 (PWR) SP11 P5-3 SP11 SP13 RU 5 (GND) BLACK SP12 P5-2 RU 5 (GND) BLACK SP12 P5-4 BLACK SP12 SP14 RU 4 (PWR) SP13...
Page 155: Harness Bulk Fill Ipn
Lubrication and Maintenance M0282-01 Model 4800 HARNESS BULK FILL IPN FERT RATE CONTROL BF-J5 PART NUMBER REV / DATE VENDOR ID SENSOR BF-J4 SOLENOID P/N A25593 Signal Wire Gauge Color From BULK FILL FAN SOLENOID + P1-1 P3-1 BULK FILL FAN SOLENOID -...
Page 156: Harness 24V Power (16-24)
Lubrication and Maintenance M0282-01 Model 4800 HARNESS 24V POWER (16-24) SP13 SP17 SP11 SP15 SP14 SP18 SP10 SP12 SP16 PART NUMBER REV / DATE ROW 24 VENDOR ID ROW 19 ROW 20 ROW 21 ROW 22 ROW 23 ROW 18...
Page 157: Harness 24V Power (10-12)
Lubrication and Maintenance M0282-01 Model 4800 HARNESS 24V POWER (16-24) RU 20 (PWR) SP11 P5-3 SP11 SP13 RU 20 (GND) BLACK SP12 P5-2 RU 20 (GND) BLACK SP12 P5-4 BLACK SP12 SP14 RU 21 (PWR) SP13 P6-1 RU 21 (PWR)
Page 158: Harness 24V Power (13-15)
Lubrication and Maintenance M0282-01 Model 4800 HARNESS 24V POWER (10-12) PART NUMBER ROW 10 REV / DATE VENDOR ID ROW 11 ROW 12 P/N A25598 Signal Wire Gauge Color From J1-1 BLACK J1-2 ROW 12 (PWR) P1-1 ROW 12 (PWR)
Page 159 Lubrication and Maintenance M0282-01 Model 4800 HARNESS 24V POWER (13-15) PART NUMBER ROW 15 REV / DATE VENDOR ID ROW 14 ROW 13 P/N A25599 Signal Wire Gauge Color From J1-1 BLACK J1-2 ROW 13 (PWR) P1-1 ROW 13 (PWR)
Page 160: Harness Bulk Fill Scale
Lubrication and Maintenance M0282-01 Model 4800 HARNESS 24V POWER (13-15) PART NUMBER REV / DATE PDP SENSOR VENDOR ID PDP VALVES P/N A25653 Signal Wire Gauge Color From PDP INCREASE (+) J1-1 P1-A PDP INCREASE (-) YELLOW J1-2 P1-B PDP DECREASE (+)
Page 161: Harness Asd Scale Can
Lubrication and Maintenance M0282-01 Model 4800 HARNESS ASD SCALE CAN PCOM P/N A19388 Signal Wire Gauge Color From PWR 12 VDC PWR-1 SHP-C PWR 12 VDC PWR-1 SHP-E PWR 12 VDC PWR-1 SM-A Ground BLACK PWR-2 SHP-F Ground BLACK PWR-2...
Page 162: Harness Asd Scale Can
Lubrication and Maintenance M0282-01 Model 4800 HARNESS ASD SCALE CAN PRIMARY LOW LEVEL SENSOR TO LEFT WING FERTLIZER PART NUMBER PUMP RELAY SHUTOFF REV/DATE SENSOR VENDOR ID P1 TO IPN J5/BF PUMP SOLENOID HARNESS CONTROL FLOW METER VALVE P/N A25712...
Page 163: Harness Fertilizer Flow Center
Lubrication and Maintenance M0282-01 Model 4800 HARNESS FERTILIZER FLOW CENTER FERT CUTOFF ROW 11/14 FERT CUTOFF ROW 12/13 FERT FLOW SENSOR ROW 11/14 P2 CTR.ROW PART NUMBER REV/DATE VENDOR ID FERT FLOW SENSOR ROW 12/13 P/N A25713 Signal Wire Gauge...
Page 164: Harness Fertilizer Flow Stub Wing
Lubrication and Maintenance M0282-01 Model 4800 HARNESS FERTILIZER FLOW STUB WING FERT SENSOR ROW 10/15 P1 STUB WING PART NUMBER FERT CUTOFF REV/DATE ROW 10/15 VENDOR ID P/N A25714 Signal Wire Gauge Color From FERT ROW CUTOFF VALVE (PWR) P1-1...
Page 165: Hydraulic Hose Life
Lubrication and Maintenance M0282-01 Model 4800 HYDRAULIC HOSE LIFE Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries. Fluid injected under skin must be IMMEDIATELY removed by a surgeon familiar with this type of injury.
Page 166: Tire Pressure
Lubrication and Maintenance Model 4800 M0282-01 TIRE PRESSURE Explosive separation of rim and tire WARNING parts can cause death or serious injury. Overinflation, rim and tire servicing, improper use of rims and tires, or worn or improperly maintained tires could result in a tire explosion.
Page 167: Inflation Specifications
Lubrication and Maintenance M0282-01 Model 4800 INFLATION SPECIFICATIONS Row Marker (Not Shown) Contact Drive (N/A with Blue Vantage System) Transport Wing Tire Locations (R.H. shown) “Tire Specifications” on page 1-6 for additional information. 6-55 07/19...
Page 168: Finger Pickup Seed Meter Inspection/Adjustment
Lubrication and Maintenance Model 4800 M0282-01 FINGER PICKUP SEED METER INSPECTION/ADJUSTMENT Brush attachment screw Finger tabs should contact carrier Baffle attachment to meter. plate in this area. Finger tabs should raise in this area. Meter attachment to hopper. Removing meter and baffle Proper finger operation 1.
Page 169: Cleaning Finger Pickup Seed Meter For Storage
Lubrication and Maintenance M0282-01 Model 4800 7. Check indentations on carrier plate for wear before installing finger holder on carrier plate. Excessive wear of carrier plate at indentations will cause over planting especially with small sizes of seed. Inspect carrier plate annually. Life expectancy should be 100-125 hectares per row of operation under average conditions.
Page 170: Brush-Type Seed Meter Maintenance
Lubrication and Maintenance Model 4800 M0282-01 BRUSH-TYPE SEED METER MAINTENANCE Meter housing Stainless steel wear Upper brush band Seed disc Lower brush Upper brush retainer Brush-type seed meter seed disc installed Brush-type seed meter parts Use clean, high quality seed. Damaged or cracked seed, hulls, or foreign materials can become lodged in upper brush and greatly reduce meter accuracy.
Page 171: Cleaning Brush-Type Seed Meter For Storage
Lubrication and Maintenance M0282-01 Model 4800 UPPER BRUSH Upper brush Upper brush holds seed in seed disc pocket in seed retention area. Brush must apply enough pressure against seed in seed disc pocket as disc rotates through seed retention area Seed retention area to prevent seed from dropping out of disc pocket.
Page 172: Mechanical Planter With Pto And Bul Kfill Hydraulic System
Lubrication and Maintenance Model 4800 M0282-01 MECHANICAL PLANTER WITH PTO AND BUL KFILL HYDRAULIC SYSTEM Z0432 6-60 07/19...
Page 173: Vaccum Planter With Pto Hydraulic System
Lubrication and Maintenance M0282-01 Model 4800 VACCUM PLANTER WITH PTO HYDRAULIC SYSTEM Z0433 LEFT VAC RIGHT VAC 6-61 07/19...
Page 174 Lubrication and Maintenance Model 4800 M0282-01 VACCUM PLANTER WITH BULK FILL AND DRY FERTILIZER HYDRAULIC SYSTEM PTO - BULK DRY BULKFILL SEED VACUUM CASE DRAIN Z0367 FERTILIZER ASD/VACUUM D1 A1 BULK DRY FERTILIZER DRIVE BULK DRY LEFT VAC RIGHT VAC...
Page 175 Lubrication and Maintenance M0282-01 Model 4800 VACCUM PLANTER WITH BULK FILL AND DUAL SECTION PTO HYDRAULIC SYSTEM Z0379 LEFT VAC RIGHT VAC 6-63 07/19...
Page 176: Mechanical Planter Hydraulic System
Lubrication and Maintenance Model 4800 M0282-01 MECHANICAL PLANTER HYDRAULIC SYSTEM Z0434 6-64 07/19...
Page 177: Troubleshooting
Troubleshooting M0282-01 Model 4800 BULK FILL PROBLEM POSSIBLE CAUSE SOLUTION Seed does not travel through System pressure set too low. Increase system pressure. delivery tubes. Seed stops flowing to row unit Seed surging. Shut down air seed delivery system and during planting.
Page 178: Piston Pump
Troubleshooting M0282-01 Model 4800 PISTON PUMP PROBLEM POSSIBLE CAUSE SOLUTION Pump hard or impossible to Valves fouled or in wrong place. Inspect and clean valves. prime. Air leak in suction line. Repair leak. Pump set too low. Adjust pump setting.
Page 179: Row Marker Operation
Troubleshooting Model 4800 M0282-01 ROW MARKER OPERATION PROBLEM POSSIBLE CAUSE SOLUTION Right marker lowering slower Solenoid valve cartridge in port V1 not Switch with cartridge in port V2. If problem than left marker. opening completely. repeats, replace cartridge. Hose pinched or collapsed.
Page 180: Vacuum Seed Meter
Troubleshooting M0282-01 Model 4800 VACUUM SEED METER PROBLEM POSSIBLE CAUSE SOLUTION Low seed count. Meter RPM too high. Reduce planting rate or planting speed. Singulator blade setting too aggressive. Adjust singulator blade. Vacuum level too low. Increase fan speed. Seed sensor not picking up all seeds Clean seed tube.
Page 181 Troubleshooting Model 4800 M0282-01 VACUUM SEED METER - Continued PROBLEM POSSIBLE CAUSE SOLUTION Not planting seed. Seed baffle (if applicable) not allowing seed Mix talc thoroughly to coat all seeds. Remove (Continued) flow due to bridging of seed. seed baffle. Row Unit Operation section.
Page 182: Solenoid Valve
Troubleshooting M0282-01 Model 4800 SOLENOID VALVE PROBLEM POSSIBLE CAUSE SOLUTION No solenoids operate. Low voltage. Must be connected to 12 VDC only. Negative ground. Blown fuse. Replace control console fuse with AGC-15 amp. Battery connection. Clean and tighten. Wiring harness damaged.
Page 184 Kinze Manufacturing, Inc. I-80 at Exit 216 North, Williamsburg, Iowa 52361...

Kinze 4800 Operator's Manual

Overview

Machine Operation

Row Unit Operation

Fertilizer

Rate Charts

Lubrication and Maintenance

Troubleshooting

Quick Links

Need help?

Questions and answers

Related Manuals for Kinze 4800

Summary of Contents for Kinze 4800

Table of Contents
