Kinze 3035 Operator's Manual

Kinze 3035 Operator's Manual

70 cm narrow fold planter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
This manual applies to:
Record serial number of your planter and date purchased:
Monitor Serial Number _______________________________________________
Measured Pulses Per Mile/Km (Radar Distance Sensor) ____________________
Measured Pulses Per Mile/ Km (Magnetic Distance Sensor) _________________
SERIAL NUMBER

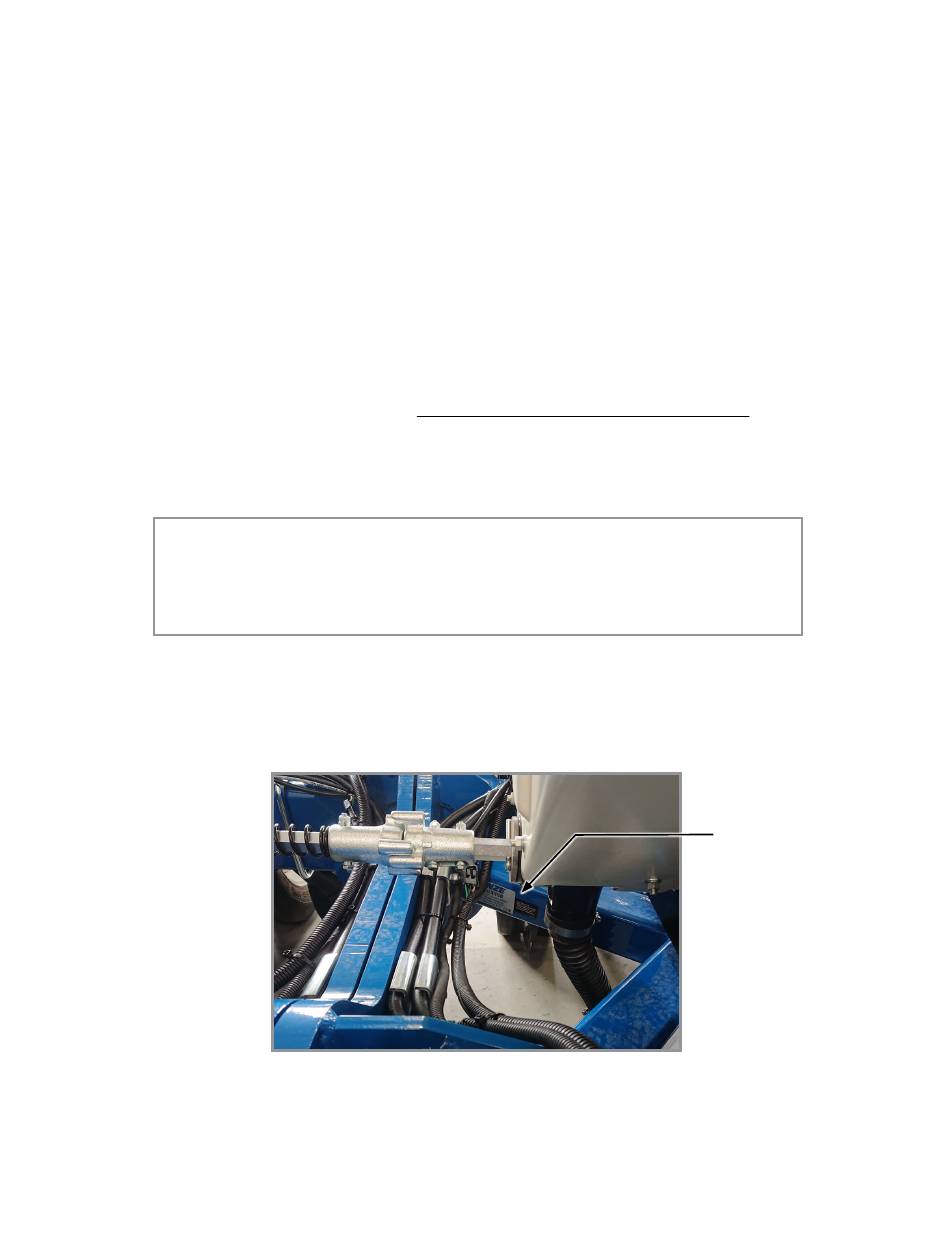

The serial number plate is located on the L. H. side wing, underneath the outer fertilizer tank, as shown below. The
serial number provides important information about your planter and is needed to obtain correct replacement parts.
Always provide model number and serial number to your Kinze Dealer when ordering parts or when contacting Kinze
Manufacturing, Inc.
Kinze
MODEL 3035 70 CM
NARROW FOLD PLANTER
OPERATOR'S MANUAL
MKE003-01
Model: 3035 Narrow Fold Planters
Production Year 2021 and on
Model Number __________________________________
Serial Number ___________________________________
Date Purchased __________________________________
and the Kinze
logo are registered trademarks of Kinze Manufacturing, Inc.
®
®
Rev. 08/20
3035
Serial number plate
