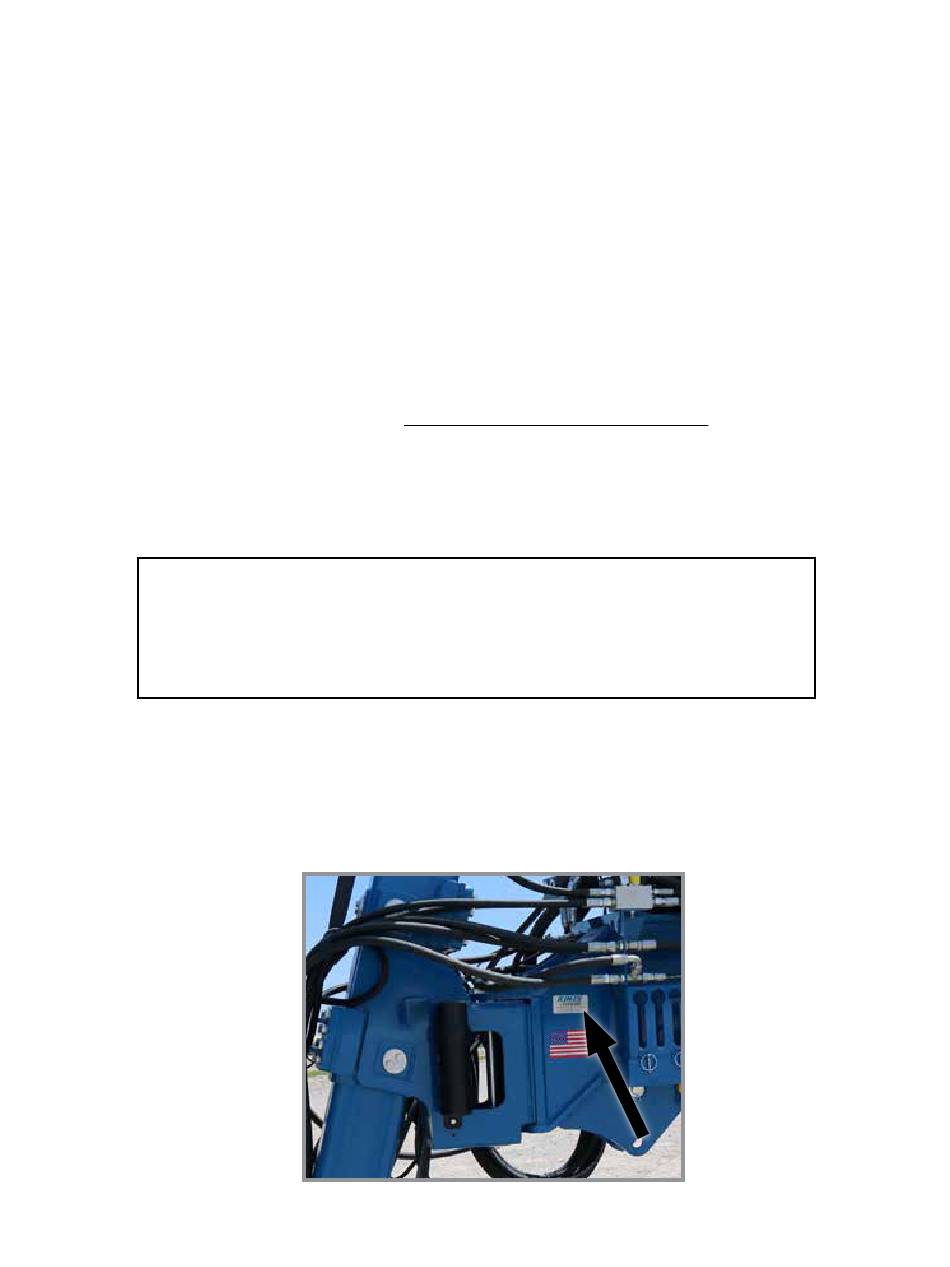

Page 1 The serial number plate is located on the planter frame as shown below. The serial number provides important information about your planter and is needed to obtain correct replacement parts. Always provide model number and serial number to your Kinze Dealer when ordering parts or when contacting Kinze Manufacturing, Inc. Serial Number Plate Location...
Page 2 This page intentionally left blank.
Page 3: Predelivery Checklist
Predelivery/Delivery Checklist M0320-01 Model 5700 TO THE DEALER Predelivery service includes assembly, lubrication, adjustment and test. This service helps ensure planter is delivered to retail customer/end user ready for field use. PREDELIVERY CHECKLIST Use the following checklist after planter is completely assembled. Check off each item as it is found satisfactory or after proper adjustment is made.
Page 4: Delivery Checklist
Predelivery/Delivery Checklist Model 5700 M0320-01 DELIVERY CHECKLIST Use the following checklist at time planter is delivered as a reminder of very important information which should be conveyed to retail customer/end user. Check off each item as it is fully explained.
Page 5: Table Of Contents
Fertilizer Pump Troubleshooting ....4-29 Kinze Blue Vantage ......2-30 Fertilizer System Troubleshooting .
Page 6 Table of Contents Model 5700 M0320-01 Mounting Bolts and Hardware ..... . 5-8 PTO Draft Link harness - 24 Row 30” and 36 Row 20”...
Page 7 Table of Contents M0320-01 Model 5700 Fold IPN Harness (P/N: 10741101 / 10741102)..5-80 12V Power Harness (P/N: 10740901 / 10740902) ..5-82 Bulk Fill IPN Harness (P/N: 10806401) ....5-83 Right Wing IPN Harness (P/N: 10803201 / 10803202) .
Page 8 This page intentionally left blank.
Page 9: To The Owner
M0320-01 Model 5700 Kinze Manufacturing, Inc. thanks you for your patronage. We appreciate your confidence in Kinze farm machinery. Your Kinze planter has been carefully designed to provide dependable operation in return for your investment. This manual has been prepared to aid you in the operation and maintenance of the planter. It should be considered a permanent part of the machine and remain with the machine when you sell it.
Page 10 NOTE: Some photos in this manual may have been taken of prototype machines. Production machines may vary in appearance. NOTE: Some photos and illustrations in this manual show optional attachments installed. Contact your Kinze Dealer for purchase of optional attachments.
Page 11: Warranty
Warranty And Delivery Receipt to the Kinze Dealer for service. Kinze warranty does not include cost of travel time, mileage or hauling. Any prior arrangement made between the Dealer and the retail purchaser in which the Dealer agrees to absorb all or part of this expense should be considered a courtesy to the retail purchaser.
Page 12: Tools Required
Model 5700 M0320-01 Information used in these instructions was current at time of printing. However, due to Kinze’s ongoing product improvement, production changes may cause your machine to appear slightly different in detail. Kinze Manufacturing, Inc. reserves the right to change specifications or design without notice and without incurring obligation to install the same on machines previously manufactured.
Page 13: Specifications
NOTES: All SCVs should be set to max flow at all times. PTO Hydraulic pump comes standard on 5700 and supplies oil flow for all circuits (bulk fill, weight distribution,  vacuum, True Rate or True Speed meters, True Depth hydraulic down force, fertilizer, Yetter hydraulic air compressor) except lift, markers/fold.
Page 14: General Safety Rules
If you install such drives, follow all appropriate safety standards and practices to protect you and others Model 5700 planter consists of 85% recyclable metals, 10% near this planter from injury. recyclable plastic and rubber, and 5% waste.
Page 15: Safety Precautions
Safety Precautions M0320-01 Model 5700 Following are some common hazard warnings associated with this equipment. Pay close attention to all safety, operating, and maintenance information in this manual and decals applied to your equipment. Contacting or coming close to power...
Page 16: Safety Instructions
Safety Precautions Model 5700 M0320-01 SAFETY SIGNS AND DECALS All safety/warning lights, reflective WARNING decals, and SMV sign must be in place and visible before transporting machine on public roads or death, serious injury, and damage to property and equipment may result.
Page 17: Machine Operation
Machine Operation M0320-01 Model 5700 ROW MARKER SAFETY LOCKUP Row marker can lower at any time and WARNING could cause death or serious injury. Stay away from row markers! Install safety lockup device when not in use. Row Marker Safety Lockup Installed Row Marker Safety Lockup Stored Always install row marker lockups when working on, storing, or transporting planter.
Page 18: Transport Axle Cylinder Safety Lockup
Machine Operation Model 5700 M0320-01 TRANSPORT AXLE CYLINDER SAFETY LOCKUP Transport axle can lower from transport WARNING position without the use of any controller, causing death, serious injury, or damage to property and equipment. Do not operate any hydraulic function while transporting the planter.
Page 19: Drawbar Hitch Lockup
Machine Operation M0320-01 Model 5700 Tanks must be empty when transporting WARNING to avoid death, serious injury, or damage to property or equipment. Do not pull planters in transport configuration with seed or fertilizer in tanks. Planter hitch may raise uncontrollably...
Page 20: Wing Latch Lockup
Machine Operation Model 5700 M0320-01 WING LATCH LOCKUP Place pin here during operation Place pin here during transport Hitch Release from Wing Latch Improperly operating or working on WARNING this equipment could result in death or serious injury. Read and follow all instructions in Operator Manual before operating or working on this equipment.
Page 21 Machine Operation M0320-01 Model 5700 Marker Arm Tire (If equipped) Transport Wing Tire Locations (L.H. shown) 1. Torque transport wheel ¾"- 16 lug nuts to 315 ft-lb. 2. Torque wing wheel ⅝"-18 lug nuts to 200 ft-lb. 3. Inflate tires to the following specifications: Transport Tire Size (4) 445/50R 22.5...
Page 22: Tractor Requirements
Machine Operation Model 5700 M0320-01 TRACTOR REQUIREMENTS Loss of control of equipment during WARNING transport can result in death, serious injury, or damage to property and equipment. Tractor gross weight must be greater than planter gross weight with attachments and options.
Page 23: Bulk Fill Tractor Mounted Pto Pump And Planter Mounted Hydraulics
Machine Operation M0320-01 Model 5700 BULK FILL TRACTOR MOUNTED PTO PUMP AND PLANTER MOUNTED HYDRAULICS Oil Reservoir 20 gal (75.7 L) Reservoir Bulk fill/vacuum meter equipped planters require a 1¾" (45 mm)-20 or 1³/8"(35 mm)-21 spline 1000 RPM PTO to operate PTO-driven hydraulic pump capable of supplying 26 gal/min to vacuum and bulk fill fans.
Page 24: Tractor Preparation And Hookup
Machine Operation Model 5700 M0320-01 TRACTOR PREPARATION AND HOOKUP 1. Back tractor to planter and connect with minimum 1¼" (32 mm) diameter hitch pin or 2 point hitch. Make sure hitch pin is secured with a locking pin or cotter pin if tractor is not equipped with a hitch pin locking device.
Page 25 Machine Operation M0320-01 Model 5700 Routing of hydraulic hoses from planter NOTICE to tractor is very important. If done improperly, hoses can be pinched, cut or broken when planter is operated. Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries.
Page 26 Machine Operation Model 5700 M0320-01 3. Connect hydraulic hoses to tractor ports in a sequence familiar and comfortable to the operator. Refer to chart on the following page. Color and Label Machine Function Hose Size Hose Function Red AA Pressure/Return Field Lift ½"...
Page 27: True Depth Hydraulic System Overview
Machine Operation M0320-01 Model 5700 TRUE DEPTH HYDRAULIC SYSTEM OVERVIEW True Depth Pressure Gauge Remove all hydraulic power sources and WARNING verify True Depth pressure gauge reads zero before servicing. True Depth Cylinder Flow out of the rod end port of the...
Page 28: True Depth Filter
Machine Operation Model 5700 M0320-01 True Depth Filter TRUE DEPTH FILTER Replace filter cartridge annually, every 100 hours of operation, or when the clogging indicators point out the limit pressure drop created inside the filter. To replace the cartridge: 1. Stop the system in “Machine Stopped” status 2.
Page 29: Transporting Planter
Machine Operation M0320-01 Model 5700 TRANSPORTING PLANTER Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety pins before transporting equipment. Uncontrolled machine movement can...
Page 30: Level Planter
If planter center is higher or lower than wings after rephasing, contact your Kinze Dealer for valve adjustment or maintenance.
Page 31: Jump Start Sensor
Marker speed is controlled with flow control valves located on both planter wings. One valve controls raise speed and other valve controls lower speed of both markers. Refer to Kinze Blue Vantage Operator’s Manual for marker control. 2-15...
Page 32: Unfold
Machine Operation Model 5700 M0320-01 UNFOLD Tractor must be in neutral and allowed NOTICE to roll freely when folding to prevent equipment damage, especially in soft conditions or when loaded with seed or fertilizer. Use tractor assist as needed to aid in folding and to reduce stress on frame and transport components.
Page 33: Fold
Machine Operation M0320-01 Model 5700 FOLD Tractor must be in neutral and allowed NOTICE to roll freely when folding to prevent equipment damage, especially in soft conditions or when loaded with seed or fertilizer. Use tractor assist as needed to aid in folding and to reduce stress on frame and transport components.
Page 34: Row Marker Operation Using Blue Vantage Display
Keep away from power lines or high energy sources at all times. NOTE: See row marker adjustments on following pages. If the planter is equipped with Blue Drive refer to M0288 - Kinze Blue Vantage Operator’s Manual for marker control 2-18 11/23...
Page 35: Row Marker Speed Adjustment
Machine Operation M0320-01 Model 5700 ROW MARKER SPEED ADJUSTMENT Excessive row marker travel speed NOTICE can damage row markers. Adjust flow controls before row markers are first used. NOTE: Row markers should not operate faster than 8 mph (13 kph).
Page 36: Row Marker Cable Adjustment
Machine Operation Model 5700 M0320-01 ROW MARKER CABLE ADJUSTMENT Uncontrolled marker movement can WARNING cause death or serious injury. Set marker switch to OFF and shut off tractor prior to adjustment. NOTE: Operate two-fold or three-fold row markers with the tractor's hydraulic valve in float position.
Page 37: Row Marker Length And Disc Blade Adjustment
Set blade angle only as needed to leave a clear mark. NOTE: A notched marker blade is available from Kinze through your Kinze Dealer for use in more severe no till conditions. 2-21...
Page 38: Vacuum Meter System
M0320-01 VACUUM METER SYSTEM Kinze vacuum meter seed metering system includes seed meters, seed discs, and an air system consisting of a hydraulic driven vacuum fan which draws air through manifolds, hoses, and seed meters on each row unit. Moving fan blades can cause amputation WARNING or severe injury.
Page 39: Bulk Fill System
Machine Operation M0320-01 Model 5700 BULK FILL SYSTEM Do not remove lid during machine WARNING operation. Contents are pressurized and could result in death, serious injuries or equipment damage. Review operator manual for proper filling procedure. Seed flying out of disconnected delivery CAUTION tube at high velocity can cause injury.
Page 40: Bulk Fill Entrainer Access
Machine Operation Model 5700 M0320-01 1. Before filling hoppers, refer to “Row Marker Speed Adjustment” on page 2-19 for additives information. Fill hoppers with seed, then twist lid clockwise to close. 2. Start bulk fill delivery system with tractor engine at idle.
Page 41: Bulk Fill Tanks - Clean Out
Machine Operation M0320-01 Model 5700 BULK FILL TANKS - CLEAN OUT Chute hooks Cleanout Chute Installed Cleanout Chute Storage Location 1. Remove bulk fill tank cleanout chute from storage location under L.H. bulk fill tank. 2. Position tube of chute under entrainer and attach hooks on each end of entrainment assembly.
Page 42: Bulk Fill Scale Package Option
Machine Operation Model 5700 M0320-01 BULK FILL SCALE PACKAGE OPTION High-pressure water can damage display. NOTICE Remove display before power washing planter. Remove and store display at end of NOTICE planting season. Damage from sun and weather exposure may result.
Page 43 Machine Operation M0320-01 Model 5700 To monitor seed levels (Main Screen): NOTE: Refer to Blue Vantage manual for bulk fill scale user information. 1. Main screen displays information for left and right hoppers. 2. Tap "Weight" to display left and right hopper weight.
Page 44 Machine Operation Model 5700 M0320-01 To enter seed information (Not applicable on Blue Vantage): NOTE: Seed information entered must be accurate for remaining estimated acres to calculate correctly. • SEEDS/ACRE is population rate. • SEEDS/LB value comes from seed specifications.
Page 45 Machine Operation M0320-01 Model 5700 Software Version: 1. From main screen, tap "Planter Setup". 2. Tap on "English" to display software version. 4. Tap "English" to return to planter setup screen. 3. Tap "OK" to return to main screen. Language/Units: NOTE: English is the default language.
Page 46: Kinze Blue Vantage
Blue Vantage can be ready to plant in three taps after proper setup. The health screen provides all critical planting parameters and controls. The grower can observe row-by-row planting performance in real-time. NOTE: See Kinze Blue Vantage Operator’s Manual for system operation and programming. Kinze Blue Vantage 2-30...
Page 47: Field Test
Machine Operation M0320-01 Model 5700 FIELD TEST Perform a field test with any change of field and/or planting conditions, seed size or planter adjustment to ensure proper seed placement and operation of row units.  Check planter for front to rear and lateral level operation. See “Level Planter”...
Page 48: Field Check Seed Population
Machine Operation Model 5700 M0320-01 FIELD CHECK SEED POPULATION Remove locking cotter pin. Lock up one or more sets of closing wheels putting in locked position. Pull closing wheel arm up and align with lock up hole. Secure with 1/2" x 31/2" clevis pin and locking cotter pin.
Page 49: Determining Pounds Per Acre
Machine Operation M0320-01 Model 5700 Multiply number of seeds placed in 1∕1000 of an acre by 1000. This gives total population. EXAMPLE: 30" row spacing 17' 5" equals 1∕1000 acre. 26 seeds counted x 1000 = 26,000 seeds per acre DETERMINING POUNDS PER ACRE Seeds per acre ÷...
Page 50: Field Check Granular Chemical Application
Machine Operation Model 5700 M0320-01 FIELD CHECK GRANULAR CHEMICAL APPLICATION Temperature, humidity, speed, ground conditions, flowability of different material, or meter obstructions can affect granular chemical rate of delivery. Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property.
Page 51: Yetter 2940 Air Adjust Residue Manager
Machine Operation M0320-01 Model 5700 YETTER 2940 AIR ADJUST RESIDUE MANAGER Serious injury or death may occur DANGER if modifications are made to water seperator valve, pressure switch, safety relief valve or other comonents that control tank pressure. Never make adjustments to components that control tank pressure.
Page 52 Machine Operation Model 5700 M0320-01 Down Pressure Up Pressure Up Pressure Down Pressure Yetter Coulter/Row Cleaner Combo Yetter Row Cleaner Model Width Row Size Configuration 5700 8 Row Center Section (8-8-8) 5700 12 Row Center Section (12-12-12) 5700 10 Row Center Section (7-10-7) Wheel track layouts shown below: WT circuit is dictated by where the wing flex happens.
Page 53 Machine Operation M0320-01 Model 5700 24 Row 30" UP (Up Pressure) = Blue RD (Wing Down Pressure) = Black WT (Wheel Track Down Pressure) = Brown 36 Row 20" UP (Up Pressure) = Blue RD (Wing Down Pressure) = Black...
Page 54 Machine Operation Model 5700 M0320-01 Operation Failure to properly set the planter frame height and levelness can result in less than successful operation of the planter and the Yetter product. This may result in damaged equipment. All operators should read and thoroughly understand the instructions given prior to using the Yetter residue managers.
Page 55 Machine Operation M0320-01 Model 5700 System Start Up Procedure NOTE: For proper operation, the planter frame must operate level (fore, aft, and side to side) and at the correct height. NOTE: Regularly inspect the residue managers for loose or worn bolts and hardware. Repair or replace as needed.
Page 56 Machine Operation Model 5700 M0320-01 ROW CLEANER DO’S AND DON’TS 1. DO NOT use as a tillage tool; Residue Managers are designed to move crop residue and to break up clods and crust. 2. DO NOT operate planter at slow speeds. Ground speed affects how aggressive the residue manager wheels are.
Page 57 Machine Operation M0320-01 Model 5700 Residue Manger Control Box Pressure Relief Valve Residue Manager Control Box Pressure Switch Pressure Regulator Inlet Manifold and Tank Pressure Gauge Air to Water Seperator Residue Manger Control Box - Contains valves that control air pressure delivered to 3 circuits on planter.
Page 58 Machine Operation Model 5700 M0320-01 Air Compressor Prior to daily operation check the oil in the compressor when the planter is on level ground. The oil level can 2/3 Full be checked in the clear sight glass on the end of the Max.
Page 59 Machine Operation M0320-01 Model 5700 Residue Manager Settings Adjustment Tube The default position for the wheel mount arm will be set in the fifth hole from the top. Lock-Up Pin Hole Heavy tillage conditions - move wheel mount arm up to the 3rd or 4th hole.
Page 60 This page intentionally left blank.
Page 61: Row Unit Operation
Row Unit Operation M0320-01 Model 5700 PLANTING DEPTH Planting Planting depth is maintained by adjustable row unit gauge depth wheels. Depth adjustment range is approximately ½" to 3½". adjustment handle Raise planter to remove weight from wheels. Push down on depth adjustment handle and reposition it forward to decrease or rearward to increase planting depth.
Page 62: Air Adjust Closing Wheel Arm (Pcw)
Row Unit Operation Model 5700 M0320-01 AIR ADJUST CLOSING WHEEL ARM (PCW) Adjust closing wheels from the cab for optimum seed-to-soil contact using Blue Vantage-controlled, air-adjustable closing wheels. Refer to your Blue Vantage Operator Manual for more information. Air Adjust Closing Wheels...
Page 63: Pdp And Air Closing Wheel Schematics
Row Unit Operation M0320-01 Model 5700 PDP AND AIR CLOSING WHEEL SCHEMATICS 24 Row 20" Air Closing Control Valves PCW Wing (Gray) PCW Center (White) 24 Row 30" Air Closing Control Valves PCW Wing (Gray) PCW Center (White) 36 Row 20" Air Closing Control Valves PCW Wing (Gray) PCW Center (White) PDP Control Valves PDP (Purple) PDP Control Valves PDP (Purple) 11/23...
Page 64: Row Unit Mounted No Till Coulter
Row Unit Operation Model 5700 M0320-01 ROW UNIT MOUNTED NO TILL COULTER Row unit mounted no till coulter blades may be used on row units. Coulter blade can be adjusted to one of four ½" incremental settings in the forked arm. Initial location is the top hole.
Page 65: Pneumatic Down Pressure (Pdp)
Row Unit Operation M0320-01 Model 5700 PNEUMATIC DOWN PRESSURE (PDP) Row unit down pressure can be adjusted on-the-go as field conditions change. Blue Vantage monitor adjusts pressure. Hose Function Chart Function Hose Color Pneumatic Down Pressure PDP Main Trunk Purple *Fertilizer system also uses ³/8”...
Page 66: Field Operation
Pressure gauges ADJUST DOWN PRESSURE FROM CAB Use the monitor to adjust down pressure. Refer to your Blue Vantage manual for more information. Refer to M0288 - Kinze Blue Vantage Operator’s Manual for pressure adjustment with Blue Vantage. 11/23...
Page 67: True Depth
Row Unit Operation M0320-01 Model 5700 TRUE DEPTH True Depth provides on demand row by row hydraulic row unit down force ranging from 150 lbs. up force to 650 lbs. down force at 2350 psi. True Depth 11/23...
Page 68: Seed Hoppers
Row Unit Operation Model 5700 M0320-01 SEED HOPPERS Seed hoppers have a capacity option of 0.8 bushels (True Rate) or 0.9 bushels (True Speed). Use clean seed and make certain there are no foreign objects inside when filling seed hopper. Place hopper lids on hoppers after filling to prevent accumulation of dust or dirt in seed meter which can cause premature wear.
Page 69: True Rate Settings
Row Unit Operation M0320-01 Model 5700 TRUE RATE SETTINGS Vacuum Seed Ejector Singulator Setting **Seed Disc Wheel Seed Size Zone Inches of Crop Disc Kit Part No. (Color) Cells Range Setting Water (kPa) Lubricant Corn Graphite* B1219 B1219 1 row...
Page 70 Row Unit Operation Model 5700 M0320-01 TRUE RATE SETTINGS Vacuum Seed Ejector Singulator Setting **Seed Disc Wheel Seed Size Zone Inches of Crop Disc Kit Part No. (Color) Cells Range Setting Water (kPa) Lubricant Graphite* 1 row Black turtle &...
Page 71 Row Unit Operation M0320-01 Model 5700 NOTE: See "Field Check Seed Population" on page 2-32 for more information. Always field check seed population to ensure planting rates are correct. NOTE: Singulator settings are marked from 0 - 3. NOTE: Mixing seed sizes and shapes affects meter performance. Use consistent seed size and shape.
Page 72 Row Unit Operation Model 5700 M0320-01 Ejector NOTE: Damaged seed or seed containing foreign material will cause plugging of seed disc orifices and require more frequent seed meter cleanout to prevent underplanting. Wheel-Type Ejectors Wheel-type ejectors expel seed remants from seed disc orifices. These ejectors are disc specific and colored coded to match disc.
Page 73: Wheat Disc Wiper Installation
Row Unit Operation M0320-01 Model 5700 WHEAT DISC WIPER INSTALLATION 1. Disengage seed drive and remove seed hopper and meter. 2. Rotate seed disc hub clockwise to unlock and remove seed disc. Align Wheat 3. Remove singulator. Disc Wipers with Tabs 4.
Page 74: True Speed Meter Settings
Row Unit Operation Model 5700 M0320-01 TRUE SPEED METER SETTINGS Crop Ejector - Seed Disc Part No. Wheel Seed Size Singulator Vacuum Setting Baffle - ‡Seed Disc Kit (color) Setting Range Population Installed Inches of Water Lubricant *12 to 20 Corn, 32 Cell Graphite†...
Page 75 Row Unit Operation M0320-01 Model 5700 NOTE: See “Field Check Seed Population” on page --- for more information. Always field check seed population to ensure planting rates are correct. NOTE: Baffle settings are marked from 1 – 5. NOTE: Mixing seed sizes and shapes affects meter performance. Use consistent seed size and shape.
Page 76: True Speed Vacuum Settings Charts
Row Unit Operation Model 5700 M0320-01 TRUE SPEED VACUUM SETTINGS CHARTS NOTE: Vacuum charts are a recommendation to help select the starting vacuum setting for a particular seed size and target planting speed. Due to variation in seed size, seed shape, and planting conditions, it is likely that additional adjustments in the vacuum setting may be necessary.
Page 77 Row Unit Operation M0320-01 Model 5700 Recommended Vac Chart for Soybeans (Single Row and Dual Row) 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 Seed Size (Sds/Lb) oybeans (Single Row and Dual Row)
Page 78 Row Unit Operation Model 5700 M0320-01 Recommended Vac Setting for Cotton Target Vac Recommended Vac Setting for Cotton Target Vac 4250 4500 4750 5000 5250 5500 5750 6000 6250 6500 Seed Size (Sds/lb) 4250 4500 4750 5000 5250 5500 5750 6000 6250 6500...
Page 79 Row Unit Operation M0320-01 Model 5700 Meter Speed (20" Row Spacing 32 Cell Disc- Corn) Ground Speed (mph) 24000 26000 28000 30000 32000 34000 36000 38000 40000 42000 44000 46000 48000 50000 Meter Speed (30" Row Spacing 32 Cell Disc- Corn)
Page 80 Row Unit Operation Model 5700 M0320-01 Meter Speed (20" Row Spacing 92 Cell Disc - Soybean) Target Ground Speed (mph) 80000 85000 90000 95000 100000 105000 110000 115000 120000 125000 130000 135000 140000 145000 150000 155000 160000 165000 170000 175000...
Page 81 Row Unit Operation M0320-01 Model 5700 Meter Speed (30" Row Spacing 92 Cell Disc - Soybean ) Target Ground Speed (mph) 80000 85000 90000 95000 100000 105000 110000 115000 120000 125000 130000 135000 140000 145000 150000 155000 160000 165000 170000...
Page 82 Row Unit Operation Model 5700 M0320-01 Meter Speed (15" Row Spacing 46 Cell Disc - Soybean, Cotton, Surgarbeet/Milo) Target Ground Speed (mph) 20000 25000 30000 35000 40000 45000 50000 55000 60000 65000 70000 75000 80000 85000 90000 95000 100000 105000...
Page 83 Row Unit Operation M0320-01 Model 5700 Meter Speed (20" Row Spacing 46 Cell Disc - Soybean, Cotton, Surgarbeet/Milo) Target Ground Speed (mph) 20000 25000 30000 35000 40000 45000 50000 55000 60000 65000 70000 75000 80000 85000 90000 95000 100000 105000...
Page 84 Row Unit Operation Model 5700 M0320-01 Meter Speed (30" Row Spacing 46 Cell Disc - Soybean, Cotton, Surgarbeet/Milo) Target Ground Speed (mph) 20000 25000 30000 35000 40000 45000 50000 55000 60000 65000 70000 75000 80000 85000 90000 95000 100000 105000...
Page 85 Row Unit Operation M0320-01 Model 5700 Meter Speed (30" Row Spacing 23 Cell Sunflower Disc) Ground Speed (mph) 16000 18000 20000 22000 24000 26000 28000 30000 32000 34000 36000 Optimal Zone Low or high meter speed, may require vacuum adjustment...
Page 86: True Speed Seed Meter Cover Removal
Row Unit Operation Model 5700 M0320-01 TRUE SPEED SEED METER COVER REMOVAL 1. Push latch and rotate cover clockwise. 3-26 11/23...
Page 87 Row Unit Operation M0320-01 Model 5700 2. Select seed disc and ejector to match crop and population. Seed Meter Baffle Door Most Open Numbers Front Cover Release Button Least Open Baffle NOTE: Damaged seed or seed containing foreign material will cause plugging of seed disc orifices and require more frequent seed meter cleanout to prevent underplanting.
Page 88 Row Unit Operation Model 5700 M0320-01 ADDITIVES Lubricant Application Rate Graphite Conventional Hoppers 1 Tbs./Hopper Fill Bulk Fill Hoppers 1 Pound Bottle/50 Unit Fill 80/20 Talc-Graphite Conventional Hoppers ½ C.** Bulk Fill Hoppers 8 Pounds/50 Unit Fill** **Must be evenly mixed during fill.
Page 89: Bayer Fluency Agent
This product, as tested by Kinze, is compatible with Kinze’s bulk fill system and vacuum meters. Due to limited testing, wear life characteristics of meters and bulk fill systems that use Bayer Fluency Agent are not yet known. Please follow Bayer Fluency Agent instructions for rates and mixing directions.
Page 90: Granular Chemical
Row Unit Operation Model 5700 M0320-01 GRANULAR CHEMICAL Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property. Read and follow all chemical and equipment manufacturers labels and instructions.
Page 91: Row Unit Mounted No Till Coulter
Row Unit Operation M0320-01 Model 5700 ROW UNIT MOUNTED NO TILL COULTER Row unit mounted no till coulter blades may be used on row units. Coulter blade can be adjusted to one of four ½" incremental settings in the forked arm. Initial location is the top hole.
Page 92: Coulter Mounted Residue Wheels
Row Unit Operation Model 5700 M0320-01 COULTER MOUNTED RESIDUE WHEELS Coulter mounted residue wheels are designed for use on row units. Weed guard NOTE: Opening in weed guard must face down. Coulter Mounted Residue Wheels Residue wheels attach to row unit mounted coulter with two cap screws and sleeves allowing unit to free-float. A 2-position spindle bolt mounting positions wheels interlocked or staggered.
Page 93: Fertilizer
Fertilizer M0320-01 Model 5700 SYSTEM OVERVIEW Fertilizer is controlled through the Blue Vantage Display. You can increase or decrease fertilizer rate, turn fertilizer function on or off, and load a prescription. Refer to your Blue Vantage manual for more information.
Page 94 Fertilizer Model 5700 M0320-01 Fertilizer Systems Parts Overview NOTE: See parts manual for part numbers. COMPONENT DESCRIPTION Small pump, used on 40' toolbar. Oil Capacity: 36 oz Diaphragm Kit: Available, see parts manual. Check Valve Kit: Available, see parts manual.
Page 95 Fertilizer M0320-01 Model 5700 COMPONENT DESCRIPTION 30 mesh. Clean regularly. Suction Strainer 80 mesh. Clean regularly. Pressure Strainer On/off valve that opens flow of fertilizer to the pump. This is feature is used when entering planting task in Blue Vantage.
Page 96 Fertilizer Model 5700 M0320-01 COMPONENT DESCRIPTION Closes to send flow through small flowmeter at low flow rates. Small Ball Valve Located in suction strainer. Sends pump suction pressure to Blue Vantage controls. Suction Sensor Sends delivery manifold pressure to Blue Vantage controls.
Page 97 Fertilizer M0320-01 Model 5700 Hose Clamp Torque Values Chart Diameter Standard Heavy Duty 11/4" 42 in-lb 75 in-lb 11/2" 42 in-lb 75 in-lb 2" 42 in-lb Standard Heavy Duty Flange Clamp Torque Values Chart Diameter Torque 1" 50-60 in-lb 2"...
Page 98 Fertilizer Model 5700 M0320-01 Liquid Fertilizer System Schematics Fertilizer is controlled through the Blue Vantage display. Increase or decrease fertilizer rate, turn fertilizer function on or off, and load perscription. Refer to your Blue Vantage manual for more information. Rear Trailer or Hitch Auxiliary Tank...
Page 99 Fertilizer M0320-01 Model 5700 System Overview Diaphragm Pump - Model Number AR120 Oil Sight Glass Suction Barb Pressure Barb Input Shaft Oil Drain Plug Operating Pressure Range Drain Plug AR120 AR160 Max GPM 30.8 43.9 Max PSI Weight 34 lbs...
Page 100 Fertilizer Model 5700 M0320-01 Diaphragm pumps are reciprocating positive displacement pumps. Reciprocating movement of the diaphragms expands and compresses volumes. This mechanical work and change in volumes cause transfer of liquid. The main difference between a diaphragm pump and other types of reciprocating pumps, is the presence of a flexible separating component (the diaphragm) between mechanical parts and pumped liquid circuit.
Page 101 Fertilizer M0320-01 Model 5700 When pump is new, oil in tank is clear and yellowish in color. After a few operating hours, the oil in tank loses its transparency and becomes dark due to metal particles removed by rubbing of internal components during functioning.
Page 102: Pulsation Damper (Diaphragm Pump) - Model Number Ar160 Only
Fertilizer Model 5700 M0320-01 PULSATION DAMPER (DIAPHRAGM PUMP) - MODEL NUMBER AR160 ONLY The hydropneumatic damper consists of two half circular bodies separated by an elastomer diaphragm which also provides a watertight seal outwards. One of the two damper halves is connected to the delivery circuit, the other is filled with pressurized air, or in some cases Nitrogen, by means of an inflation valve of the kind used on car tires.
Page 103: Fertilizer Tank
Fertilizer M0320-01 Model 5700 FERTILIZER TANK Fluid Switch Fertilizer Level Fertilizer Pressure Gauge 24 Row - Front View 24 Row - Rear View Fertilizer Pressure Gauge Pressure gauge is connected directly to the fertilizer pressure manifold. The analog pressure gauge is located on the front of liquid fertilizer tank.
Page 104: Maintenance Interval
Fertilizer Model 5700 M0320-01 Servicing Pump Refer to the parts manual for all service kit part numbers. Use the chart below for maintenance intervals. MAINTENANCE INTERVAL ACTION Each time used. Check level and status of oil. Check suction filter and clean if necessary.
Page 105 Fertilizer M0320-01 Model 5700 Changing Pump Oil Suction Remove top two hoses from pump (suction and pressure will unscrew from pump). Pressure Remove hydraulic motor from pump flange. Unplug pump speed sensor. Remove pump from planter. Loosen cap on oil sight glass.
Page 106: Row Flow Meter
Fertilizer Model 5700 M0320-01 ROW FLOW METER 0 Degrees End View When planter toolbar is on level ground, check to ensure all flow meters are also as horizontal as possible for best operation. If flow meter is not level while planter is on level ground, adjust by rotating manifold(s).
Page 107: Row Flow Meter Cleanout
Fertilizer M0320-01 Model 5700 ROW FLOW METER CLEANOUT Fertilizer can salt out when certain conditions of time and temperature are met. This causes a buildup of fertilizer granules in and around areas of low flow. This will cause errors in the performance of the fertilizer flow manifold.
Page 108: Row Flow Meter Jet Orifice Removal
Fertilizer Model 5700 M0320-01 ROW FLOW METER JET ORIFICE REMOVAL 1. Turn cover counterclockwise to unlock and remove cover from flow meter. Cover Flow Meter Manifold 2. Remove paddle wheel from cavity. Flow Meter Paddle Wheel Rotate the nozzle assembly counterclockwise 90° and pull nozzle off.
Page 109 Fertilizer M0320-01 Model 5700 Remove jet orifice: • Insert #1 Phillips screwdriver from the nozzle assembly side until the tip is in the jet orifice as shown. Then push the jet orifice out. Jet Orifice Reassemble flow meter • Reinstall row shutoff valve and tighten nut clockwise.
Page 110: Row Flow Meter Jet Orifice Installation
Fertilizer Model 5700 M0320-01 ROW FLOW METER JET ORIFICE INSTALLATION 1. Remove row shutoff valve by spinning nut counterclockwise and pulling valve out. Row Shutoff Valve Cover 2. Turn cover counterclockwise to unlock and remove cover from flow meter. 3. Place jet orifice on the end of #1 Phillips screwdriver,...
Page 111 Fertilizer M0320-01 Model 5700 Locked Position 7. Reinstall cover and turn clockwise until the lock symbol is directly above the white line. 8. Reinstall strainer. Strainer 9. Reinstall gasket, orifice, and nozzle assembly. NOTE: Orifices must be installed correctly. Install orifice with the blank side towards the flow meter manifold and the stamped side facing nozzle assembly (pointing downstream toward the direction of delivery).
Page 112: Flow Meter Strainer And Orifice Cleaning And/Or Replacement
Fertilizer Model 5700 M0320-01 FLOW METER STRAINER AND ORIFICE CLEANING AND/OR REPLACEMENT Strainer Rotate the nozzle assembly counterclockwise 90° and pull nozzle off. Nozzle Assembly Strainer Flange Pull strainer out of flow meter and clean or replace it. Strainer Part...
Page 113 Fertilizer M0320-01 Model 5700 Orifice Rotate the nozzle assembly counterclockwise 90° and pull nozzle off. Nozzle Assembly Remove gasket with orifice currently installed. Remove orifice from gasket. Gasket Orifice NOTE: Orifices must be installed correctly. Install orifice with the blank side towards the flow meter manifold and the stamped side facing nozzle assembly (pointing downstream toward the direction of delivery).
Page 114: Orifice Configuration Rates
Fertilizer Model 5700 M0320-01 ORIFICE CONFIGURATION RATES 4-22 11/23...
Page 115 Fertilizer M0320-01 Model 5700 4-23 11/23...
Page 116: Pump Clean Out And Storage
Fertilizer Model 5700 M0320-01 PUMP CLEAN OUT AND STORAGE NOTE: Do not let fertilizer sit in pump and system for longer than a day. Fertilizer will crystalize and cause issues with small moving parts and nozzles in the fertilizer system.
Page 117 Fertilizer M0320-01 Model 5700 Turn the pump over by hand (or with the motor) for 15-20 seconds to remove any fluid in the manifolds and heads. With onboard hydraulic system running and with solenoid connector unplugged, turn the knob clockwise to run pump, turn counterclockwise to turn off.
Page 118: In Furrow
Fertilizer Model 5700 M0320-01 IN FURROW In Furrow is available for in-line installation to ensure equal distribution of product at low rates and siphon protection for field turns. 4-26 11/23...
Page 119: Auxiliary Plumbing For Liquid Fertilizer
Fertilizer M0320-01 Model 5700 AUXILIARY PLUMBING FOR LIQUID FERTILIZER Rear Trailer Hitch Auxiliary Plumbing Front Hitch Auxiliary Plumbing Rear trailer hitch is used to tow a 3 or 4 wheel wagon behind planter. Hitch height during field operation and transport is 15".
Page 120 Fertilizer Model 5700 M0320-01 Auxiliary Valves Front Auxiliary Valve Located on the front hitch. This valve should be opened when hooked to a tractor tank for the planting season, it can remain open all season while hooked to tractor tank(s). Before disconnecting planter from tractor, close this valve and disconnect fluid supply from tractor tanks.
Page 121: Fertilizer Pump Troubleshooting
Fertilizer M0320-01 Model 5700 FERTILIZER PUMP TROUBLESHOOTING PROBLEM CAUSE SOLUTION Pump does not prime. Air being sucked in from suction line. Check suction line connections and inspect it for damage. One or more valves not properly sealing. Check the valves and replace them (if necessary).
Page 122: Fertilizer System Troubleshooting
Fertilizer Model 5700 M0320-01 FERTILIZER SYSTEM TROUBLESHOOTING PROBLEM CAUSE SOLUTION Fertilizer flow not detected. Plugged orifice. Clean debris from orifice. Row shutoff valve plugged. Clean debris from shutoff valve, replace if necessary. Flow meter plugged. Open cover and check for debris.
Page 123: Lubrication
LUBRICATION Following pages show locations of all lubrication points. Proper lubrication of moving parts helps ensure efficient operation of your Kinze planter and prolongs the life of friction producing parts. LUBRICATION SYMBOLS Lubricate at frequency indicated Lubricate at frequency indicated with high quality SAE 10 weight oil or spray lubricant.
Page 124: Bushings
Lubrication and Maintenance Model 5700 M0320-01 BUSHINGS Lubricate bushings at frequency indicated. Check each bolt for proper torque. If bolt is loose, removed it and inspect bushing for cracks and wear. Replace bushing if necessary. Use only hardened flat washers. Replace damaged flat washers with proper part. Torque hardware to 130 ft-lb (176.2 N-m).
Page 125: Grease Fittings
Lubrication and Maintenance M0320-01 Model 5700 GREASE FITTINGS Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety lockup devices before transporting equipment. Parts equipped with grease fittings should be lubricated at frequency indicated with an SAE multipurpose grease.
Page 126 Lubrication and Maintenance Model 5700 M0320-01 1. Lift Cylinders, 2 per machine 2. Wing Fold cylinders, 4 per machine 1 fitting per cylinder 2 fittings per cylinder (one each end) 3. Draft Link, 2 per machine 4. Wing Latch cylinders, 4 per machine...
Page 127 Lubrication and Maintenance M0320-01 Model 5700 6. Wheel modules, 4 per machine 7. Wing pivot, 2 per machine 2 fittings per module 1 fitting per pivot 8. Stub Wing Roller, 2 per machine 9. Wing Fold Pivot, 2 per machine...
Page 128 Lubrication and Maintenance Model 5700 M0320-01 12. Axle Pivot, 2 per machine 24 Row 20" 24 Row 30" / 36 Row 20" Row Markers Trailer Hitch Drawbar Hitch 1 fitting 1 fitting Rev. 8/24...
Page 129: Pto Shaft Coupling
Lubrication and Maintenance M0320-01 Model 5700 PTO SHAFT COUPLING Clean and grease PTO shaft coupling each time pump is installed. Apply coating of high-speed industrial coupling grease, such as Chevron® Coupling Grease meeting AGMA CG-1 and CG-2 Standards to extend shaft spline life.
Page 130: Mounting Bolts And Hardware
All hardware used on the Kinze planter is Grade 5 (high strength) unless otherwise noted. Grade 5 cap screws are marked with three radial lines on the head. Hardware must be replaced with equal size, strength, and thread type.
Page 131 Lubrication and Maintenance M0320-01 Model 5700 SPECIAL TORQUE VALUES AND INSTRUCTIONS Row unit parallel linkage bushing hardware 190 ft-lb (258 N-m) 5/8" No till coulter spindle hardware 120 ft-lb (162 N-m) 125 ft-lb (169 N-m) Row Unit Disc Opener Blade Bolt** **Left hand side is left hand thread.
Page 132: Tire Pressure
Lubrication and Maintenance Model 5700 M0320-01 TIRE PRESSURE Explosive separation of rim and tire WARNING parts can cause death or serious injury. Overinflation, rim and tire servicing, improper use of rims and tires, or worn or improperly maintained tires could result in a tire explosion.
Page 133: Inflation Specifications
Lubrication and Maintenance M0320-01 Model 5700 INFLATION SPECIFICATIONS Marker Arm Tire (If equipped) Transport Wing Tire Locations (L.H. shown) 1. Torque transport wheel ¾”- 16 lug nuts to: 24 Row 30" / 36 Row 20" ..315 ft-lb (427 N-m) 24 Row 20"...
Page 134: True Rate Meter Maintenance
Lubrication and Maintenance Model 5700 M0320-01 TRUE RATE METER MAINTENANCE Seed Meter with Back Singulator Cover Removed Vacuum Front Cover Before each planting season inspect seed discs and singulator and clean or replace as needed. Use clean, high quality seed for maximum meter accuracy. Damaged or cracked seed, hulls, and foreign material may become lodged in seed disc orifices and greatly reduce meter accuracy.
Page 135: Vacuum Manifold Maintenance
Lubrication and Maintenance M0320-01 Model 5700 VACUUM MANIFOLD MAINTENANCE Dust accumulates in manifolds and hoses during normal operation. Clean manifolds annually. Abnormally dusty planting conditions may require more frequent cleaning. 1. Remove vacuum hose from each seed meter. 2. Operate vacuum fan at full hydraulic flow from tractor for two minutes to clear manifolds, hoses, and fittings of dust and debris.
Page 136: True Speed Seed Meter Maintenance
Lubrication and Maintenance Model 5700 M0320-01 TRUE SPEED SEED METER MAINTENANCE Hose Elbow Ejector Front Cover Release Button Seed Meter With Back Cover Removed Before each planting season inspect seed discs and Singulator and clean or replace as needed. Use clean, high quality seed for maximum meter accuracy. Damaged or cracked seed, hulls, and foreign material may become lodged in seed disc orifices and greatly reduce meter accuracy.
Page 137: True Speed Seed Meter Cleanout
Lubrication and Maintenance M0320-01 Model 5700 TRUE SPEED SEED METER CLEANOUT NOTE: Use of damaged seed or seed containing foreign material will cause plugging of seed cell orifices and require more frequent seed meter cleanout to prevent underplanting. Thorough seed meter cleanout is important to maintain genetic purity.
Page 138: True Speed Delivery Tube Maintenance
Lubrication and Maintenance Model 5700 M0320-01 TRUE SPEED DELIVERY TUBE MAINTENANCE Lower Housing Cover Release Tab Upper Housing Cover Seed Delivery Tube Delivery Tube Disassembly 1. Unplug electrical connections and remove delivery tube from row unit. 2. Unscrew and remove seed sensor from delivery tube.
Page 139 Lubrication and Maintenance M0320-01 Model 5700 Belt Tensioning Procedure: When installing or changing parts, tensioning belt will be necessary. 1. Loosen belt tension screws. 2. Compress and loosen upper and lower halves of delivery tube to verify the two parts moves freely.
Page 140 Lubrication and Maintenance Model 5700 M0320-01 NOTE: Inspect delivery belt after first season of use and re-tension as needed. Seed Belt Replacement 1. Lift release tab and slide lower housing cover downward. Lift and remove. 2. Unscrew the seed sensor bolt with triangular head and remove seed sensor.
Page 141: True Speed Maintenance Chart
Lubrication and Maintenance M0320-01 Model 5700 TRUE SPEED MAINTENANCE CHART COMPONENT INSPECT REPLACE WEAR CHARACTERISTICS Singulator Annually Every 500 1. Reduced volume of wear indicator. row acres or 2. Reduced depth in wear indicator. as needed 3. Reduced brush pack stiffness.
Page 142 Lubrication and Maintenance Model 5700 M0320-01 COMPONENT INSPECT REPLACE WEAR CHARACTERISTICS 1. Reduced comb tip length. Every 500 Good Comb Annually row acres or as needed 1. Reduced volume on both sides of block. Replace when ribs are less than .025 tall.
Page 143: Gauge Wheel Adjustment
Lubrication and Maintenance M0320-01 Model 5700 GAUGE WHEEL ADJUSTMENT Gauge Wheel Arm Adjustment Nut Lock Pin Clevis Pin Adjust gauge wheel adjustment nut to lightly contact opener disc blade in this area for 4" to 6". Check adjustment in operating Align the closest adjustment nut slot and hole in spindle, position.
Page 144: Gauge Wheel Arm Pivot Spindle Replacement
Lubrication and Maintenance Model 5700 M0320-01 GAUGE WHEEL ARM PIVOT SPINDLE REPLACEMENT NOTE: Spindle replacement should take place if threads are damaged and/or worn. Remove lock pin and clevis pin from gauge wheel arm adjustment nut, that locks pivot spindle in place. Rotate nut counter-clockwise to unscrew from spindle.
Page 145: Gauge Wheel Arm Bushing/Seal
Lubrication and Maintenance M0320-01 Model 5700 GAUGE WHEEL ARM BUSHING/SEAL NOTE: Replace when bushing/seal is worn or damaged. Bushing Seal Spacer Gauge Wheel Arm Seal Bushing Gauge Wheel Arm Adjustment Nut Internal Retaining Ring 5-23 Rev. 8/24...
Page 146: 15" Seed Opener Disc Blade/Bearing Assembly
Lubrication and Maintenance Model 5700 M0320-01 15" SEED OPENER DISC BLADE/BEARING ASSEMBLY Excessive blade contact may result in NOTICE premature disc opener bearing/hub failures and excessive wear on seed tube guard/ inner scraper. When properly adjusted, if one blade is held in fixed position, opposite blade should rotate with less than 5 pounds force (22 newtons) at outer edge of blade.
Page 147: Seed Tube Guard/Inner Scraper
Lubrication and Maintenance M0320-01 Model 5700 15" SEED OPENER DISC BLADE/BEARING ASSEMBLY (CONTINUED) REPLACE BEARING ONLY 1. Remove gauge wheel, scraper, bearing cap, cap screw, washer and disc blade/bearing assembly. 2. Remove ¼" rivets from bearing housing to expose bearing.
Page 148: Row Unit Mounted No Till Coulter
Lubrication and Maintenance Model 5700 M0320-01 ROW UNIT MOUNTED NO TILL COULTER Check nuts and hardware periodically for proper torque. NOTE: Torque ⅝" spindle hardware to 120 ft-lb (162 N-m). Be sure coulter is positioned square with row unit and aligned in front of row unit disc opener.
Page 149: Yetter 2940 Air Adjust Residue Manager Maintenance
Lubrication and Maintenance M0320-01 Model 5700 YETTER 2940 AIR ADJUST RESIDUE MANAGER MAINTENANCE Serious injury may occur from moving WARNING parts such as belts, pulleys, flywheels, or fans if they come in contact with you or your clothing. Do not operate air compressor without protective belt guards installed.
Page 150 Lubrication and Maintenance Model 5700 M0320-01 Compressor oil change Compressor needs oil changed after initial 50 hour break in, then oil should be changed every 1000 hours. 17 ounces (1/2 liter) of oil is required to fill compressor. TEMPERATURE Fahrenheit 0°-32°F...
Page 151 Lubrication and Maintenance M0320-01 Model 5700 Replacing Air Filter Air Cleaner Air filter needs to be replaced annually. Wing Nut 1. Remove wing nut on the air filter housing. 2. Remove air filter cover and air filter. 3. Reinstall new air filter. See parts manual for filter part number.
Page 152 Pneumatic Tubing Do not distort or crush tubing when NOTICE cutting. Cut tubing square using tube cutters (Kinze part number GA13169). An angle cut can cause air leaks affecting performance. Air connections are made using push to connect adapters. If an airline pops out of an adapter, push it all the way back in.
Page 153: Tractor Mounted Pump Drive And Oil Cooler
Lubrication and Maintenance M0320-01 Model 5700 TRACTOR MOUNTED PUMP DRIVE AND OIL COOLER Clean and grease PTO shaft coupling NOTICE with high-pressure industrial coupling grease (Chevron coupling grease or ® equivalent) meeting AGMA CG-1 and CG-2 Standards each time driveshaft is installed or premature wear and equipment failure can occur.
Page 154: Check Valve
This pressure relief valve ensures latch cylinder extends and releases prior to tongue extending. Valve is factory set and should require no additional adjustment. Contact your Kinze Dealer for service. Connect hydraulic motor case drain to a NOTICE...
Page 155: Solenoid Valve
Lubrication and Maintenance M0320-01 Model 5700 SOLENOID VALVE Coil Solenoid valve consists of a chambered body with an electric coil actuated cartridge valve. If solenoid or solenoids fail to operate, first determine if problem is electrical or hydraulic. If valve is working properly,...
Page 156: Row Marker Break Away
Lubrication and Maintenance Model 5700 M0320-01 ROW MARKER BREAK AWAY When replacing marker shear bolts, the jam bolt must be re-adjusted. The jam bolt acts as a stop and puts a slight pre-load on the shear bolt. Remove broken shear bolt.
Page 157: Row Marker Bearing Lubrication Or Replacement
Lubrication and Maintenance M0320-01 Model 5700 ROW MARKER BEARING LUBRICATION OR REPLACEMENT Grease seal Outer cup Bearing Flat washer Spindle Slotted hex nut Dust cap Inner cup Marker blade Hub shield Bearing Cotter pin Retainer 1. Remove retainer and marker blade.
Page 158: Transport And Lift/Ground Drive Wheel Bearing Repack Or Replacement
Lubrication and Maintenance Model 5700 M0320-01 Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety lockup devices before transporting equipment. TRANSPORT AND LIFT/GROUND DRIVE WHEEL BEARING REPACK OR REPLACEMENT...
Page 159: Battery Care
Lubrication and Maintenance M0320-01 Model 5700 BATTERY CARE Read and follow all manufacturers labels NOTICE and instructions. Battery Specifications Chemistry: Wet lead acid (Low maintenance) Voltage: 12.00 Milliamp Hours: 0 mAH Capacity: 17.00 AH Weight: 15.30 lb Length: 7.72" Width: 5.19"...
Page 160: Preparation For Storage
Lubrication and Maintenance Model 5700 M0320-01 PREPARATION FOR STORAGE • Store planter in a dry sheltered area if possible. • Remove all trash from row units and frame. Remove dirt that can draw and hold moisture. • Lubricate planter and row units at all lubrication points.
Page 161: Fertilizer Ipn Harness (P/N: 10765601)
Lubrication and Maintenance M0320-01 Model 5700 FERTILIZER IPN HARNESS (P/N: 10765601) WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION J1:17 P3:2 FERT LOW LEVEL SENSOR (GND) SP1:OUT P2:11 FERT LOW LEVEL SENSOR (PWR) SP1:OUT P3:5...
Page 162: Ethernet Cables
Lubrication and Maintenance Model 5700 M0320-01 ETHERNET CABLES WIRE COLOR WHITE/ORANGE WHITE/GREEN WIRE COLOR ORANGE WHITE/ORANGE GREEN WHITE/GREEN ORANGE GREEN SHIELDING COUPLING SCREW M12 X 1.0 STRAIGHT M12 X 1.0 STRAIGHT SHIELDING COUPLING SCREW M12 X 1.0 STRAIGHT M12 X 1.0 STRAIGHT...
Page 163: Pto Reverser Harness (P/N: 10263101)
Lubrication and Maintenance M0320-01 Model 5700 PTO REVERSER HARNESS (P/N: 10263101) PIN 12 PIN 6 PIN 1 COIL A 2 PL PIN 1 REVERSER PIN 1 PTO REVERSER PART NUMBER COIL B REV / DATE VENDOR ID 5-41 Rev. 8/24...
Page 164: Pto Harness (P/N: 10200301)
Lubrication and Maintenance Model 5700 M0320-01 PTO HARNESS (P/N: 10200301) PIN 1 PIN 3 PIN 2 PIN 1 4 PL PIN 1 2 PL GREEN FLUID LEVEL SENSOR (E8) BV / HOT OIL SOLENOID ALARM SWITCH POWER TAKEOFF PART NUMBER...
Page 165: Tractor Power Harness - 12 Row, 16 Row, And 24 Row (P/N: 10211901)
Lubrication and Maintenance M0320-01 Model 5700 TRACTOR POWER HARNESS - 12 ROW, 16 ROW, AND 24 ROW (P/N: 10211901) PIN 30 PIN 86 PIN 85 PIN 1 PIN 87 CONSOLE (PWR) RELAY PIN 1 PIN 3 PART NUMBER 12V (GND)
Page 166: Fertilizer Module Harness (P/N:10741001)
Lubrication and Maintenance Model 5700 M0320-01 FERTILIZER MODULE HARNESS (P/N:10741001) LABEL TABLE CONNECTOR CONNECTOR LABEL CONNECTOR CONNECTOR LABEL FLOW METER LOW RAIL PRESS SENSOR LOW LEVEL TANK PUMP SUCTION SENSOR RPM SENSOR PULL UP RPM SENSOR INLET SWITCH FLOW METER HIGH...
Page 167: Fertilizer Row Unit Extension Harness (P/N:10840301/10840302/10840303/10840304)
Lubrication and Maintenance M0320-01 Model 5700 FERTILIZER ROW UNIT EXTENSION HARNESS (P/N:10840301/10840302/10840303/10840304) PTO SYSTEM 12V POWER HARNESS (P/N: 10292601) FUSE (5A) PART NUMBER REV / DATE PTO CTRL/ PTO PWR VENDOR ID SENSE IN USED USED REF DES FROM WITH...
Page 168: Bus Box Harness (P/N: 10291901)
Lubrication and Maintenance Model 5700 M0320-01 12V BUS BOX HARNESS (P/N: 10291901) PIN 1 OUT 1 OUT 3 PIN 6 BUS IN PART NUMBER REV / DATE VENDOR ID PIN 1 PIN 2 OUT 2 5-46 Rev. 8/24...
Page 169: Air Pump Harness (P/N: 10188101)
Lubrication and Maintenance M0320-01 Model 5700 12V AIR PUMP HARNESS (P/N: 10188101) WIRE HOOK UP CHART REF DES FROM USED WITH ITEM USED WITH ITEM GAUGE COLOR DESCRIPTION J1-3 PDP PWR XF1-1 PDP PWR XF1-2 PDP PWR P1-1 PDP PWR...
Page 170: Pto Draft Link Harness - 24 Row 30" And 36 Row 20" (P/N: 10803501); 24 Row 20" (P/N 10803502)
Lubrication and Maintenance Model 5700 M0320-01 PTO DRAFT LINK HARNESS - 24 ROW 30” AND 36 ROW 20” (P/N: 10803501); 24 ROW 20” (P/N 10803502) PART NUMBER REV / DATE PRESSURE VENDOR I.D. WIRE HOOKUP CHART REF DES FROM USED W/...
Page 171: Camera Power Harness (P/N: 10269201)
Lubrication and Maintenance M0320-01 Model 5700 CAMERA POWER HARNESS (P/N: 10269201) INJECTION INJECTION CAMERA PWR PART NUMBER REV / DATE INJECTION VENDOR I.D. PIN 1 INJECTION PIN 2 PIN 3 PIN 1 SWITCH PIN 4 WIRE HOOKUP CHART REF DES FROM USED W/ ITEM TO USED W/ ITEM GAUGE COLOR...
Page 172: Pdp Control/Sensor Harness (P/N: 10820101/10820102)
Lubrication and Maintenance Model 5700 M0320-01 PDP CONTROL/SENSOR HARNESS (P/N: 10820101/10820102) PDP VALVES PART NUMBER PDP SENSOR REV / DATE VENDOR I.D. CAN STUB HARNESS (P/N: 10286101/10286102) PIN 1 PIN 2 PIN 6 PIN 3 BF-J6 SCALE MODULE PART NUMBER...
Page 173: Bulk Fill Scale Can Cable Phd28 Harness (P/N: 10242801)
Lubrication and Maintenance M0320-01 Model 5700 BULK FILL SCALE CAN CABLE PHD28 HARNESS (P/N: 10242801) PIN 20 PIN 10 PIN 2 PIN 1 SCALE MODULE PART NUMBER SCALE PWR REV / DATE VENDOR ID PIN 4 PIN 1 SCALE COM...
Page 174: Integrated True Depth Row Unit Harness (P/N: 10803401)
Lubrication and Maintenance Model 5700 M0320-01 INTEGRATED TRUE DEPTH ROW UNIT HARNESS (P/N: 10803401) DUMP PRESSURE SHUT PFF (A2) SENSOR (A3) WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION P4:1 P2:C HDP SENSOR (SIGNAL) P4:2...
Page 175: Yetter Row Cleaner Compressor Harness (P/N:10558202)
Lubrication and Maintenance M0320-01 Model 5700 YETTER ROW CLEANER COMPRESSOR HARNESS (P/N:10558202) COMPRESSOR PRESSURE SWITCH PART NUMBER REV / DATE VENDOR I.D. COMPRESSOR SOLENOID WIRE HOOK UP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION P1-1 J1-1...
Page 176: Yetter Row Cleaner Pwr/Can Harness (P/N:10631701)
Lubrication and Maintenance Model 5700 M0320-01 YETTER ROW CLEANER PWR/CAN HARNESS (P/N:10631701) 5-54 Rev. 8/24...
Page 177: True Speed Pull Row Unit W/Ipp Harness (P/N: 10916001)
Lubrication and Maintenance M0320-01 Model 5700 TRUE SPEED PULL ROW UNIT W/IPP HARNESS (P/N: 10916001) SP10 SP11 LABEL TABLE CONNECTOR CONNECTOR CONNECTOR CONNECTOR LABEL LABEL RU IPN J7 SEED SENSOR RU IPN J6 FERTILIZER TRUE DEPTH RU IPN J3 SOLENOID...
Page 178: True Rate Pull Row Unit W/Ipp Harness (P/N: 10915901)
Lubrication and Maintenance Model 5700 M0320-01 TRUE RATE PULL ROW UNIT W/IPP HARNESS (P/N: 10915901) LABEL TABLE CONNECTOR CONNECTOR CONNECTOR CONNECTOR LABEL LABEL RU IPN J7 SEED METER RU IPN J6 SEED SENSOR RU IPN J3 FERTILIZER TRUE DEPTH RU IPN J4...
Page 179: True Speed Pull Row Unit Harness (P/N:10915801)
Lubrication and Maintenance M0320-01 Model 5700 TRUE SPEED PULL ROW UNIT HARNESS (P/N:10915801) LABEL TABLE CONNECTOR CONNECTOR CONNECTOR CONNECTOR LABEL LABEL RU IPN J7 SEED METER RU IPN J6 SEED SENSOR RU IPN J3 FERTILIZER TRUE DEPTH RU IPN J4...
Page 180: True Rate Pull Row Unit Harness (P/N:10915701)
Lubrication and Maintenance Model 5700 M0320-01 TRUE RATE PULL ROW UNIT HARNESS (P/N:10915701) WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION P1:3 P7:5 FERT ROW CUT OFF VALVE (PWR) P1:4 P7:6 FERT ROW CUTOFF VALVE (GND)
Page 181: Taillight Extension Harness (P/N: A25207)
Lubrication and Maintenance M0320-01 Model 5700 TAILLIGHT EXTENSION HARNESS (P/N: A25207) PART NUMBER *U.S.* REV / DATE TAIL LIGHTS VENDOR ID (P1) (P2) Signal Wire Gauge Color From Ground P1-1 P2-1 LH Turn P1-3 P2-3 RH Turn P1-5 P2-5 Tail...
Page 182: Work Light Harness (P/N: A22547)
Lubrication and Maintenance Model 5700 M0320-01 WORK LIGHT HARNESS (P/N: A22547) PIN 87 PIN 87a PIN 85 PIN 86 PIN 30 PIN 1 PIN 1 PIN 1 INSECTICIDE HARNESS (P/N: A22522) INSECT SENSOR A22522 REV X DATE VENDOR ID INSECT...
Page 183: Work Light Harness (P/N: A26346)
Lubrication and Maintenance M0320-01 Model 5700 WORK LIGHT HARNESS (P/N: A26346) PIN 1 C. WORKLIGHT PART NUMBER REV / DATE VENDOR ID C. WORKLIGHT PIN 1 2 PL 5-61 Rev. 8/24...
Page 184: Row Unit Power Harness, 24 Row 30" - Rows 1-10 (P/N: 10136601)
Lubrication and Maintenance Model 5700 M0320-01 ROW UNIT POWER HARNESS, 24 ROW 30" - ROWS 1-10 (P/N: 10136601) PIN 12 PIN 6 PIN 1 10 PL ROW 12 PIN 2 ROW 9 ROW 8 ROW 6 ROW 5 ROW 4...
Page 185: Row Unit Power Harness, 24 Row 30" - Rows 14-24 (P/N: 10136701)
Lubrication and Maintenance M0320-01 Model 5700 ROW UNIT POWER HARNESS, 24 ROW 30" - ROWS 14-24 (P/N: 10136701) PIN 12 PIN 6 PIN 1 10 PL ROW 13 PIN 2 ROW 2 3 ROW 16 ROW 17 ROW 18 ROW 19...
Page 186: Power Harness - 24 Row 30" (P/N: 10136801)
Lubrication and Maintenance Model 5700 M0320-01 24V POWER HARNESS - 24 ROW 30" (P/N: 10136801) PIN 12 PIN 6 PIN 1 2 PL ROW 11 PART NUMBER REV/DATE ROW 10 VENDOR ID (ROWS 10-11) 5-64 Rev. 8/24...
Page 187: Row Unit Power Harness, 24 Row 20" - Rows 1-12 (P/N: A26572)
Lubrication and Maintenance M0320-01 Model 5700 ROW UNIT POWER HARNESS, 24 ROW 20" - ROWS 1-12 (P/N: A26572) 5-65 Rev. 8/24...
Page 188: Row Unit Power Harness, 24 Row 20" - Rows 13-24 (P/N: A26571)
Lubrication and Maintenance Model 5700 M0320-01 ROW UNIT POWER HARNESS, 24 ROW 20" - ROWS 13-24 (P/N: A26571) 5-66 Rev. 8/24...
Page 189: Row Unit Power Harness, 36 Row - Rows 1-13, 17, And 18 (P/N: 10132001)
Lubrication and Maintenance M0320-01 Model 5700 ROW UNIT POWER HARNESS, 36 ROW - ROWS 1-13, 17, AND 18 (P/N: 10132001) PIN 12 PIN 6 PIN 1 15 PL ROW 18 ROW 17 PIN 2 ROW 13 ROW 12 ROW 11...
Page 190: Row Unit Power Harness, 36 Row - Rows 19, 20, And 24-36 (P/N: 10132201)
Lubrication and Maintenance Model 5700 M0320-01 ROW UNIT POWER HARNESS, 36 ROW - ROWS 19, 20, AND 24-36 (P/N: 10132201) PIN 12 PIN 6 PIN 1 15 PL PIN 2 ROW 20 ROW 19 21-23 PIN 3 ROW 35 ROW 34...
Page 191: Power Harness - 24 Row (P/N: 10136901)
Lubrication and Maintenance M0320-01 Model 5700 24V POWER HARNESS - 24 ROW (P/N: 10136901) PIN 12 PIN 1 PIN 6 2 PL ROW 14 PART NUMBER REV/DATE ROW 15 VENDOR ID (ROWS 14-15) PIN 1 5-69 Rev. 8/24...
Page 192: Power Harness (P/N: 10132101)
Lubrication and Maintenance Model 5700 M0320-01 24V POWER HARNESS (P/N: 10132101) PIN 12 PIN 1 PIN 6 3 PL ROW 16 ROW 15 PART NUMBER REV/DATE ROW 14 VENDOR ID (ROWS 14-16) PIN 1 5-70 Rev. 8/24...
Page 193: Power Harness (P/N: 10132301)
Lubrication and Maintenance M0320-01 Model 5700 24V POWER HARNESS (P/N: 10132301) PIN 12 PIN 1 PIN 6 3 PL ROW 21 ROW 22 PART NUMBER REV/DATE ROW 23 VENDOR ID (ROWS 21-23) PIN 1 5-71 Rev. 8/24...
Page 194: Draft Link Power Harness (P/N: 10210601)
Lubrication and Maintenance Model 5700 M0320-01 DRAFT LINK POWER HARNESS (P/N: 10210601) PIN 6 FUSE (30A) PIN 4 PIN 1 PIN 4 SP3 SP4 PIN 6 PIN 1 PIN 7 PIN 3 PIN 3 WIRE HOOKUP CHART REF DES FROM...
Page 195: Tail Light Harness (P/N: 10133001)
Lubrication and Maintenance M0320-01 Model 5700 L.H. TAIL LIGHT HARNESS (P/N: 10133001) PART NUMBER PIN A REV / DATE LH FLASH VENDOR ID LH FLASH TAIL PIN A R.H. TAIL LIGHT HARNESS (P/N: 10132901) PART NUMBER RH FLASH REV / DATE...
Page 196: Tail Light Harness (P/N: A26379)
Lubrication and Maintenance Model 5700 M0320-01 TAIL LIGHT HARNESS (P/N: A26379) PIN 8 PIN 1 PART NUMBER REV / DATE VENDOR ID LH FLASH RH FLASH 2 PL LH FLASH RH FLASH TAIL TAIL 2 PL 5-74 Rev. 8/24...
Page 197: Tail Light Harness (P/N: 10132801)
Lubrication and Maintenance M0320-01 Model 5700 TAIL LIGHT HARNESS (P/N: 10132801) PIN 8 PIN 1 LEFT RIGHT 2 PL 5-75 Rev. 8/24...
Page 198: Drawbar Hitch Harness (P/N: A26341)
Lubrication and Maintenance Model 5700 M0320-01 DRAWBAR HITCH HARNESS (P/N: A26341) HITCH (A3) HITCH (A4) PIN 1 PIN 4 FOLD (A1) FOLD (A2) PIN 1 4 PL 5-76 Rev. 8/24...
Page 199: Fertilizer Ipn Harness (P/N: 10765602)
Lubrication and Maintenance M0320-01 Model 5700 FERTILIZER IPN HARNESS (P/N: 10765602) WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION J1:17 P3:2 FERT LOW LEVEL SENSOR (GND) SP1:OUT P2:11 FERT LOW LEVEL SENSOR (PWR) SP1:OUT P3:5...
Page 200: Fertilizer Ipn Harness (P/N: 10210602)
Lubrication and Maintenance Model 5700 M0320-01 FERTILIZER IPN HARNESS (P/N: 10210602) PIN 6 FUSE (30A) PIN 4 PIN 1 PIN 4 SP3 SP4 PIN 6 PIN 1 PIN 7 PIN 3 PIN 3 WIRE HOOKUP CHART REF DES FROM USED W/...
Page 201: Air Closing Wheel Harness (P/N: 10806201)
Lubrication and Maintenance M0320-01 Model 5700 AIR CLOSING WHEEL HARNESS (P/N: 10806201) CENTER CLOSING WHEEL SENSOR CENTER CLOSING WHEEL SOLENOID HARNESS WING CLOSING WHEEL SOLENOID WING CLOSING WHEEL SENSOR WIRE HOOKUP CHART REF DES FROM USE W/ USED W/ GAUGE...
Page 202: Fold Ipn Harness (P/N: 10741101 / 10741102)
Lubrication and Maintenance Model 5700 M0320-01 FOLD IPN HARNESS (P/N: 10741101 / 10741102) 5-80 Rev. 8/24...
Page 203 Lubrication and Maintenance M0320-01 Model 5700 5-81 Rev. 8/24...
Page 204: Power Harness (P/N: 10740901 / 10740902)
Lubrication and Maintenance Model 5700 M0320-01 12V POWER HARNESS (P/N: 10740901 / 10740902) 5-82 Rev. 8/24...
Page 205: Bulk Fill Ipn Harness (P/N: 10806401)
Lubrication and Maintenance M0320-01 Model 5700 BULK FILL IPN HARNESS (P/N: 10806401) PRESSURE SENSOR BULKFILL -J5 BF FAN BULKFILL - J4 SOLENOID WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION P2:7 P4:4 BULKFILL PRESSURE SENSOR (SIG)
Page 206: Right Wing Ipn Harness (P/N: 10803201 / 10803202)
Lubrication and Maintenance Model 5700 M0320-01 RIGHT WING IPN HARNESS (P/N: 10803201 / 10803202) 5-84 Rev. 8/24...
Page 207: Left Wing Ipn Harness (P/N: 10803301/ 10803302)
Lubrication and Maintenance M0320-01 Model 5700 LEFT WING IPN HARNESS (P/N: 10803301/ 10803302) 5-85 Rev. 8/24...
Page 208: Bulk Fill Shutoff Intercept Harness (P/N: 10963101)
Lubrication and Maintenance Model 5700 M0320-01 BULK FILL SHUTOFF INTERCEPT HARNESS (P/N: 10963101) WIRE HOOKUP CHART REF DES FROM USED W/ USED W/ GAUGE COLOR FUNCTION LABEL TABLE P5:1 J5:1 PASSTHROUGH CONNECTOR CONNECTOR P5:2 J5:2 PASSTHROUGH LABEL P5:5 SP1:IN BULK FILL FAN SHUT-OFF SWITCH (PWR) / PASSTHROUGH...
Page 209: Tail Light Extension Harness (P/N: A26631)
Lubrication and Maintenance M0320-01 Model 5700 TAIL LIGHT EXTENSION HARNESS (P/N: A26631) PART NUMBER TAIL REV / DATE LIGHTS VENDOR ID TAIL LIGHT HARNESS (P/N: A27151) PIN 8 PIN 1 TAIL LIGHT PIN 1 PIN 8 5-87 Rev. 8/24...
Page 210: Row Unit Power Harness, 24 Row 20"- Rows 1-12 (P/N: A26572)
Lubrication and Maintenance Model 5700 M0320-01 ROW UNIT POWER HARNESS, 24 ROW 20"- ROWS 1-12 (P/N: A26572) 5-88 Rev. 8/24...
Page 211: Row Unit Power Harness, 24 Row 20"- Rows 13-24 (P/N: A26571)
Lubrication and Maintenance M0320-01 Model 5700 ROW UNIT POWER HARNESS, 24 ROW 20"- ROWS 13-24 (P/N: A26571) 5-89 Rev. 8/24...
Page 212: Drawbar Hitch Harness, 24 Row 20" (P/N: A26628)
Lubrication and Maintenance Model 5700 M0320-01 DRAWBAR HITCH HARNESS, 24 ROW 20" (P/N: A26628) HITCH (A3) HITCH (A4) PART NUMBER DATE / REV VENDOR ID FOLD (A1) FOLD (A2) 5-90 Rev. 8/24...
Page 213 Lubrication and Maintenance M0320-01 Model 5700 DRAWBAR HITCH HARNESS, 24 ROW 20" (P/N: A26628) PIN 8 PIN 1 PART NUMBER REV / DATE VENDOR ID LH FLASH RH FLASH 2 PL LH FLASH RH FLASH TAIL TAIL 2 PL 5-91...
Page 214: Hydraulic Hose Life
Lubrication and Maintenance Model 5700 M0320-01 HYDRAULIC HOSE LIFE Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries. Fluid injected under skin must be IMMEDIATELY removed by a surgeon familiar with this type of injury.
Page 215: Troubleshooting
Troubleshooting M0320-01 Model 5700 BULK FILL PROBLEM POSSIBLE CAUSE SOLUTION Seed does not travel through System pressure set too low. Increase system pressure. delivery tubes. Seed stops flowing to row unit Seed surging. Shut down air seed delivery system and during planting.
Page 216: Row Marker Operation
Troubleshooting Model 5700 M0320-01 ROW MARKER OPERATION PROBLEM POSSIBLE CAUSE SOLUTION Right marker lowering slower Solenoid valve cartridge in port B4 of R.H. Switch with cartridge in port B4 of than left marker. block not opening completely. L.H. block. If problem repeats, replace cartridge.
Page 217: True Rate Seed Meter
Troubleshooting M0320-01 Model 5700 TRUE RATE SEED METER PROBLEM POSSIBLE CAUSE SOLUTION Low seed count. Meter RPM too high. Reduce planting rate or planting speed. Singulator blade setting too aggressive. Adjust singulator blade. Vacuum level too low. Increase fan speed.
Page 218 Troubleshooting Model 5700 M0320-01 TRUE RATE SEED METER - Continued PROBLEM POSSIBLE CAUSE SOLUTION Not planting seed. Seed baffle (if applicable) not allowing seed Mix talc thoroughly to coat all seeds. Remove (Continued) flow due to bridging of seed. seed baffle. Row Unit Operation section.
Page 219: Solenoid Valve
Troubleshooting M0320-01 Model 5700 SOLENOID VALVE PROBLEM POSSIBLE CAUSE SOLUTION No solenoids operate. Low voltage. Must be connected to 12 volt DC only. Negative ground. Blown fuse. Replace control console fuse with AGC-15 amp. Battery connection. Clean and tighten. Wiring harness damaged.
Page 220 This page intentionally left blank.

Kinze 5700 Operator's Manual

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for Kinze 5700

Summary of Contents for Kinze 5700
