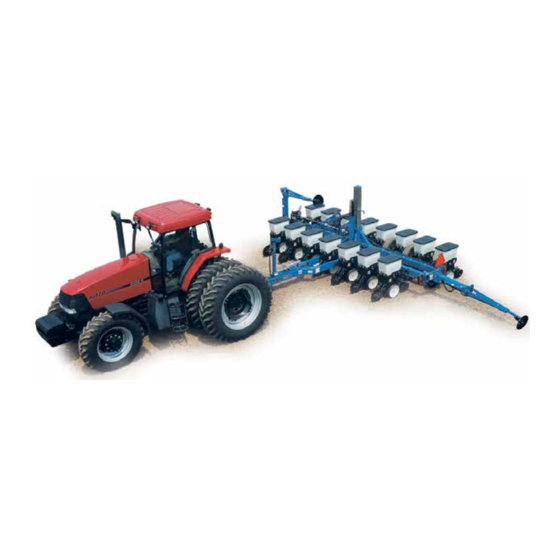

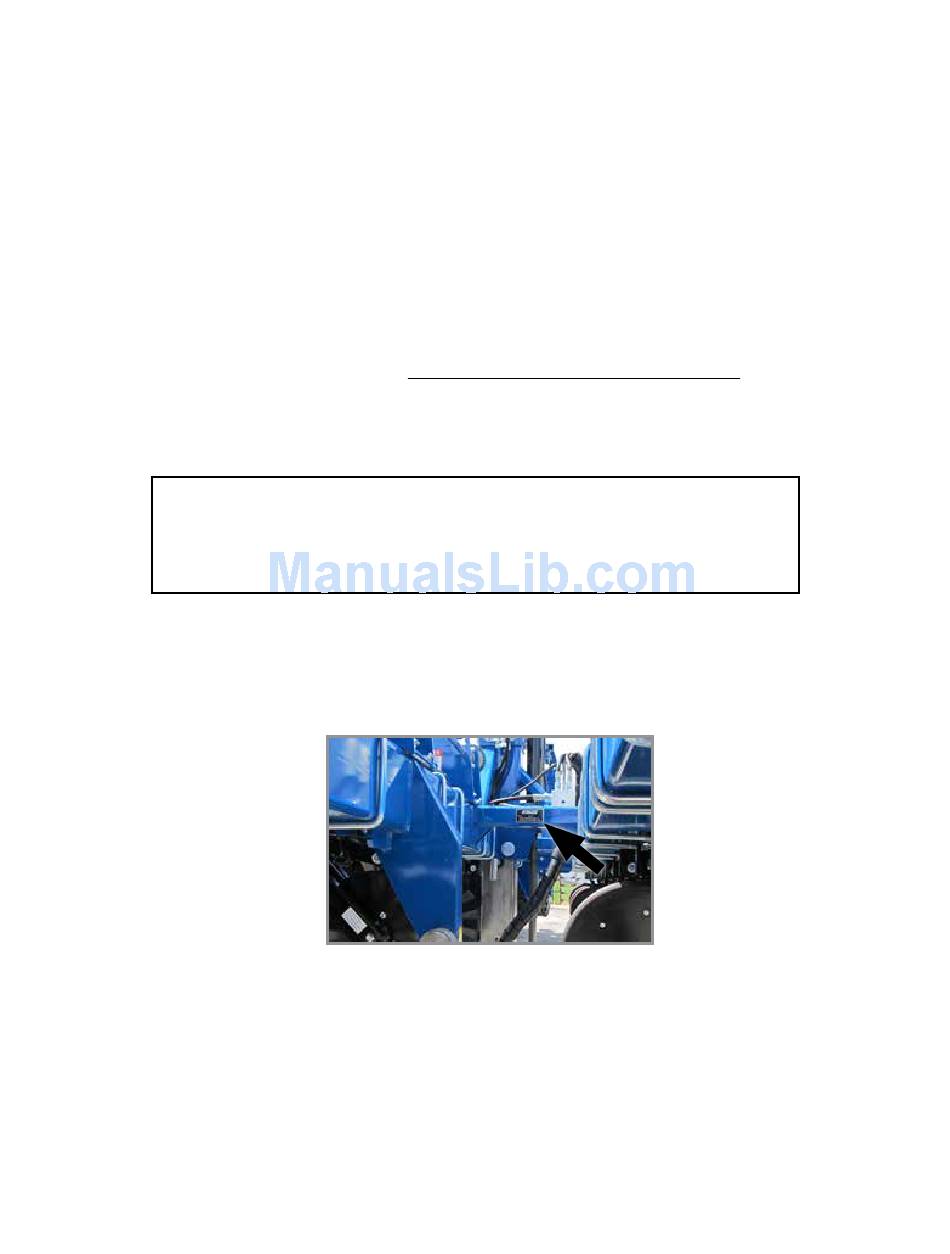

Page 1 The serial number plate is located on the planter frame as shown below. The serial number provides important information about your planter and is needed to obtain correct replacement parts. Always provide model number and serial number to your Kinze Dealer when ordering parts or when contacting Kinze Manufacturing, Inc. 2015 production...
Page 2 This page left blank intentionally.
Page 3 Predelivery/Delivery Checklist M0258-01 Model 3500 TO THE DEALER Predelivery service includes assembly, lubrication, adjustment and test. This service helps to ensure planter is delivered to retail customer/end user ready for field use. PREDELIVERY CHECKLIST Use the following checklist after planter is completely assembled to inspect planter. Check off each item as it is found satisfactory or after proper adjustment is made.
Page 4 Predelivery/Delivery Checklist Model 3500 M0258-01 DELIVERY CHECKLIST Use the following checklist when planter is delivered as a reminder of important information which should be conveyed to retail customer/end user. Check off each item as it is fully explained.  Check for proper operation of vacuum fan and PTO driven pump (If Applicable) with tractor to be used with planter.
Page 5: Table Of Contents
Table of Contents M0258-01 Model 3500 OVERVIEW Determining Pounds Per Acre (Brush-Type Meter) ..2-27 Determining Bushels Per Acre..... 2-27 To The Owner .
Page 6 Seed Meter (Finger Pickup) Troubleshooting... 7-5 Model 3500 Operating Tire Pressure....6-12 Vacuum Seed Meter ......7-6 Chain Tension Adjustment .
Page 7: To The Owner
M0258-01 Model 3500 Kinze Manufacturing, Inc. thanks you for your patronage. We appreciate your confidence in Kinze farm machinery. Your Kinze planter has been carefully designed to provide dependable operation in return for your investment. This manual has been prepared to aid you in the operation and maintenance of the planter. It should be considered a permanent part of the machine and remain with the machine when you sell it.
Page 8 NOTE: Some photos in this manual may have been taken of prototype machines. Production machines may vary in appearance. NOTE: Some photos and illustrations in this manual show optional attachments installed. Contact your Kinze Dealer for purchase of optional attachments.
Page 9: General Information
M0258-01 Model 3500 The Kinze Limited Warranty for your new machine is stated on the retail purchaser’s copy of the Warranty And Delivery Receipt form. Additional copies of the Limited Warranty can be obtained through your Kinze Dealer. Warranty, within the warranty period, is provided as part of Kinze’s support program for registered Kinze products which have been operated and maintained as described in this manual.
Page 10: Tractor Hydraulic Requirements
SMV sign, transport safety chain, and Kinze pull row units (closing wheel arms less closing wheels) with seed hopper, lid, and dual quick adjustable down force springs option. Vacuum includes additional weight of fan, manifolds, and hoses.
Page 11: General Safety Rules
15. Use of aftermarket hydraulic, electric, or PTO drives may Model 3500 planter consists of 85% recyclable metals, create serious safety hazards to you and people nearby. If 10% recyclable plastic and rubber, and 5% waste.
Page 12: Safety Instructions, Signs, And Decals
Safety Instructions, Signs, and Decals Model 3500 M0258-01 Following are some common hazard warnings associated with this equipment. Pay close attention to all safety, operating, and maintenance information in this manual and decals applied to your equipment. Contacting or coming close to power...
Page 13 M0258-01 Model 3500 SAFETY SIGNS AND DECALS All safety/warning lights, reflective WARNING decals, and SMV sign must be in place and visible before transporting machine on public roads or death, serious injury, and damage to property and equipment may result. Check federal, state/ provincial, and local regulations before transporting equipment on public roads.
Page 14 This page left blank intentionally.
Page 15: Initial Preparation
Machine Operation M0258-01 Model 3500 INITIAL PREPARATION Following information is general in nature to aid in preparation of tractor and planter for use, and to provide general operating procedures. Operator experience, familiarity with the machine, and the following information should combine for efficient planter operation and good working habits.
Page 16: Tractor Requirements
Machine Operation Model 3500 M0258-01 1. Torque transport wheel 9∕16"- 18 lug bolts to 90 ft-lb (122 N-m). Contact drive 2. Inflate transport/ground drive tires to 40 psi (275.7 kPa). 3. Inflate contact drive tires to 50 psi (344.7 kPa).
Page 17: Row Marker Safety Lockup
Machine Operation M0258-01 Model 3500 Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment. Install all safety pins before transporting equipment. ROW MARKER SAFETY LOCKUP Storage...
Page 18: Hitch Length Adjustment
Machine Operation Model 3500 M0258-01 HITCH LENGTH ADJUSTMENT The hitch consists of a telescoping outer and inner section. Hitch length can be adjusted to three locations to accommodate tractor tire options and attachments installed on planter. 3¾" (9.5 cm) 18¾" (48 cm) 33¾"(86 cm)
Page 19: Jack Stand
Install pin through mount and jack stand. Secure with lynch pin. Parking/lift position. Jack stand locations HYDRAULIC OPERATION NOTE: PTO pump drive and oil cooler package is available from Kinze through your Kinze Dealer to increase your tractor’s operating capabilities. Safety/stroke limiter pin Counter balance valve Vacuum fan motor...
Page 20 Machine Operation Model 3500 M0258-01 HYDRAULIC OPERATION (CONTINUED) PLANTER LIFT SYSTEM Planter lift system consists of one lift cylinder located at center of machine. Cylinder mounts are located front and rear side of center post. Install cylinder in rear position for planters with rear mounted row units only. Cylinder must be installed in front position for planters with front mounted options (push row units, fertilizer, etc.).
Page 21: Pto Pump Drive And Oil Cooler Option
Machine Operation M0258-01 Model 3500 PTO PUMP DRIVE AND OIL COOLER OPTION The PTO pump drive and oil cooler option is for tractors with less than required hydraulic output needed to operate hydraulic- Oil cooler driven vacuum fan and other planter hydraulic requirements.
Page 22: Tractor Preparation And Hookup
Machine Operation Model 3500 M0258-01 TRACTOR PREPARATION AND HOOKUP NOTE: A 2-Point Hitch option is available for use with Category 3N or 3 three-point hitch designs to convert planter from drawn to semi-mounted. Safety chain is not used with 2-point hitch.
Page 23 NOTE: If tractor is equipped with an adjustable flow outlet (SCV), set to full flow position. For tractors not equipped with a method for finite adjustment of hydraulic flow, Flow Control Needle Valve Kit G1K426 is available from Kinze Repair Parts through your Kinze Dealer. G1K426 needle valve kit Rev. 9/17...
Page 24: Level Planter
Machine Operation Model 3500 M0258-01 TRACTOR PREPARATION AND HOOKUP (CONTINUED) 5. Connect ASABE Standards 7 terminal connector for safety/warning lights on planter to ASABE Standards receptacle on tractor. If your tractor is not equipped with an ASABE Standards receptacle, check with your tractor manufacturer for availability.
Page 25: Cylinder Information
Machine Operation M0258-01 Model 3500 CYLINDER INFORMATION Row Marker Transport Latch Lift Cylinder Rotation Cylinder Cylinder Cylinder Double Acting Double acting Double Acting Double Acting Intended Use Applications applications Applications Applications Piston Ductile Iron Ductile iron Ductile Iron Ductile Iron...
Page 26: Hydraulic Hose Information
Machine Operation Model 3500 M0258-01 HYDRAULIC HOSE INFORMATION Part Number A15008 A1153 A1194 A1141 A1195 A1090 Hose Assembly, Hose Assembly, Hose Assembly, Hose Assembly, Hose Assembly, Hose Assembly, Description ³⁄8" x 114" 1⁄4" x 56" 1⁄4" x 30" 1⁄4" x 62"...
Page 27 Machine Operation M0258-01 Model 3500 Hydraulic Hose Information (Continued) Part Number A1041 A1021 A1055 A1018 A1076 Hose Assembly, Hose Assembly, Hose Assembly, Hose Assembly, Hose Assembly, Description ³⁄8" x 130" ³⁄8" x 56" ³⁄8" x 66" ³⁄8" x 40" ³⁄8" x 30"...
Page 28: Towing Planter
Machine Operation Model 3500 M0258-01 TOWING PLANTER Contacting or coming close to power DANGER lines or other high energy sources will cause death or serious injury. Keep away from power lines or high energy sources at all times. All safety/warning lights, reflective...
Page 29: Contact Drive Spring Adjustment
Machine Operation M0258-01 Model 3500 CONTACT DRIVE SPRING ADJUSTMENT 8" (20.3 cm) Spring length measurement (Factory setting) Down pressure spring location There are two down pressure springs on each contact drive wheel. Spring tension is factory preset and normally requires no adjustment.
Page 30: Standard And Half Rate (2 To 1) Drives
Machine Operation Model 3500 M0258-01 STANDARD AND HALF RATE (2 TO 1) DRIVES Tension release arm Tension release arm Rate drive Rate drive sprocket sprocket Old style transmission New style transmission Seed planting rate charts are based on the standard rate drive using a 17 tooth sprocket unless otherwise specified.
Page 31: Shear Protection
Machine Operation M0258-01 Model 3500 SHEAR PROTECTION Shear pins protect the planter driveline and row unit components from damage. 1. Determine where binding has occurred before replacing a pin. Turn shaft by hand (with the aid of a wrench) and check for misalignment and seized parts.
Page 32: Wrap Spring Wrench
Machine Operation Model 3500 M0258-01 WRAP SPRING WRENCH Chain idlers use wrap spring wrenches to release and adjust transmission chain tension. NOTE: Wrap spring wrenches are L.H. and R.H. specific. L.H. styles have silver metal or grey plastic release collars. R.H. styles have gold metal or blue plastic release collars.
Page 33: Row Marker Speed Adjustment
An inner hitch with a 7½" (19 cm) offset mount is available from Kinze through your Kinze Dealer to plant two 15" rows between last year’s 30"...
Page 34: Row Marker Adjustments
5. Loosen hardware and move assembly as required. 6. Tighten bolts to specified torque. 7. Do a field test to ensure markers are properly adjusted. NOTE: A notched marker blade is available from Kinze through your Kinze Dealer for use in more severe no till conditions. 2-20...
Page 35: Row Marker Even-Row Length Adjustment
8 Rows x 30” Spacing = 240" Marker Dimension OFFSET HITCH ADJUSTMENT Tractor center line An offset hitch is available from Kinze through your Kinze Dealer. Offset hitch provides centered and offset mounting positions for hitch clevis. Tractor hitch offset 7½"...
Page 36: Digital Vacuum Gauge Operation
Machine Operation Model 3500 M0258-01 DIGITAL VACUUM GAUGE OPERATION Digital vacuum gauge The digital vacuum gauge console controls vacuum fan. Use “FAN 1” setting when planter is equipped with one vacuum fan. NOTE: Toggle switch must be OFF when planter is not in use or tractor battery will drain.
Page 37: Vacuum Meter System
Model 3500 VACUUM METER SYSTEM Kinze vacuum meter seed metering system includes seed meters, seed discs, and an air system consisting of a hydraulic driven vacuum fan which draws air through manifolds, hoses, and seed meters on each row unit.
Page 38: Ridge Planting
Machine Operation Model 3500 M0258-01 RIDGE PLANTING Planter toolbar height can be raised 3" (8 cm) for ridge planting. Relocate 20" transport axles to lower hole in wheel arm. Transport axle in lowest position TIRE SCRAPER A tire scraper prevents buildup of dirt and mud between wheel arm assembly and tire.
Page 39: Rear Trailer Hitch
Machine Operation M0258-01 Model 3500 REAR TRAILER HITCH Rear trailer hitch is designed for use NOTICE with piston pump only. Maximum allowable hitch weight is 200 lb (90.71 kg). Do not exceed 6,000 lb (2,721.55 kg) gross towing weight or the equivalent of a loaded 500 gal (1,892.7 L) tank...
Page 40: Field Test
Machine Operation Model 3500 M0258-01 FIELD TEST Perform a field test with any change of field and/or planting conditions, seed size or planter adjustment to ensure proper seed placement and operation of row units. See “Rate Charts”, “Check Seed Population” and “Granular Chemical Application Field Check”.
Page 41: Model 3500
Machine Operation M0258-01 Model 3500 3. Measure 1/1000 of an acre (hectare). See chart for correct distance for row width being planted. For example, if planting 30" (76 cm) rows 1/1000 of an acre (hectare) would be 17' 5" (13.12 m).
Page 42: Granular Chemical Application Field Check
Machine Operation Model 3500 M0258-01 GRANULAR CHEMICAL APPLICATION FIELD CHECK Temperature, humidity, speed, ground conditions, flowability of different material, or meter obstructions can affect granular chemical rate of delivery. Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property.
Page 43: Water Tank
Machine Operation M0258-01 Model 3500 WATER TANK The water tank is to only be filled with clean water or preferably potable water (water meeting local standards for drinking). The tank holds 4 gallons (15 L) of water. Be sure to check for regulations pertaining to this use.
Page 44 This page left blank intentionally.
Page 45: Row Unit Operation
Row Unit Operation M0258-01 Model 3500 PLANTING DEPTH Planting depth adjustment handle Planting depth is maintained by adjustable row unit gauge wheels. Depth adjustment range is approximately ½" to 3½" (1.2 to 8.8 cm). Raise planter to remove weight from wheels.
Page 46: Closing Wheel Shield (Rubber Or Cast Iron "V" Closing Wheels)
Row Unit Operation Model 3500 M0258-01 CLOSING WHEEL SHIELD (RUBBER OR CAST IRON “V” CLOSING WHEELS) Optional closing wheel shield is installed on underside of closing wheel arm to help prevent root balls and stalks from clogging closing wheels. Closing wheel shield...
Page 47: Covering Discs/Single Press Wheel Adjustment
Row Unit Operation M0258-01 Model 3500 COVERING DISCS/SINGLE PRESS WHEEL ADJUSTMENT Adjusting bolt ½" Locking nut Press wheel down force adjustment Check operation of covering discs/single press wheels after adjusting planting depth. Initial press wheel down force spring setting is 2½" (6.3 cm) between mounting arm tab and locking nut.
Page 48: Seed Hoppers
Row Unit Operation Model 3500 M0258-01 SEED HOPPERS Mechanical seed hopper has a capacity of 1.9 bushels. Vacuum seed hopper has a capacity of 1.75 bushels. Use clean seed and make certain there are no foreign objects inside when filling seed hopper.
Page 49: Row Unit Chain Routing
Row Unit Operation M0258-01 Model 3500 ROW UNIT CHAIN ROUTING Row unit drive chains must be properly tensioned and aligned for proper operation and to minimize wear. Inspect and replace weak, worn or broken springs, idlers, and idler bushings. Mechanical pull row unit meter drive...
Page 50: Quick Adjustable Down Force Springs Option (Standard Or Heavy Duty)
Row Unit Operation Model 3500 M0258-01 QUICK ADJUSTABLE DOWN FORCE SPRINGS OPTION (STANDARD OR HEAVY DUTY) Standard and heavy duty quick adjustable down force springs are available in increase penetration in hard soil and keep row unit from bouncing in rough field conditions. Two springs per row, one on each side parallel arms, are used unless equipped with row unit mounted no till coulters.
Page 51 NOTE: If additional down pressure is needed with the Pneumatic Down Pressure Package, assist springs are available through your Kinze dealer. One spring is installed on the outer side of the parallel arms on each side of the row unit as shown below.
Page 52: Field Operation
Row Unit Operation Model 3500 M0258-01 FIELD OPERATION NOTE: Adjust down pressure with planter lowered and row openers in ground for most accurate adjustment. Pressure can be adjusted from tractor using control console, or at planter using manual control valves on compressor assembly.
Page 53: Interplant Push Row Unit Lockups
Row Unit Operation M0258-01 Model 3500 INTERPLANT PUSH ROW UNIT LOCKUPS Push row unit lockups lock interplant row units in the raised position. Improper lifting of row units can cause CAUTION serious injury. An empty row unit requires minimum 90 lb (40.8 kg) lift.
Page 54 Row Unit Operation Model 3500 M0258-01 To lock in raised position: 3. Using the lift lever, raise the push row unit to allow the spring loaded lockups to snap out of locked position. Lower row unit to the ground. 1. Set row unit down pressure springs to minimum 4.
Page 55: Interplant Push Row Unit Clutch Sprocket
Row Unit Operation M0258-01 Model 3500 INTERPLANT PUSH ROW UNIT CLUTCH SPROCKET Push row unit clutch sprocket disengages interplant drive from push row unit drill shaft when only pull row units are used. DISENGAGE Rotate knurled collar ¼ turn. Rock drill shaft slightly using a ⅞"...
Page 56: Brush-Type Seed Meter
Row Unit Operation Model 3500 M0258-01 BRUSH-TYPE SEED METER Upper Disc Color-Code Brush Seed Size Crop (Disc Part No.) Retainer Cells Range *Lubricant Graphite Soybean Black GD11122 2200 to 4000 seeds/lb. (GA5794) Talc (4,840 to 8,800 seeds/kg) Specialty Soybean Dark Blue...
Page 57: Finger Pickup Seed Meter
Row Unit Operation M0258-01 Model 3500 Turn seed disc counterclockwise when installing on meter hub while tightening two wing nuts that retain disc. Seed disc should have slight resistance when rotated counterclockwise after wing nuts are tight. Brush-type seed meter attaches to seed hopper same as finger pickup seed meter.
Page 58: Vacuum Settings
Row Unit Operation Model 3500 M0258-01 VACUUM SETTINGS Vacuum Seed Ejector Singulator Setting **Seed Disc Wheel Seed Size Zone Inches of Crop Disc Kit Part No. (Color) Cells Range Setting Water (kPa) Lubricant Graphite* Corn B0678 1 row 35-70 lbs/80k...
Page 59 Row Unit Operation M0258-01 Model 3500 NOTE: See for more information. Always field check seed population to "Check Seed Population" on page 2-26 ensure planting rates are correct. NOTE: Singulator settings are marked from 0 - 3. NOTE: Mixing seed sizes and shapes affects meter performance. Use consistent seed size and shape.
Page 60 Row Unit Operation Model 3500 M0258-01 Ejector NOTE: Damaged seed or seed containing foreign material will cause plugging of seed disc orifices and require more frequent seed meter cleanout to prevent underplanting. Wheel-Type Ejectors Wheel-type ejectors expel seed remants from seed disc orifices. These ejectors are disc specific and colored coded to match disc.
Page 61: Seed Meter Cleanout
Row Unit Operation M0258-01 Model 3500 4. Adjust vacuum level to initial setting according to tables on page. NOTE: Vacuum reading will be much lower when seed disc cells are empty. Load all seed cells before setting vacuum level. NOTE: Operate vacuum fan 3-5 minutes to bring oil up to normal operating temperature prior to making final vacuum level adjustment.
Page 62: Additives
Row Unit Operation Model 3500 M0258-01 ADDITIVES Lubricant Application Rate The use of graphite is recommended to promote seed flow, provide lubrication for the seed meter and to help dissipate static charge Graphite buildup. Among the available dry seed lubricants graphite is the most Conventional Hoppers 1 Tbs.
Page 63: Bayer Fluency Agent
This product, as tested by Kinze, is compatible with Kinze’s bulk fill system and vacuum meters. Due to limited testing, wear life characteristics of meters and bulk fill systems that use Bayer Fluency Agent are not yet known. Please follow Bayer Fluency Agent instructions for rates and mixing directions.
Page 64: Frame Mounted Coulter (Pull Row Only)
Row Unit Operation Model 3500 M0258-01 FRAME MOUNTED COULTER (PULL ROW ONLY) Spring adjustment bolt Frame mounted coulters with 1" bubbled, 1" fluted (8 flutes) or ¾" fluted (13 flutes) blades are used on pull row units only. Spring anchor bar Springs provide down pressure on coulter for maximum penetration while exerting less shock load on row unit.
Page 65: Row Unit Mounted Disc Furrower (Pull Row Only)
Row Unit Operation M0258-01 Model 3500 ROW UNIT MOUNTED DISC FURROWER (PULL ROW ONLY) Disc furrowers are used to clear crop residue, dirt clods, and dry soil from in front of row units for a clean and smooth seed bed. The disc furrower may be equipped with 12" solid blades or 12" notched blades. Notched blades are for heavier residue conditions and cut crop residue and move it aside to prevent plugging or pushing.
Page 66: Row Unit Mounted Residue Wheel
Row Unit Operation Model 3500 M0258-01 ROW UNIT MOUNTED RESIDUE WHEEL Row unit mounted residue wheel are used on pull and push row units. Two adjustable springs on each residue wheel parallel links provide down force adjustment. Position 1 provides minimum down pressure and position 3 maximum down pressure.
Page 67 Row Unit Operation M0258-01 Model 3500 SPIKED CLOSING WHEEL Spiked closing wheels crumble the sidewall, allowing roots to pentrate soil. They can be used on pull row units and push row units. Align spiked closing wheels straight across from each other, in most rearward holes on closing wheel arm.
Page 68: Row Unit Mounted No Till Coulter
Row Unit Operation Model 3500 M0258-01 ROW UNIT MOUNTED NO TILL COULTER Row unit mounted no till coulters with 1" bubbled, 1" fluted (8 flutes) or ¾" fluted (13 flutes) blades may be used on pull row units and push row units (¾" fluted shown). Four quick adjustable down force springs are required per row when using row unit mounted no till coulters.
Page 69: Granular Chemical Hopper And Drive
Row Unit Operation M0258-01 Model 3500 GRANULAR CHEMICAL HOPPER AND DRIVE Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property. Read and follow all chemical and equipment manufacturers labels and instructions.
Page 70: Granular Chemical Banding Options
Row Unit Operation Model 3500 M0258-01 GRANULAR CHEMICAL BANDING OPTIONS Granular chemical banding options allow 4½" slope-compensating banding, straight drop in-furrow placement or 14" rear banding. NOTE: Granular chemical rear bander is not compatible with covering discs/single press wheel option.
Page 71: Fertilizer
Fertilizer M0258-01 Model 3500 DOUBLE DISC FERTILIZER OPENER Pin storage position Pin lockup position Maintain 1∕32" - 1⁄16" gap at closest point. Double disc fertilizer opener Position double disc fertilizer openers to place fertilizer no closer than 2" (5 cm) to either side of row. Fertilizer depth is approximately 4"...
Page 72: Notched Single Disc Openers
Fertilizer Model 3500 M0258-01 NOTCHED SINGLE DISC OPENERS Middle screw sets blade Opener mount angle. Tighten first! Disc blade ½" hex head cap screws Jam nuts 5∕16" hex head cap screws R.H. Opener Shown ⅜" lock nuts Scraper Drop tube...
Page 73 Fertilizer M0258-01 Model 3500 1. Adjust knife to disc blade contact. Loosen or tighten ⅜" lock nuts to adjust knife’s entire leading edge against disc blade. Turn blade and check for slight resistance without freewheeling. Readjust knife to blade’s tight spot as needed.
Page 74: Residue Wheel Attachment For Notched Single Disc Fertilizer Opener
Fertilizer Model 3500 M0258-01 RESIDUE WHEEL ATTACHMENT FOR NOTCHED SINGLE DISC FERTILIZER OPENER Notched single disc opener residue wheel attachment Residue wheel attachment for notched single disc fertilizer opener is used where row unit mounted residue wheel attachments cannot be installed. Residue wheel is attached to notched single disc fertilizer opener with ⅝" x 7½" and ½"...
Page 75: Hd Single Disc Fertilizer Opener
Fertilizer M0258-01 Model 3500 HD SINGLE DISC FERTILIZER OPENER Spring preset nut Inside blade depth Spring adjustment nut. Preset Outside blade depth adjustment nut. Block R.H. configuration shown (Overhead view) HD single disc opener Recommended placement of fertilizer with HD single disc fertilizer opener is 3½" - 4" (8.8 - 10.1 cm) from row.
Page 76 Fertilizer Model 3500 M0258-01 Adjust liquid drop tube/scraper so there is slight contact between blade and scraper lower leading edge, and ¼" (0.6 cm) clearance between liquid drop tube trailing edge and blade. Blade should turn with minimum amount of drag.
Page 77: Dry Fertilizer Attachment
Fertilizer M0258-01 Model 3500 DRY FERTILIZER ATTACHMENT Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property. Read and follow all chemical and equipment manufacturers labels and instructions. Dry fertilizer option installed...
Page 78 Fertilizer Model 3500 M0258-01 CLEANING Disconnect drive shaft and hoses Rotate lid to back and rotate hopper forward Dry fertilizer hoppers tip forward for dumping and ease of cleaning. Disconnect drive shaft from transmission and/or adjacent hopper. LOOSEN HOSE CLAMPS AND REMOVE HOSES FROM EACH HOPPER. Remove rear ½" x 1¼"...
Page 79: Liquid Fertilizer Attachment
Fertilizer M0258-01 Model 3500 LIQUID FERTILIZER ATTACHMENT Agricultural chemicals can cause death WARNING or serious injury to persons, animals, and plants or seriously damage soil, equipment, or property. Read and follow all chemical and equipment manufacturers labels and instructions. Overfilling tank can cause siphoning,...
Page 80 Fertilizer Model 3500 M0258-01 OPTIONAL SQUEEZE PUMP Squeeze pump rate of liquid fertilizer application is determined by combination of sprockets on squeeze pump drive and driven shafts. Make sure sprockets are in alignment, sprocket retaining collars are tight, and chain is properly tensioned is when changing sprocket combinations.
Page 81 Fertilizer M0258-01 Model 3500 OPTIONAL PISTON PUMP NOTE: Keep manuals shipped with pump and flow divider with this manual. Piston pump Adjusting delivery rate NOTE: Delivery rate chart in Rate Chart section of this manual provides approximate application rate only.
Page 82 This page left blank intentionally.
Page 83: Rate Charts
Rate Charts M0258-01 Model 3500 GENERAL PLANTING RATE INFORMATION Sprocket combinations in these charts are NOTICE for average conditions. Changes in sprocket combinations may be required for desired planting population. ALWAYS MAKE FIELD CHECKS TO BE SURE YOU ARE PLANTING AT THE DESIRED RATE.
Page 84 Rate Charts Model 3500 M0258-01 PLANTING RATES FOR FINGER PICKUP SEED METER (STANDARD DRIVE) APPROXIMATE SEEDS/ACRE FOR 30" ROW WIDTH Transmission Sprockets Recommended Average Seed Spacing In Inches 30"Rows Drive Driven Speed Range (MPH) 16,186 4 to 6 12.9 16,785 4 to 6 12.5...
Page 85 Rate Charts M0258-01 Model 3500 PLANTING RATES FOR BRUSH-TYPE SEED METERS (STANDARD DRIVE) APPROXIMATE SEEDS/ACRE FOR 30" ROW WIDTH Transmission 60 Cell Soybean Or High-Rate 48 Cell Specialty Soybean Or Speed Average Average Seed Seed Sprockets Range Milo/Grain Sorghum High-Rate Acid-Delinted Cotton...
Page 86 Rate Charts Model 3500 M0258-01 PLANTING RATES FOR BRUSH-TYPE SEED METERS (STANDARD DRIVE) APPROXIMATE SEEDS/ACRE FOR 15" ROW WIDTH 60 Cell Soybean Or High-Rate 48 Cell Specialty Soybean Or Transmission Average Average Speed Seed Seed Sprockets Range Milo/Grain Sorghum High-Rate Acid-Delinted Cotton...
Page 87 Rate Charts M0258-01 Model 3500 PLANTING RATE FOR BRUSH-TYPE SEED METERS (STANDARD DRIVE) APPROXIMATE SEEDS/ACRE FOR 30" ROW WIDTH 36 Cell 30 Cell Milo/Grain Sorghum Or Transmission Average Average Speed Seed Seed Sprockets Range Acid-Delinted Large Cotton Acid-Delinted Cotton Spacing...
Page 88 Rate Charts Model 3500 M0258-01 PLANTING RATES FOR BRUSH-TYPE SEED METERS (STANDARD DRIVE) APPROXIMATE HILLS/ACRE FOR 30" ROW WIDTH Due to variations in cotton seed size, meters equipped with the 12 cell acid-delinted hill-drop cotton discs will plant from 3 to 6 seeds per cell. Select proper disc for seed size range to be planted.
Page 89 Rate Charts M0258-01 Model 3500 PLANTING RATES FOR (VACUUM) CORN/SUNFLOWER 40 CELL DISC 15 TOOTH CONTACT WHEEL DRIVE/23 TOOTH REVERSER DRIVEN SPROCKETS (SEE PAGE 5-1) APPROXIMATE SEEDS/ACRE FOR VARIOUS ROW WIDTHS 15" Rows 30" Rows Transmission Sprockets Recomm. Speed Average Spacing In...
Page 90 Rate Charts Model 3500 M0258-01 PLANTING RATES FOR (VACUUM) CORN/SUNFLOWER 40 CELL DISC 19 TOOTH CONTACT WHEEL DRIVE/23 TOOTH REVERSER DRIVEN SPROCKETS (SEE PAGE 5-1) APPROXIMATE SEEDS/ACRE FOR VARIOUS ROW WIDTHS 15" Rows 30" Rows Transmission Sprockets Recomm. Average Spacing In...
Page 91 Rate Charts M0258-01 Model 3500 PLANTING RATES FOR (VACUUM) MILO/SUGAR BEET/SPECIALTY 60 CELL DISCS 15 TOOTH CONTACT WHEEL DRIVE/23 TOOTH REVERSER DRIVEN SPROCKETS (SEE PAGE 5-1) APPROXIMATE SEEDS/ACRE FOR VARIOUS ROW WIDTHS 15" Rows 30" Rows Transmission Sprockets Recomm. Speed...
Page 92 Rate Charts Model 3500 M0258-01 PLANTING RATES FOR (VACUUM) MILO/SUGAR BEET/ SPECIALTY 60 CELL DISCS 19 TOOTH CONTACT WHEEL DRIVE/23 TOOTH REVERSER DRIVEN SPROCKETS (SEE PAGE 5-1) APPROXIMATE SEEDS/ACRE FOR VARIOUS ROW WIDTHS 15" Rows 30" Rows Transmission Sprockets Recomm. Speed...
Page 93 Rate Charts M0258-01 Model 3500 PLANTING RATES FOR (VACUUM) SPECIALTY 60 CELL DISC 30 TOOTH CONTACT WHEEL DRIVE/17 TOOTH REVERSER DRIVEN SPROCKETS (SEE PAGE 5-1) APPROXIMATE SEEDS/ACRE FOR VARIOUS ROW WIDTHS 15" Rows 30" Rows Transmission Sprockets Recomm. Speed Average Spacing...
Page 94 Rate Charts Model 3500 M0258-01 PLANTING RATES FOR (VACUUM) SOYBEAN 120 CELL DISC 15 TOOTH CONTACT WHEEL DRIVE/23 TOOTH REVERSER DRIVEN SPROCKETS (SEE PAGE 5-1) APPROXIMATE SEEDS/ACRE FOR VARIOUS ROW WIDTHS 15" Rows 30" Rows Transmission Sprockets Recomm. Speed Average Spacing...
Page 95 Rate Charts M0258-01 Model 3500 PLANTING RATES FOR (VACUUM) SOYBEAN 120 CELL DISC 19 TOOTH CONTACT WHEEL DRIVE/23 TOOTH REVERSER DRIVEN SPROCKETS (SEE PAGE 5-1) APPROXIMATE SEEDS/ACRE FOR VARIOUS ROW WIDTHS 15" Rows 30" Rows Transmission Sprockets Recomm. Speed Average Spacing...
Page 96 Rate Charts Model 3500 M0258-01 DRY INSECTICIDE APPLICATION RATES APPROXIMATE POUNDS/ACRE AT 5 MPH FOR 30" ROW WIDTH Meter Setting 30" Rows CLAY GRANULES 10.7 11.4 13.1 14.2 15.5 16.4 17.2 18.8 20.9 23.0 24.1 25.4 27.8 29.6 SAND GRANULES 10.2...
Page 97 Rate Charts M0258-01 Model 3500 DRY HERBICIDE APPLICATION RATES APPROXIMATE POUNDS/ACRE AT 5 MPH FOR 30" ROW WIDTH Clay Granules Meter Setting 30" Rows 10.7 11.6 12.6 13.6 14.6 15.7 17.0 18.1 19.4 20.9 22.6 24.3 26.7 NOTE: Above chart represents average values and should be used only as a starting point. Granular chemical flows through given meter opening at a nearly uniform rate regardless of roller speed.
Page 98 Rate Charts Model 3500 M0258-01 DRY FERTILIZER APPLICATION RATES APPROXIMATE RATE IN POUNDS PER ACRE Drive Sprocket Driven Sprocket Low Rate Position High Rate Position 30" Rows 30" Rows High rate setting Low rate setting NOTE: Uneven delivery may result from attempting to use lower rates than indicated by chart.
Page 99 Rate Charts M0258-01 Model 3500 LIQUID FERTILIZER SQUEEZE PUMP APPLICATION RATES GALLONS PER ACRE Drive Driven 30" Rows 11.8 12.6 13.4 14.7 16.0 17.0 19.9 21.1 21.2 22.5 26.9 30.3 36.2 38.6 41.0 48.1 51.1 52.1 *Optional sprocket. Chart is for planters equipped with contact drive. Check tires for correct operating pressure.
Page 100 Rate Charts Model 3500 M0258-01 LIQUID FERTILIZER PISTON PUMP APPLICATION RATES GALLONS PER ACRE Applies to Model LM-2455-R And NGP-6055 Pumps With 50 Tooth Drive And 18 Tooth Driven Sprocket Pump Setting 6 Row 30" 11.0 16.5 22.0 27.5 33.0 38.5...
Page 101: Lubrication And Maintenance
Model 3500 LUBRICATION Following pages show locations of all lubrication points. Proper lubrication of moving parts helps ensure efficient operation of your Kinze planter and prolongs the life of friction producing parts. Uncontrolled movement of equipment WARNING can cause loss of control and could result in death, serious injury, or damage to property and equipment.
Page 102: Drive Chains
Lubrication and Maintenance Model 3500 M0258-01 DRIVE CHAINS Lubricate all transmission and drive chains daily with a high quality chain lubricant. Extreme operating conditions such as dirt, temperature, or speed may require more frequent lubrication. If a chain becomes stiff, it should be removed, soaked, and washed in solvent to loosen and remove dirt from joints.
Page 103 Lubrication and Maintenance M0258-01 Model 3500 Liquid Fertilizer Squeeze Pump Drive Chain Planter Seed Rate Transmission Drive Chain INTERPLANT PUSH ROW UNIT LOCKUPS Interplant Package Drive Chain 2 Per Row Pull Row Unit Drive Chain Dry Fertilizer Drive Chain 9/14...
Page 104: Center Post
Lubrication and Maintenance Model 3500 M0258-01 CENTER POST Any oil or grease on center post and poly NOTICE wear pads will attract dirt and accelerate wear. Do not lubricate center post and poly wear pads. Center post is clad with stainless steel. Keep stainless steel surface clean and free of any lubrication to prolong service life.
Page 105: Liquid Fertilizer Piston Pump Crankcase Oil Level
Lubrication and Maintenance M0258-01 Model 3500 LIQUID FERTILIZER PISTON PUMP CRANKCASE OIL LEVEL Plug Plug Piston pump oil fill plug location Check crankcase oil daily and maintain at plug level. Fill as needed with EP 90 weight gear oil. Total oil capacity is approximately ¾...
Page 106: Bushings
Lubrication and Maintenance Model 3500 M0258-01 BUSHINGS Lubricate bushings at frequency indicated. Check each bolt for proper torque. If bolt is loose, removed it and inspect bushing for cracks and wear. Replace bushing if necessary. Use only hardened flat washers. Replace damaged flat washers with proper part. Torque hardware to 130 ft-lb (176.2 N-m).
Page 107: Grease Fittings
Lubrication and Maintenance M0258-01 Model 3500 GREASE FITTINGS Lubricate parts with grease fittings at frequency indicated with an SAE multipurpose grease. Clean fitting thoroughly before using grease gun. Frequency of lubrication recommended is based on normal operating conditions. Severe or unusual conditions may require more frequent attention.
Page 108 Lubrication and Maintenance Model 3500 M0258-01 BASE MACHINE 3. Cam follower - 1 per cam follower 1. Row marker assembly - 2 per assembly 2. Center Pivot - 1 4. Seed rate transmission assembly - 1 (Idler) ROW UNIT Gauge wheel arms - 1 per arm...
Page 109 Lubrication and Maintenance M0258-01 Model 3500 FERTILIZER OPENERS Notched Single Disc Fertilizer Opener - 1 HD Single Disc Fertilizer Opener - 2 (Located On Wheel Arm And Opener Mount) Residue Wheel Attachment For Use With HD Single Disc Fertilizer Opener - 1...
Page 110 Lubrication and Maintenance Model 3500 M0258-01 DRY FERTILIZER ATTACHMENT LIQUID FERTILIZER SQUEEZE PUMP Fertilizer hopper - 2 per hopper Squeeze pump - 8 per pump NOTE: Grease fittings are on each end of roller assemblies. Rotate pump for access. Fertilizer transmission - 1 per transmission (Idler)
Page 111: Mounting Bolts And Hardware
All hardware used on the Kinze planter is Grade 5 (high strength) unless otherwise noted. Grade 5 cap screws are marked with three radial lines on the head. Hardware must be replaced with equal size, strength, and thread type.
Page 112: Tire Pressure
Do not weld or heat wheel assembly. Heating increases tire pressure. Contact drive MODEL 3500 OPERATING TIRE PRESSURE Transport/ground drive - 7.50" x 20" ..Inflate to 40 psi (275.7 kPa) Contact drive - 4.10" x 6" ....Inflate to 50 psi (344.7 kPa)
Page 113: Chain Tension Adjustment
Lubrication and Maintenance M0258-01 Model 3500 CHAIN TENSION ADJUSTMENT Drive chains are equipped with spring loaded idlers and are self-adjusting. The only adjustment needed is to shorten the chains if wear stretches the chains and reduces spring tension. The pivot point of these idlers should be checked periodically to ensure they rotate freely.
Page 114: Finger Pickup Seed Meter Inspection/Adjustment
Lubrication and Maintenance Model 3500 M0258-01 FINGER PICKUP SEED METER INSPECTION/ADJUSTMENT Brush attachment screw Finger tabs should contact carrier Baffle attachment to meter. plate in this area. Finger tabs should raise in this area. Meter attachment to hopper. Removing meter and baffle Proper finger operation 1.
Page 115: Cleaning Finger Pickup Seed Meter For Storage
Lubrication and Maintenance M0258-01 Model 3500 7. Check indentations on carrier plate for wear before installing finger holder on carrier plate. Excessive wear of carrier plate at indentations will cause over planting especially with small sizes of seed. Inspect carrier plate annually. Life expectancy should be 250-300 acres (100-125 hectares) per row of operation under average conditions.
Page 116: Brush-Type Seed Meter Maintenance
Lubrication and Maintenance Model 3500 M0258-01 BRUSH-TYPE SEED METER MAINTENANCE Meter housing Stainless steel wear Upper brush band Seed disc Lower brush Upper brush retainer Brush-type seed meter seed disc installed Brush-type seed meter parts Use clean, high quality seed. Damaged or cracked seed, hulls, or foreign materials can become lodged in upper brush and greatly reduce meter accuracy.
Page 117: Cleaning Brush-Type Seed Meter For Storage
Lubrication and Maintenance M0258-01 Model 3500 UPPER BRUSH Upper brush Upper brush holds seed in seed disc pocket in seed retention area. Brush must apply enough pressure against seed in Seed retention area seed disc pocket as disc rotates through seed retention area to prevent seed from dropping out of disc pocket.
Page 118: Vacuum Seed Meter Maintenance
Lubrication and Maintenance Model 3500 M0258-01 VACUUM SEED METER MAINTENANCE Front Cover Seed Meter with Back Release Singulator Cover Removed Button Vacuum Front Cover Before each planting season inspect seed discs and singulator and clean or replace as needed. Use clean, high quality seed for maximum meter accuracy. Damaged or cracked seed, hulls, and foreign material may become lodged in seed disc orifices and greatly reduce meter accuracy.
Page 119: Drag Closing Attachment
Lubrication and Maintenance M0258-01 Model 3500 DRAG CLOSING ATTACHMENT Inspect each drag closing attachment and replace any worn or broken parts before storing planter. Check for loose hardware and tighten as needed. Drag Closing Attachment GAUGE WHEEL ADJUSTMENT Machine bushings...
Page 120: Gauge Wheel Arm Bushing And/Or Seal Replacement
Lubrication and Maintenance Model 3500 M0258-01 GAUGE WHEEL ARM BUSHING AND/OR GAUGE WHEEL ARM PIVOT SPINDLE SEAL REPLACEMENT REPLACEMENT Gauge Wheel Arm Bushings/Seals Gauge Wheel Pivot Spindle NOTE: Gauge Wheel Arm Bushing and Seal Driver Kit (G1K296) is available through your 1.
Page 121: 15" Seed Opener Disc Blade/Bearing Assembly
Lubrication and Maintenance M0258-01 Model 3500 15" SEED OPENER DISC BLADE/BEARING ASSEMBLY Excessive blade contact may result NOTICE in premature disc opener bearing/ hub failures and excessive wear on seed tube guard/inner scraper. When properly adjusted, if one blade is held...
Page 122: Seed Tube Guard/Inner Scraper
Lubrication and Maintenance Model 3500 M0258-01 SEED TUBE GUARD/INNER SCRAPER Seed tube guard protects seed tube and acts as inner scraper for seed opener disc blades. Remove seed tube and check for wear. Excessive wear on seed tube indicates a worn seed tube guard. Replace seed tube guard if it measures ⅝"...
Page 123: Residue Wheels (For Use With Frame Mounted Coulter)
Lubrication and Maintenance M0258-01 Model 3500 RESIDUE WHEELS (FOR USE WITH FRAME MOUNTED COULTER) Wheel hub is equipped with sealed bearings. Replace bearings if a bearing sounds or feels rough when wheel is rotated. ROW UNIT MOUNTED DISC FURROWER Lubricate bushings in support arm mounting bracket at frequency indicated in Lubrication of this section.
Page 124: Row Unit Mounted Bed Leveler
Lubrication and Maintenance Model 3500 M0258-01 ROW UNIT MOUNTED BED LEVELER Lubricate bushings in mounting bracket and links at frequency indicated in Lubrication of this section. Check each bolt for proper torque. If bolt is loose, it should be removed and bushing inspected for cracks and wear. Replace bushing if necessary.
Page 125: Row Unit Mounted No Till Coulter
Lubrication and Maintenance M0258-01 Model 3500 ROW UNIT MOUNTED NO TILL COULTER (One sleeve for coulter mounted residue wheels) Check nuts and hardware periodically for proper torque. NOTE: Torque ⅝" spindle hardware to 120 ft-lb (162 N-m). Be sure coulter is positioned square with row unit and aligned in front of row unit disc opener.
Page 126: Granular Chemical Attachment
Lubrication and Maintenance Model 3500 M0258-01 SPIKED CLOSING WHEEL Inner parts of spiked closing wheel will begin to wear at approximately 70% of life. Flip/reverse wheel to utilize remaining life of wheel. Row Unit Spiked Closing Wheel GRANULAR CHEMICAL ATTACHMENT Before storing planter, disengage granular chemical drive by rotating throwout knob ¼...
Page 127: Wear Pad Adjustment/Replacement
Lubrication and Maintenance M0258-01 Model 3500 WEAR PAD ADJUSTMENT/REPLACEMENT Poly wear pad Threaded adjustment plug (Apply anti-seize lubricant to threads on adjustment plug) ½" hex head cap screw Replace if less than ⅛". Planter center section consists of a steel tubular frame and 16 adjustable wear pad assemblies that travel up and down against a stainless steel clad center post.
Page 128: Row Marker Sequencing/Flow Control Valve Inspection
Lubrication and Maintenance Model 3500 M0258-01 ROW MARKER SEQUENCING/FLOW CONTROL VALVE INSPECTION Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries. Fluid injected under skin must be IMMEDIATELY removed by a surgeon familiar with this type of injury.
Page 129: Pto Pump Drive And Oil Cooler Option
Lubrication and Maintenance M0258-01 Model 3500 PTO PUMP DRIVE AND OIL COOLER OPTION Reservoir Flow Control Valve Filter Strainer Drain reservoir, clean strainer and change filter annually. 1. Disconnect suction line (hose between reservoir and pump) from reservoir and drain. To fully drain tank, raise planter to field raised position.
Page 130: Row Marker Bearing Lubrication Or Replacement
Lubrication and Maintenance Model 3500 M0258-01 ROW MARKER BEARING LUBRICATION OR REPLACEMENT Grease seal Outer cup Bearing Flat washer Spindle Slotted hex nut Dust cap Inner cup Marker blade Hub shield Bearing Cotter pin Retainer 1. Remove retainer and marker blade.
Page 131: Wheel Bearing Repack Or Replacement
Lubrication and Maintenance M0258-01 Model 3500 WHEEL BEARING REPACK OR REPLACEMENT Jam nuts Bearing cup Inner bearing Outer bearing Spindle Bearing cup Raise tire clear of ground and remove wheel. Remove double jam nuts and slide hub from spindle. Remove bearings and cups and discard if bearings are being replaced. Clean hub and dry. Remove bearings only and not cups if repacking.
Page 132: Piston Pump Storage
Lubrication and Maintenance Model 3500 M0258-01 Liquid fertilizer piston pump PISTON PUMP STORAGE Entrance of air into pump will cause NOTICE rapid and severe corrosion. KEEP AIR OUT OF PUMP! NOTE: SUSPENSION FERTILIZER must be flushed from pump for ANY storage period.
Page 133: Electrical Wiring Diagram For Light Package
Lubrication and Maintenance M0258-01 Model 3500 ELECTRICAL WIRING DIAGRAM FOR LIGHT PACKAGE * Optional customer-supplied auxiliary lights and wires may be wired into existing plug terminals. White MONITOR +12V Black MONITOR GROUND Green MONITOR DATA 3-Pin Connector 3-Pin Connector Light package meets ASABE Standards. For correct wiring harness to be wired into lights on your tractor, check with tractor manufacturer.
Page 134: Hydraulic Hose Life
Lubrication and Maintenance Model 3500 M0258-01 HYDRAULIC HOSE LIFE Pressurized hydraulic fluid can penetrate WARNING body tissue and result in death, serious infection, or other injuries. Fluid injected under skin must be IMMEDIATELY removed by a surgeon familiar with this type of injury.
Page 135: Hydraulic Diagram - Planter
Lubrication and Maintenance M0258-01 Model 3500 HYDRAULIC DIAGRAM - PLANTER Blue I.D. sleeve Red I.D. sleeve .045" diameter Marker restrictor is located Fold between ports B3 Selector and B2 to limit rotate valve cylinder travel speed. Transport latch cylinder Manifold block R.H.
Page 136: Hydraulic Diagram - Vacuum Fan Motor System
Lubrication and Maintenance Model 3500 M0258-01 HYDRAULIC DIAGRAM - VACUUM FAN MOTOR SYSTEM Connect hydraulic motor case drain to a NOTICE case drain return line with zero pressure on tractor or hydraulic motor will be damaged. DO NOT connect hydraulic motor case drain to SCV outlet.
Page 137: Hydraulic Diagram - Optional Pto Pump Drive And Oil Cooler System
Lubrication and Maintenance M0258-01 Model 3500 HYDRAULIC DIAGRAM - OPTIONAL PTO PUMP DRIVE AND OIL COOLER SYSTEM Oil reservoir Flow control valve PTO pump (1⅜"-21 spline shown) Flow control bypass Reservoir return Vaccum fan motor return Case drain Vacuum fan motor...
Page 138 This page left blank intentionally.
Page 139: Troubleshooting
Troubleshooting M0258-01 Model 3500 CLOSING WHEEL TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Closing wheel(s) leave severe Too much closing wheel down Adjust closing wheel pressure. imprint in soil. pressure. Closing wheel(s) not firming soil Insufficient closing wheel Adjust closing wheel pressure.
Page 140: Piston Pump Troubleshooting
Troubleshooting Model 3500 M0258-01 PISTON PUMP TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Pump hard or impossible to prime. Valves fouled or in wrong place. Inspect and clean valves. Air leak in suction line. Repair leak. Pump set too low. Adjust pump setting.
Page 141 Troubleshooting M0258-01 Model 3500 ROW MARKER OPERATION TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Both markers lowering and Hoses from cylinders to Check hosing diagram in manual only one raising at a time. valve connected backwards. and correct. Same marker always operating.
Page 142: Seed Meter (Brush-Type) Troubleshooting
Troubleshooting Model 3500 M0258-01 SEED METER (BRUSH-TYPE) TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Low count. Meter RPM too high. Reduce planting speed. Seed sensor not picking up all Clean seed tube. seeds dropped. Switch meter to different row. If problem stays with same row, replace sensor.
Page 143: Seed Meter (Finger Pickup) Troubleshooting
Troubleshooting M0258-01 Model 3500 SEED METER (FINGER PICKUP) TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION One row not planting seed. Drive release not engaged. Engage drive release mechanism. Foreign material in hopper. Clean hopper and finger carrier mechanism. Seed hopper empty. Fill seed hopper.
Page 144: Vacuum Seed Meter
Troubleshooting Model 3500 M0258-01 VACUUM SEED METER PROBLEM POSSIBLE CAUSE SOLUTION Low seed count. Meter RPM too high. Reduce planting rate or planting speed. Singulator blade setting too aggressive. Adjust singulator blade. Vacuum level too low. Increase fan speed. Seed sensor not picking up all seeds Clean seed tube.
Page 145 Troubleshooting M0258-01 Model 3500 VACUUM SEED METER - Continued PROBLEM POSSIBLE CAUSE SOLUTION Not planting seed. Seed baffle (if applicable) not allowing seed Mix talc thoroughly to coat all seeds. Remove (Continued) flow due to bridging of seed. seed baffle. Row Unit Operation section.
Page 146 This page left blank intentionally.
