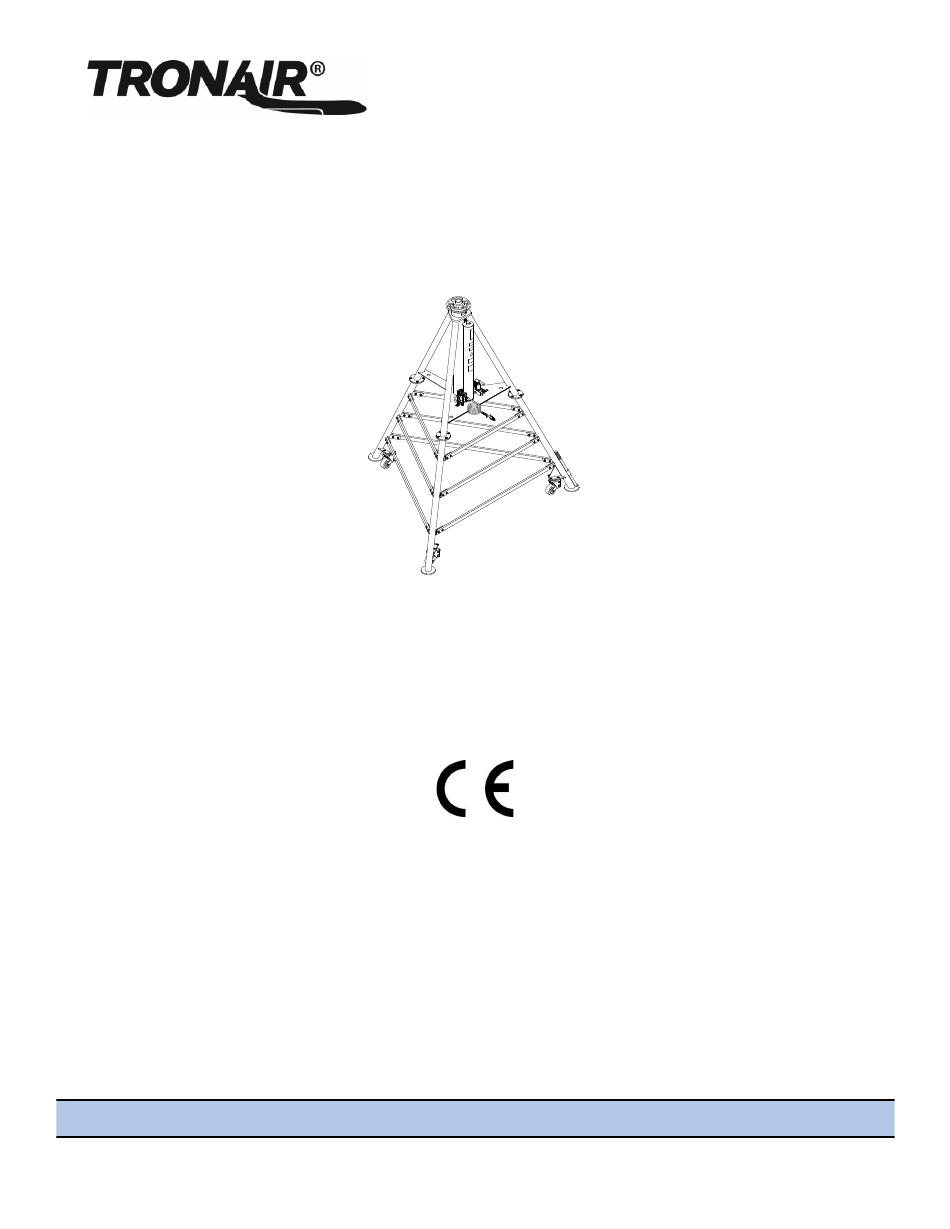

OPERATION & SERVICE MANUAL

Models: 02-7839C0111

02A7839C0111

18 Ton (16.34 Metric Ton)

Single Stage Jack

06/2021 - Rev. 03

The Tronair Group of Companies:

Tronair, Inc.

Phone: (419) 866-6301 | 800-426-6301

1 Air Cargo Pkwy East

Web: www.tronair.com

Swanton, OH 43558

Email: sales@tronair.com

Need help?

Do you have a question about the 02-7839C0111 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tronair 02-7839C0111

Page 1 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com OPERATION & SERVICE MANUAL Models: 02-7839C0111 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack 06/2021 - Rev. 03 The Tronair Group of Companies: Tronair | EBIS | Columbus Jack | Eagle | DAE | Malabar International Tronair, Inc.
Page 2 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com REVISION DATE TEXT AFFECTED 04/2007 Original Release 01/2017 Major revision 07/2018 Major revision 06/2021 Modified Parts Lists 07/2024 Editorial change to 10.3 Servicing Jack...
Page 3 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER ..............................
Page 4 18 Ton (16.34 Metric Ton) Single Stage Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
Page 5 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack NECESSARY PERSONAL PROTECTIVE EQUIPMENT CAUTION! Always wear safety glasses. SAFETY GUIDELINES CAUTION! Do not place hands on top of jack near ram locknuts while lowering jack. Pinch points exist between top of jack and threads on ram.
Page 6 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack ASSEMBLY GENERAL INSTRUCTIONS This product should be assembled and/or repaired using good workmanship practices and proper tools. Bolts and elastic stopnuts should be tightened to a torque not to exceed industry standards for Grade '5' bolts.
Page 7 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack ASSEMBLY (continued) BOLT 3/8-24 X 1-1/2 BOLT 7/16-20 X 1-1/2 3/8 FLATWASHER J A C K...
Page 8 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack OPERATION OPERATING PARAMETERS • The user shall work in accordance with the Operation and Service Manual.
Page 9 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack 6.4.2 Jack Instructions To Raise Aircraft: Place jack on a hard, level surface. Raise mechanical extension as close to aircraft jack pad as possible.
Page 10 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack TROUBLE SHOOTING TROUBLE PROBABLE CAUSE ACTION Fluid leakage at pump piston Damaged backup ring, o-ring, piston or pump...
Page 11 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack 10.0 MAINTENANCE 10.1 GENERAL • All maintenance and/or repair work should be done using good workmanship practices and proper tools.
Page 12 If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents.
Page 13 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit.
Page 14 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit.
Page 15 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit.
Page 16 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit.
Page 17 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit.
Page 18 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit.
Page 19 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7839C0111 & 02A7839C0111 18 Ton (16.34 Metric Ton) Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit.
Page 20 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 21 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com APPENDIX I Hydraulic Schematic...
Page 22 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 23 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Hydraulic Schematic 02-7839C0111...
Page 24 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com Hydraulic Schematic 02A7839C0111...
Page 25 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com APPENDIX II Air Pump Manufacturer Data...
Page 26 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 27 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 28 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 29 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 30 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 31 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 32 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 33 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 34 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 35 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 36 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 37 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 38 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 39 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 40 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 41 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 42 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 43 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 44 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 45 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 46 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 47 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 48 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 49 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 50 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 51 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 52 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 53 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com APPENDIX III Declaration of Conformity...
Page 54 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 55 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Tripod Jack 02-7839C0111 02A7839C0111 Relevant provisions complied with by the machinery:...
Page 56 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 57 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com APPENDIX IV Safety Data Sheet MIL-PRF-5606 Hydraulic Fluid...
Page 58 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 59 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 60 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 61 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 62 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 63 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 64 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 65 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 66 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 67 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 68 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 69 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 70 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 71 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com APPENDIX VI Maintenance Schedule...
Page 72 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
Page 73 For 02-7839C0111 sales, parts and service, click here to view this item on PilotJohn.com...
