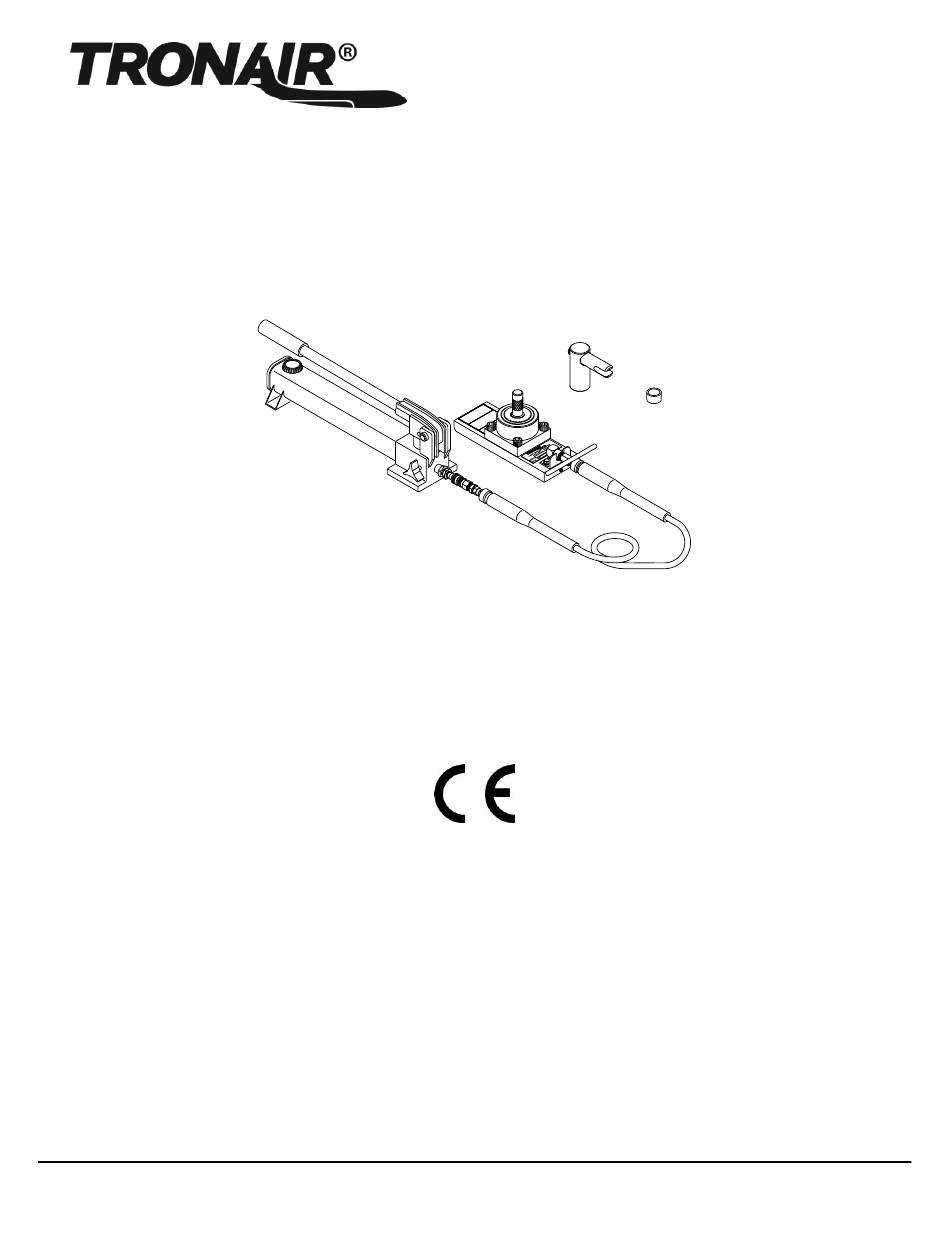

- Page 1 OPERATION & SERVICE MANUAL Model: 02-7834C0111 12 Ton (10.87 Metric Ton) Axle Jack 11/2017 - Rev. 02 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 07/2008 Original release 11/2017 Major revision...
- Page 3 Model: 02-7834C0111 12 Ton (10.87 Metric) Axle Jack TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 USAGE ................................1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................2 USAGE AND SAFETY INFORMATION ......................2 ASSEMBLY INSTRUCTIONS ............................
- Page 4 12 Ton (10.87 Metric) Axle Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
- Page 5 Model: 02-7834C0111 12 Ton (10.87 Metric) Axle Jack SAFETY INFORMATION USAGE AND SAFETY INFORMATION To insure safe operations please read the following statements and understand their meaning. Also refer to your equipment manufacturer’s manual for other important safety information. This manual contains safety precautions which are explained below.
- Page 6 Model: 02-7834C0111 12 Ton (10.87 Metric) Axle Jack OPERATING INSTRUCTIONS The user should be familiar with the following statements prior to using the jack(s). CAUTION! Jacking adapters must be fully seated on mechanical extension. Never put hands between aircraft and jack pad.
- Page 7 (419) 867-0634 Swanton, Ohio 43558 USA E-mail: sales@tronair.com Website: www.tronair.com PARTS LISTS & ILLUSTRATIONS Reference the following page for Replacement Parts and Kits available. IN-SERVICE SUPPORT Contact Tronair for technical services and information. 11/2017 | Rev. 02 Page | 4...
- Page 8 GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the...
- Page 9 Model: 02-7834C0111 12 Ton (10.87 Metric) Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description (Reference K-3772 Hand Pump Kit below) N-2203-06-S Nipple, Pipe N-2713 Nipple, Hydraulic (Male)
- Page 10 Model: 02-7834C0111 12 Ton (10.87 Metric) Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description HC-2008-236 O-Ring Reference K-2888 Axle Jack Base Kit J-2351 Ring, Retaining G-1151-109716 Screw, Socket Head Cap, ½-20 x 1 ¾"...
- Page 11 Model: 02-7834C0111 12 Ton (10.87 Metric) Axle Jack Parts List Item Part Number Description K-2606 Kit, Replacement Cylinder Seal; consists of: HC-2008-236 O-Ring HC-2000-218 O-Ring HC-1697-20 Ring Wiper HC-2023-224 Backup Ring HC-2000-224 O-Ring HC-1697-24 Ring Wiper HC-2023-228 Backup Ring HC-2000-228...
- Page 13 APPENDIX I Safety Data Sheet MIL-PRF-5606 Hydraulic Fluid...
- Page 27 APPENDIX II Declaration of Conformity...
- Page 29 DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Axle Jack 02-7834C0111 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc.
- Page 31 APPENDIX III Maintenance Schedule...
