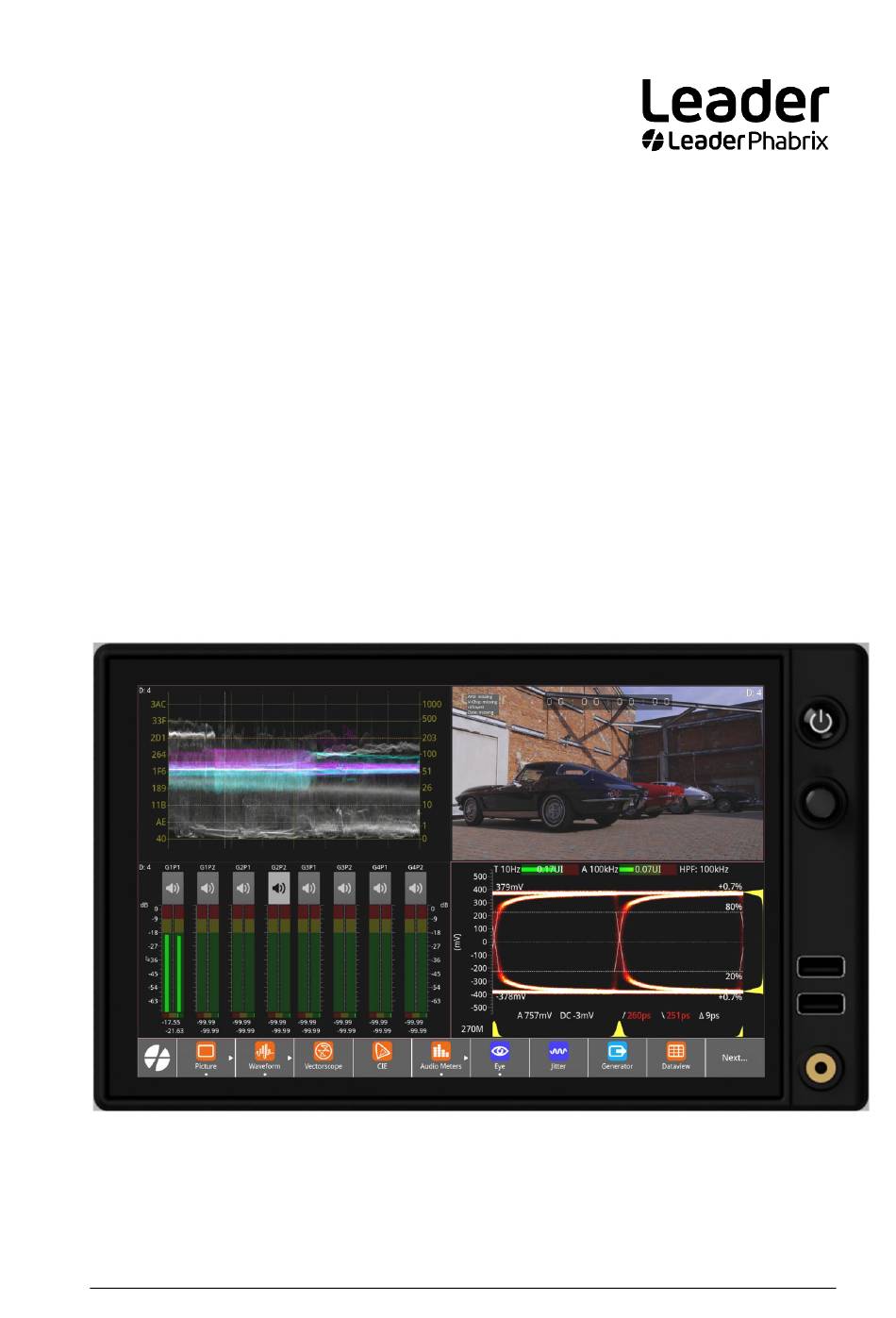

- Page 1 LPX500 Mounting Hardware Installation Procedures December, 2024 LPX500 Mounting Hardware Procedures Page 1 of 10...
-
Page 2: Table Of Contents
Introduction ............................3 Mounting Hardware Dimensions ...................... 4 Rack-mounting a Single Unit ......................5 Rack-mounting a Single LPX500 Unit with Optional Extended Monitor ........... 7 Mounting the LPX500 in the Carrycase .................... 9 LPX500 Mounting Hardware Procedures Page 2 of 10... -
Page 3: Introduction
• LPX500-K1: 3U 19 inch rackmount (1 x LPX500 chassis) • LPX500-K2: 3U 19 inch rackmount (1 x LPX500 chassis and 1 x extended monitor; or 2 x LPX500 chassis) • LPX500-K3: LPX500 Carrycase and extendable feet. -
Page 4: Mounting Hardware Dimensions
14.00 mm (Excluding Foot Insert) LPX500-K3 Carrycase Height: 130.50 mm (Excluding Feet and Handle) 192.50 mm (Including Feet (folded) and Handle) 222.00 mm (Including Feet (extended) and Handle) Width: 212.40 mm Depth: 128.41 mm LPX500 Mounting Hardware Procedures Page 4 of 10... -
Page 5: Rack-Mounting A Single Unit
Install the LPX500 and blanking panel in the rack-mount tray as follows: Position the LPX500 main unit upside-down on a solid, flat surface, so that it is resting on its top. Locate the rack-mount tray on the bottom of the unit, so that the LPX500 is located at the right-hand side of the tray. - Page 6 Figure 2: Single LPX500 Main Unit Mounted in Rack Tray LPX500 Mounting Hardware Procedures Page 6 of 10...
-
Page 7: Rack-Mounting A Single Lpx500 Unit With Optional Extended Monitor
Install the LPX500 and optional extended monitor in the rack-mount tray as follows: Position the LPX500 main unit upside-down on a solid, flat surface, so that it is resting on its top. Locate the rack-mount tray on the bottom of the unit, so that the LPX500 is located at the right-hand side of the tray. - Page 8 Figure 4: LPX500 Main Unit and Extended Monitor in Rack Tray LPX500 Mounting Hardware Procedures Page 8 of 10...
-
Page 9: Mounting The Lpx500 In The Carrycase
Mounting the LPX500 in the Carrycase Option: LPX500-K3 Figure 5: Insert LPX500 Main Unit into Carrycase Installation Steps Install the LPX500 in the Carrycase as follows: Slide the unit carefully into the carrycase as shown above. You may need to pull the two sides of the carrycase apart slightly, while inserting the unit. - Page 10 Figure 6: Unit and Carrycase Assembled LPX500 Mounting Hardware Procedures Page 10 of 10...
