Page 1: Table Of Contents

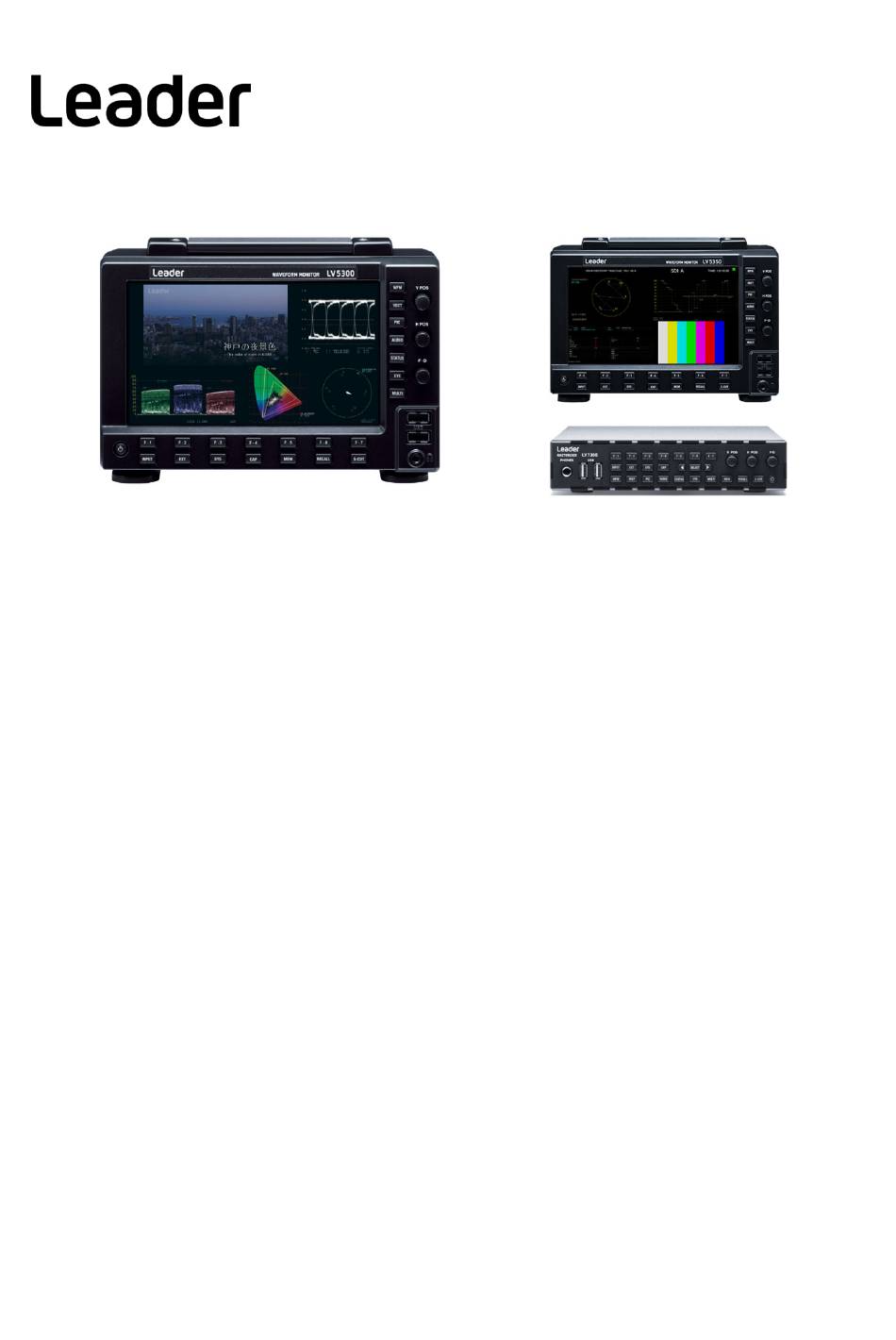

Ver. 1.1 LV5300/LV5350/LV7300 Quick Manual TABLE OF CONTENTS Main unit STATUS ・・・・・・・ 25 Front Panel ・・・・・・・ 2 Payload ID/SRLive Metadata display ・・・・ 26 Rear Panel ・・・・・・・ 3 Event log ・・・・・・・ 27 Basic Setup Measurement Screen ・・・・・・・ 5 Phase difference measurement ・・・・・・・ 28 AV PHASE (Lip Sync) ・・・・・・・...
Page 2: Front Panel

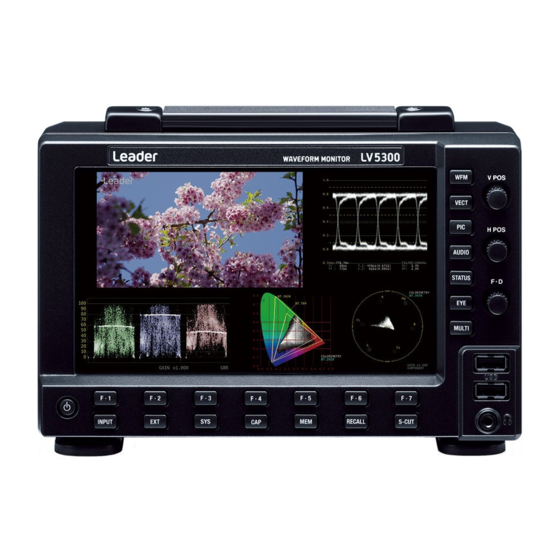

LV5300/LV5350/LV7300 Quick Manual LV5300/LV5350 Front Panel Turn to specify a Position / FD numeric value or to move cursors. In most cases, press to reset the value to its default value. WFM: Waveform VECT: Vector LCD display PIC: Picture AUDIO: Audio STATUS: Status...
Page 3: Rear Panel
LV5300/LV5350/LV7300 Quick Manual LV5300/LV5350 Rear Panel LV5300 / LV5350 SDI input LV5300 / LV5350 SDI output SDI input through or Test pattern output (with LV5300‐SER24, LV5350‐SER24 TSG) Ethernet EXT Sync input Preset/ Remote Standard Option LV7300 Rear Panel Preset/ Remote LV7300‐SER01 /SER02 SDI input Ethernet LV7300‐SER01 /SER02 SDI output Monitor output SDI input through or Test pattern output TMDS / SDI EXT Sync input (with LV5300‐SER24, LV5350‐SER24 TSG)
Page 4 Function menu RECALL STATUS MULTI MULTI LAYOUT Options  ＬＶ５３００／ＬＶ５３５０ factory hardware option unit（Sold separately）  LV5300-SER11/LV5350-SER11 V mount type battery adapter  LV5300-SER12/LV5350-SER12 QR gold type battery adapter  ＬＶ５３００／ＬＶ５３５０ License option (Sold separately) LV5300-SER20/LV5350-SER20 Embedded audio analysis   LV5300-SER21/LV5350-SER21 Closed captioning EIA-608,708／TELETEXT ...
Page 5: Measurement Screen
Line select display, YCbCr display, RGB display, composite display. VECTOR VECT The display of vector. It can show Line select, vector maker display, composite and CIE chromaticity diagram display (LV5300‐SER22,LV5350‐SER22,LV7300‐SER22). PICTURE The display of picture. It can show Monochrome display, marker display, line select display, CINE LITEⅡ, and focus assist (LV5300‐SER25,LV5350‐SER25,LV7300‐SER25). Audio (LV5300‐SER20,LV5350‐SER20,LV7300‐SER20) AUDIO The display of audio. It can show Lissajous, Surround, meter and status for the signal which is chosen. (When LV5300‐SER20, LV5350‐SER20, LV7300‐SER20 is not installed, only the meter display is enabled, and other functions are disabled.) STATUS STATUS The SDI status is displayed. Event log display, data dump display, phase difference display, etc. can be displayed EYE PATTERN (LV5300, LV7300‐SER02) The eye pattern is displayed. (LV5350 and LV7300 without LV7300‐SER02 doesn’t support Eye Pattern) Jitter can be displayed in addition to the eye pattern by mode switching. MULTI display MULTI Multi screen that combines each measurement screen is displayed. There are 6 types of model layouts which can be use chosen.
Page 6: Input Setting
LV5300/LV5350/LV7300 Quick Manual ＩＮＰＵＴ setting F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS （SIGNAL IN OUT） F･1 (SYSTEM) ＞ F･2 F･3 Select (PREV TAB) or (NEXT TAB) tag, open the or screen. SDI IN SETUP1 SDI IN SETUP2 Set each item according to the input signal. Press FD to put a check mark or turn the dial to select an item of F･D choice and press FD to check mark the settings. F･D F･1 Press [FI] (COMPLETE) at the end of the setting to confirm and save the system. For the format selection of the SDI System, refer to 6.2 Setting of Measurement Signal in the manual. SDI IN SETUP1 SDI IN SETUP2 Input Format Alarm/Error If the format of the received signal is not compliant as per the setting specified on the tab of the SYS ...
Page 7: Basic Setting (No.1)
(PREV TAB)or F･3 (NEXT TAB) can change the tab display) F･2 GENERAL Rotating ＞blue frame to match the item ＞press and check maker or item can be chosen ＞ F･D F･D After setting ＞ F･1 (COMPLETE) GENERAL ●Preset Overwrite When registering presets, select whether to enable overwriting or not. You can prevent presets from being overwritten by disabling them. Overwrite Disable / Enable ●Fan Speed Fan speed can be chosen When LV5300, LV7300‐SER02 is installed : 4 / 5 / 6 / 7 / 8 When LV5300, LV7300‐SER01 is installed : 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 ●Screensaver Select the time from the last key operation until the screen saver starts up. Off / 1 / 5 / 10 / 20 / 30 / 60 [min] ●LCD Auto Off Select the time from the last key operation to automatically turning off the backlight. Off / 5 / 30 / 60 [min] ●Touch Panel Touch panel use or not Disable / Enable ●Battery Indicator（LV5300‐SER11/SER12、LV5350‐SER11/SER12） Displays the battery level when SER11 or SER12 is installed. Off / On Function Menu ●Mode Key Direct Multi display, mode key (WFM, VECT, PIC, AUDIO, STATUS, EYE) Select whether or not to change the measurement screen by operation. (This is effective when INPUT item or Input option is placed in the layout.) Single: ...
Page 8: Basic Setting (No.2)
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Basic setting AUDIO STATUS WFM VECT MULTI (No.2) F･D RECALL S‐CUT INPUT VPOS HPOS The following settings can be made on the CAP of SYS (SYSTEM)> F2 (SYSTEM SEUP). F･2 CAPTURE&DISPLAY (Display tab is changed by F2 (PREV TAB) or F3 (NEXT TAB)) F･2 F･3 Use FD to set the blue frame to the item you want to set, then press FD to add a check mark. F･D F･D After completing the settings, press F1 (COMPLETE) to confirm the settings. F･1 CAPTURE Screen capture: Capture the display screen as a still image ●Signal Color Display color setting of captured waveform White/Yellow/Cyan/Green/Magenta/Red/Blue Information Display ●Format ON / OFF of format display (1920x1080 / 59.94I YCbCr (422) 10bit HD etc.) Off / On...
Page 9: Function Operation
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Function Operation WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS Normally, the function menu is displayed, but disappears when the key of the currently selected mode is pressed. In addition, it can be set to automatic OFF in the GENERAL tab of the SYS menu. Selection function If there are multiple items, press the function key while the pull‐up menu is displayed to switch the items. It is also possible to select directly using a mouse or touch panel. Example of changing the waveform color from WHITE to CYAN ① Press F.4. ⑤ Press F.4 while the pull‐up menu is displayed. ② A pull‐up menu appears. ⑥ It changes from YELLOW to CYAN. ③ Press F.4 while the pull‐up menu is displayed. ⑦ If you do not press F.4, the pull‐up menu disappears ④ It changes from WHITE to YELLOW.
Page 10: Settings For Quick Manual
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Settings for AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS Quick Manual The explanations after this page follow the settings below. Make the following settings in of SYS < F2 . F･2 GENERAL Function Menu ●Mode Key Direct Single Multi/Single Common ●Auto Off Set the time from the last key operation until the function menu disappears automatically. Off / 1 / 2 / 3 / 4 / 5 / 10 / 20 / 30 / 60 [sec] On‐screen Menu ●Auto Off Set the time from the last key operation until the menu display on the screen used for mouse / touch panel operation disappears automatically. Off / 1 / 2 / 3 / 4 / 5 / 10 / 20 / 30 / 60 [sec] ●Operation Key Set On / Off of the operation menu key used for mouse / touch panel operation displayed on the screen. OFF / ON Confirm the settings with F1 (COMPLETE).
Page 11: Waveform Display
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI Waveform display (No.1) S‐CUT F･D RECALL INPUT VPOS HPOS Waveform display color setting (e.g. change to Multi‐color) ・ Press (WAVEFORM) to display the waveform. F･1 (WFM INTEN/CONFIG)＞ F･4 (WFM COLOR) ‐ Select MULTI. Note: If F1 is other than (WFM INTEN / CONFIG), press (WAVEFORM) key twice F･1 Waveform display matrix setting (e.g. Set waveform mode to RGB) ・ F･7 F･1 (up menu)＞ F･7 (COLOR SYSTEM)＞...
Page 12 LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI Waveform display (No.2) S‐CUT F･D RECALL INPUT VPOS HPOS Display size variable setting ・ Press (WAVEFORM) to display the video waveform. Note: If the EXTERNAL SYNC waveform is displayed, press F1 (WFM INTEN / CONFIG)> F1 = OFF> F7 (up menu) F･1 F･1 F･7 to return to the normal video waveform display. F･2 Set F2 (GAIN / FILTER)> F2 (GAIN MAG) to X1. Set F1 (GAIN VARIABLE) to VARIABLE. F･2 F･1 Note: When F2 is other than (GAIN / FILTER), press WF (WAVEFORM) twice. F･2 The waveform is scaled by turning FD (FUNCTION DIAL) or the flywheel of the mouse. F･D Press FD (FUNCTION DIAL) to return to X1. F･D On the right side, the enlarged part for full scale is displayed as a square frame.
Page 13: Vector Display
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Vector Display WFM VECT AUDIO STATUS MULTI (no.1) S‐CUT F･D RECALL INPUT VPOS HPOS COLOR BAR 100% 75% setting ・Press (VECTOR SCOPE) to display the vector scope. VECT F･7 F･2 Change (COLOR SYSTEM)> (COLOR BAR) to 100% or 75% Note: If is not (COLOR SYSTEM), press, (VECTOR SCOPE) twice. F･7 VECT Input 75% COLOR BAR Set COLOR BAR 100% Set COLOR BAR 75% (Off target) VECTOR SCALE Setting ・ Press (VECTOR SCOPE) to display the vector scope. VECT Change (VECTOR SCALE)> (VECTOR SCALE) to AUTO / BT.601 / BT.709 / DCI / BT.2020.
Page 14: Vector Display
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Vector Display WFM VECT AUDIO STATUS MULTI (no.1) S‐CUT F･D RECALL INPUT VPOS HPOS Variable scale display setting ・ Press (VECTOR SCOPE) to display the vector scope. VECT Set (VECTOR SCALE)> (VARIABLE SCALE) to ON. F･2 F･5 Note: If is not (VECTOR SCALE), press (VECTOR SCOPE) twice. F･2 VECT F･3 Set (up menu)> (VECTOR GAIN)> (GAIN VARIABLE) to VARIABLE. F･7 F･1 If you need more than 2 times magnification, change F2 (GAIN MAG) to X5 and F3 (GUIDE DISPLAY) to ON. F･2 F･3 The center position can be moved with (VPOS) / (HPOS).
Page 15: (For Uhdtv / Hlg Color Bar)
LV5300/LV5350/LV7300 Quick Manual Vector Display F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI (no.3) S‐CUT F･D For UHDTV / HLG color bar RECALL INPUT VPOS HPOS １．Input the UHDTV color bar (ARIB STD‐B66). ２．Set the vector scope to 75%. ・ Press Vec (VECTOR SCOPE) to display the Vector scope. VECT ・ Switch F7 (COLOR SYSTEM)> F2 (BAR) to 75%. F･2 F･7 F･2 Note: If F2 is not (COLOR SYSTEM), press VE (VECTOR SCOPE) twice. VECT ３．Variable scale display ON and ARIB CHECK MARCKER setting ・ Press (up menu). F･7 ・...
Page 16 LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 CIE DIAGRAM display WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS ＞ (VECTOR DISPLAY) ＞ CIE DIAGRAM F･1 (VECT INTEN/CONFIG)＞ F･1 VECT Color triangle setting F･2 F･2 F･1 (TRIANGLE2) ＞ Yellow standard scaler can be displayed (CIE DIAGRAM SCALE) ＞ (TRIANGLE1), Triangle standard name display F･2 F･5 F･4...
Page 17: 5Bar Gamut Display
LV5300/LV5350/LV7300 Quick Manual 5BAR Gamut display F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS The 5BAR gamut display can display RGB and composite gamut errors separately. 5BAR Display F･1 Change VE (VECTOR)> F1 (VECT INTEN / CONFIG)> F1 (VECTOR DISPLAY) to 5BAR. F･1 VECT F･1 Note: If you press VEC (VECTOR) and F1 is not (VECT INTEN / CONFIG), press VEC (VECTOR) twice. VECT VECT 5BAR Display 5BAR setting In Stat (STATUS)> F5 (STATUS SETUP), change the tab to Error setup and set as below. F･5 STATUS ERROR SETUP3...
Page 18: Picture Display
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Picture display WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS Japanese subtitle display function (LV5300/5350/7300‐SER21) Japanese subtitles can be simply displayed on the picture. F･1 Set PIC (PICTURE)> F1 (PIC CONFIG)> F5 (SUPER IMPOSE)> F1 to ARIB. F･5 F･1 Note: ● If you press PIC (PICTURE) and F1 is not (PIC CONFIG), F･1 press PIC (PICTURE) twice. ● When the input format is 3G‐B, F5 (SUPER IMPOSE) is not F･5 displayed. HD / SD / ANALOG / CELLULAR can be selected with F2 (FORMAT). F･2 これはリーダー電子株式会社 F･2 You can select 1/2 with F2 (LANGUAGE).
Page 19: Cinelite（% Display
LV5300/LV5350/LV7300 Quick Manual CINELITE (% display) F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS Max 3 points (P1~P3) level check is possible ＞ (CINELITE DISPLAY) ＞ % DISPLAY setting F･2 (CINELITE or CINELITE/HDR)＞ F･1 ＞ F･2 (CINELITE or CINELITE/HDR)＞ (%DISPLAY SETUP) F･2 ・ F･1 (MEASURE NUMBERS)：...
Page 20: Cinezone
LV5300/LV5350/LV7300 Quick Manual Cine Zone F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS The cine zone has three functions. 1. The gradation display function, which replaces the brightness level of the picture with the color and displays it, shows the brightness distribution. 2. Saturation is understood by the function that sets a threshold for the brightness level and displays the part above or below it. 3. The search function displays the set brightness level in green and you can see the set brightness from the picture. [mV] Level Specified level 100% Thrishold 50% Green Threshold Blue 0% ●Gradation display ●Above and below display of threshold ●Display specified level...
Page 21: Focus Assist
LV5300/LV5350/LV7300 Quick Manual Focus Assist F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI (LV5300‐SER25,LV5350‐SER25, LV7300‐SER25) S‐CUT F･D RECALL INPUT VPOS HPOS The focus assist display highlights the amount of detected edges to make it easier to check the focus. (Note: This is not displayed when PICTURE MODE is FULL FRM.) Focus assist display Focus assist setting Press Pic (PICTURE)＞ F4 F･4 (FOCUS) １．Display mode selection F1 (SIZE) (Display size is selected.) F･1 FIT/REAL/x２２．Focus Assist ON / OFF F2 (FOCUS ASSIST) (Set the focus assist display on and off.) F･2 ON/OFF ３．Detection sensitivity selection F3 (SENSITIVE) (Sets the detection edge sensitivity.) F･3...
Page 22: Hdr Display
LV5300/LV5350/LV7300 Quick Manual HDR display （No.1） F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI (LV5300‐SER23,LV5350‐SER23, LV7300‐SER23) S‐CUT F･D RECALL INPUT VPOS HPOS HDR system setting ・Select SYS (SYSTEM)> F1 (SIGNAL IN OUT)> HDR and set HDR MODE to HLG, PQ, S‐Log3, C‐Log, or Log‐C F･1 ＨＤＲ according to the input signal. ・Ref.Level is the level setting at the boundary between HDR and SDR. Select a fixed value or put a check mark in VARIABLE to enable variable range. (The variable value can be changed by PIC > F2 (CINELITE / HDR)> F2 (CINEZONE SETUP)> F4 (REF [%]).) F･2 F･2 F･4 ・Range can be selected from Narrow and Full. ・The system gamma can be turned off / on. ・HLG Scale can be selected from 1200% or 100%.
Page 23 LV5300/LV5350/LV7300 Quick Manual HDR display （No.2） F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI (LV5300‐SER23,LV5350‐SER23, LV7300‐SER23) S‐CUT F･D RECALL INPUT VPOS HPOS HDR ZONE display ・After setting HDR System, set PIC (PICTURE)> F2 (CINELITE / HDR)> F1 (CINEZONE DISPLAY) to CINEZONE. F･2 F･1 F･2 Note: If you press PIC (PICTURE) and F2 is not (CINELITE / HDR), press PIC (PICTURE) twice. ・ Turn on F4 (HDR ZONE). F･4 ・ When F2 (CINEZONE SETUP) is pressed, UPPER, REF, and LOWER values are displayed in the upper left. F･2 ・ The threshold of UPPER can be changed by changing F2 (UPPER). Areas that exceed the threshold are F･2 displayed in magenta on the picture.
Page 24: Audio
LV5300/LV5350/LV7300 Quick Manual AUDIO F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS (LV5300‐SER20, LV5350‐SER20, LV7300‐SER20) Press (AUDIO) AUDIO AUDIO mapping setting Note: If F7 is not (MAPPING), press Au (AUDIO) twice. F･7 AUDIO Set Target in Au (AUDIO)> F7 (MAPPING). F･7 TARGET ・INPUT： EMB AUDIO： Measurement of embedded audio input to SDI INPUT ・CH Mode： Setting the number of measurement channels（8ch）...
Page 25: Status
LV5300/LV5350/LV7300 Quick Manual STATUS F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS Press (STATUS). STATUS Note: ・ If the display is different from the below even if you press Sta (STATUS), press sta (STATUS) twice. STATUS STATUS ・For 2 screens, change the DISPLAY setting. Set IN (INPUT)> F7 (DISPLAY) to SINGLE. F･7 INPUT ●SIGNAL Displays as “DETECT” or “NO SIGNAL” to check whether the SDI signal is input connected or not In the case of "NO SIGNAL", the following items are not displayed. ●FORMAT/SUB IMAGE FORMAT It shows the signal format. Usually, it is the blue one. If you put the incorrect signal format, it will be shown in red. Also SDI input cannot be processed. ●Freq (Frequency deviation) Display interface sampling frequency deviation...
Page 26: Payload Id/Srlive Metadata Display
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Payload ID display AUDIO STATUS WFM VECT MULTI SRLive Metadata display F･D RECALL S‐CUT INPUT VPOS HPOS PAYLOAD display setting PAYLOAD can be displayed by Sta (STATUS)> F4 (ANC PACKET)> F1 (PACKET ANALYSYE)> F2 F･4 F･1 F･2 STATUS (PAYLOAD ID). ※Note: If you press Sta (STATUS) and the STATUS screen is not displayed, or if (ANC PACKET) is STATUS F･4 not displayed on F4 , press Sta (STATUS) twice. STATUS HLG / PQ Colorimetry BT.2020 / BT.709...
Page 27: Event Log
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI EVENT LOG F･D RECALL S‐CUT INPUT VPOS HPOS This can be displayed by (STATUS)> (EVENT LOG). F･1 STATUS In the event log, the events that have occurred are displayed in a list. Note: ・ If the STATUS screen is not displayed by pressing Sta (STATUS), press Sta twice and then F1 STATUS F･1 STATUS (EVENT LOG). ・The event detection target is for all the channels of from currently selected A to D. However, when measuring 3G‐B‐DS, 3G (DL) ‐4K, 12G, only events currently detected will be detected. ・ F･1 (LOG)Setting for START・STOP ・（CLEAR）Delete the event log F･2...
Page 28: Phase Difference Measurement
LV5300/LV5350/LV7300 Quick Manual Phase difference measurement F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS Phase difference measurement Setting (Not including 12G‐SDI) ＞ F･2 (SDI ANALYSIS)＞ F･2 (EXT REF PHASE) STATUS As a reference signal for phase difference measurement, from (REF SELECT) to choose EXT, SDI or EXT, F･1 ＞ F･7 EXT REF Input signal, SDI is SDI A input signal. When the System setting is SD / HD / 3G‐A / 3G‐B‐DL, I N P U T (DISPLAY) ＞...
Page 29: Av Phase (Lip Sync)
LV5300/LV5350/LV7300 Quick Manual AV PHASE (Lip Sync) F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI (LV5300/5350/7300‐SER20) F･D RECALL S‐CUT INPUT VPOS HPOS AV PHASE setting AV PHASE (Lip Sync: Video and Audio delay) can be confirmed by inputting a lip sync pattern and measuring it. The test pattern can be output from the LV5600‐SER24, LV7600‐SER24 TSG option or our sync generator LT4600A / LT4610 / LT4611 (with LT4611SER22). A delay occurs when the test pattern is transmitted via a microwave or IP line. AV phase measurement can be performed by Sta (STATUS)> F2 (SDI ANALYSIS or SDI / IP ANALYSIS)> F3 F･2 F･3 STATUS (AV PHASE). Note: If you press Sta (STATUS) and the STATUS screen does not appear, press Sta twice, then F2 (SDI STATUS F･2 STATUS ANALYSIS or SDI / IP ANALYSIS) and then F3 (AV PHASE). F･3 F･1...
Page 30: Eye
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS （LV5300, LV7300-SER02） Switching between EYE and JITTER ＞ (EYE/JITTER INTEN/CONFIG) ＞ (EYE/JITTER) select EYE or JITTER display F･1 F･1 F･1 Note: If F1 is not (EYE / JITTER INTEN / CONFIG), press EYE (EYE) twice. EYE display JITTER display （Note: The EYE function display of LV5300 and LV7300‐SER02 is only compatible with SDI INPUT1. SDI INPUT2 is not supported.） Filter setting （GAIN/FILTER/SWEEP）＞（FILTER） (EYE)＞ F･2 F･3 F･2...
Page 31 F･1 F･2 F･3 F･4 F･5 F･6 F･7 Layout Settings WFM VECT AUDIO STATUS MULTI (single) S‐CUT F･D RECALL INPUT VPOS HPOS Layout system settings ・DISPLAY setting: Set IN (INPUT)> F7 (DISPLAY) to SINGLE. F･7 INPUT ＊ The user layout can be freely changed with the mouse by adding layout options (LV5300/5350/6300‐SER26). Please refer to P33 and after for layout changes. Note: The layout called with this setting is the factory setting. If the layout settings have been changed individually, the corresponding layout will be called. Format TIME INPUT How to use the registered layout VECT settings USER 1 Press M and F1 to select F･1 STATUS MULTI LAYOUT USER 1‐6. Format...
Page 32: Call The Layout（Simul Setting
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Layout Settings WFM VECT AUDIO STATUS MULTI (SIMUL) S‐CUT F･D RECALL INPUT VPOS HPOS Layout system settings ・DISPLAY setting: Set IN (INPUT)> F7 (DISPLAY) to SIMUL. F･7 INPUT ・When the System setting is SD / HD / 3G‐A / 3G‐B‐DL and INP > F7 (DISPLAY) is SIMUL setting, F･7 INPUT The layout changes depending on ON / OFF of INP > F1 to F2 (A , B). F･1 F･2 INPUT How to use the registered layout settings Press M and F1 to select LAYOUT USER 1‐6. F･1 MULTI Example 1 INPUT （A）...
Page 33: Screen Capture
AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS １．Screen capture settings Change the display tab to CAP with SYS (SYSTEM)> F2 (SYSTEM SETUP)> F3 (NEXT TAB). F･3 CAPTURE&DISPLAY F･2 Use FD (FUNCTION DIAL) to set Capture Mode to “Screen” and select the file type to save to USB memory F･D F･1 from FILE TYPE “BMP”, “BSG” . At the end of the setting, press F1 (COMPLETE) to confirm. BMP ： The saved data can be confirmed on the PC. BSG ： The saved data can be read and displayed on the LV5300/5350 and LV7300 main units. (PCAP is a mode to capture IP packet when LV5600SER05 is installed.) ２．Perform screen capture ・Display the screen to be captured. ・Press CA (CAPTURE). (When you press CA , the display screen is captured in the internal memory.) ・Select the following with F3 (DISPLAY). F･3 REAL: Displays the current input signal HOLD: View the captured data. Video waveforms, vectors and eye patterns are displayed in cyan. BOTH: The brightness of the current input signal and the capture data is halved, and they are displayed in layers. ３．Save to USB memory ・Insert the USB memory. The USB memory is recognized and U is displayed in the upper right of the screen. ・Press F6 (USB MEMORY)> F3 (STORE) to save to a USB memory. F･6 F･3 ４．Capture data display of USB memory ・Captured data saved in USB memory in BSG format can be returned...
Page 34: Signal Output Settings
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Signal Out‐put AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS (LV5600‐SER24,LV7600‐SER24) ＞ F･1 (SIGNAL IN OUT) (NEXT TAB) ＞Choose F･2 F･3 (PREV TAB), SDI OUT Use ＞ Output Mode ＞Mode: Test Signal F･D Set the Test Signal item using FD according to the output signal. F･D At the end of the setting, press F1 (COMPLETE) to confirm. F･1 Initialize Setting F･1 F･2 F･3 F･4 F･5 F･6 F･7...
Page 35: Preset Register / Delete
LV5300/LV5350/LV7300 Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Preset WFM VECT AUDIO STATUS MULTI Register / Delete S‐CUT F･D RECALL INPUT VPOS HPOS This is a function to register up to 60 panel settings. All items except Ethernet, remote, RS‐422/485, camera ID, date setting are registered. To register / delete settings, press M. . Use FD to select the preset number to register / delete. F･D F･2 F･3 To register, press F2 (STORE) on the registration screen. (Delete with F3 (DELETE).) Enter the registered file name by pressing F1 (COMENT INPUT). F･1 The input method is as follows, use function key and or mouse to control. F･D 入。 (CLEAR ALL) : Delete all the word F･1 F･2 (DELETE ): Delete the character on the cursor F･3 (INSERT) : Insert the selected character at the cursor position ...
Page 36: Change Layout－Basic
LV5300/LV5350/LV7300 Quick Manual Change Layout－basic－ (LV5300/5350/7300‐SER26) You can change the layout from each of the measurement screen (WFM, VECT, PIC, AUDIO, STATUS, EYE) (only one), and MULTI measurement screen(USER1～6) Use mouse from the front panel to set up ＞ Display the screen you want to change the layout. From WFM, VECT, PIC, MULTI(USER1) ＞ Right‐click the mouse on the screen ＞ Layout Layout Setup window Item window (ex: WFM,VECT,PIC and so on) Layout procedure Here, three basic examples and application examples are introduced. Basic example P.37 Procedure for changing the layout of MULTI (USER1) (adding audio items, etc.) ① Display of layout screen ② Item change from TIME to DATE in the upper right of the screen ③ Overlay the vector waveform on the picture ④ Add audio item ⑤ Add TIME to STATUS item ⑥ Confirm changes Application example P.39 Procedure to change the layout of MULTI (USER1) (simultaneous display of VECT and CIE charts) ① Display of layout screen ② Delete all items on the screen ③ Add VECT item ④...
Page 37: Change Layout（General）－Example
LV5300/LV5350/LV7300 Quick Manual Change Layout（ General ）－example－ (LV5300/5350/7300‐SER26) (example) change the layout from MULTI(USER1) (add audio item) ① Show the layout screen ② Item change from TIME to DATE in the upper right of the screen ③ Place vector display on picture display ④ Add audio measurements display ⑤ Add TIME to STATUS item display ⑥ Complete Before ② TIME → DATE ③ move VECTOR ④ add AUDIO ⑤ add TIME After...
Page 38: Change Layout (Process) －Example
LV5300/LV5350/LV7300 Quick Manual Change Layout ( process ) －example－ (LV5300/5350/7300‐SER26) ① Display of layout ② Change TIME at the upper right of F･1 a. Long press ＞Press the screen to DATE (LAYOUT user1) MULTI (There are six layouts of USER 1 to USER 6 for multi a. Click the TIME item in the upper right of the screen display) and select it. b. Select LAYOUT of the window displayed by right (The color and letters of the TIME item frame change click on the measurement screen and display the to light blue, Select item in Layout Setup window to layout screen TIME. ) b. Layout Setup window ＞ Choose LAYOUT DELETE key ＞ delete TIME c. Add Item ＞ Click on the DATE item in the tab. d. Change the size of DATE ＞Use the mouse to decide the place. ③ Place vector waveform on ④ Add AUDIO ⑤...
Page 39: Change Layout (General) －Example1
LV5300/LV5350/LV7300 Quick Manual Change layout (general) －example1－ (LV5300/5350/7300‐SER26,‐SER22) (example) MULTI(USER1)How to change the layout? (Show VECT and CIE chart at the same time) ① Show the display ② Delete all the items ③ Add VECT item ④ Add CIE item ⑤ Finish Before MULUTI (USER1) Delete all the items, then add VECT and CIE Chart. ④ CIE ③ VECT After...
Page 40: Change Layout (Process) －Example1
LV5300/LV5350/LV7300 Quick Manual Change layout(process) －example 1－ (LV5300/5350/7300‐SER26,‐SER22) ① Show the layout screen ② Delete all items ＞ Choose USER 1 F･1 a. Press MULTI a. Click the DELETE item at the bottom left of the (LAYOUT SELECT) (There are six multi displays from USER 1～USER 6) screen. The item displayed will disappear each time B. Right click on the measurement screen to display you click it. Click a few times to delete all displayed the window, select LAYOUT and display the layout items. screen. Choose LAYOUT ③ Add VECT ④ Add CIE chart ⑤ Finish a. Add Condition ＞ VECT tab ＞ choose VECT a. Add Condition ＞ VECT tab ＞ choose CIE Right‐click on the layout screen...
Page 41: Change Layout (General) －Example2
LV5300/LV5350/LV7300 Quick Manual Change layout (general) －example2－ (LV5300‐SER26,LV7300‐SER02/26) (example) How to change EYE layout display? (EYE display and Jitter at the same time) ① Layout screen display ② Delete EYE/JITTER ③ EYE or Jitter item choose／add ④ Show Format, Input, Time item ⑤ Finish ② EYE/JITTER Before ④ add Format ④ add Input ④ add Time ③ EYE measure ③ Jitter measure After...
Page 42: Change Layout (Process) －Example2
LV5300/LV5350/LV7300 Quick Manual Change layout(Process) －example 2－ (LV5300‐SER26, LV7300‐SER02/26) ① Layout screen display ② Delete EYE/JITTER item a. Click the TIME item in the upper right of the screen a. Press to show the screen b. Select LAYOUT of the window displayed by right and select it.(The color and letters of the TIME item click on the measurement screen and display the frame change to light blue, Select item in Layout Setup layout screen window to TIME. ) b. Layout Setup window ＞ Use DELETE key to delete Choose LAYOUT EYE/JITTER ③ choose／add ④ Format, Input, Time ⑤ Finish EYE and JITTER item item display a. Right click on the layout screen, SAVE. a. Add Condition ＞ EYE tab ＞ EYE ＞...
Page 43: Operation Kay
LV5300/LV5350/LV7300 Quick Manual Operation Key With the operation keys, frequently used items (waveform format, gain and vector gain, etc.) can be easily changed with the soft keys (icons) using the mouse or touch panel. ・Operation key setting It is set on GEN of SYS > F2 (SYSTEM SETUP) F･2 GENERAL Set the Auto Off function of the On‐screen Menu to Off. Turn on the Operation Key. When using the touch panel, select Enable of Touch Panel. Confirm the setting with (COMPLETE). F･1 ・Operation key operation Press (WAVEFORM) to display the waveform. The operation key is displayed at the bottom right of the screen. Click it with the mouse or touch panel. FORM： Waveform and vector format changes OVLAY： Change waveform overlay settings FILTER： Change waveform filter settings GAIN： Waveform and vector gain change GAIN‐MAG： Waveform and vector scaling SWEEP： Change waveform sweep SWEEP‐MAG： Set the horizontal magnification SHORT CUT： Various function assignments such as cursor and capture. ・ Operation key setting OPERATION KEY Change the display tab to Ope Kay with SYS > F2 (SYSTEM SETUP)> F3 (NEXT TAB). F･2 F･3 F･1...
Page 44 LV5300/LV5350/LV7300 Quick Manual URL：https://www.leader.co.jp email: sales@leader.co.jp ※Product specifications are subject to change without notice. Ver. 1.1 作成年月日 2020年1月21日営業技術...
