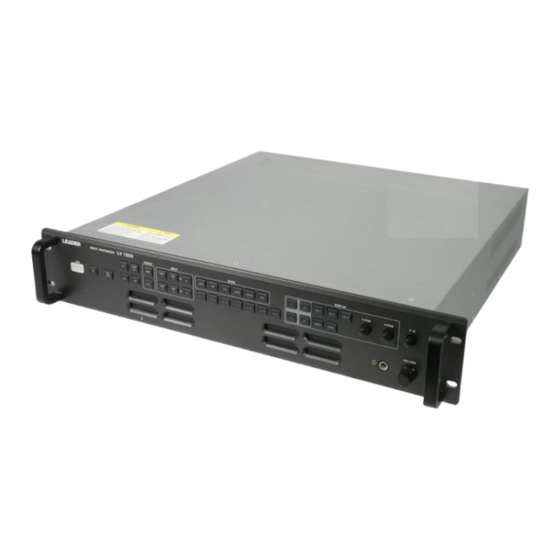

MULTI RASTERIZER
INSTRUCTION MANUAL
(ETHERNET)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LV 7800 and is the answer not in the manual?

Questions and answers

Related Manuals for Leader LV 7800

Summary of Contents for Leader LV 7800

  • Page 1 LV 7800 MULTI RASTERIZER INSTRUCTION MANUAL (ETHERNET)

  • Page 2: Table Of Contents

    Trademark Acknowledgments ....................1 TELNET ........................2 Procedure ..........................2 How to Enter Commands ......................3 Commands ..........................4 2.3.1 LV 7800 Commands ......................4 2.3.2 LV 58SER01A Commands ....................8 2.3.3 LV 58SER02 Commands ....................24 2.3.4 LV 58SER03 Commands ....................29 2.3.5...

  • Page 3: Introduction

    1. INTRODUCTION INTRODUCTION This manual explains how to control an LV 7800 remotely over an Ethernet. For other explanations and notes, see the main LV 7800 instruction manual. Networks Controlling an LV 7800 remotely through the instrument’s Ethernet interface has only been confirmed to work in a local network environment.

  • Page 4: Telnet

    The new settings become valid after the instrument restarts. Connect a cable to the LV 7800 Ethernet port. Use a cross cable to connect the LV 7800 to a PC directly. Use a straight cable to connect the LV 7800 to a PC through a hub.

  • Page 5: How To Enter Commands

    Entering a command for a mode that is different from the current display mode produces no effect. • Enable Telnet flow control. If your Telnet client does not support flow control, the LV 7800 may not operate properly when commands are transferred at a high speed.

  • Page 6: Commands

    2. TELNET Commands Telnet commands follow the LV 7800 menu structure. For details on how each command works, see the instruction manuals for the LV 7800 and each unit. 2.3.1 LV 7800 Commands ● Front Panel LV 7800 (MULTI RASTERIZER)
  • Page 7 2. TELNET ● System Settings LV 7800 (MULTI RASTERIZER) Command Parameter1 Description SYS:PLATFORM:SOURCE_MODE SINGLE Sets the single input mode. MULTI Sets the multi input mode. (Doesn’t interlock with the line selection.) MULTI_LINE Sets the multi input mode. (Interlocks with the line selection.)
  • Page 8 2. TELNET Command Parameter1 Description Queries the output polarity at the time of error detection. SYS:PLATFORM:ALARM1:UNIT UNIT1 Outputs the error of unit No.1 to alarm 1. UNIT2 Outputs the error of unit No.2 to alarm 1. UNIT3 Outputs the error of unit No.3 to alarm 1. UNIT4 Outputs the error of unit No.4 to alarm 1.
  • Page 9 REMOTE:REPLY (*1) Replies for the command. Does not reply for the command.(Default setting) When set to ON, the LV 7800 returns a reply to the command as follows: The command was processed properly. ERR1: The number of parameters was incorrect.

  • Page 10: Lv 58Ser01A Commands

    2. TELNET 2.3.2 LV 58SER01A Commands ● System Settings LV 58SER01A (SDI INPUT) Command Parameter1 Parameter2 Description SYS:UNIT:LINK_FORMAT 1, 2, 3, 4 SINGLE Sets the link format to single link. DUAL Sets the link format to dual link. Sets the link format to 2048 × 1080 (2K) of dual link.
  • Page 11 2. TELNET Command Parameter1 Parameter2 Description 720P/30 Sets the format to 720p/30 at the time of single link. 720P/29.97 Sets the format to 720p/29.97 at the time of single link. 720P/25 Sets the format to 720p/25 at the time of single link.
  • Page 12 2. TELNET Command Parameter1 Parameter2 Description VITC Use the VITC (time code) for the time display. D_VITC Use the D-VITC (time code) for the time display. Queries the time display mode being displayed. SYS:UNIT:SELECT_OUTPUT 1, 2, 3, 4 OUTPUT SDI A/B becomes the reclock output of A channel during single link.
  • Page 13 2. TELNET Command Parameter1 Parameter2 Description an error for the HD-SDI input. Queries the cable length considered as an error for HD-SDI input. SYS:UNIT:ERROR:HD_WARN 1, 2, 3, 4 5 to 200 Sets the cable length (m) considered as a warning for the HD-SDI input. Queries the cable length considered as a warning for HD-SDI input.
  • Page 14 2. TELNET Command Parameter1 Parameter2 Description detection in the embedded audio. SYS:UNIT:ERROR:AUDIO:PARITY 1, 2, 3, 4 Detects the parity errors in the embedded audio. Does not detect the parity errors in the embedded audio. Queries the presence of parity error detection in the embedded audio.
  • Page 15 2. TELNET Command Parameter1 Parameter2 Description SYS:UNIT:ERROR:C_GAMUT:SETUP 1, 2, 3, 4 Sets the setup to exclude when converting the composite. 7.5P Sets the setup to 7.5 % when converting the composite. Queries the setup value when converting the composite. SYS:UNIT:ERROR:C_GAMUT:UPPER 1, 2, 3, 4 90.0 to 135.0 Sets the upper limit (%) of composite...
  • Page 16 2. TELNET Command Parameter1 Parameter2 Description freeze error. SYS:UNIT:ERROR:BLACK 1, 2, 3, 4 Detects the black errors. Does not detect the black errors. Queries the presence of black error detection. SYS:UNIT:ERROR:BLACK:LEVEL 1, 2, 3, 4 0 to 100 Sets the detection level (%) for black error.
  • Page 17 2. TELNET ● WFM LV 58SER01A (SDI INPUT) Command Parameter 1 Description Displays the video signal waveform. WFM:CH1 Displays CH1. Does not display CH1 Queries the presence of CH1 display. WFM:CH2 Displays CH2. Does not display CH2 Queries the presence of CH2 display. WFM:CH3 Displays CH3.
  • Page 18 2. TELNET Command Parameter 1 Description Sets the magnification of the waveform to x5. Queries the magnification of the waveform. WFM:SWEEP:SWEEP Sets the sweep mode to the line display. Sets the sweep mode to the field or frame display. Queries the sweep mode setting. WFM:SWEEP:H_SWEEP Sets 1 line display.
  • Page 19 2. TELNET Command Parameter 1 Description (Depending on the format) Queries the selected line of the line select. WFM:FILTER:NORMAL FLAT Sets the filter to Flat for the component display. LOWPASS Sets the filter to LPF for the component display. Queries the filter setting for the component display. WFM:FILTER:COMPOSITE FLAT Sets the filter to Flat when displaying the...
  • Page 20 2. TELNET Command Parameter 1 Description Queries the presence of luminance signal when displaying RGB. WFM:MATRIX:YRGB Displays the luminance signal when displaying RGB. Does not display the luminance signal when displaying RGB. Queries the presence of luminance signal when displaying RGB.
  • Page 21 2. TELNET ● VEC LV 58SER01A (SDI INPUT) Command Parameter1 Description VECTOR Displays vector waveforms. VECTOR:INTEN:VECTOR -128 to 127 Sets the intensity of the vector waveform. Queries the intensity of the vector waveform. VECTOR:COLOR WHITE Sets the waveform display color to white. GREEN Sets the waveform display color to green.
  • Page 22 2. TELNET Command Parameter1 Description VECTOR:MATRIX:COMPOSITE: AUTO Selects NTSC or PAL automatically when displaying the FORMAT pseudo-composite. NTSC Displays NTSC when displaying the pseudo-composite. Displays PAL when displaying the pseudo-composite. Queries the display format of the pseudo-composite display. VECTOR:MATRIX:SETUP Sets the setup to exclude when displaying the pseudo-composite.
  • Page 23 2. TELNET ● PIC LV 58SER01A (SDI INPUT) Command Parameter1 Description PICTURE Displays the pictures. PICTURE:BRIGHT -30 to 30 Adjusts the brightness of the picture display (%). Queries the brightness of the picture display. PICTURE:CONTRAST 0.70 to 1.30 Adjusts the contrast of the picture display. Queries the contrast of the picture display.
  • Page 24 2. TELNET Command Parameter1 Description PICTURE:SIZE Displays the picture size optimized. REAL Displays each sample of the video signal as a pixel of the LCD. FULL_FRM Displays a frame including the blanking period. Queries the picture size. PICTURE:GAMUT_ERROR Displays the gamut errors. Does not display the gamut errors.
  • Page 25 5000 events. STOP Configures the LV 7800 to stop recording events when the event log exceeds 5000 events. Queries what the LV 7800 will do when the event log exceeds 5000 events. STATUS:DUMP Displays the data dump screen. STATUS:DUMP:MODE Automatically update the data dump.

  • Page 26: Lv 58Ser02 Commands

    2. TELNET Command Parameter1 Description STATUS:RESET Clears the error count. 2.3.3 LV 58SER02 Commands ● System Settings LV 58SER02 (EYE PATTERN unit) Command Parameter1 Parameter2 Description SYS:UNIT:ERROR:HD_AMP 1, 2, 3, 4 Enables the amplitude error detection for Disables the amplitude error detection for HD.
  • Page 27 2. TELNET Command Parameter1 Parameter2 Description SYS:UNIT:ERROR:HD_DELTA:MAX 1, 2, 3, 4 40 to 140 Sets the upper limit (%) of the error (Tr-Tf) for HD. Queries the upper limit of the error (Tr-Tf) for HD. SYS:UNIT:ERROR:HD_TIMING_JIT 1, 2, 3, 4 Detects the error of timing jitter value for Does not detect the error of timing jitter value for HD.
  • Page 28 2. TELNET Command Parameter1 Parameter2 Description for SD. Queries the upper limit of the rise time for SD. SYS:UNIT:ERROR:SD_FALL 1, 2, 3, 4 Enables the error detection of the fall time for SD. Disables the error detection of the fall time for SD.
  • Page 29 2. TELNET ● EYE LV 58SER02 (EYE PATTERN unit) Command Parameter1 Description Displays the eye pattern waveform. EYE:INTEN:EYE -128 to 127 Sets the intensity of an eye pattern display. Queries the intensity of an eye pattern display. EYE:INTEN:SCALE -8 to 7 Sets the intensity of the scale.
  • Page 30 2. TELNET Command Parameter1 Description EYE:JITTER:SWEEP Displays the jitter waveform for 1 video line. Displays the jitter waveform for 2 video lines. Displays the jitter waveform for 1 video field. Displays the jitter waveform for 2 video fields. Queries the display period of the jitter waveform. EYE:JITTER:FILTER 100KHZ Sets the bandwidth of the jitter measurement greater than or equal to...

  • Page 31: Lv 58Ser03 Commands

    2. TELNET 2.3.4 LV 58SER03 Commands ● WFM LV 58SER03 (COMPOSITE VIDEO INPUT) Command Parameter1 Description Displays the video signal waveform. WFM:INTEN:WFM -128 to 127 Adjusts the intensity of the video waveforms. Queries the intensity of the video waveforms. WFM:COLOR WHITE Sets the waveform display color to white.
  • Page 32 2. TELNET Command Parameter1 Description Queries the sweep magnification mode in case of line display. WFM:SWEEP:V_MAG In case of field display, set the sweep magnification so that the waveform fits on the screen. In case of field display, set the sweep magnification to x20 with respect to X1.
  • Page 33 2. TELNET ● VEC LV 58SER03 (COMPOSITE VIDEO INPUT) Command Parameter1 Description VECTOR Displays vector waveforms. VECTOR:PHASE 0.0 to 359.9 Sets the phase (degree) of the vector waveform. Queries the phase of the vector waveform. VECTOR:INTEN:VECTOR -128 to 127 Sets the intensity of the vector waveform. Queries the intensity of the vector waveform.
  • Page 34 2. TELNET Command Parameter1 Description 7.5P Sets the setup to 7.5%. Queries the setup value. VECTOR:MATRIX:COLORBAR 100P Sets the scale that matches the 100% color bar. Sets the scale that matches the 75% color bar. Queries the scale setting. VECTOR:NTSC_DISPLAY Displays NTSC when input signal is PAL.
  • Page 35 2. TELNET ● PIC LV 58SER03 (COMPOSITE VIDEO INPUT) Command Parameter1 Description PICTURE Displays the pictures. PICTURE:BRIGHT -30 to 30 Adjusts the brightness of the picture display (%). Queries the brightness of the picture display. PICTURE:CONTRAST 0.70 to 1.30 Adjusts the contrast of the picture display. Queries the contrast of the picture display.
  • Page 36 2. TELNET Command Parameter1 Description FULL_FRM Displays a frame including the blanking period. Queries the picture size. ● STATUS LV 58SER03 (COMPOSITE VIDEO INPUT) Command Parameter1 Description STATUS Displays the status.

  • Page 37: Lv 58Ser04 Commands

    2. TELNET 2.3.5 LV 58SER04 Commands ● System Settings LV 58SER04 (MPEG DECODER) Command Parameter1 Parameter2 Description SYS:UNIT:SEMI_AUTO 1, 2, 3, 4 Sets the selection method of DECODE PID to (*1) an automatic setting. Sets the selection method of DECODE PID to a manual setting.
  • Page 38 2. TELNET Command Parameter1 Parameter2 Description Queries the presence of detecting the PCR error. SYS:UNIT:ERROR:PCR:CYCLE 1, 2, 3, 4 10 to 200 Sets the interval (msec) becoming the PCR error. Queries the interval becoming the PCR error. SYS:UNIT:ERROR:PCR:ACCURACY 1, 2, 3, 4 Detects the PCR Accuracy error.
  • Page 39 2. TELNET ● WFM LV 58SER04 (MPEG DECODER) Command Parameter1 Description Displays the video signal waveform. WFM:CH1 Displays CH1. Does not display CH1. Queries the presence of CH1 display. WFM:CH2 Displays CH2. Does not display CH2. Queries the presence of CH2 display. WFM:CH3 Displays CH3.
  • Page 40 2. TELNET Command Parameter1 Description Sets the magnification of the waveform to x5. Queries the magnification of the waveform. WFM:SWEEP:SWEEP Sets the sweep mode to the line display. Sets the sweep mode to the field or frame display. Queries the sweep mode setting. WFM:SWEEP:H_SWEEP Sets 1 line display.
  • Page 41 2. TELNET Command Parameter1 Description WFM:FILTER:NORMAL FLAT Sets the filter to Flat for the component display. LOWPASS Sets the filter to LPF for the component display. Queries the filter setting for the component display. WFM:FILTER:COMPOSITE FLAT Sets the filter to Flat and to parade display of the luminance signal when displaying the pseudo-composite.
  • Page 42 2. TELNET ● VEC LV 58SER04 (MPEG DECODER) Command Parameter1 Description VECTOR Displays vector waveforms. VECTOR:INTEN:VECTOR -128 to 127 Sets the intensity of the vector waveform. Queries the intensity of the vector waveform. VECTOR:COLOR WHITE Sets the waveform display color to white. GREEN Sets the waveform display color to green.
  • Page 43 2. TELNET Command Parameter1 Description Queries the color matrix setting. VECTOR:MATRIX:COMPOSITE:FORMAT AUTO Selects NTSC or PAL automatically when displaying the pseudo-composite. NTSC Displays NTSC when displaying the pseudo-composite. Displays PAL when displaying the pseudo-composite. Queries the display format of the pseudo-composite display.
  • Page 44 2. TELNET Command Parameter1 Description PICTURE:MARKER:16_9 Displays the 16:9 aspect marker. Does not display the 16:9 aspect marker. Queries the presence of displaying the 16:9 aspect marker. PICTURE:MARKER:SAFE_ACTION Displays the safe action markers. Does not display the safe action markers. Queries the presence of displaying the safe action markers.

  • Page 45: Lv 58Ser40A Commands

    2. TELNET 2.3.6 LV 58SER40A Commands ● System Settings LV 58SER40A (DIGITAL AUDIO) Command Parameter1 Parameter2 Description SYS:UNIT:EXT_BNC 1, 2, 3, 4 INPUT Sets all rear BNC connector to input. OUTPUT Sets all rear BNC connector to output. Queries all rear BNC connector setting. SYS:UNIT:ERROR:LEVEL_OVER 1, 2, 3, 4 Detects the level over error.
  • Page 46 2. TELNET ● AUDIO LV 58SER40A (DIGITAL AUDIO) Command Parameter1 Description AUDIO Displays the audio. AUDIO:CH_SEL:NUMBER Sets the number of measurement channels to 8ch. 16CH Sets the number of measurement channels to 16ch. Queries the number of measurement channels. AUDIO:CH_SEL:DISPLAY 1_8CH Sets the channels that are measured to 1-8ch when the number of measurement channels is 8ch.
  • Page 47 2. TELNET Command Parameter1 Description 2sec. 2.5SEC Sets the peak hold time of the peak hold meter to 2.5sec. 3SEC Sets the peak hold time of the peak hold meter to 3sec. 3.5SEC Sets the peak hold time of the peak hold meter to 3.5sec.
  • Page 48 2. TELNET Command Parameter1 Description single Lissajous waveform. Sets the channel that is assigned to the R axis of the single Lissajous waveform to Rt (down mixing). Queries the channel to be assigned to the R axis of the single Lissajous waveform. AUDIO:LISSAJOU:MAP:MULTI_L1 CH1 to CH16 Sets the channel to be assigned to the L1 axis of the...
  • Page 49 2. TELNET Command Parameter1 Description AUDIO:LISSAJOU:MAP:MULTI_L6 CH1 to CH16 Sets the channel to be assigned to the L6 axis of the multi Lissajous waveform. Queries the channel to be assigned to the L6 axis of the multi Lissajous waveform. AUDIO:LISSAJOU:MAP:MULTI_R6 CH1 to CH16 Sets the channel to be assigned to the R6 axis of the multi Lissajous waveform.
  • Page 50 2. TELNET Command Parameter1 Description the sound image waveform. AUDIO:S_IMAGE:MAP:R CH1 to CH16 Sets the channel to be assigned to the R axis of the sound image waveform. Queries the channel to be assigned to the R axis of the sound image waveform. AUDIO:S_IMAGE:MAP:C CH1 to CH16 Sets the channel to be assigned to the C axis of the...
  • Page 51 2. TELNET Command Parameter1 Description Queries the displaying order of the channel status bit. AUDIO:STATUS:USER_BIT CH1 to CH16 Sets the channel of the user bit screen. Queries the channel of the user bit screen. AUDIO:STATUS:USER_ALIGN LSB1ST Displays the user bit from LSB. MSB1ST Displays the user bit from MSB.
  • Page 52 2. TELNET Command Parameter1 Description MUTE Measures loudness using input signals. Queries the loudness measurement method. AUDIO:LOUD:AUTO_START:H 0 to 23 Sets the time code start hour. Queries the time code start hour. AUDIO:LOUD:AUTO_START:M 0 to 59 Sets the time code start minute. Queries the time code start minute.
  • Page 53 2. TELNET Command Parameter1 Description Does not assign a channel to Rsch. Queries the channel to assign to Rsch. AUDIO:LOUD:MAP:RL CH1 to CH16 Selects the channel to assign to sub Lch. Queries the channel to assign to sub Lch. AUDIO:LOUD:MAP:RR CH1 to CH16 Selects the channel to assign to sub Rch.
  • Page 54 2. TELNET Command Parameter1 Description LORO Sets the function of the AUX CH to LoRo. MONO Sets the function of the AUX CH to MONO. MUTE Sets the function of the AUX CH to MUTE. Sets the function of the AUX CH. AUDIO:DOLBY:AUX_CH_DRC LINE Sets the Dynamic Range Control to LINE.
  • Page 55 2. TELNET Command Parameter1 Description LINE Sets the Dolby Digital signal dynamic range control to LINE. Sets the Dolby Digital signal dynamic range control to RF. Queries the Dolby Digital signal dynamic range control. AUDIO:INPUT_SELECT DIGITAL Measures the digital audio signal. ANALOG Measures the analog audio signal.

  • Page 56: Ftp

    3. FTP You can transfer files, such as data dumps, from the LV 7800 to a network-connected PC through the Ethernet port on the rear panel. Procedure To use FTP, follow the procedure below. Configure the LV 7800 Ethernet settings, and connect an Ethernet cable.

  • Page 57: How To Enter Commands

    [Command] + [Space] + [Parameter 1] + [Space] + [Parameter 2] ● Command Entry Examples (Data dump transfer) Use the following Telnet command to create the data dump on the LV 7800 and save it to the instrument’s internal memory.

  • Page 58: Snmp

    4. SNMP SNMP By using SNMP (Simple Network Management Protocol), you can control an LV 7800 from SNMP managers. Additionally, you can also notify the SNMP managers of SDI signal errors that the LV 7800 generates. Procedure To control an LV 7800 remotely over SNMP, follow the procedure below.
  • Page 59 Enabling (ENABLE:1) or disabling (DISABLE:2) TRAP transmission destination 4 1.3.6.1.4.1.leader(20111).lv7800(12).lv7800ST1(1).l12trapTBL(9).l 12trapIpTBL(2).l12trapIp4TBL(4).l12trapManagerIp4Act(2).0 Restart the LV 7800. When the LV 7800 starts, it transmits the standard TRAP “coldStart(0).” Check that this is received by the SNMP managers. SNMP Version SNMPv1 Community Name...

  • Page 60: Mib

    4. SNMP This section explains the MIB (Management Information Base) that the LV 7800 uses. In the tables that follow, “ACCESS” has the following meanings: ACCESS Description Information that can only be retrieved from the SNMP managers. Information that can be retrieved and set from the SNMP managers.
  • Page 61 4. SNMP ● interface group SYNTAX ACCESS SUPPORT ifNumber interfaces.1 INTEGER ○ ifTable interfaces.2 Aggregate ○ ifEntry ifTable.1 Aggregate ○ ifIndex ifEntry.1 INTEGER ○ ifDescr ifEntry.2 DisplayString ○ ifType ifEntry.3 INTEGER ○ ifMtu ifEntry.4 INTEGER ○ ifSpeed ifEntry.5 Gauge ○ ifPhysAddress ifEntry.6 OctetString...
  • Page 62 4. SNMP SYNTAX ACCESS SUPPORT ipReasmFails ip.16 Counter ○ ipFragOKs ip.17 Counter ○ ipFragFails ip.18 Counter ○ ipFragCreates ip.19 Counter ○ ipAddrTable ip.20 Aggregate ○ ipAddrEntry ipAddrTable.1 Aggregate ○ ipAdEntAddr ipAddrEntry.1 IpAddress ○ ipAdEntIfIndex ipAddrEntry.2 INTEGER ○ ipAdEntNetMask ipAddrEntry.3 IpAddress ○...
  • Page 63 4. SNMP SYNTAX ACCESS SUPPORT icmpInRedirects icmp.7 Counter ○ icmpInEchos icmp.8 Counter ○ icmpInEchoReps icmp.9 Counter ○ icmpInTimestamps icmp.10 Counter ○ icmpInTimestampReps icmp.11 Counter ○ icmpInAddrMasks icmp.12 Counter ○ icmpInAddrMaskReps icmp.13 Counter ○ icmpOutMsgs icmp.14 Counter ○ icmpOutErrors icmp.15 Counter ○...
  • Page 64 4. SNMP ● udp group SYNTAX ACCESS SUPPORT udpInDatagrams udp.1 Counter ○ udpNoPorts udp.2 Counter ○ udpInErrors udp.3 Counter ○ udpOutDatagrams udp.4 Counter ○ udpTable udp.5 Aggregate ○ udpEntry udpTable.1 Aggregate ○ udpLocalAddress udpEntry.1 IpAddress ○ udpLocalPort udpEntry.2 INTEGER ○ ●...

  • Page 65: Enterprise Mib

    The file name is “lv7800.my”. ● Enterprise MIB Structure The enterprise MIB structure is shown below. On the LV 7800 that does not have option boards installed, the MIB for the options cannot be controlled. leader OBJECT IDENTIFIER ::= { enterprises 20111 }...
  • Page 66 4. SNMP ● l12basicTBL(1) group SYNTAX ACCESS VALUE/RANGE l12basDisplay l12basicTBL.1 INTEGER 1 = display1 2 = display2 3 = display3 4 = display4 l12basMulti l12basicTBL.2 INTEGER 1 = on 2 = off l12basInputTBL l12basicTBL.3 Aggregate l12basInputUnit l12basInputTBL.1 INTEGER 1 = unit1 2 = unit2 3 = unit3 4 = unit4...
  • Page 67 4. SNMP ● l12systemTBL(2) group LV 7800 (MULTI MONITOR) SYNTAX ACCESS VALUE/RANGE l12sysUnitTBL l12systemTBL.1 Aggregate l12sysUnitSetup (*1) l12sysUnitTBL.1 INTEGER 1 = unit1 2 = unit2 3 = unit3 4 = unit4 l12sysUnit1Info l12sysUnitTBL.2 INTEGER 1 = none 2 = SDI...
  • Page 68 4. SNMP SYNTAX ACCESS VALUE/RANGE 11 = 1080p/25 12 = 1080p/24 13 = 1080p/23.98 14 = 720p/60 15 = 720p/59.94 16 = 720p/50 17 = 720p/30 18 = 720p/29.97 19 = 720p/25 20 = 720p/24 21 = 720p/23.98 22 = 525i/59.94 23 = 625i/50 l12sysDate l12systemTBL.5...
  • Page 69 3 = MULTI-LINE This is initialized to unit1 when the LV 7800 turns ON. If you want to specify a value for each board, select the unit number here first. After you select the unit number, it is saved until you change the...
  • Page 70 4. SNMP ● l12systemTBL(2) group LV 58SER01A (SDI INPUT) SYNTAX ACCESS VALUE/RANGE l12sysUnitSdiTBL l12systemTBL.2 Aggregate l12sysUnitSdiLinkFormat l12sysUnitSdiTBL.1 INTEGER 1 = SINGLE 2 = DUAL 3 = 2K l12sysUnitSdiIPSF l12sysUnitSdiTBL.2 INTEGER 1 = INTERLACE 2 = SEG.FRAM l12sysUnitSdiDualTBL l12sysUnitSdiTBL.3 Aggregate l12sysUnitSdiDualSystem l12sysUnitSdiDualTBL.1 INTEGER 1 = GBR-444...
  • Page 71 4. SNMP SYNTAX ACCESS VALUE/RANGE l12sysUnitSdiErrAncParity l12sysUnitSdiErrAncTBL.1 INTEGER 1 = ON 2 = OFF l12sysUnitSdiErrAncChecksum l12sysUnitSdiErrAncTBL.2 INTEGER 1 = ON 2 = OFF l12sysUnitSdiErrAudTBL l12sysUnitSdiTBL.9 Aggregate l12sysUnitSdiErrAudioBch l12sysUnitSdiErrAudTBL.1 INTEGER 1 = ON 2 = OFF l12sysUnitSdiErrAudioDbn l12sysUnitSdiErrAudTBL.2 INTEGER 1 = ON 2 = OFF l12sysUnitSdiErrAudioParity l12sysUnitSdiErrAudTBL.3...
  • Page 72 4. SNMP SYNTAX ACCESS VALUE/RANGE l12sysUnitSdiErrLevelTBL l12sysUnitSdiTBL.13 Aggregate l12sysUnitSdiErrLevel l12sysUnitSdiErrLevelTBL.1 INTEGER 1 = ON 2 = OFF l12sysUnitSdiErrLevelRumaUpper l12sysUnitSdiErrLevelTBL.2 INTEGER -51 to 766 l12sysUnitSdiErrLevelRumaLower l12sysUnitSdiErrLevelTBL.3 INTEGER -51 to 766 l12sysUnitSdiErrLevelChromaUpper l12sysUnitSdiErrLevelTBL.4 INTEGER -400 to 399 l12sysUnitSdiErrLevelChromaLower l12sysUnitSdiErrLevelTBL.5 INTEGER -400 to 399 ●...
  • Page 73 4. SNMP ● l12systemTBL(2) group LV 58SER02 (EYE PATTERN unit) SYNTAX ACCESS VALUE/RANGE l12sysUnitEyeTBL l12systemTBL.4 Aggregate l12sysUnitEyeErrHdTBL l12sysUnitEyeTBL.1 Aggregate l12sysUnitEyeErrHdAmp l12sysUnitEyeErrHdTBL.1 INTEGER 1 = ON 2 = OFF l12sysUnitEyeErrHdAmpUpper l12sysUnitEyeErrHdTBL.2 INTEGER 80 to 140 l12sysUnitEyeErrHdAmpLower l12sysUnitEyeErrHdTBL.3 INTEGER 40 to 100 l12sysUnitEyeErrHdRise l12sysUnitEyeErrHdTBL.4 INTEGER...
  • Page 74 4. SNMP ● l12systemTBL(2) Group LV 58SER04 (MPEG DECODER) SYNTAX ACCESS VALUE/RANGE l12sysUnitMpegTBL l12systemTBL.11 Aggregate l12sysUnitMpegSemiAutoSearch l12sysUnitMpegTBL.1 INTEGER 1 = ON 2 = OFF l12sysUnitMpegErrSyncByte l12sysUnitMpegTBL.2 INTEGER 1 = ON 2 = OFF l12sysUnitMpegErrContinuity l12sysUnitMpegTBL.3 INTEGER 1 = ON 2 = OFF l12sysUnitMpegErrPat l12sysUnitMpegTBL.4 INTEGER...
  • Page 75 4. SNMP ● l12wfmTBL(3) group * Valid when MODE of DISPLAY selected is WFM. SYNTAX ACCESS VALUE/RANGE l12wfmDispTBL l12wfmTBL.1 Aggregate l12wfmDispCh1 l12wfmDispTBL.1 INTEGER 1 = ON 2 = OFF l12wfmDispCh2 l12wfmDispTBL.2 INTEGER 1 = ON 2 = OFF l12wfmDispCh3 l12wfmDispTBL.3 INTEGER 1 = ON 2 = OFF...
  • Page 76 4. SNMP SYNTAX ACCESS VALUE/RANGE 2 = X10 3 = X20 4 = ACTIVE 5 = BLANK l12wfmSweepVMag l12wfmSweepTBL.6 INTEGER 1 = X1 2 = X20 3 = X40 l12wfmLineSelTBL l12wfmTBL.6 Aggregate l12wfmLineSelect l12wfmLineSelTBL.1 INTEGER 1 = ON 2 = OFF l12wfmLineField l12wfmLineSelTBL.2 INTEGER...
  • Page 77 4. SNMP SYNTAX ACCESS VALUE/RANGE l12wfmMatrixSetup l12wfmMatrixTBL.4 INTEGER 1 = 0P 2 = 7.5P l12wfmMatrixCompositeFormat l12wfmMatrixTBL.5 INTEGER 1 = AUTO 2 = NTSC 3 = PAL ● l12vectorTBL(4) group * Valid when MODE of DISPLAY selected is VECTOR. SYNTAX ACCESS VALUE/RANGE l12vecIntenTBL l12vectorTBL.1...
  • Page 78 4. SNMP SYNTAX ACCESS VALUE/RANGE 2 = NTSC 3 = PAL l12vecMode l12vectorTBL.6 INTEGER 1 = VECTOR 2 = 5BAR l12vecPersistTBL l12vectorTBL.7 Aggregate l12vecPersistence l12vecPersistTBL.1 INTEGER 1 = ON 2 = OFF 3 = INFINIT l12vecPersistClear l12vecPersistTBL.2 INTEGER R/WO 1 = PERSIST CLEAR l12vec5BarTBL l12vectorTBL.8 Aggregate...
  • Page 79 4. SNMP SYNTAX ACCESS VALUE/RANGE 2 = OFF l12picLineSelTBL l12pictureTBL.6 Aggregate l12picLineSelect l12picLineSelTBL.1 INTEGER 1 = ON 2 = OFF l12picLineField l12picLineSelTBL.2 INTEGER 1 = FIELD1 2 = FIELD2 3 = FRAME l12picLineNumber l12picLineSelTBL.2 INTEGER 1 to 1125 l12picSize l12pictureTBL.7 INTEGER 1 = FIT 2 = REAL...
  • Page 80 4. SNMP ● l12audioTBL(6) group * Valid when MODE of DISPLAY selected is AUDIO. SYNTAX ACCESS VALUE/RANGE l12audChSelTBL l12audioTBL.1 Aggregate l12audChSelNunmer l12audChSelTBL.1 INTEGER 1 = 8CH 2 = 16CH l12audChSelDisplay l12audChSelTBL.2 INTEGER 1 = 1-8CH 2 = 9-16CH l12audDisplayMode l12audioTBL.2 INTEGER 1 = LISSAJOU 2 = S-IMAGE...
  • Page 81 4. SNMP SYNTAX ACCESS VALUE/RANGE l12audLissajouAutoGain l12audLissajouTBL.4 INTEGER 1 = ON 2 = OFF l12audLissajouMapTBL l12audLissajouTBL.5 Aggregate l12audlissajouMapSingleL l12audLissajouMapTBL.1 INTEGER 1 = CH1 2 = CH2 3 = CH3 4 = CH4 5 = CH5 6 = CH6 7 = CH7 8 = CH8 9 = CH9 10 = CH10...
  • Page 82 4. SNMP SYNTAX ACCESS VALUE/RANGE 10 = CH10 11 = CH11 12 = CH12 13 = CH13 14 = CH14 15 = CH15 16 = CH16 l12audlissajouMapMultiR1 l12audLissajouMapTBL.4 INTEGER 1 = CH1 2 = CH2 3 = CH3 4 = CH4 5 = CH5 6 = CH6 7 = CH7...
  • Page 83 4. SNMP SYNTAX ACCESS VALUE/RANGE 8 = CH8 9 = CH9 10 = CH10 11 = CH11 12 = CH12 13 = CH13 14 = CH14 15 = CH15 16 = CH16 l12audlissajouMapMultiL3 l12audLissajouMapTBL.7 INTEGER 1 = CH1 2 = CH2 3 = CH3 4 = CH4 5 = CH5...
  • Page 84 4. SNMP SYNTAX ACCESS VALUE/RANGE 6 = CH6 7 = CH7 8 = CH8 9 = CH9 10 = CH10 11 = CH11 12 = CH12 13 = CH13 14 = CH14 15 = CH15 16 = CH16 l12audlissajouMapMultiR4 l12audLissajouMapTBL.10 INTEGER 1 = CH1 2 = CH2...
  • Page 85 4. SNMP SYNTAX ACCESS VALUE/RANGE 4 = CH4 5 = CH5 6 = CH6 7 = CH7 8 = CH8 9 = CH9 10 = CH10 11 = CH11 12 = CH12 13 = CH13 14 = CH14 15 = CH15 16 = CH16 l12audlissajouMapMultiL6 l12audLissajouMapTBL.13...
  • Page 86 4. SNMP SYNTAX ACCESS VALUE/RANGE 2 = CH2 3 = CH3 4 = CH4 5 = CH5 6 = CH6 7 = CH7 8 = CH8 9 = CH9 10 = CH10 11 = CH11 12 = CH12 13 = CH13 14 = CH14 15 = CH15 16 = CH16...
  • Page 87 4. SNMP SYNTAX ACCESS VALUE/RANGE 16 = CH16 l12audlissajouMapMultiR8 l12audLissajouMapTBL.18 INTEGER 1 = CH1 2 = CH2 3 = CH3 4 = CH4 5 = CH5 6 = CH6 7 = CH7 8 = CH8 9 = CH9 10 = CH10 11 = CH11 12 = CH12 13 = CH13...
  • Page 88 4. SNMP SYNTAX ACCESS VALUE/RANGE 4 = CH4 5 = CH5 6 = CH6 7 = CH7 8 = CH8 9 = CH9 10 = CH10 11 = CH11 12 = CH12 13 = CH13 14 = CH14 15 = CH15 16 = CH16 l12audSImageMapLs l12audSImageMapTBL.3...
  • Page 89 4. SNMP SYNTAX ACCESS VALUE/RANGE 2 = CH2 3 = CH3 4 = CH4 5 = CH5 6 = CH6 7 = CH7 8 = CH8 9 = CH9 10 = CH10 11 = CH11 12 = CH12 13 = CH13 14 = CH14 15 = CH15 16 = CH16...
  • Page 90 4. SNMP SYNTAX ACCESS VALUE/RANGE 16 = CH16 l12audSImageMapRr l12audSImageMapTBL.8 INTEGER 1 = CH1 2 = CH2 3 = CH3 4 = CH4 5 = CH5 6 = CH6 7 = CH7 8 = CH8 9 = CH9 10 = CH10 11 = CH11 12 = CH12 13 = CH13...
  • Page 91 4. SNMP SYNTAX ACCESS VALUE/RANGE 14 = CH14 15 = CH15 16 = CH16 l12audStatusUserBit l12audStatusTBL.3 INTEGER 1 = CH1 2 = CH2 3 = CH3 4 = CH4 5 = CH5 6 = CH6 7 = CH7 8 = CH8 9 = CH9 10 = CH10 11 = CH11...
  • Page 92 4. SNMP SYNTAX ACCESS VALUE/RANGE 7 = ch13-14 8 = ch15-16 l12audDolbyEDialnorm l12audDolbyTBL.3 INTEGER 1 = ON 2 = OFF l12audDolbyEPulldown l12audDolbyTBL.4 INTEGER 1 = ON 2 = OFF l12audDolbyEMetaPrm l12audDolbyTBL.5 INTEGER 1 = PRM1 2 = PRM2 3 = PRM3 4 = PRM4 5 = PRM5 6 = PRM6...
  • Page 93 4. SNMP ● l12statusTBL(7) group * Valid when MODE of DISPLAY selected is STATUS. SYNTAX ACCESS VALUE/RANGE l12staCounter l12statusTBL.1 INTEGER 1 = SEC 2 = FIELD 3 = PER-FIELD l12staReset l12statusTBL.2 INTEGER R/WO 1 = STATUS RESET l12staLogTBL l12statusTBL.3 Aggregate l12staLog l12staLogTBL.1 INTEGER...
  • Page 94 4. SNMP SYNTAX ACCESS VALUE/RANGE 2 = 1kHz 3 = 100Hz 4 = 10Hz 5 = Timing 6 = Alignment l12eyeJitterTBL l12eyeTBL.7 Aggregate l12eyeJitterPeakHold l12eyeJitterTBL.1 INTEGER 1 = ON 2 = OFF l12eyeJitterPeakClear l12eyeJitterTBL.2 INTEGER R/WO 1 = PEAK CLEAR l12eyeJitterGain l12eyeJitterTBL.3 INTEGER...
  • Page 95 4. SNMP SYNTAX ACCESS VALUE/RANGE l12eyeCurrentJitterUi (*2) l12eyeMonTBL.7 OctetString HD:0 to 9.600UIp-p SD:0 to 9.600UIp-p Unable to measure:--- Valid during eye pattern display. Sends the displayed measured value. Valid during jitter display. Sends the displayed measured value. ● l12trapTBL(9) group SYNTAX ACCESS VALUE/RANGE...

  • Page 96: Enterprise Trap

    This section describes the enterprise traps of the LV 7800. The LV 7800 will not be able to perform trap processing on all events when events occur consecutively at a rate of one event per second or more. The trap buffer can store up to 1000 events.

  • Page 97: Variable Binding List

    Timing jitter error detection (EYE:SD) Current jitter error detection (EYE:SD) 4.3.2 Variable Binding List ● index 1 OID: leader(20111).lv7800(12).lv7800ST1(1).trapTBL(9).trapStrTBL(1).1.0 Syntax: Counter Range: 1 to 4294967295 (overflow occurs if this range is exceeded) Description: The total number of enterprise traps sent after starting up.
  • Page 98 4. SNMP List of format information for TRAP List of error information for TRAP Syntax Format Syntax Description 1080i/60 1080i/60 CRC_Y_ERR CRC error detection (LUMA) 1080sF/30 1080sF/30 CRC_C_ERR CRC error detection (CHROMA) 1080i/59.94 1080i/59.94 EDH_ERR EDH error detection 1080sF/29.97 1080sF/29.97 TRS_P_ERR TRS error detection (POS) 1080i/50...

  • Page 99: Firmware Revision History

    5. FIRMWARE REVISION HISTORY FIRMWARE REVISION HISTORY This manual was written for firmware version 5.5. To confirm the version, press a key in order of SYS => F•5 SYSTEM INFORMATION.
  • Page 100 LEADER ELECTRONICS CORP. 2-6-33 Tsunashima-Higashi, Kohoku-ku, Yokohama 223-8505, Japan PHONE:81-45-541-2123 FAX:81-45-541-2823 http://www.leader.co.jp July 9, 2014 Ver. 3 (FW Ver. 5.5)
