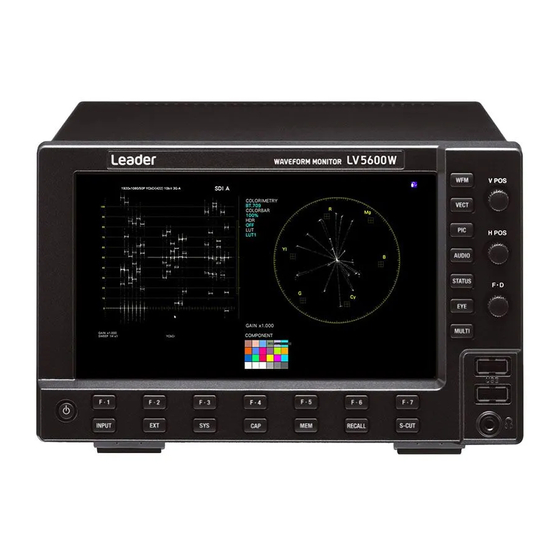

- Page 1 LV5600W WAVEFORM MONITOR LV7600W RASTERIZER Installation Manual Firmware Update Procedure The firmware update takes approximately 30 minutes per unit.
- Page 2 LV5600W / LV7600W Firmware Update Procedure INTRODUCTION This instillation manual describes the procedure for updating the LV5600W / LV7600W firmware. Read the terms of use as stated on Leader's website, and this manual before downloading the firmware. PREPARATION Confirming Version Confirm the firmware version of the LV5600W / LV7600W mainframe before updating the firmware.
-
Page 3: Equipment Required
When you update the firmware, the current settings will be initialized. If you want to use them after updating the firmware, save them to the instruments preset. For details of the preset see “Instruction Manual for LV5600W / LV7600W”. Downloading Firmware Apply the procedure below when downloading the firmware. -
Page 4: Connecting The Lan Cable
LV5600W / LV7600W Firmware Update Procedure Connecting the LAN Cable To update the firmware, the ETHERNET 1 and ETHERNET 2 ports on the rear panel must be connected to the network. If ETHERNET 1 and ETHERNET 2 are connected to network devices in operation, update them as they are. - Page 5 LV5600W / LV7600W Firmware Update Procedure UPDATE Apply the procedure below when updating the firmware. Turn on the LV5600W / LV7600W. Connect the USB memory containing the firmware to the USB connector of the LV5600W / LV7600W. Confirm that the USB icon appears in the top right of the screen.
- Page 6 The update is complete when the measurement screen appears. Confirm that the firmware version of the LV5600W / 7600W is correct. Confirm that “FIRMWARE” in [SYS] > [F3] SYSTEM INFO is the updated version. Remove the USB memory from the USB connector.
