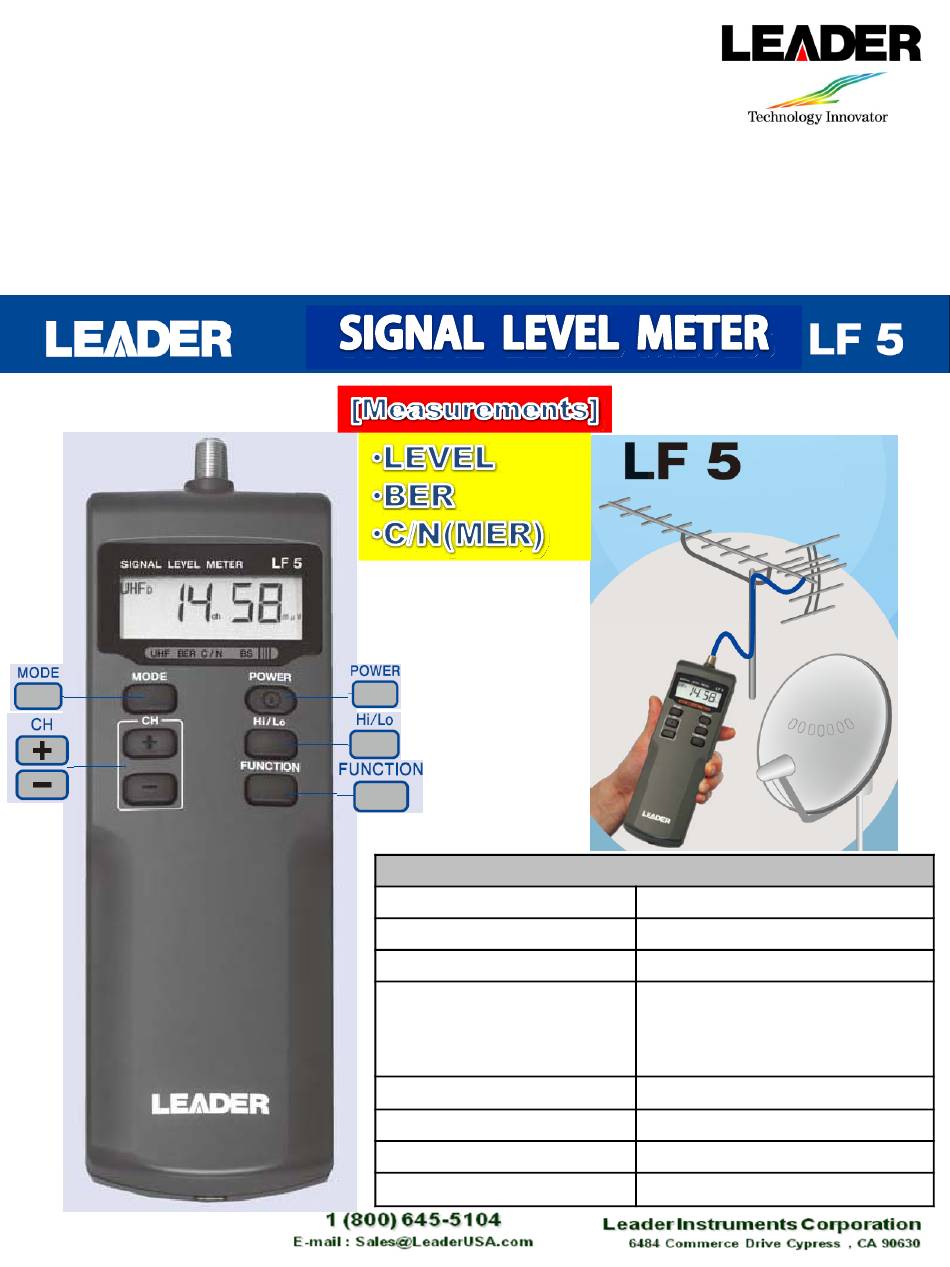

[LF5]
SIGNAL LEVEL METER
Designed specifically for the ISDB‐Tb terrestrial format now
being implemented in SOUTH AMERICA.
LF5 is the Signal Level METER for the ISDB‐Tb terrestrial broadcasting.
By using LF5, you can find the best place, direction and height to erect
a television antenna on the roof.
UHF Digital
UHF Analog
Power
Operating Time
Auto Power Off
Operating Temperature Range
Size
Weight
Main Specification
Level, BER, CN conversion(MER)
Level
size AA batteries 3 pieces
Alkaline
24 hours of continuous operation
3 hours and half (BER,CN)
5 minutes use 30 minutes rest
5 minutes in no operation
0℃～40℃
H189×W62×D26mm
180g
Advertisement
Table of Contents
Related Manuals for Leader LF5
Summary of Contents for Leader LF5
- Page 1 [LF5] SIGNAL LEVEL METER Designed specifically for the ISDB‐Tb terrestrial format now being implemented in SOUTH AMERICA. LF5 is the Signal Level METER for the ISDB‐Tb terrestrial broadcasting. By using LF5, you can find the best place, direction and height to erect a television antenna on the roof. Main Specification UHF Digital Level, BER, CN conversion(MER) UHF Analog Level size AA batteries 3 pieces Power Alkaline Operating Time 24 hours of continuous operation 3 hours and half (BER,CN) 5 minutes use 30 minutes rest...
- Page 2 LF5 Operation Guide 1. Connects the cable to the F‐Type Connector. 2. Press the “Power” button for several seconds to turn on the unit 3. Channel selection is displayed on the left side of the display, and level is displayed on the right side of the display. 4. Channel selection Switch the channel by pressing the “CH UP” or “CH DOWN” 5. Level display When “Lo” is displayed, press the “L”to switch to low range. When “Hi” is displayed, press the “H”to switch to high range. In the high range, in the case of “A1” and etc is displayed, it reads as “A1”=101 …”A9”=109. The value will be displayed while the “H” or “L” button is pressed. 6. Differentiating the digital signal and analog signal When the full seg is selected, press the “MENU” for several seconds, auditable audio can be heard if analog signal is received. 7. The “MENU” button is used for switching the full seg and one seg signal 8. Press “FUNCTION” button to toggle for “C/N” or BER measurement 9. Press the “POWER” button for several seconds to turn off the unit Note: Replace the battery while the battery indicator is lit...
