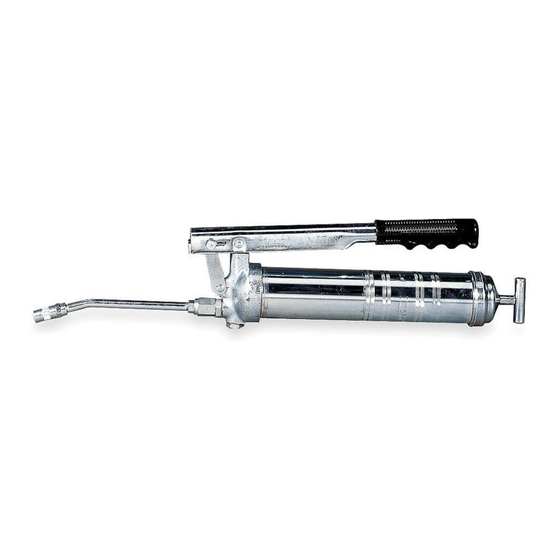

Lever gun
Models 1013 and 1145
Date of issue
March 2015
Form number
404634L
Read manual prior to installation or use
of this product. Keep manual nearby for
future reference.
Installation and maintenance guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1013 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lincoln 1013

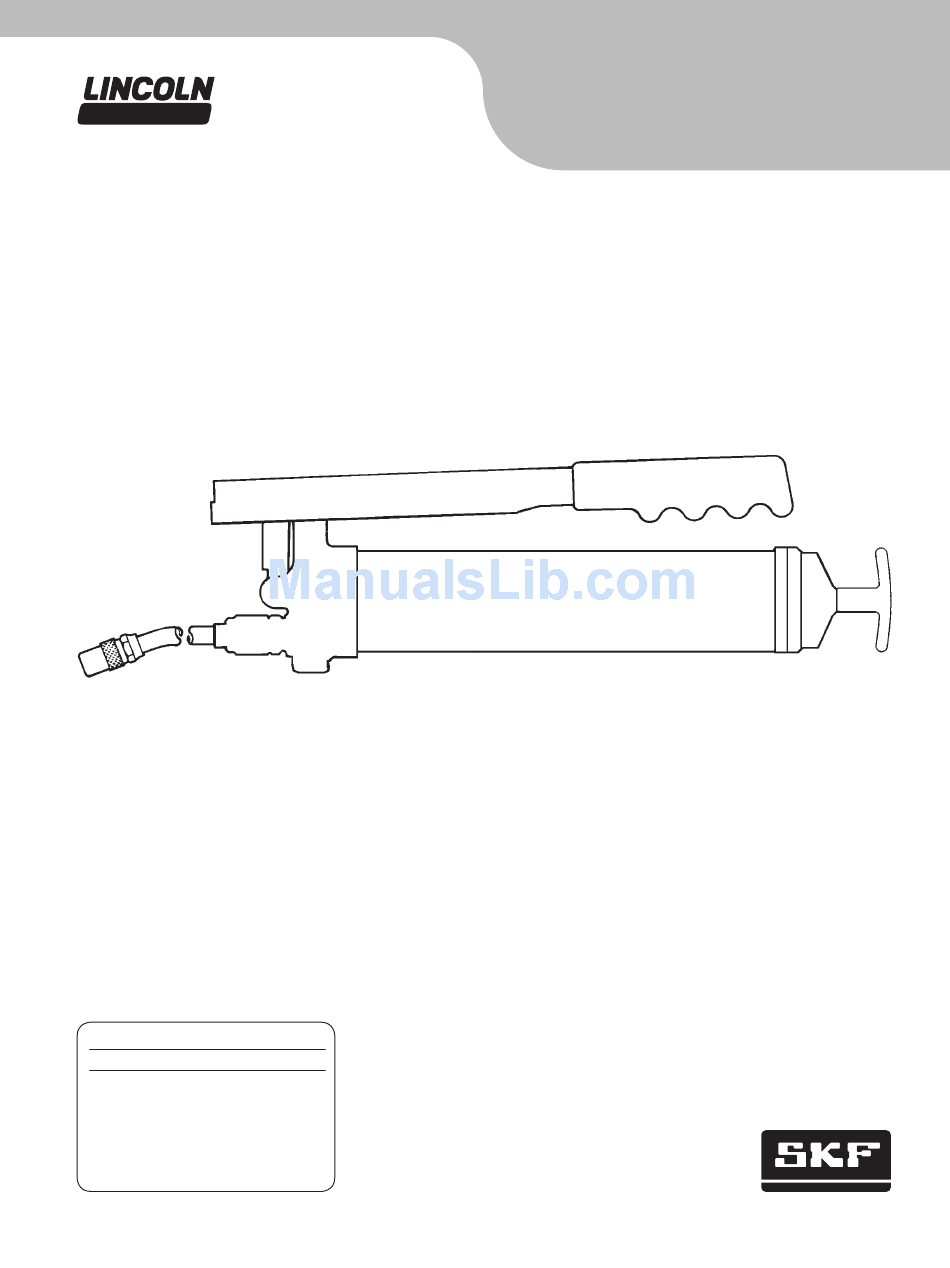

  • Page 1 Installation and maintenance guide Lever gun Models 1013 and 1145 Date of issue March 2015 Form number 404634L Read manual prior to installation or use of this product. Keep manual nearby for future reference.
  • Page 2: Operating Instructions

    Use only operation of the grease gun. Grease gun Wipe fittings clean before lubricating. Lincoln approved hoses and follow whip can develop high pressure up to Push coupler onto fitting at slight angle and hose instructions and warnings.
  • Page 3: To Expel Air Pockets

    To install a lubricant To fill lever gun from To fill lever gun with a cartridge bulk lubricant filler pump container 1 Remove head and plunger assembly from Engage the follower rod with the follower by container tube. rotating the follower handle. Insert the lever 2 To remove an empty cartridge pull back 1 Remove head and plunger assembly from gun filler nipple into the filler pump socket...
  • Page 4 To shift toggle position “High” Knurled position shift view The lever gun toggle can be positioned for screw either “HIGH” or “LOW“ pressure lubricant output. To change the toggle from one position to Lever “Low” position the other, raise the lever gun handle slightly Toggle and loosen the knurled shift screw counter- Stop...
  • Page 5: Lincoln Industrial Standard Warranty

    Lincoln warrants the equipment manufac- valves, 912 series lube meters, electronic Lincoln GmbH and Co. Kg, Walldorf, tured and supplied by Lincoln to be free from Germany, for your warranty rights. lube meters (980, 981, 982 series), our uni- defects in material and workmanship for a...
  • Page 6 This page left intentionally blank...
  • Page 7 This page left intentionally blank...
  • Page 8 ® SKF is a registered trademark of the SKF Group. ® Lincoln is a registered trademark of Lincoln Industrial Corp. © SKF Group 2015 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permis- sion is granted.
