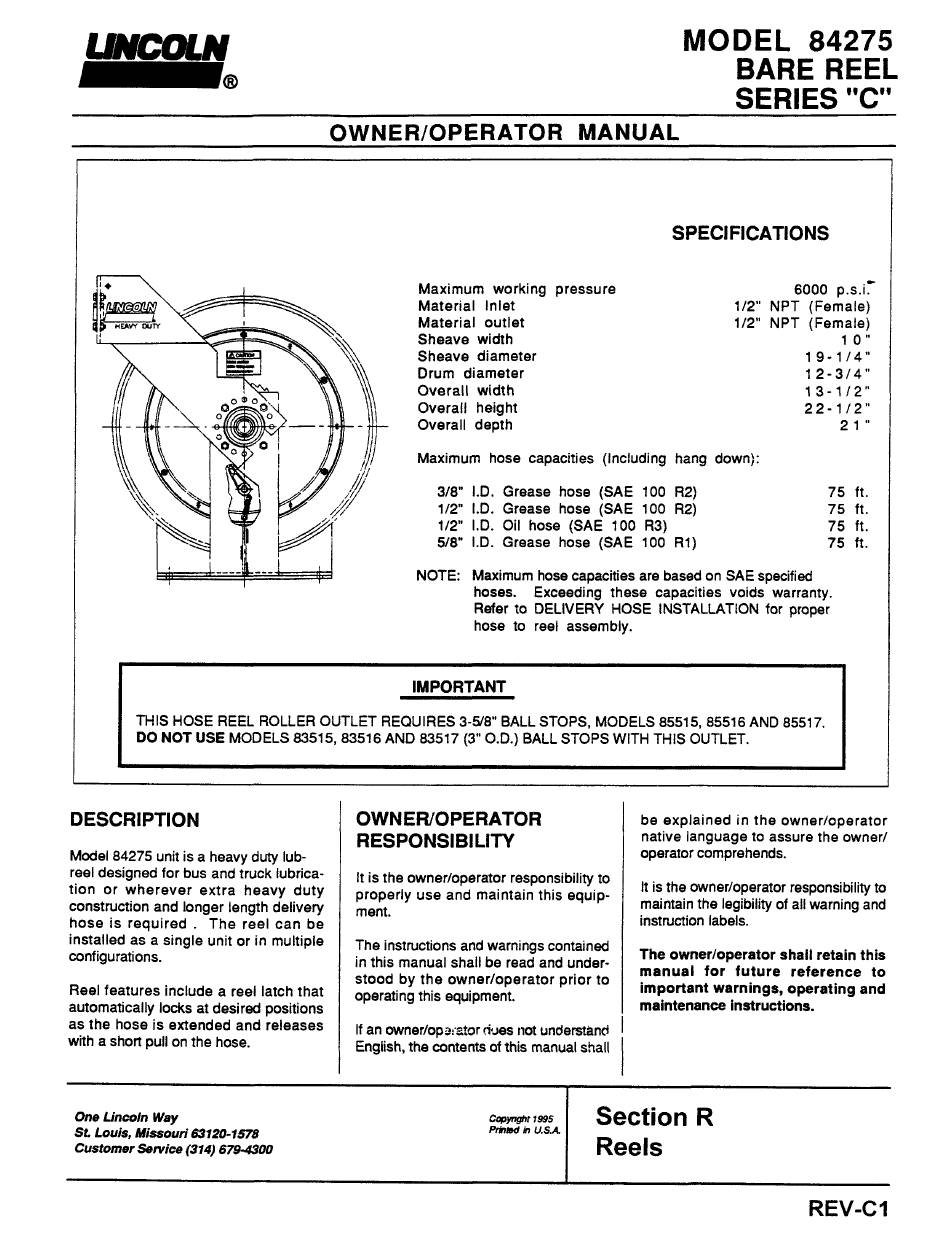

LINCOLN
MODEL
84275
BARE REEL
SERIES "C"
OWNER/OPERATOR
MANUAL
Maximum
working
pressure
Material
Inlet
Material
outlet
Sheave
width
Sheave
diameter
Drum
diameter
Overall
width
Overall
height
Overall
depth
SPECIFICATIONS
6000
p.s.i.
1/2"
NPT
(Female)
1/2"
NPT
(Female)
10"
19-1/4"
12-3/4"
13-1/2"
22-1/2"
21"
Maximum
hose capacities
(Including
hang down):
3/8"
I.D. Grease
hose (SAE
100 R2)
75 ft.
1/2" I.D. Grease
hose (SAE
100 R2)
75
ft.
1/2
I.D. Oil hose (SAE
100 R3)
75 ft.
5/8"
I.D. Grease
hose (SAE
100 R1)
75 ft.
NOTE:
Maximum hose capacities are based on SAE specified
hoses.
Exceeding
these
capacities
voids
warranty.
Refer to DELIVERY
HOSE INSTALLATION
for proper
hose to reel assembly.
IMPORTANT
THIS HOSE REEL ROLLER OUTLET REQUIRES 3-5/8" BALL STOPS, MODELS 85515,85516
AND 85517.
DO NOT USE MODELS 83515,83516
AND 63517 (3" O. D.) BALL STOPS WITH THIS OUTLET.
DESCRIPTION
Model 84275 unit is a heavy duty lub-
reel designed
for bus and truck lubrica-
tion
or wherever
extra
heavy
duty
construction
and longer length delivery
hose is required .
The reel can be
installed
as a single unit or in multiple
configurations.
Reel features
include
a reel latch that
automatically
locks at desired positions
as the hose is extended
and releases
with a short pull on the hose.
OWNER/OPERATOR
be explained
in the owner/operator
RESPONSIBILITY
native language
to assure the owner/
operator comprehends.
It is the owner/operator
responsibility
to
properly
use and maintain
this equip-
It is the owner/operator
responsibility to
ment.
maintain the legibility of all warning and
instruction labels.
The instructions and warnings contained
in this manual shall be read and under-
The owner/operator
shall retain this
stood
by the owner/operator
prior to
manual
for
future
reference
to
operating this equipment.
important
warnings,
operating
and
maintenance
instructions.
If an owner/operator
does not understand
English, the contents of this manual shall
One Lincoln Way
Copyright
1995
Section
R
St Louis, Missouri 63120-1578
Printed in
U.S.A.
Customer service (314) 679-4300
Reels
REV-C1
