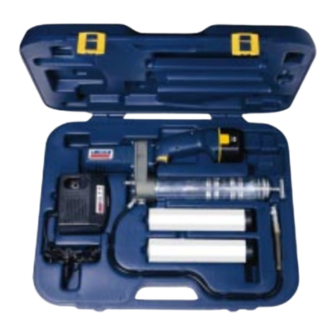

Model 1232 PowerLuber Grease Gun
Series “A”
NOTE: Grease cartridges are not
included.
GENERAL DESCRIPTION
DO NOT HOLD DOWN TRIGGER FOR MORE THAN 5
SECONDS UNDER A STALL CONDITION.
WORK AREA
ELECTRICAL SAFETY
OCT-2001
MODEL AND COMPONENTS
Sales Model Battery Charger
1232
PERSONAL SAFETY
USE AND CARE
CHARGER OPERATION
CHARGING THE BATTERY PACK GENERAL
BATTERY PACK.
NOTE:
CAUTION:
NORMAL CHARGING
Form 422561
1203
1211
INSTALLING OR REMOVING
- F22
Section
Page
- 22
Advertisement
Table of Contents
Related Manuals for Lincoln PowerLuber 1232
Summary of Contents for Lincoln PowerLuber 1232

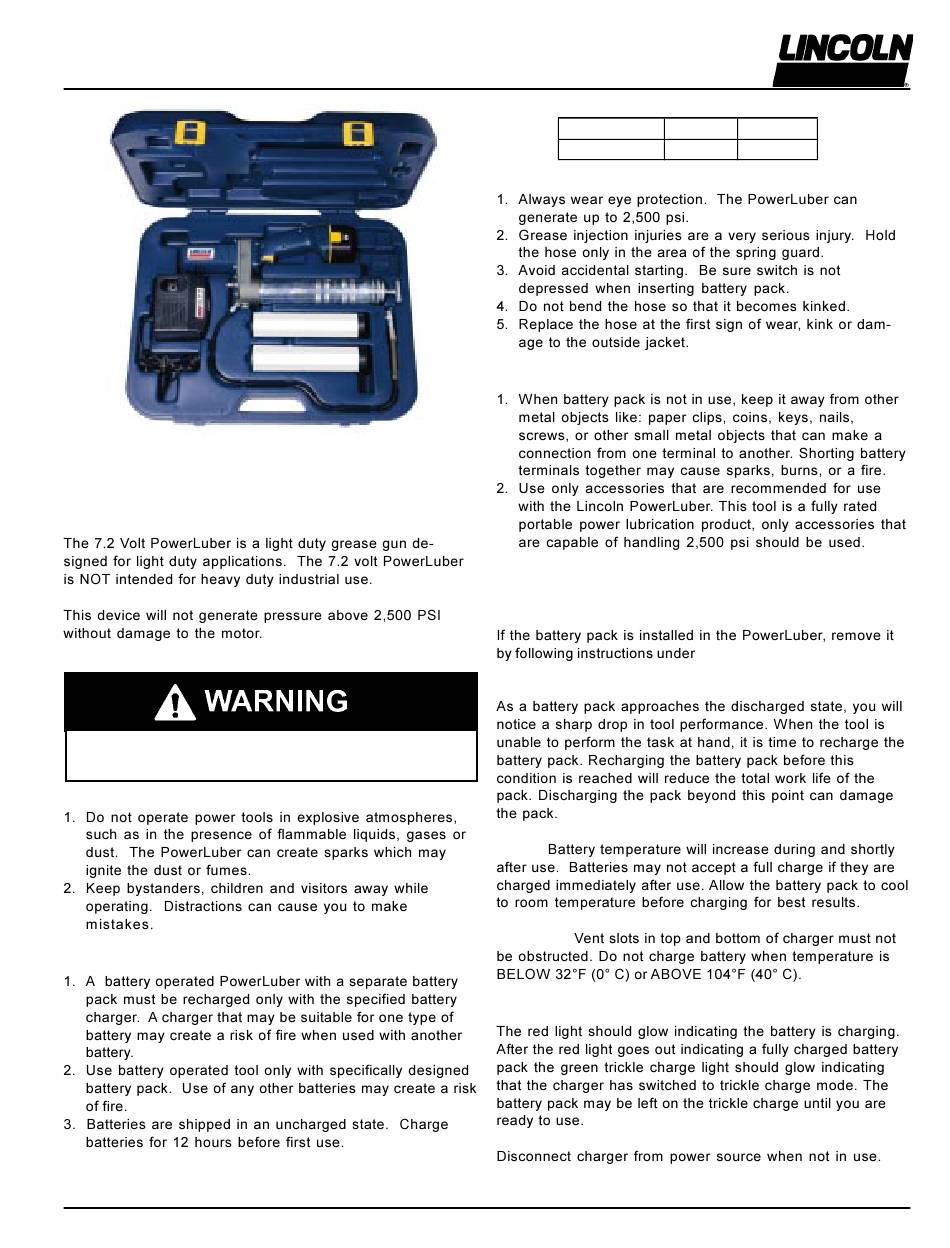

- Page 1 Model 1232 PowerLuber Grease Gun Series “A” MODEL AND COMPONENTS Sales Model Battery Charger 1232 1203 1211 PERSONAL SAFETY USE AND CARE NOTE: Grease cartridges are not included. GENERAL DESCRIPTION CHARGER OPERATION CHARGING THE BATTERY PACK GENERAL INSTALLING OR REMOVING BATTERY PACK.
- Page 2 Model 1232 PowerLuber Grease Gun INSTALLING OR REMOVING BATTERY PACK TO REMOVE BATTERY PACK: TO INSTALL BATTERY PACK: REMOVING EMPTY GREASE CARTRIDGE INSTALLING GREASE CARTRIDGE Figure 4 TO FILL THE GUN WITH A FILLER PUMP TO CONVERT GUN TO ALLOW FILLING FROM BULK CONTAINER OR FILLER PUMP Figure 3 TO FILL THE GUN FROM BULK CONTAINER...
- Page 3 Model 1232 PowerLuber Grease Gun SAFETY INSTRUCTIONS FOR CHARGER AND BATTERIES SAVE THESE INSTRUCTIONS LENGTH OF CORD IN FEET (M) 25 (7.5) 50 (15) 100 (30) 150 (45) AWG SIZE OF CORD (mm²) 18 (1) 18 (1) 18 (1) 16 (1.5) Page Number - 3 Form 422561...
- Page 4 Model 1232 PowerLuber Grease Gun TROUBLESHOOTING Condition Possible Cause Corrective Action Motor fails to run. - Battery needs charging. Recharge battery. - Faulty wiring to motor. Remove battery, disassemble handle and check wiring for loose connection. PowerLuber fails to dispense grease. - Grease tube assembly is out of grease. Check that grease tube assembly has grease. - Loss of prime.
- Page 5 Model 1232 PowerLuber Grease Gun Page Number - 5 Form 422561...
- Page 6 January 31, 2002 DC 2073 We have received several calls that the battery charging procedures found in the owner/operator manual for the 7.2- volt Power-Luber grease gun, models 1205 and 1232, are inconsistent. Service Pages #422561 and #431063 contain incorrect battery charging procedures. Service Page #422561 incorrectly replicated the 12-volt charger instructions. The 12-volt model contains both a red and a green light.
