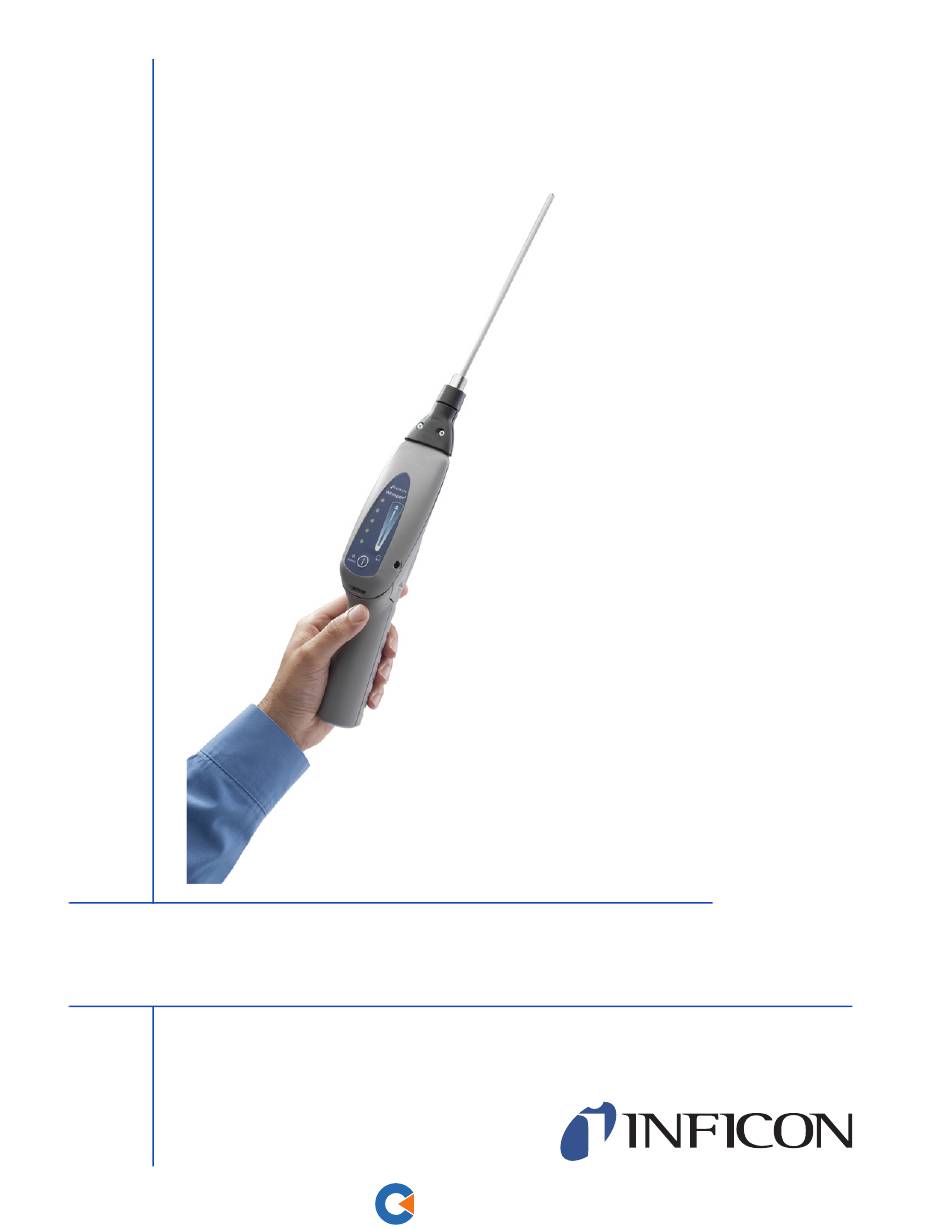

- Page 1 O P E R A T I N G M A N U A L Whisper ® Ultrasonic Leak Detector Valuetesters.com Find Quality Products Online at: info@valuetesters.com...
- Page 2 EU DECLARATION OF CONFORMITY This declaration is issued under the sole responsibility of the manufacturer INFICON. The object of the declaration is to certify that this equipment, designed and manufactured by INFICON, is in conformity with the relevant Community harmonization legislation. It has been constructed in accordance with good...
- Page 3 Laser pointer not available in Japan. ® ® INFICON and Whisper are registered trademarks of INFICON GmbH. Valuetesters.com Find Quality Products Online at: info@valuetesters.com...
-
Page 4: Specifications
Applications A/C refrigerant leaks (any and all types of refrigerant) Checking seals around windows, refrigerators, etc. (when using Whisper Transmitter) Diagnosing mechanical equipment such as pistons, solenoids, bearings, etc. (when using contact probe) Diagnosing solenoid operations ... -
Page 5: Battery Cover
Touch pad Headphone jack Power button Battery cover Laser aperture Battery indicator Introduction Whisper will detect and locate sources of ultrasonic disturbance through the use of sophisticated circuitry. An ultrasonic disturbance is created when objects collide. Vacuum leaks create collisions between molecules flowing through an orifice. Pressure leaks create collisions between molecules exiting an orifice. -
Page 6: General Information
General Information Whisper is sensitive only to ultrasound (40 to 43 kHz) and is unaffected by audible noise. INTERNAL NOISE CONTROL (I.N.C.) allows the use of this instrument in extremely noisy environments such as mechanical rooms, around operational chillers, etc. Drag your finger upward on the sensitivity touch pad to increase sensitivity when experiencing little or no environmental noise. -
Page 7: Locating Leaks
Locating Leaks NOTE: Bumping the accessory probe or nose piece into objects while seeking leaks will cause false alarms. Leaks will be indicated by a beeping alarm and flashing indicators. Disregard occasional short alarms. W A R N I N G Always keep clear of hot and/or moving engine and machinery parts. - Page 8 Heterodyne Feature Whisper features heterodyne capability, which converts the ultrasonic frequencies to sounds that can be heard by the human ear. This allows you to easily isolate the ultrasonic source. Plug the included headphones into the jack on the right side of Whisper to enable heterodyne capability.
- Page 9 Using the Contact Probe (if equipped) The optional metal contact probe offers additional capabilities when used with Whisper. The contact probe can be a useful accessory in diagnosing machinery. For best results, always use the headphones when using the contact probe to enable the heterodyne feature.
-
Page 10: Care And Maintenance
Warranty INFICON warrants your Whisper Ultrasonic Leak Detector to be free from defects of materials or workmanship for two years from the date of purchase. INFICON does not warrant items that deteriorate under normal use, such as power cells. In... - Page 11 Valuetesters.com Find Quality Products Online at: info@valuetesters.com...
- Page 12 074-504-P1D Valuetesters.com Find Quality Products Online at: info@valuetesters.com...
